9r7v

ssRNA-containing helical virus-like particle composed of PVA (isolate Datura) coat protein

Method: ELECTRON MICROSCOPY D_max: 202.4 Å Quality: REASONABLE

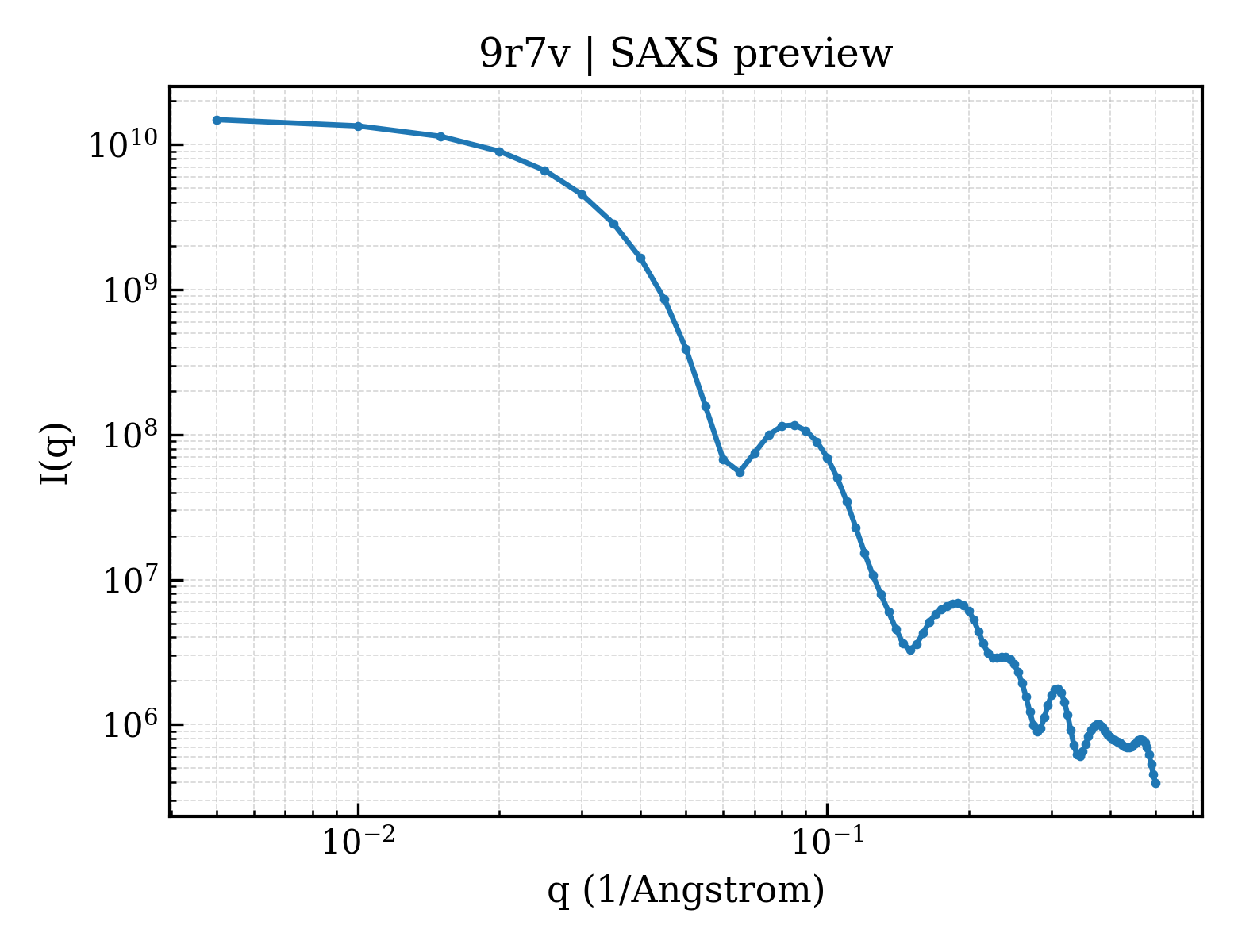

SAXS Profile

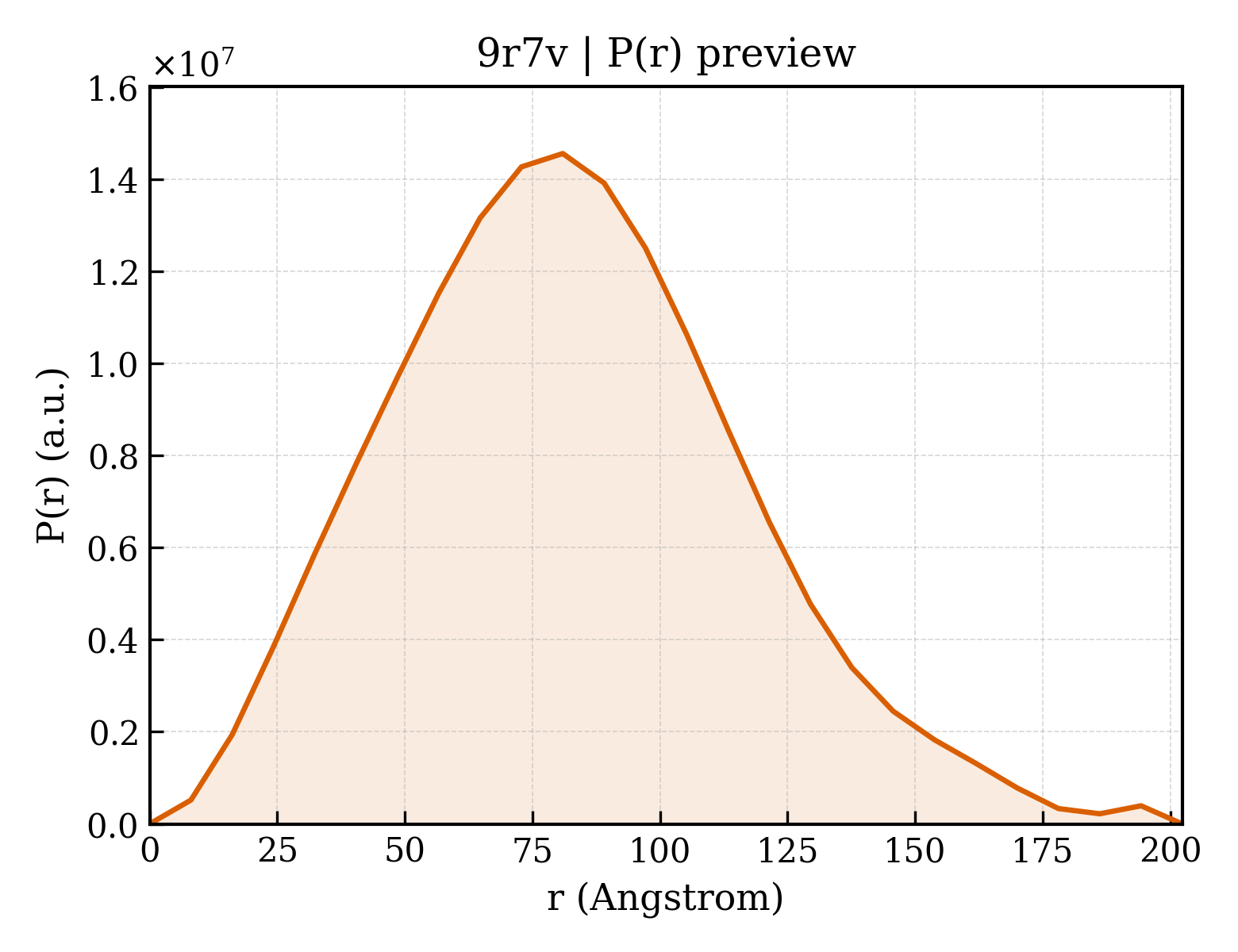

P(r) Distribution

▼

1. Structure Basics

entry_id	9r7v
deposition_date	2025-05-15
title	ssRNA-containing helical virus-like particle composed of PVA (isolate Datura) coat protein
keywords	potato virus A, virus-like particle, potyvirus, coat protein, helical, VIRUS LIKE PARTICLE; VIRUS LIKE PARTICLE
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	63.17 Å
rg_electron	63.37 Å
i0	15377100000.00
molecular_weight	988110.0 kDa
excluded_volume	1209600 Å³
envelope_volume	1666900 Å³
shell_volume	202930 Å³
envelope_diameter	259.2 Å
shell_rg	74.88 Å
envelope_rg	63.76 Å
shape_rg	63.37 Å
total_rg	63.52 Å
total_atoms	68940
n_residues	8316
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	202.4 Å
rg_real	62.82 Å
rg_real_error	0.96 Å
i0_real	1.5350e+10
i0_real_error	2.6690e+08
rg_reciprocal	63.31 Å
i0_reciprocal	15380000000.0000
total_estimate	0.6177
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	81.0 Å
skewness	0.355
kurtosis	-0.032
angular_range	— – 0.1250 Å⁻¹
current_alpha	0.0187
highest_alpha	2880000000.0000
n_real_points	26
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.815; Stabil: 1.000; Sysdev: 0.004; Positv: 1.000; Valcen: 0.944; Smooth: 0.622

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

Entity 1 polymer

description	Genome polyprotein
formula_weight	30359.3 kDa
src_method	man
entity_count	36

Polymer

type	polypeptide(L)
strand_id	Aa,Ac,Ae,Ag,Ai,Ak,Am,Ao,Aq,As,Au,Aw,Ay,Ba,Bc,Be,Bg,Bi,Bk,Bm,Bo,Bq,Bs,Bu,Bw,By,Ca,Cc,Ce,Cg,Ci,Ck,Cm,Co,Cq,Cs
atom_count	68940

AETLDASETLAQKSEGRKKEGESNSSKAVAVKDKDVDLGTAGTHSVPRLKSMTSKLTLPMLKGKSVVNLDHLLSYKPKQVDLSNARATHEQFQNWYDGVMASYELEESSMEIILNGFMVWCIENGTSPDINGVWTMMDNEEQVSYPLKPMLDHAKPSLRQIMRHFSALAEAYIEMRSREKPYMPRYGLQRNLRDQSLARYAFDFYEITATTPIRAKEAHLQMKAAALKNSNTNMFGLDGNVTTSEEDTERHTATDVNRNMHHLLGVKGV

Source

organism	Potato virus A
ncbi_taxonomy_id	12215
host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

description	;RNA (5'-R(PUPUPUPUP*U)-3') ;
formula_weight	1485.9 kDa
src_method	man
entity_count	36

Polymer

type	polyribonucleotide
strand_id	Ab,Ad,Af,Ah,Aj,Al,An,Ap,Ar,At,Av,Ax,Az,Bb,Bd,Bf,Bh,Bj,Bl,Bn,Bp,Br,Bt,Bv,Bx,Bz,Cb,Cd,Cf,Ch,Cj,Cl,Cn,Cp,Cr,Ct

UUUUU

Source

organism	Potato virus A
ncbi_taxonomy_id	12215
host_organism	Escherichia coli BL21(DE3)

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.06 Å
resolution_method	—
num_particles	6503

fit	/app/data/saxs_computation/r7/9r7v/9r7v.fit
pddf	/app/data/pr_computation/r7/9r7v/9r7v.pr.out
profile	/app/data/saxs_computation/r7/9r7v/9r7v.dat
