1. Protein Identity and Related Structures Protein Identity & Related Structures

Genome polyprotein

Potato virus A

UniProt O11986

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 30	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O11986_PVMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain Aa； PDBConstruct 1–269； UniProt 18–286 Author chain Ab； PDBConstruct 1–269； UniProt 18–286 Author chain Ac； PDBConstruct 1–269； UniProt 18–286 Author chain Ad； PDBConstruct 1–269； UniProt 18–286 Author chain Ae； PDBConstruct 1–269； UniProt 18–286 Author chain Af； PDBConstruct 1–269； UniProt 18–286 Author chain Ag； PDBConstruct 1–269； UniProt 18–286 Author chain Ah； PDBConstruct 1–269； UniProt 18–286 Author chain Ai； PDBConstruct 1–269； UniProt 18–286 Author chain Aj； PDBConstruct 1–269； UniProt 18–286 Author chain Ak； PDBConstruct 1–269； UniProt 18–286 Author chain Al； PDBConstruct 1–269； UniProt 18–286 Author chain Am； PDBConstruct 1–269； UniProt 18–286 Author chain An； PDBConstruct 1–269； UniProt 18–286 Author chain Ao； PDBConstruct 1–269； UniProt 18–286 Author chain Ap； PDBConstruct 1–269； UniProt 18–286 Author chain Aq； PDBConstruct 1–269； UniProt 18–286 Author chain Ar； PDBConstruct 1–269； UniProt 18–286 Author chain As； PDBConstruct 1–269； UniProt 18–286 Author chain At； PDBConstruct 1–269； UniProt 18–286 Author chain Au； PDBConstruct 1–269； UniProt 18–286 Author chain Av； PDBConstruct 1–269； UniProt 18–286 Author chain Aw； PDBConstruct 1–269； UniProt 18–286 Author chain Ax； PDBConstruct 1–269； UniProt 18–286 Author chain Ay； PDBConstruct 1–269； UniProt 18–286 Author chain Az； PDBConstruct 1–269； UniProt 18–286 Author chain Ba； PDBConstruct 1–269； UniProt 18–286 Author chain Bb； PDBConstruct 1–269； UniProt 18–286 Author chain Bc； PDBConstruct 1–269； UniProt 18–286 Author chain Bd； PDBConstruct 1–269； UniProt 18–286

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9r7z
Deposition date deposition_date	2025-05-15
Structure title title	RNA-free helical (h10.7) virus-like particle composed of PVA coat protein with 6 mutations (H89Q, E90S, S144E, R163A, K180E, and T210R)
Keywords keywords	potato virus A, virus-like particle, potyvirus, coat protein, helical, VIRUS LIKE PARTICLE; VIRUS LIKE PARTICLE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9r7z__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9r7z__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

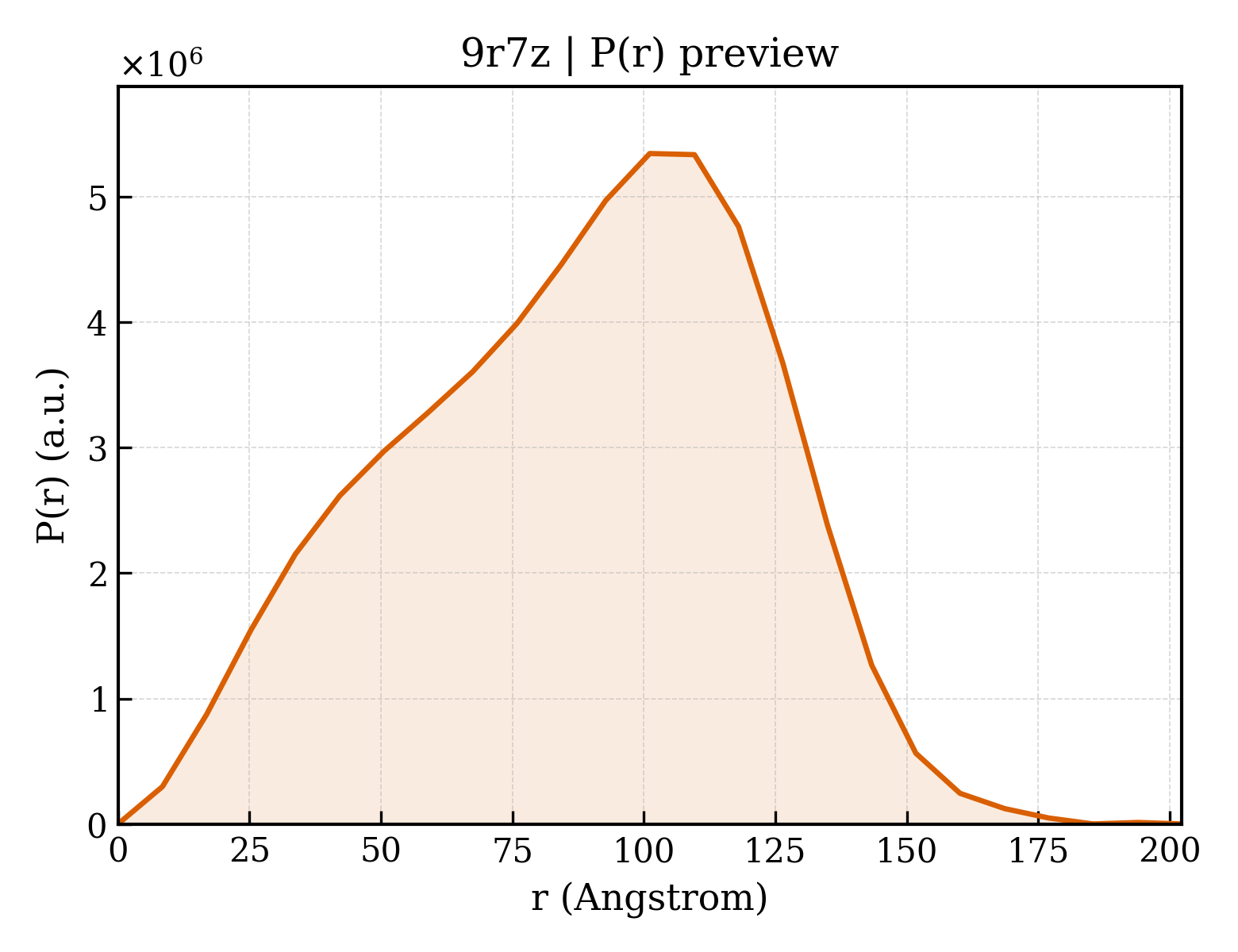

9r7z__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	66.62 Å
Rg (electron density)	66.02 Å
Total Rg	66.29 Å
Atom count	44910
Residues	5550
Excluded volume	800820 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9r7z__assembly_1__model_1`	30-meric （30）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.92 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	71171

Description description	Genome polyprotein
Molecular weight formula_weight	30319.2 kDa
Mutation mutation	H89Q, E90S, S144E, R163A, K180E, T210R
Source method src_method	man
Copy count entity_count	30

Polymer type type	polypeptide(L)
Chain IDs strand_id	Aa,Ab,Ac,Ad,Ae,Af,Ag,Ah,Ai,Aj,Ak,Al,Am,An,Ao,Ap,Aq,Ar,As,At,Au,Av,Aw,Ax,Ay,Az,Ba,Bb,Bc,Bd
Atom count atom_count	44910

RNA-free helical (h10.7) virus-like particle composed of PVA coat protein with 6 mutations (H89Q, E90S, S144E, R163A, K180E, and T210R)
