9r86
Major Vault Protein from Human Brain

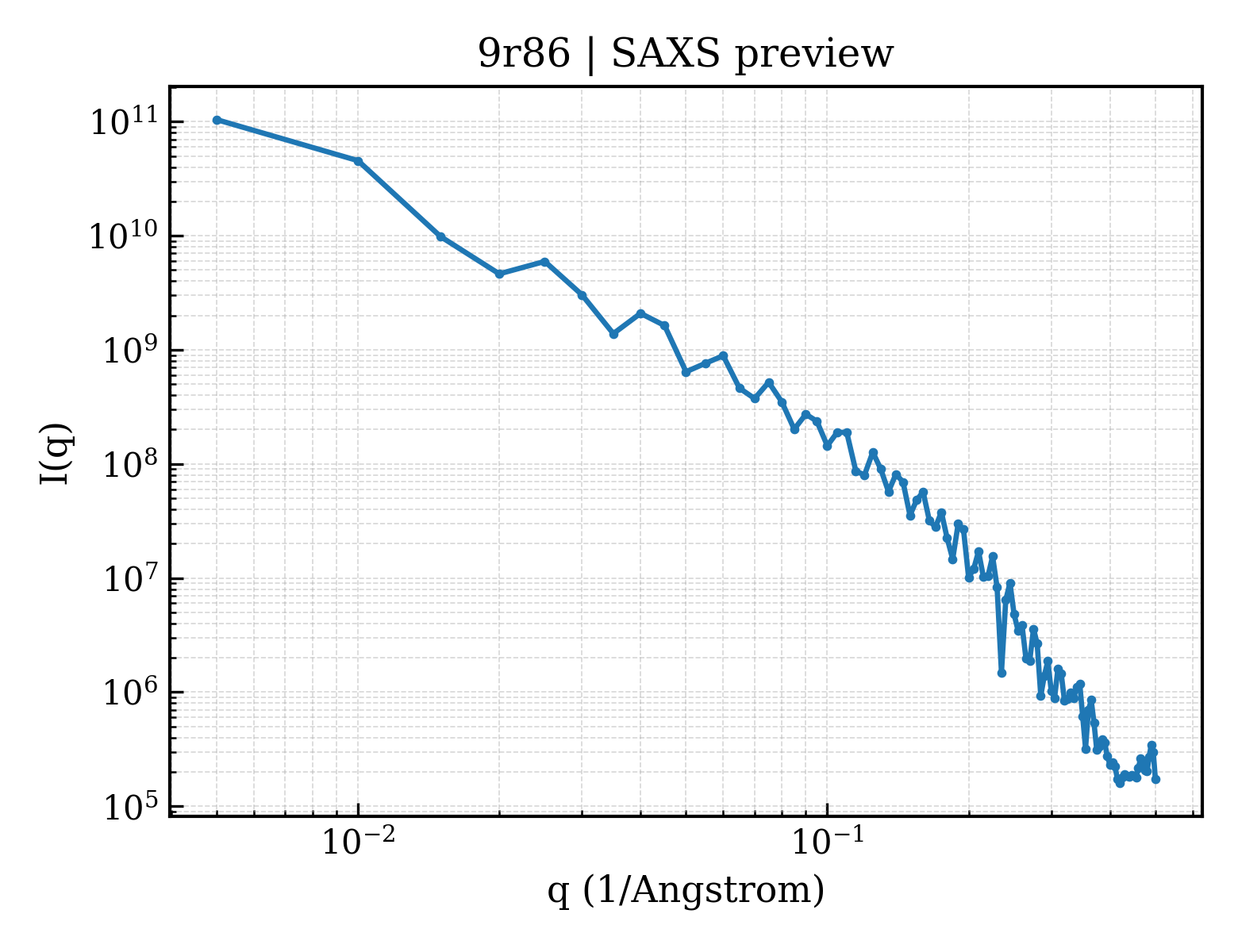

SAXS Profile

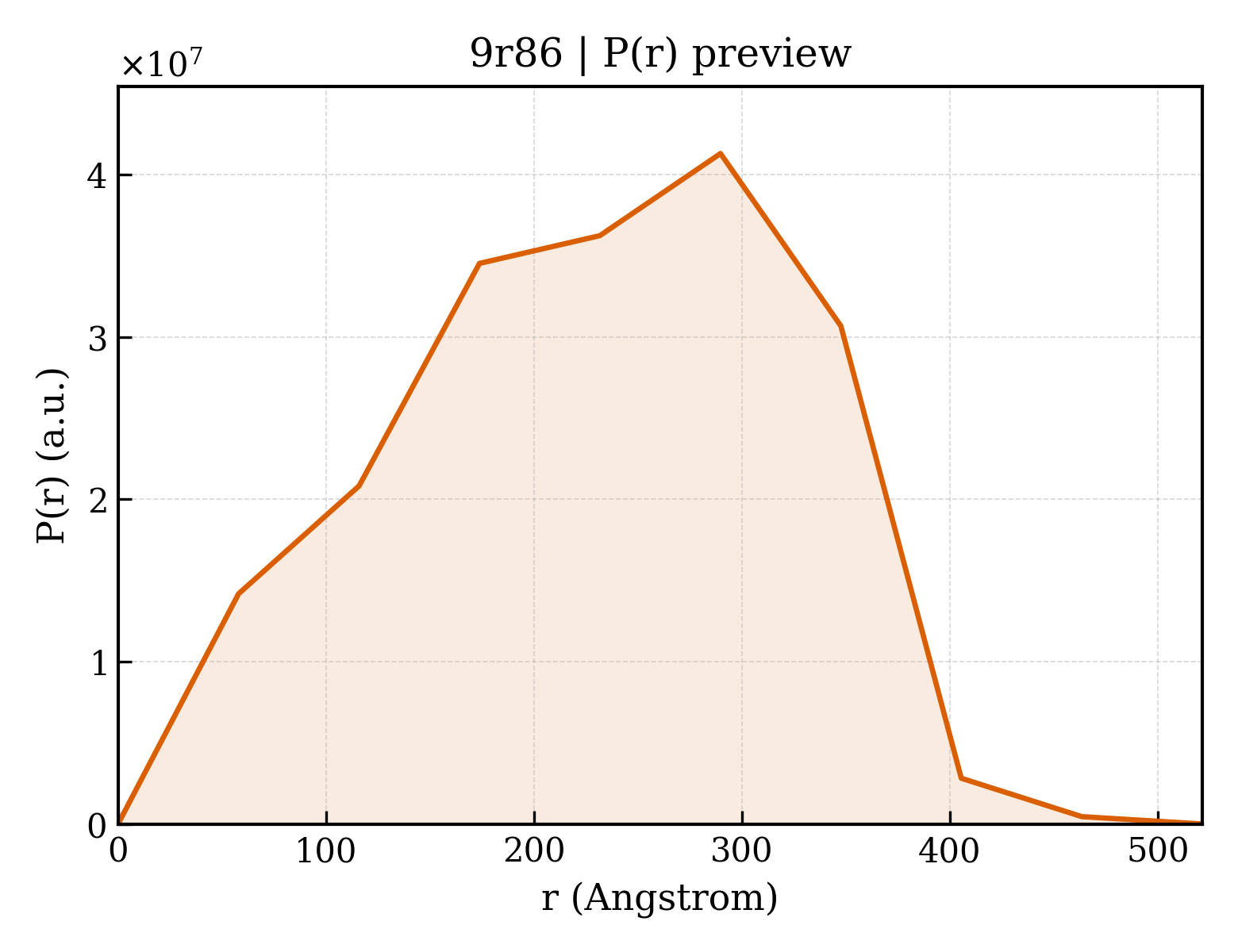

P(r) Distribution
1. Structure Basics
| entry_id | 9r86 |
| deposition_date | 2025-05-15 |
| title | Major Vault Protein from Human Brain |
| keywords | Complex, Vault, large protein, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | — Å |
| rg_electron | 174.00 Å |
| i0 | 134462000000.00 |
| molecular_weight | 3121400.0 kDa |
| excluded_volume | 3902200 ų |
| envelope_volume | 19413000 ų |
| shell_volume | 957440 ų |
| envelope_diameter | 418.6 Å |
| shell_rg | 180.20 Å |
| envelope_rg | 149.20 Å |
| shape_rg | 174.00 Å |
| total_rg | 173.80 Å |
| total_atoms | 440774 |
| n_residues | 27651 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 521.4 Å |
| rg_real | 174.70 Å |
| rg_real_error | 2.47 Å |
| i0_real | 1.3180e+11 |
| i0_real_error | 3.4950e+09 |
| rg_reciprocal | 162.10 Å |
| i0_reciprocal | 115600000000.0000 |
| total_estimate | 0.8544 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 289.7 Å |
| skewness | -0.217 |
| kurtosis | -0.802 |
| angular_range | — – 0.0450 Å−1 |
| current_alpha | 1.2670 |
| highest_alpha | 4939000000.0000 |
| n_real_points | 10 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.007; Oscil: 0.797; Stabil: 0.935; Sysdev: 1.000; Positv: 1.000; Valcen: 0.916; Smooth: 0.000 |
