SAXSdb — 9r9x

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Capsid protein

Pepper mottle virus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Homooligomer	Protein 36 RNA 36	;RNA (5'-R(PUPUPUPUP*U)-3') ; × 36	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	POLG_PEMVC
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain Aa； PDBConstruct 1–273； UniProt 2796–3068 Author chain Ac； PDBConstruct 1–273； UniProt 2796–3068 Author chain Ae； PDBConstruct 1–273； UniProt 2796–3068 Author chain Ag； PDBConstruct 1–273； UniProt 2796–3068 Author chain Ai； PDBConstruct 1–273； UniProt 2796–3068 Author chain Ak； PDBConstruct 1–273； UniProt 2796–3068 Author chain Am； PDBConstruct 1–273； UniProt 2796–3068 Author chain Ao； PDBConstruct 1–273； UniProt 2796–3068 Author chain Aq； PDBConstruct 1–273； UniProt 2796–3068 Author chain As； PDBConstruct 1–273； UniProt 2796–3068 Author chain Au； PDBConstruct 1–273； UniProt 2796–3068 Author chain Aw； PDBConstruct 1–273； UniProt 2796–3068 Author chain Ay； PDBConstruct 1–273； UniProt 2796–3068 Author chain Ba； PDBConstruct 1–273； UniProt 2796–3068 Author chain Bc； PDBConstruct 1–273； UniProt 2796–3068 Author chain Be； PDBConstruct 1–273； UniProt 2796–3068 Author chain Bg； PDBConstruct 1–273； UniProt 2796–3068 Author chain Bi； PDBConstruct 1–273； UniProt 2796–3068 Author chain Bk； PDBConstruct 1–273； UniProt 2796–3068 Author chain Bm； PDBConstruct 1–273； UniProt 2796–3068 Author chain Bo； PDBConstruct 1–273； UniProt 2796–3068 Author chain Bq； PDBConstruct 1–273； UniProt 2796–3068 Author chain Bs； PDBConstruct 1–273； UniProt 2796–3068 Author chain Bu； PDBConstruct 1–273； UniProt 2796–3068 Author chain Bw； PDBConstruct 1–273； UniProt 2796–3068 Author chain By； PDBConstruct 1–273； UniProt 2796–3068 Author chain Ca； PDBConstruct 1–273； UniProt 2796–3068 Author chain Cc； PDBConstruct 1–273； UniProt 2796–3068 Author chain Ce； PDBConstruct 1–273； UniProt 2796–3068 Author chain Cg； PDBConstruct 1–273； UniProt 2796–3068 Author chain Ci； PDBConstruct 1–273； UniProt 2796–3068 Author chain Ck； PDBConstruct 1–273； UniProt 2796–3068 Author chain Cm； PDBConstruct 1–273； UniProt 2796–3068 Author chain Co； PDBConstruct 1–273； UniProt 2796–3068 Author chain Cq； PDBConstruct 1–273； UniProt 2796–3068 Author chain Cs； PDBConstruct 1–273； UniProt 2796–3068

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9r9x
Deposition date deposition_date	2025-05-20
Structure title title	ssRNA-containing helical virus-like particle composed of PepMoV coat protein
Keywords keywords	pepper mottle virus, virus-like particle, potyvirus, coat protein, helical, VIRUS LIKE PARTICLE; VIRUS LIKE PARTICLE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9r9x__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

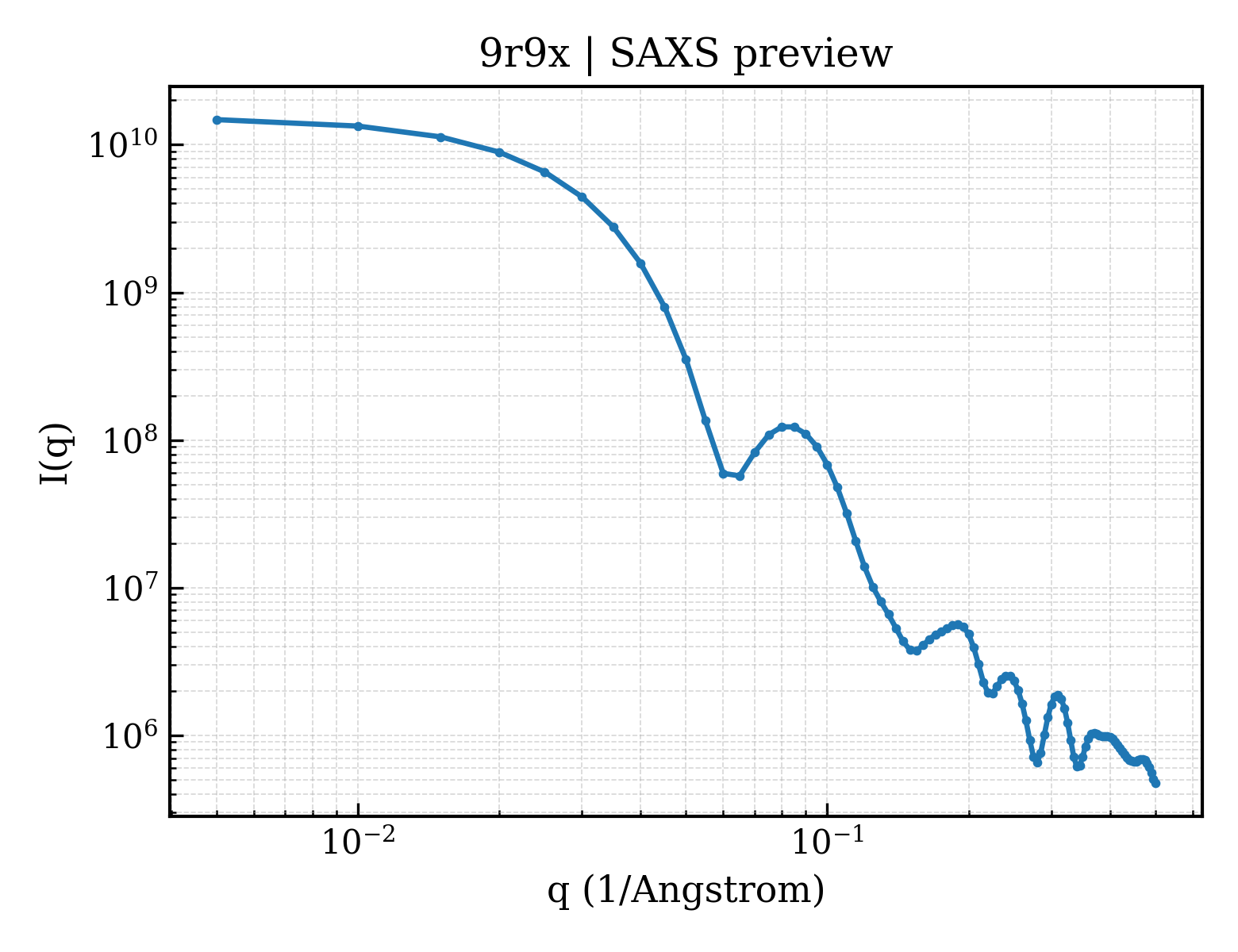

9r9x__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

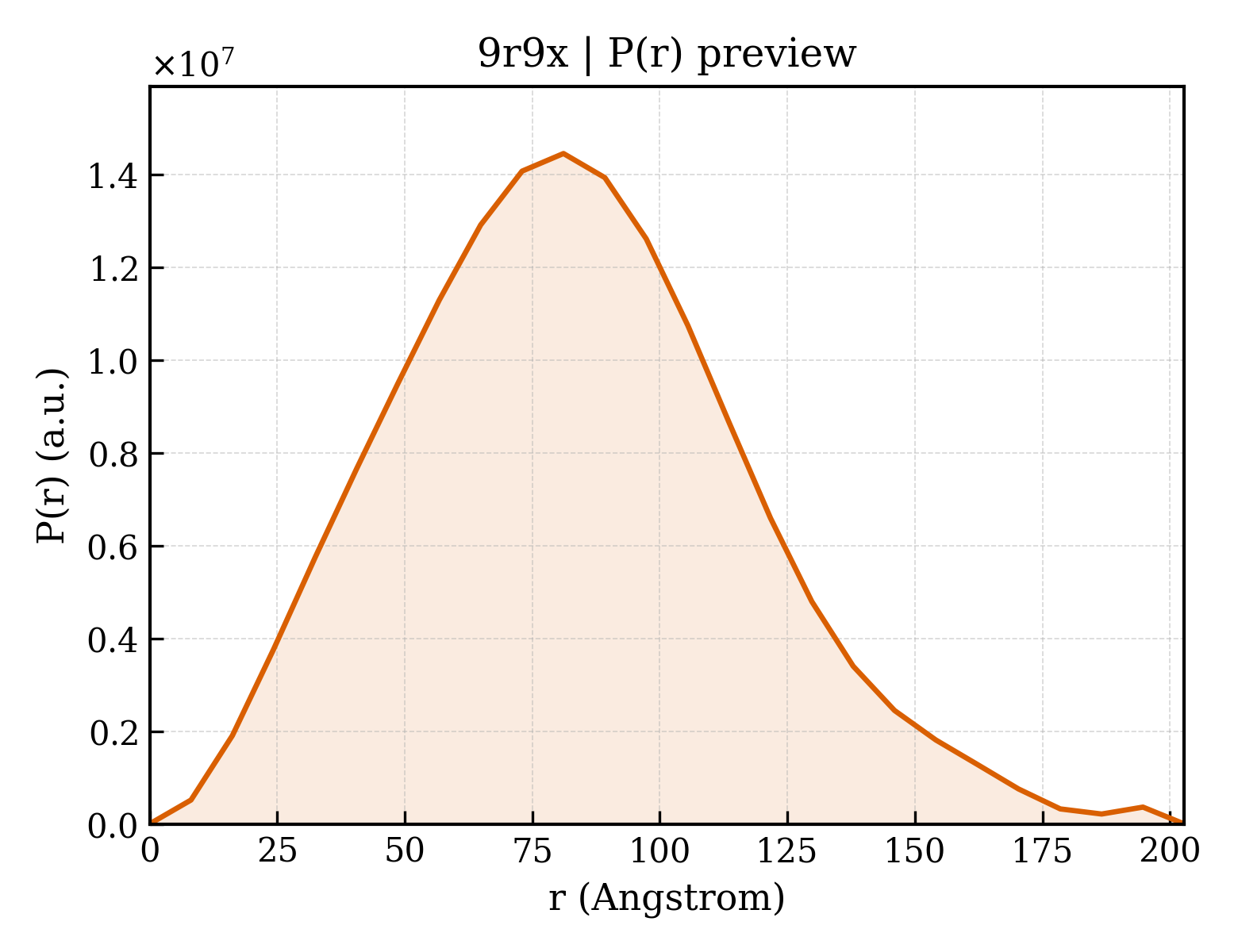

9r9x__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	63.44 Å
Rg (electron density)	63.62 Å
Total Rg	63.77 Å
Atom count	68508
Residues	8280
Excluded volume	1202100 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9r9x__assembly_1__model_1`	72-meric （72）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Capsid protein
Molecular weight formula_weight	30838.9 kDa
Source method src_method	man
Copy count entity_count	36

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Aa,Ac,Ae,Ag,Ai,Ak,Am,Ao,Aq,As,Au,Aw,Ay,Ba,Bc,Be,Bg,Bi,Bk,Bm,Bo,Bq,Bs,Bu,Bw,By,Ca,Cc,Ce,Cg,Ci,Ck,Cm,Co,Cq,Cs
Atom count atom_count	68508

SSSRSDTLDAGEEKKKNKEVATVSDGMGKKEVESTRDSDVNAGTVGTFTIPRIKSITEKMRMPKQKRKGVLNLAHLLEYKPSQVDISNTRSTQAQFDNWYCEVMKAYDLQEEAMGTVMNGLMVWCIENGTSPNISGTWTMMDGDEQVEFPLKPVIENAKPTFRQIMAHFSDVAEAYIEMRNKQEPYMPRYGLVRNLRDMGLARYAFDFYEVTSRTSTRAREAHIQMKAAALKSAQTRLFGLDGGIGTQGENTERHTTEDVSPDMHTLLGVREM

Source Source

Source organism organism	Pepper mottle virus
NCBI taxonomy ID ncbi_taxonomy_id	12209
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	;RNA (5'-R(PUPUPUPUP*U)-3') ;
Molecular weight formula_weight	1485.9 kDa
Source method src_method	man
Copy count entity_count	36

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	Ab,Ad,Af,Ah,Aj,Al,An,Ap,Ar,At,Av,Ax,Az,Bb,Bd,Bf,Bh,Bj,Bl,Bn,Bp,Br,Bt,Bv,Bx,Bz,Cb,Cd,Cf,Ch,Cj,Cl,Cn,Cp,Cr,Ct

UUUUU

Source Source

Source organism organism	Pepper mottle virus
NCBI taxonomy ID ncbi_taxonomy_id	12209
Host organism host_organism	Escherichia coli BL21

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.64 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	36808
