SAXSdb — 9rlj

▼

1. Structure Basics

entry_id	9rlj
deposition_date	2025-06-16
title	LolCDE with bound ATPgammaS
keywords	Gram-negative, envelope biogenesis, outer membrane protein, PROTEIN TRANSPORT; PROTEIN TRANSPORT
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	44.53 Å
rg_electron	44.23 Å
i0	279660000.00
molecular_weight	139370.0 kDa
excluded_volume	175640 Å³
envelope_volume	240320 Å³
shell_volume	47709 Å³
envelope_diameter	142.6 Å
shell_rg	45.80 Å
envelope_rg	43.76 Å
shape_rg	44.24 Å
total_rg	44.29 Å
total_atoms	9775
n_residues	1268
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	133.2 Å
rg_real	44.97 Å
rg_real_error	1.24 Å
i0_real	2.7970e+08
i0_real_error	4.8740e+06
rg_reciprocal	44.53 Å
i0_reciprocal	279500000.0000
total_estimate	0.7327
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	34.2 Å
skewness	0.411
kurtosis	-0.913
angular_range	— – 0.1750 Å⁻¹
current_alpha	0.0000
highest_alpha	74100000.0000
n_real_points	36
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.625; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.653; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	Lipoprotein-releasing system transmembrane protein LolC
formula_weight	43295.5 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C
atom_count	9775

MYQPVALFIGLRYMRGRAADRFGRFVSWLSTIGITLGVMALVTVLSVMNGFERELQNNILGLMPQAILSSEHGSLNPQQLPETAVKLDGVNRVAPITTGDVVLQSARSVAVGVMLGIDPAQKDPLTPYLVNVKQTDLEPGKYNVILGEQLASQLGVNRGDQIRVMVPSASQFTPMGRIPSQRLFNVIGTFAANSEVDGYEMLVNIEDASRLMRYPAGNITGWRLWLDEPLKVDSLSQQKLPEGSKWQDWRDRKGELFQAVRMEKNMMGLLLSLIVAVAAFNIITSLGLMVMEKQGEVAILQTQGLTPRQIMMVFMVQGASAGIIGAILGAALGALLASQLNNLMPIIGVLLDGAALPVAIEPLQVIVIALVAMAIALLSTLYPSWRAAATQPAEALRYE

Source

organism	Escherichia coli K-12
ncbi_taxonomy_id	83333
host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

description	Lipoprotein-releasing system transmembrane protein LolE
formula_weight	45386.0 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	E

MAMPLSLLIGLRFSRGRRRGGMVSLISVISTIGIALGVAVLIVGLSAMNGFERELNNRILAVVPHGEIEAVDQPWTNWQEALDHVQKVPGIAAAAPYINFTGLVESGANLRAIQVKGVNPQQEQRLSALPSFVQGDAWRNFKAGEQQIIIGKGVADALKVKQGDWVSIMIPNSNPEHKLMQPKRVRLHVAGILQLSGQLDHSFAMIPLADAQQYLDMGSSVSGIALKMTDVFNANKLVRDAGEVTNSYVYIKSWIGTYGYMYRDIQMIRAIMYLAMVLVIGVACFNIVSTLVMAVKDKSGDIAVLRTLGAKDGLIRAIFVWYGLLAGLFGSLCGVIIGVVVSLQLTPIIEWIEKLIGHQFLSSDIYFIDFLPSELHWLDVFYVLVTALLLSLLASWYPARRASNIDPARVLSGQ

Source

organism	Escherichia coli K-12
ncbi_taxonomy_id	83333
host_organism	Escherichia coli BL21(DE3)

Entity 3 polymer

description	Lipoprotein-releasing system ATP-binding protein LolD
formula_weight	26306.2 kDa
ec_number	7.6.2.-
mutation	C-terminal His tag (GSHHHHHH)
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	D,F

MNKILLQCDNLCKRYQEGSVQTDVLHNVSFSVGEGEMMAIVGSSGSGKSTLLHLLGGLDTPTSGDVIFNGQPMSKLSSAAKAELRNQKLGFIYQFHHLLPDFTALENVAMPLLIGKKKPAEINSRALEMLKAVGLDHRANHRPSELSGGERQRVAIARALVNNPRLVLADEPTGNLDARNADSIFQLLGELNRLQGTAFLVVTHDLQLAKRMSRQLEMRDGRLTAELSLMGAEGSHHHHH

Source

organism	Escherichia coli K-12
ncbi_taxonomy_id	83333
host_organism	Escherichia coli BL21(DE3)

Entity 4 non-polymer

description	PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER
formula_weight	523.2 kDa
src_method	syn
entity_count	2

Entity 5 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	2

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	2.90 Å
resolution_method	—
num_particles	229634

fit	/app/data/saxs_computation/rl/9rlj/9rlj.fit
pddf	/app/data/pr_computation/rl/9rlj/9rlj.pr.out
profile	/app/data/saxs_computation/rl/9rlj/9rlj.dat

LolCDE with bound ATPgammaS

SAXS Profile

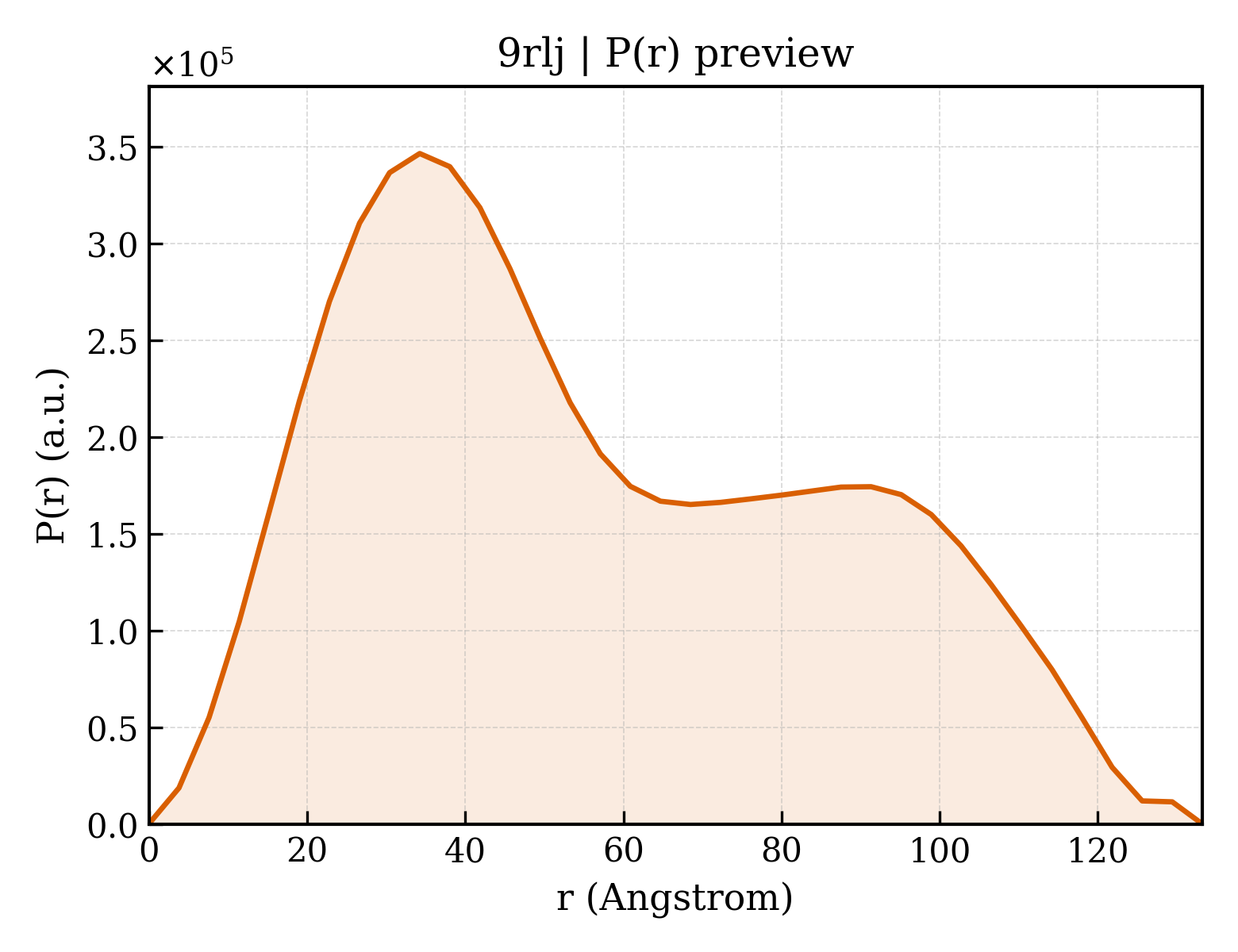

P(r) Distribution
