1. Protein Identity and Related Structures Protein Identity & Related Structures

Lipoprotein-releasing ABC transporter permease subunit LolC

Escherichia coli (strain K12)

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain C； UniProt 1–399	Not recorded	Lipoprotein-releasing system transmembrane protein LolE × 1 （P75958） Lipoprotein-releasing system ATP-binding protein LolD × 2 （P75957） LPP × 1 Outer-membrane lipoprotein carrier protein × 1 （P61316） Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1 PLM PALMITIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl and 0.05% LMNG cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7ARM	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7ARH LolCDE in complex with lipoprotein Deposited 2020-10-25	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–399（399 aa）	Not recorded	Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1 PLM PALMITIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl and 0.05% LMNG cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
7ARI LolCDE apo structure Deposited 2020-10-25	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–399（399 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl and 0.05% LMNG cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
7ARJ LolCDE in complex with lipoprotein and AMPPNP complex undimerized form Deposited 2020-10-25	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–399（399 aa）	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1 PLM PALMITIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl and 0.05% LMNG cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
7ARK LolCDE in complex with AMP-PNP in the closed NBD state Deposited 2020-10-25	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–399（399 aa）	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl and 0.05% LMNG cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
7ARL LolCDE in complex with lipoprotein and ADP Deposited 2020-10-25	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–399（399 aa）	Not recorded	Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 PLM PALMITIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl and 0.05% LMNG cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A0A4S5ATA9_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain C； PDBConstruct 1–399； UniProt 1–399

Lipoprotein-releasing system transmembrane protein LolE

Escherichia coli (strain K12)

UniProt P75958

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain E； UniProt 1–414	Not recorded	Lipoprotein-releasing ABC transporter permease subunit LolC × 1 （A0A4S5ATA9） Lipoprotein-releasing system ATP-binding protein LolD × 2 （P75957） LPP × 1 Outer-membrane lipoprotein carrier protein × 1 （P61316） Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1 PLM PALMITIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl and 0.05% LMNG cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7ARM	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7ARH LolCDE in complex with lipoprotein Deposited 2020-10-25	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–414（414 aa）	Not recorded	Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1 PLM PALMITIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl and 0.05% LMNG cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
7ARI LolCDE apo structure Deposited 2020-10-25	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–414（414 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl and 0.05% LMNG cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
7ARJ LolCDE in complex with lipoprotein and AMPPNP complex undimerized form Deposited 2020-10-25	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–414（414 aa）	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1 PLM PALMITIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl and 0.05% LMNG cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
7ARK LolCDE in complex with AMP-PNP in the closed NBD state Deposited 2020-10-25	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–414（414 aa）	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl and 0.05% LMNG cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
7ARL LolCDE in complex with lipoprotein and ADP Deposited 2020-10-25	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–414（414 aa）	Not recorded	Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 PLM PALMITIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl and 0.05% LMNG cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
7MDX LolCDE nucleotide-free Deposited 2021-04-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 6–408（403 aa）	Not recorded	F15 PENTADECANOIC ACID × 1 ZM5 (2R)-2-(tridecanoyloxy)propyl hexadecanoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
7V8I LolCD(E171Q)E with bound AMPPNP in nanodiscs Deposited 2021-08-23	Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–414（414 aa）	Not recorded	MG MAGNESIUM ION × 2 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 3.60 Å
7V8L LolCDE with bound RcsF in nanodiscs Deposited 2021-08-23	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–414（414 aa）	Not recorded	PCJ (2R)-3-{[(2S)-3-HYDROXY-2-(PALMITOYLAMINO)PROPYL]THIO}PROPANE-1,2-DIYL DIHEXADECANOATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 3.50 Å
7V8M LolCDE-apo in nanodiscs Deposited 2021-08-23	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–414（414 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 4.20 Å
9GRC Cryo-EM structure of lipoprotein-bound LolCDE in nanodiscs Deposited 2024-09-11	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–414（414 aa）	Not recorded	Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1 PLM PALMITIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
9GVK Cryo-EM structure of endogenous ATP-bound LolCDE with LolD-E171Q mutations in nanodiscs Deposited 2024-09-25	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–414（414 aa）	Not recorded	MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
9RLC LolCDE complex with Lpp lipoprotein Deposited 2025-06-16	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–414（414 aa）	Not recorded	PLM PALMITIC ACID × 1 Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
9RLD LolCDE complex with Lpp lipoprotein Deposited 2025-06-16	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–414（414 aa）	Not recorded	PLM PALMITIC ACID × 1 Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
9RLE LolCDE complex with Pal lipoprotein Deposited 2025-06-16	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–414（414 aa）	Not recorded	PLM PALMITIC ACID × 1 Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.18 Å
9RLF LolCDE complex with Pal lipoprotein Deposited 2025-06-16	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–414（414 aa）	Not recorded	PLM PALMITIC ACID × 1 Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.17 Å
9RLG LolCDE complex with LolB lipoprotein Deposited 2025-06-16	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–414（414 aa）	Not recorded	PLM PALMITIC ACID × 1 Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.09 Å
9RLH LolCDE complex with del 9-15 LolB lipoprotein Deposited 2025-06-16	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–414（414 aa）	Not recorded	PLM PALMITIC ACID × 1 Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.19 Å
9RLI LolCDEdelta(235-252) complex with Pal lipoprotein Deposited 2025-06-16	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–234（234 aa） Chain E 253–414（162 aa）	Mutation：delta 235-252 Mutation：delta 235-252	PLM PALMITIC ACID × 1 Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.63 Å
9RLJ LolCDE with bound ATPgammaS Deposited 2025-06-16	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–414（414 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
9RLK LolCDE(delta 235-252) complex with Pal lipoprotein Deposited 2025-06-16	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–234（234 aa） Chain E 253–414（162 aa）	Mutation：delta 235-252 (inclusive) with GS linker Mutation：delta 235-252 (inclusive) with GS linker	PLM PALMITIC ACID × 1 Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.29 Å
9XRO LolCDE in complex with SMT-738_3 Deposited 2025-11-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 1–414（414 aa）	Not recorded	A1ER4 2-azanyl-1-[6-[2-azanyl-5-(3-methylpyridin-4-yl)-1H-imidazol-4-yl]-2,3-dihydro-1,4-benzoxazin-4-yl]-2-methyl-propan-1-one × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.88 Å

21 other PDB entries and 21 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	LOLE_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain E； PDBConstruct 1–414； UniProt 1–414

Lipoprotein-releasing system ATP-binding protein LolD

Escherichia coli (strain K12)

UniProt P75957

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain D； UniProt 1–233 Chain F； UniProt 1–233	Not recorded	Lipoprotein-releasing ABC transporter permease subunit LolC × 1 （A0A4S5ATA9） Lipoprotein-releasing system transmembrane protein LolE × 1 （P75958） LPP × 1 Outer-membrane lipoprotein carrier protein × 1 （P61316） Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1 PLM PALMITIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl and 0.05% LMNG cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7ARM	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7ARH LolCDE in complex with lipoprotein Deposited 2020-10-25	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 1–233（233 aa） Chain F 1–233（233 aa）	Not recorded	Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1 PLM PALMITIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl and 0.05% LMNG cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
7ARI LolCDE apo structure Deposited 2020-10-25	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–233（233 aa） Chain F 1–233（233 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl and 0.05% LMNG cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
7ARJ LolCDE in complex with lipoprotein and AMPPNP complex undimerized form Deposited 2020-10-25	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 1–233（233 aa） Chain F 1–233（233 aa）	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1 PLM PALMITIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl and 0.05% LMNG cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
7ARK LolCDE in complex with AMP-PNP in the closed NBD state Deposited 2020-10-25	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–233（233 aa） Chain F 1–233（233 aa）	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl and 0.05% LMNG cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
7ARL LolCDE in complex with lipoprotein and ADP Deposited 2020-10-25	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 1–233（233 aa） Chain F 1–233（233 aa）	Not recorded	Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 PLM PALMITIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl and 0.05% LMNG cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
7MDX LolCDE nucleotide-free Deposited 2021-04-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 4–221（218 aa） Chain D 4–221（218 aa）	Not recorded	F15 PENTADECANOIC ACID × 1 ZM5 (2R)-2-(tridecanoyloxy)propyl hexadecanoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
7V8I LolCD(E171Q)E with bound AMPPNP in nanodiscs Deposited 2021-08-23	Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–233（233 aa） Chain F 1–233（233 aa）	Not recorded	MG MAGNESIUM ION × 2 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 3.60 Å
7V8L LolCDE with bound RcsF in nanodiscs Deposited 2021-08-23	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 1–233（233 aa） Chain F 1–233（233 aa）	Not recorded	PCJ (2R)-3-{[(2S)-3-HYDROXY-2-(PALMITOYLAMINO)PROPYL]THIO}PROPANE-1,2-DIYL DIHEXADECANOATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 3.50 Å
7V8M LolCDE-apo in nanodiscs Deposited 2021-08-23	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–233（233 aa） Chain F 1–233（233 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 4.20 Å
9GRC Cryo-EM structure of lipoprotein-bound LolCDE in nanodiscs Deposited 2024-09-11	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 1–233（233 aa） Chain F 1–233（233 aa）	Not recorded	Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1 PLM PALMITIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
9GVK Cryo-EM structure of endogenous ATP-bound LolCDE with LolD-E171Q mutations in nanodiscs Deposited 2024-09-25	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–233（233 aa） Chain F 1–233（233 aa）	Not recorded	MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
9RLC LolCDE complex with Lpp lipoprotein Deposited 2025-06-16	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 1–233（233 aa） Chain F 1–233（233 aa）	Not recorded	PLM PALMITIC ACID × 1 Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
9RLD LolCDE complex with Lpp lipoprotein Deposited 2025-06-16	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 1–233（233 aa） Chain F 1–233（233 aa）	Mutation：C-terminal His tag (GSHHHHHH) Mutation：C-terminal His tag (GSHHHHHH)	PLM PALMITIC ACID × 1 Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
9RLE LolCDE complex with Pal lipoprotein Deposited 2025-06-16	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 1–233（233 aa） Chain F 1–233（233 aa）	Mutation：C-terminal His tag (GSHHHHHH) Mutation：C-terminal His tag (GSHHHHHH)	PLM PALMITIC ACID × 1 Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.18 Å
9RLF LolCDE complex with Pal lipoprotein Deposited 2025-06-16	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 1–233（233 aa） Chain F 1–233（233 aa）	Mutation：C-terminal His tag (GSHHHHHH) Mutation：C-terminal His tag (GSHHHHHH)	PLM PALMITIC ACID × 1 Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.17 Å
9RLG LolCDE complex with LolB lipoprotein Deposited 2025-06-16	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 1–233（233 aa） Chain F 1–233（233 aa）	Mutation：C-terminal His tag (GSHHHHHH) Mutation：C-terminal His tag (GSHHHHHH)	PLM PALMITIC ACID × 1 Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.09 Å
9RLH LolCDE complex with del 9-15 LolB lipoprotein Deposited 2025-06-16	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 1–233（233 aa） Chain F 1–233（233 aa）	Mutation：C-terminal His tag (GSHHHHHH) Mutation：C-terminal His tag (GSHHHHHH)	PLM PALMITIC ACID × 1 Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.19 Å
9RLI LolCDEdelta(235-252) complex with Pal lipoprotein Deposited 2025-06-16	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 1–233（233 aa） Chain F 1–233（233 aa）	Mutation：C-terminal His tag (GSHHHHHH) Mutation：C-terminal His tag (GSHHHHHH)	PLM PALMITIC ACID × 1 Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.63 Å
9RLJ LolCDE with bound ATPgammaS Deposited 2025-06-16	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–233（233 aa） Chain F 1–233（233 aa）	Mutation：C-terminal His tag (GSHHHHHH) Mutation：C-terminal His tag (GSHHHHHH)	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
9RLK LolCDE(delta 235-252) complex with Pal lipoprotein Deposited 2025-06-16	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 1–233（233 aa） Chain F 1–233（233 aa）	Mutation：C-terminal His tag (GSHHHHHH) Mutation：C-terminal His tag (GSHHHHHH)	PLM PALMITIC ACID × 1 Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.29 Å
9XRO LolCDE in complex with SMT-738_3 Deposited 2025-11-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 1–233（233 aa）	Not recorded	A1ER4 2-azanyl-1-[6-[2-azanyl-5-(3-methylpyridin-4-yl)-1H-imidazol-4-yl]-2,3-dihydro-1,4-benzoxazin-4-yl]-2-methyl-propan-1-one × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.88 Å

21 other PDB entries and 21 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	LOLD_ECOLI
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain D； PDBConstruct 1–233； UniProt 1–233 Author chain F； PDBConstruct 1–233； UniProt 1–233

Outer-membrane lipoprotein carrier protein

Escherichia coli (strain K12)

UniProt P61316

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain A； UniProt 20–203	Not recorded	Lipoprotein-releasing ABC transporter permease subunit LolC × 1 （A0A4S5ATA9） Lipoprotein-releasing system transmembrane protein LolE × 1 （P75958） Lipoprotein-releasing system ATP-binding protein LolD × 2 （P75957） LPP × 1 Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1 PLM PALMITIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl and 0.05% LMNG cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7ARM	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1IWL Crystal Structure of the Lipoprotein Localization Factor, LolA Deposited 2002-05-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 22–203（182 aa）	Not recorded	ZN ZINC ION × 3 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；PEG8000, sodium cacodilate, zinc acetate, glycerol, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.65 Å R-free 0.249
1UA8 Crystal structure of the lipoprotein localization factor, LolA Deposited 2003-03-04	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 22–203（182 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；PEG1500, Tris-HCl, Glycerol, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.90 Å R-free 0.259
2ZPC Crystal structure of the R43L mutant of LolA in the closed form Deposited 2008-07-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 22–203（182 aa）	Mutation：R43L	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；15% PEG 3350, 50mM MES (pH 6.5), 20% glycerol , VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.35 Å R-free 0.275
2ZPD Crystal structure of the R43L mutant of LolA in the open form Deposited 2008-07-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 22–203（182 aa）	Mutation：R43L	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；15% PEG 3350, 50mM MES (pH 6.5), 20% glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.85 Å R-free 0.231
3KSN Crystal structure of the lipoprotein localization factor, LolA Deposited 2009-11-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 22–203（182 aa） Fragment：Residues 22-203	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.4；277 K；25% PEG 1000, 20% PEG 8000, 0.1 M sodium acetate, dehydrated over 1M ammonium sulfate, pH 4.4, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.65 Å R-free 0.243
6F3Z Complex of E. coli LolA and periplasmic domain of LolC Deposited 2017-11-29	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 22–203（182 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；288.15 K；45% w/v Poly(acrylic acid sodium salt) 2100, 100 mM HEPES pH 6.5	Resolution 2.00 Å R-free 0.249
6F3Z Complex of E. coli LolA and periplasmic domain of LolC Deposited 2017-11-29	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 22–203（182 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；288.15 K；45% w/v Poly(acrylic acid sodium salt) 2100, 100 mM HEPES pH 6.5	Resolution 2.00 Å R-free 0.249
6FHM Crystal structure of the F47E mutant of the lipoprotein localization factor, LolA Deposited 2018-01-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 22–203（182 aa） Chain B 22–203（182 aa）	Mutation：F47E Mutation：F47E	GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；288.15 K；13% PEG 8000, 20% glycerol	Resolution 2.39 Å R-free 0.269
7Z6W Complex of E. coli LolA and lipoprotein Deposited 2022-03-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 22–203（182 aa）	Not recorded	IG7 [(2~{S})-3-[(2~{S})-3-azanyl-2-(hexadecanoylamino)-3-oxidanylidene-propyl]sulfanyl-2-hexadecanoyloxy-propyl] hexadecanoate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；288.15 K；2.1 M DL-Malic acid pH 6.0	Resolution 1.84 Å R-free 0.216
7Z6X Complex of E. coli LolA R43L mutant and lipoprotein Deposited 2022-03-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 22–203（182 aa）	Mutation：R43L	IG7 [(2~{S})-3-[(2~{S})-3-azanyl-2-(hexadecanoylamino)-3-oxidanylidene-propyl]sulfanyl-2-hexadecanoyloxy-propyl] hexadecanoate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；288.15 K；50 mM bis-Tris pH 6.0, 30% PEG 3350	Resolution 2.06 Å R-free 0.272

9 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	LOLA_ECOLI
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain A； PDBConstruct 1–184； UniProt 20–203

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7arm
Deposition date deposition_date	2020-10-25
Structure title title	LolCDE in complex with lipoprotein and LolA
Keywords keywords	LolCDE, lipoprotein, lipoprotein transporter, lipoprotein sorting and transport, PROTEIN TRANSPORT, ABC transporter; PROTEIN TRANSPORT
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	51.00 Å
Radius of gyration Rg (electron density) rg_electron	50.40 Å
Forward intensity I(0) i0	344402000.00
Molecular weight molecular_weight	156000.0 kDa
Excluded volume excluded_volume	196680 Å³
Envelope volume envelope_volume	296960 Å³
Hydration-shell volume shell_volume	52706 Å³
Envelope diameter envelope_diameter	169.2 Å
Shell Rg shell_rg	49.15 Å
Envelope Rg envelope_rg	49.53 Å
Shape Rg shape_rg	50.45 Å
Total Rg total_rg	50.19 Å
Total atoms total_atoms	10971
Residues n_residues	1438
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

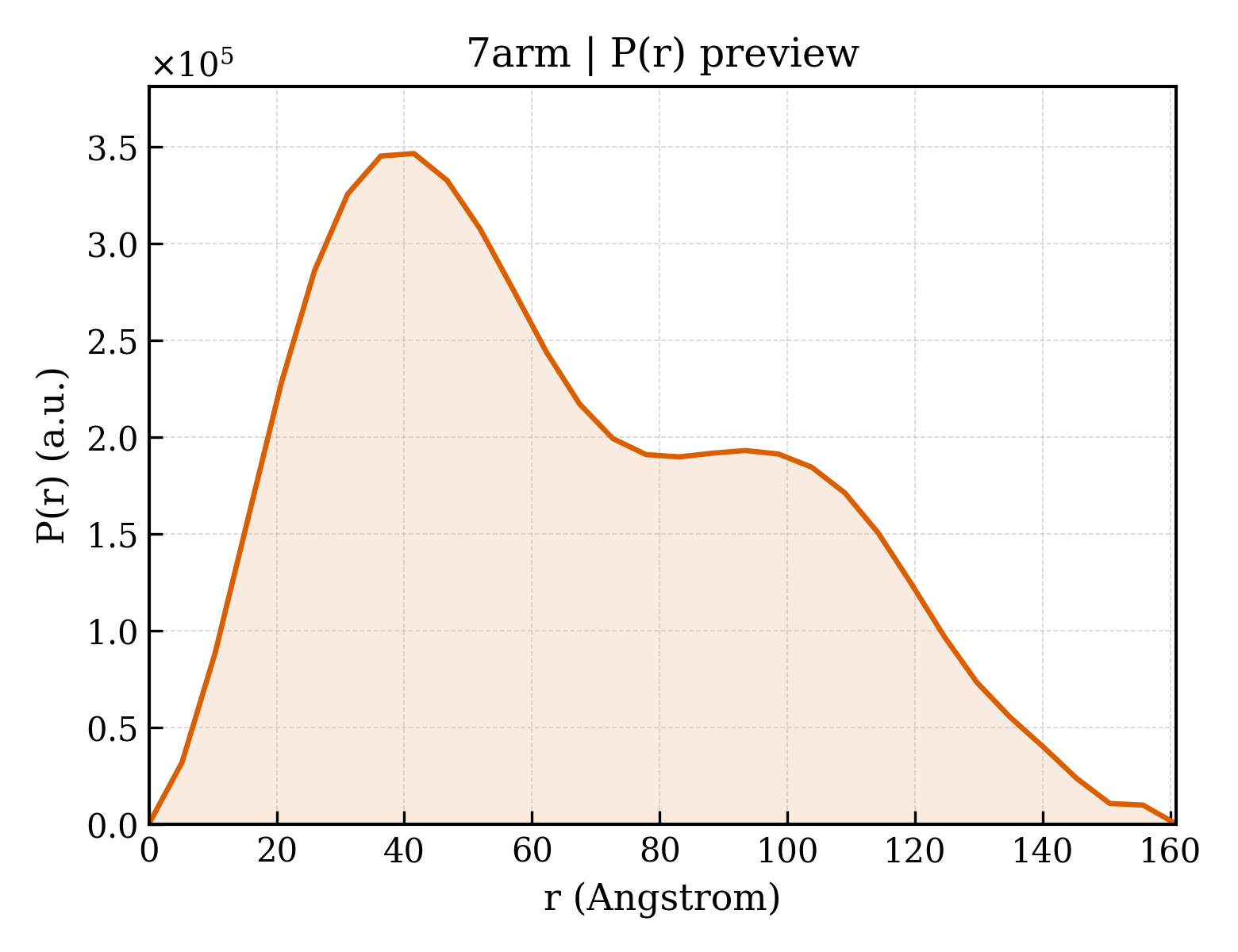

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	160.9 Å
Rg (real space) rg_real	51.38 Å
Rg uncertainty (real space) rg_real_error	1.75 Å
I(0) (real space) i0_real	3.4440e+08
I(0) uncertainty (real space) i0_real_error	6.4160e+06
Rg (reciprocal space) rg_reciprocal	50.66 Å
I(0) (reciprocal space) i0_reciprocal	344100000.0000
Solution quality estimate total_estimate	0.7566
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	41.5 Å
Skewness Skewness skewness	0.431
Kurtosis Kurtosis kurtosis	-0.766
Angular range angular_range	— – 0.1550 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	30710000.0000
Real-space data points n_real_points	32
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.708; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.670; Smooth: 0.041

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Lipoprotein-releasing ABC transporter permease subunit LolC
Molecular weight formula_weight	43295.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C
Atom count atom_count	10971

MYQPVALFIGLRYMRGRAADRFGRFVSWLSTIGITLGVMALVTVLSVMNGFERELQNNILGLMPQAILSSEHGSLNPQQLPETAVKLDGVNRVAPITTGDVVLQSARSVAVGVMLGIDPAQKDPLTPYLVNVKQTDLEPGKYNVILGEQLASQLGVNRGDQIRVMVPSASQFTPMGRIPSQRLFNVIGTFAANSEVDGYEMLVNIEDASRLMRYPAGNITGWRLWLDEPLKVDSLSQQKLPEGSKWQDWRDRKGELFQAVRMEKNMMGLLLSLIVAVAAFNIITSLGLMVMEKQGEVAILQTQGLTPRQIMMVFMVQGASAGIIGAILGAALGALLASQLNNLMPIIGVLLDGAALPVAIEPLQVIVIALVAMAIALLSTLYPSWRAAATQPAEALRYE

来源 Source

来源生物 organism	Escherichia coli (strain K12)
NCBI Class编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Lipoprotein-releasing system transmembrane protein LolE
Molecular weight formula_weight	45386.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MAMPLSLLIGLRFSRGRRRGGMVSLISVISTIGIALGVAVLIVGLSAMNGFERELNNRILAVVPHGEIEAVDQPWTNWQEALDHVQKVPGIAAAAPYINFTGLVESGANLRAIQVKGVNPQQEQRLSALPSFVQGDAWRNFKAGEQQIIIGKGVADALKVKQGDWVSIMIPNSNPEHKLMQPKRVRLHVAGILQLSGQLDHSFAMIPLADAQQYLDMGSSVSGIALKMTDVFNANKLVRDAGEVTNSYVYIKSWIGTYGYMYRDIQMIRAIMYLAMVLVIGVACFNIVSTLVMAVKDKSGDIAVLRTLGAKDGLIRAIFVWYGLLAGLFGSLCGVIIGVVVSLQLTPIIEWIEKLIGHQFLSSDIYFIDFLPSELHWLDVFYVLVTALLLSLLASWYPARRASNIDPARVLSGQ

来源 Source

来源生物 organism	Escherichia coli (strain K12)
NCBI Class编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	Lipoprotein-releasing system ATP-binding protein LolD
Molecular weight formula_weight	26576.5 kDa
EC 编号 ec_number	7.6.2.-
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F,D

MNKILLQCDNLCKRYQEGSVQTDVLHNVSFSVGEGEMMAIVGSSGSGKSTLLHLLGGLDTPTSGDVIFNGQPMSKLSSAAKAELRNQKLGFIYQFHHLLPDFTALENVAMPLLIGKKKPAEINSRALEMLKAVGLDHRANHRPSELSGGERQRVAIARALVNNPRLVLADEPTGNLDARNADSIFQLLGELNRLQGTAFLVVTHDLQLAKRMSRQLEMRDGRLTAELSLMGAEHHHHHHHH

来源 Source

来源生物 organism	Escherichia coli (strain K12)
NCBI Class编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 polymer

Description description	LPP
Molecular weight formula_weight	1079.2 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	V

CSSNAKIDQL

Entity 5 Entity 5 polymer

Description description	Outer-membrane lipoprotein carrier protein
Molecular weight formula_weight	20600.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

WADAASDLKSRLDKVSSFHASFTQKVTDGSGAAVQEGQGDLWVKRPNLFNWHMTQPDESILVSDGKTLWFYNPFVEQATATWLKDATGNTPFMLIARNQSSDWQQYNIKQNGDDFVLTPKASNGNLKQFTINVGRDGTIHQFSAVEQDDQRSSYQLKSQQNGAVDAAKFTFTPPQGVTVDDQRK

来源 Source

来源生物 organism	Escherichia coli (strain K12)
NCBI Class编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 6 Entity 6 non-polymer

Description description	(2S)-3-hydroxypropane-1,2-diyl dihexadecanoate
Molecular weight formula_weight	568.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	PALMITIC ACID
Molecular weight formula_weight	256.4 kDa
Source method src_method	syn
Copy count entity_count	1

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.60 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	153866

fit	/app/data/saxs_computation/ar/7arm/7arm.fit
pddf	/app/data/pr_computation/ar/7arm/7arm.pr.out
profile	/app/data/saxs_computation/ar/7arm/7arm.dat

LolCDE in complex with lipoprotein and LolA

1. Protein Identity and Related Structures Protein Identity & Related Structures

Lipoprotein-releasing ABC transporter permease subunit LolC

State in the Current Structure

Other States of the Same Protein in the Database

Lipoprotein-releasing system transmembrane protein LolE

State in the Current Structure

Other States of the Same Protein in the Database

Lipoprotein-releasing system ATP-binding protein LolD

State in the Current Structure

Other States of the Same Protein in the Database

Outer-membrane lipoprotein carrier protein

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 polymer

Polymer Polymer

Entity 5 Entity 5 polymer

Polymer Polymer

来源 Source

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 non-polymer

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
