SAXSdb — 9ryc

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Polymerase acidic protein

Influenza A virus (A/Brevig Mission/1/1918(H1N1))

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	RNA-directed RNA polymerase catalytic subunit × 1 （Q3HM40） Polymerase basic protein 2 × 1 （Q3HM41） Nuclear export protein × 1 （Q77IX1）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PA_I18A0
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–716； UniProt 1–716

RNA-directed RNA polymerase catalytic subunit

Influenza A virus (A/Brevig Mission/1/1918(H1N1))

UniProt Q3HM40

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Polymerase acidic protein × 1 （Q3HM39） Polymerase basic protein 2 × 1 （Q3HM41） Nuclear export protein × 1 （Q77IX1）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RDRP_I18A0
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–757； UniProt 1–757

Polymerase basic protein 2

Influenza A virus (A/Brevig Mission/1/1918(H1N1))

UniProt Q3HM41

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Polymerase acidic protein × 1 （Q3HM39） RNA-directed RNA polymerase catalytic subunit × 1 （Q3HM40） Nuclear export protein × 1 （Q77IX1）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PB2_I18A0
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–759； UniProt 1–759

Nuclear export protein

Influenza A virus (A/Brevig Mission/1/1918(H1N1))

UniProt Q77IX1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Polymerase acidic protein × 1 （Q3HM39） RNA-directed RNA polymerase catalytic subunit × 1 （Q3HM40） Polymerase basic protein 2 × 1 （Q3HM41）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NEP_I18A0
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 10–130； UniProt 1–121

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9ryc
Deposition date deposition_date	2025-07-15
Structure title title	Structure of human 1918 influenza A polymerase heterotrimer in complex with WSN NEP.
Keywords keywords	influenza virus, nuclear export, NEP, NS2, 1918 polymerase, spanish Flu, viral polymerase, cryo-EM, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9ryc__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9ryc__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

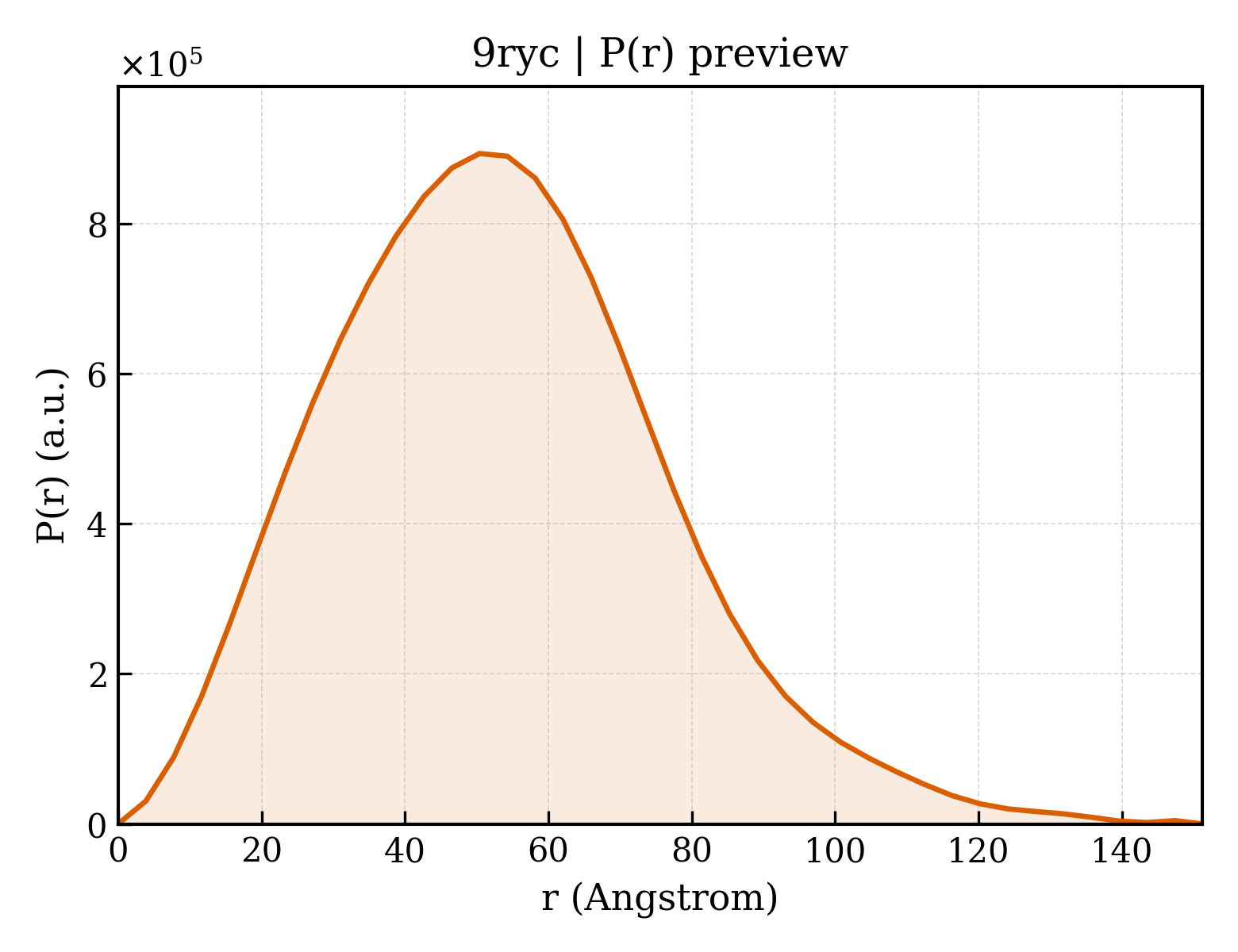

9ryc__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	40.91 Å
Rg (electron density)	40.54 Å
Total Rg	40.79 Å
Atom count	28022
Residues	1797
Excluded volume	258610 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9ryc__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Polymerase acidic protein
Molecular weight formula_weight	82707.4 kDa
EC 编号 ec_number	3.1.-.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	28022

MEDFVRQCFNPMIVELAEKAMKEYGEDLKIETNKFAAICTHLEVCFMYSDFHFINERGESIIVESGDPNALLKHRFEIIEGRDRTMAWTVVNSICNTTGAEKPKFLPDLYDYKENRFIEIGVTRREVHIYYLEKANKIKSEKTHIHIFSFTGEEMATKADYTLDEESRARIKTRLFTIRQEMASRGLWDSFRQSERGEETIEERFEITGTMRRLADQSLPPNFSSLENFRAYVDGFEPNGYIEGKLSQMSKEVNARIEPFLKTTPRPLRLPDGPPCSQRSKFLLMDALKLSIEDPSHEGEGIPLYDAIKCMRTFFGWKEPNVVKPHEKGINPNYLLAWKQVLAELQDIENEEKIPKTKNMKKTSQLKWALGENMAPEKVDFDDCKDVSDLKQYDSDEPELRSLASWIQSEFNKACELTDSSWIELDEIGEDVAPIEHIASMRRNYFTAEVSHCRATEYIMKGVYINTALLNASCAAMDDFQLIPMISKCRTKEGRRKTNLYGFIIKGRSHLRNDTDVVNFVSMEFSLTDPRLEPHKWEKYCVLEIGDMLLRSAIGQVSRPMFLYVRTNGTSKIKMKWGMEMRRCLLQSLQQIESMIEAESSVKEKDMTKEFFENKSETWPIGESPKGVEEGSIGKVCRTLLAKSVFNSLYASPQLEGFSAESRKLLLIVQALRDNLEPGTFDLGGLYEAIEECLINDPWVLLNASWFNSFLTHALR

Source Source

Source organism organism	Influenza A virus (A/Brevig Mission/1/1918(H1N1))
NCBI taxonomy ID ncbi_taxonomy_id	88776
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	RNA-directed RNA polymerase catalytic subunit
Molecular weight formula_weight	86625.2 kDa
EC 编号 ec_number	2.7.7.48
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MDVNPTLLFLKVPAQNAISTTFPYTGDPPYSHGTGTGYTMDTVNRTHQYSEKGRWTTNTETGAPQLNPIDGPLPEDNEPSGYAQTDCVLEAMAFLEESHPGIFENSCLETMEVVQQTRVDKLTQGRQTYDWTLNRNQPAATALANTIEVFRSNGLTANESGRLIDFLKDVMESMDKEEMEITTHFQRKRRVRDNMTKKMVTQRTIGKKKQRLNKRSYLIRALTLNTMTKDAERGKLKRRAIATPGMQIRGFVYFVETLARSICEKLEQSGLPVGGNEKKAKLANVVRKMMTNSQDTELSFTITGDNTKWNENQNPRMFLAMITYITRNQPEWFRNVLSIAPIMFSNKMARLGKGYMFESKSMKLRTQIPAEMLASIDLKYFNDSTRKKIEKIRPLLIDGTASLSPGMMMGMFNMLSTVLGVSILNLGQKRYTKTTYWWDGLQSSDDFALIVNAPNHEGIQAGVDRFYRTCKLLGINMSKKKSYINRTGTFEFTSFFYRYGFVANFSMELPSFGVSGINESADMSIGVTVIKNNMINNDLGPATAQMALQLFIKDYRYTYRCHRGDTQIQTRRSFEIKKLWEQTRSKAGLLVSDGGPNLYNIRNLHIPEVCLKWELMDEDYQGRLCNPLNPFVSHKEIESVNNAVMMPAHGPAKNMEYDAVATTHSWIPKRNRSILNTSQRGILEDEQMYQKCCNLFEKFFPSSSYRRPVGISSMVEAMVSRARIDARIDFESGRIKKEEFAEIMKICSTIEELRRQK

Source Source

Source organism organism	Influenza A virus (A/Brevig Mission/1/1918(H1N1))
NCBI taxonomy ID ncbi_taxonomy_id	88776
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	Polymerase basic protein 2
Molecular weight formula_weight	86849.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MERIKELRDLMSQSRTREILTKTTVDHMAIIKKYTSGRQEKNPALRMKWMMAMKYPITADKRIMEMIPERNEQGQTLWSKTNDAGSDRVMVSPLAVTWWNRNGPTTSAVHYPKIYKTYFEKVERLKHGTFGPVHFRNQVKIRRRVDINPGHADLSAKEAQDVIMEVVFPNEVGARILTSESQLTITKEKKEELQDCKISPLMVAYMLERELVRKTRFLPVAGGTSSVYIEVLHLTQGTCWEQMYTPGGEVRNDDVDQSLIIAARNIVRRATVSADPLASLLEMCHSTQIGGIRMVDILRQNPTEEQAVDICKAAMGLRISSSFSFGGFTFKRTSGSSVKREEEVLTGNLQTLKIRVHEGYEEFTMVGRRATAILRKATRRLIQLIVSGRDEQSIAEAIIVAMVFSQEDCMIKAVRGDLNFVNRANQRLNPMHQLLRHFQKDAKVLFQNWGIEPIDNVMGMIGILPDMTPSTEMSMRGVRVSKMGVDEYSSTERVVVSIDRFLRVRDQRGNVLLSPEEVSETQGTEKLTITYSSSMMWEVNGPESVLVNTYQWIIRNWETVKIQWSQNPTMLYNKMEFEPFQSLVPKAARGQYSGFVRTLFQQMRDVLGTFDTVQIIKLLPFAAAPPKQSRMQFSSLTVNVRGSGMRILVRGNSPVFNYNKATKRLTVLGKDAGALTEDPDEGTAGVESAVLRGFLILGKEDRRYGPALSINELSNLAKGEKANVLIGQGDVVLVMKRKRDSSILTDSQTATKRIRMAINENLYFQ

Source Source

Source organism organism	Influenza A virus (A/Brevig Mission/1/1918(H1N1))
NCBI taxonomy ID ncbi_taxonomy_id	88776
Host organism host_organism	Spodoptera frugiperda

Entity 4 Entity 4 polymer

Description description	Nuclear export protein
Molecular weight formula_weight	15221.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

GPLGSPEFCMDSNTVSSFQDILMRMSKMQLGSSSEDLNGIITQFESLKLYRDSLGEAVMRMGDLHSLQNRNGKWREQLGQKFEEIRWLIEEVRHRLKITENSFEQITFMQALQLLLEVEQEIRTFSFQLI

Source Source

Source organism organism	Influenza A virus (A/Brevig Mission/1/1918(H1N1))
NCBI taxonomy ID ncbi_taxonomy_id	88776
Host organism host_organism	Escherichia coli BL21(DE3)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	2.93 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	35000

Structure of human 1918 influenza A polymerase heterotrimer in complex with WSN NEP.
