9ryw
Aquifex aeolicus lumazine synthase I125A mutant 12-pentamer cage

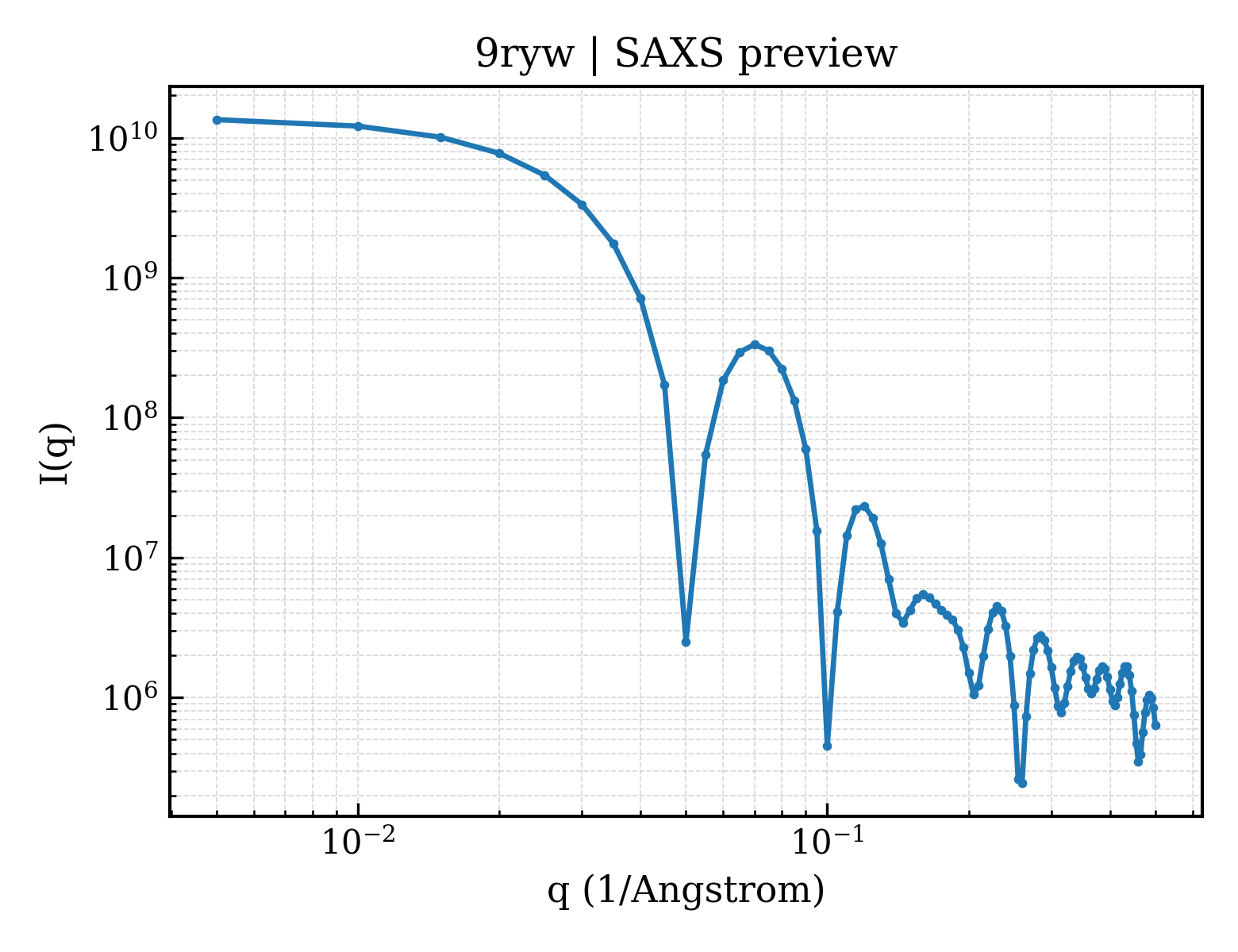

SAXS Profile

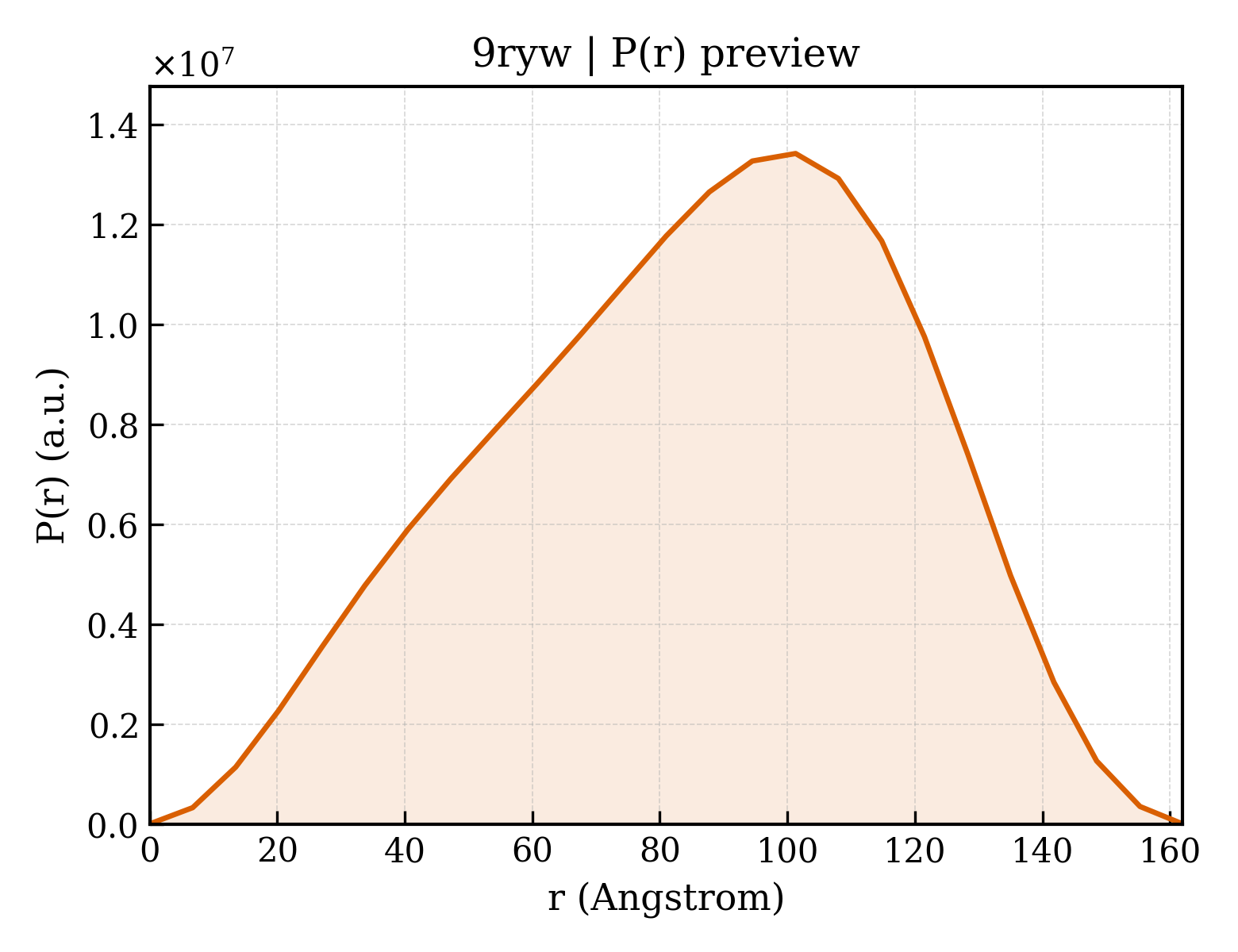

P(r) Distribution
1. Structure Basics
| entry_id | 9ryw |
| deposition_date | 2025-07-15 |
| title | Aquifex aeolicus lumazine synthase I125A mutant 12-pentamer cage |
| keywords | protein cage, protein engineering, self-assembly, geometry, pentamer, encapsulation, BIOSYNTHETIC PROTEIN; BIOSYNTHETIC PROTEIN |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 65.66 Å |
| rg_electron | 64.56 Å |
| i0 | 13945200000.00 |
| molecular_weight | 1004300.0 kDa |
| excluded_volume | 1259400 ų |
| envelope_volume | 1919500 ų |
| shell_volume | 231650 ų |
| envelope_diameter | 169.5 Å |
| shell_rg | 79.44 Å |
| envelope_rg | 60.41 Å |
| shape_rg | 64.54 Å |
| total_rg | 64.85 Å |
| total_atoms | 70680 |
| n_residues | 9240 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 162.0 Å |
| rg_real | 64.76 Å |
| rg_real_error | 0.32 Å |
| i0_real | 1.3950e+10 |
| i0_real_error | 2.1110e+08 |
| rg_reciprocal | 66.41 Å |
| i0_reciprocal | 13990000000.0000 |
| total_estimate | 0.6139 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 101.3 Å |
| skewness | -0.248 |
| kurtosis | -0.651 |
| angular_range | — – 0.1200 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1110000000000.0000 |
| n_real_points | 25 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.984; Stabil: 1.000; Sysdev: 0.013; Positv: 1.000; Valcen: 0.985; Smooth: 0.000 |
