9ski
Polysaccharide co-polymerase FepE open 7 subunit complex
SAXS Profile

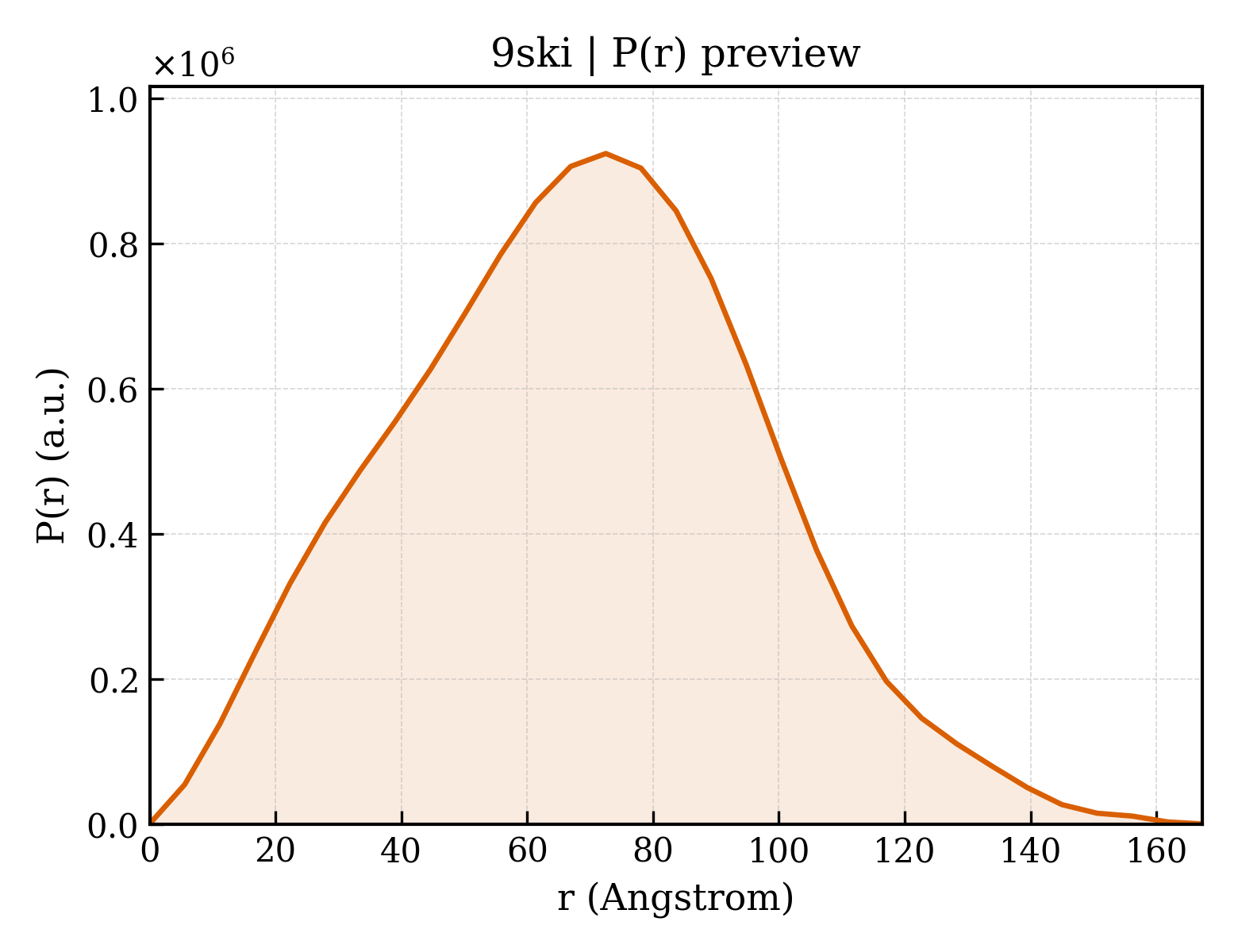

P(r) Distribution
1. Structure Basics
| entry_id | 9ski |
| deposition_date | 2025-09-02 |
| title | Polysaccharide co-polymerase FepE open 7 subunit complex |
| keywords | membrane protein, enzyme, polysaccharide, co-polymerase; MEMBRANE PROTEIN |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 52.65 Å |
| rg_electron | 52.50 Å |
| i0 | 836632000.00 |
| molecular_weight | 250950.0 kDa |
| excluded_volume | 319490 ų |
| envelope_volume | 605970 ų |
| shell_volume | 97112 ų |
| envelope_diameter | 173.5 Å |
| shell_rg | 56.91 Å |
| envelope_rg | 49.54 Å |
| shape_rg | 52.43 Å |
| total_rg | 52.91 Å |
| total_atoms | 17689 |
| n_residues | 2241 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 167.3 Å |
| rg_real | 52.45 Å |
| rg_real_error | 1.85 Å |
| i0_real | 8.3660e+08 |
| i0_real_error | 1.8830e+07 |
| rg_reciprocal | 52.80 Å |
| i0_reciprocal | 837000000.0000 |
| total_estimate | 0.8653 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 72.5 Å |
| skewness | 0.120 |
| kurtosis | -0.323 |
| angular_range | — – 0.1500 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 58180000.0000 |
| n_real_points | 31 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.859; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.968; Smooth: 0.700 |
