9skj
Polysaccharide co-polymerase FepE open 8 subunit complex
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9skj |
| deposition_date | 2025-09-02 |
| title | Polysaccharide co-polymerase FepE open 8 subunit complex |
| keywords | membrane protein, enzyme, polysaccharide, co-polymerase; MEMBRANE PROTEIN |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 53.86 Å |
| rg_electron | 53.64 Å |
| i0 | 1095280000.00 |
| molecular_weight | 287830.0 kDa |
| excluded_volume | 366470 ų |
| envelope_volume | 715650 ų |
| shell_volume | 111810 ų |
| envelope_diameter | 175.2 Å |
| shell_rg | 58.77 Å |
| envelope_rg | 50.26 Å |
| shape_rg | 53.58 Å |
| total_rg | 54.08 Å |
| total_atoms | 20288 |
| n_residues | 2571 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

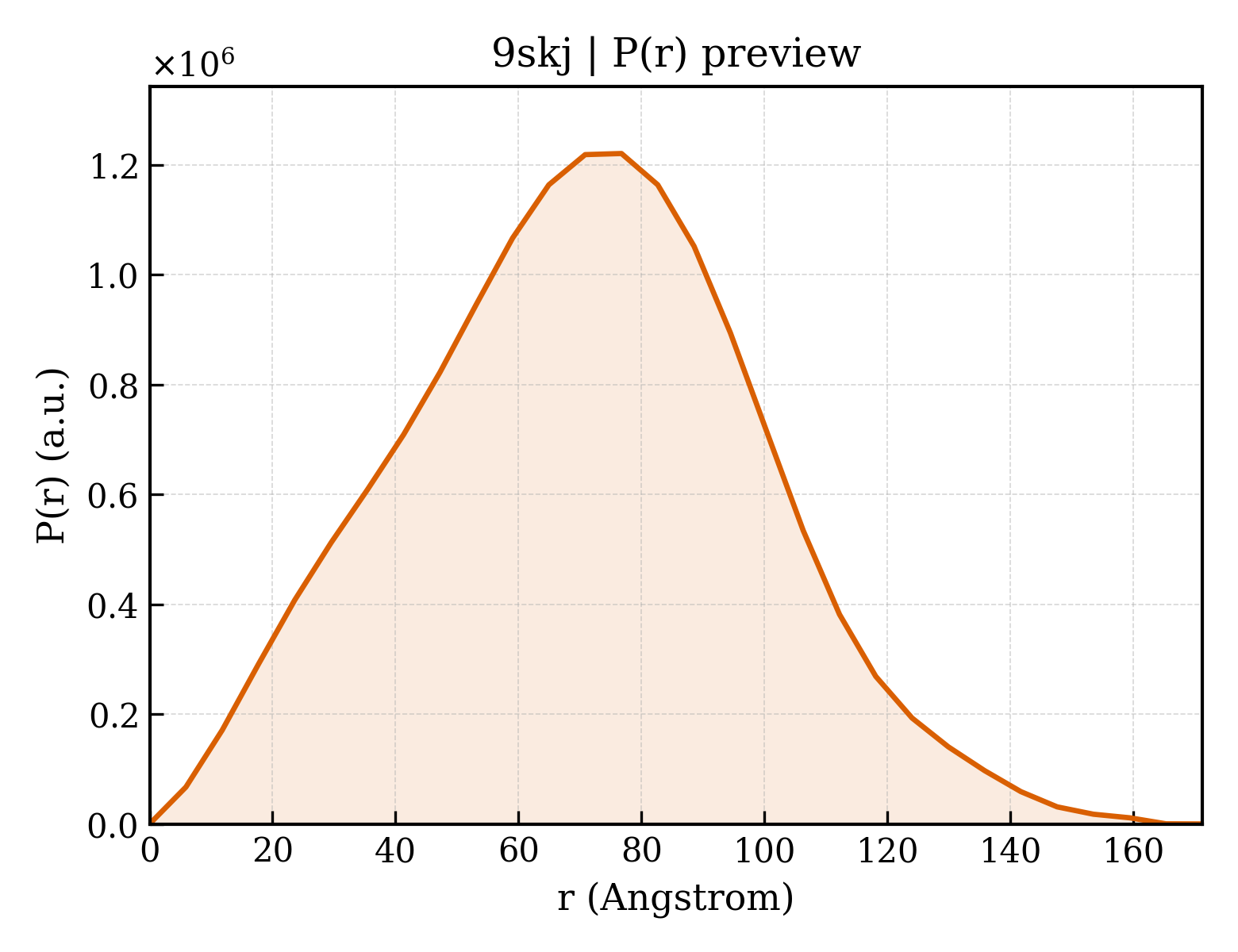

3. P(r) Analysis (GNOM)
| dmax | 171.2 Å |
| rg_real | 53.60 Å |
| rg_real_error | 1.49 Å |
| i0_real | 1.0950e+09 |
| i0_real_error | 2.0380e+07 |
| rg_reciprocal | 54.07 Å |
| i0_reciprocal | 1096000000.0000 |
| total_estimate | 0.8572 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 76.7 Å |
| skewness | 0.086 |
| kurtosis | -0.295 |
| angular_range | — – 0.1450 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 78720000.0000 |
| n_real_points | 30 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.813; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.956; Smooth: 0.745 |
