9skl
Polysaccharide co-polymerase FepE closed 9 subunit complex C9 symmetry
SAXS Profile

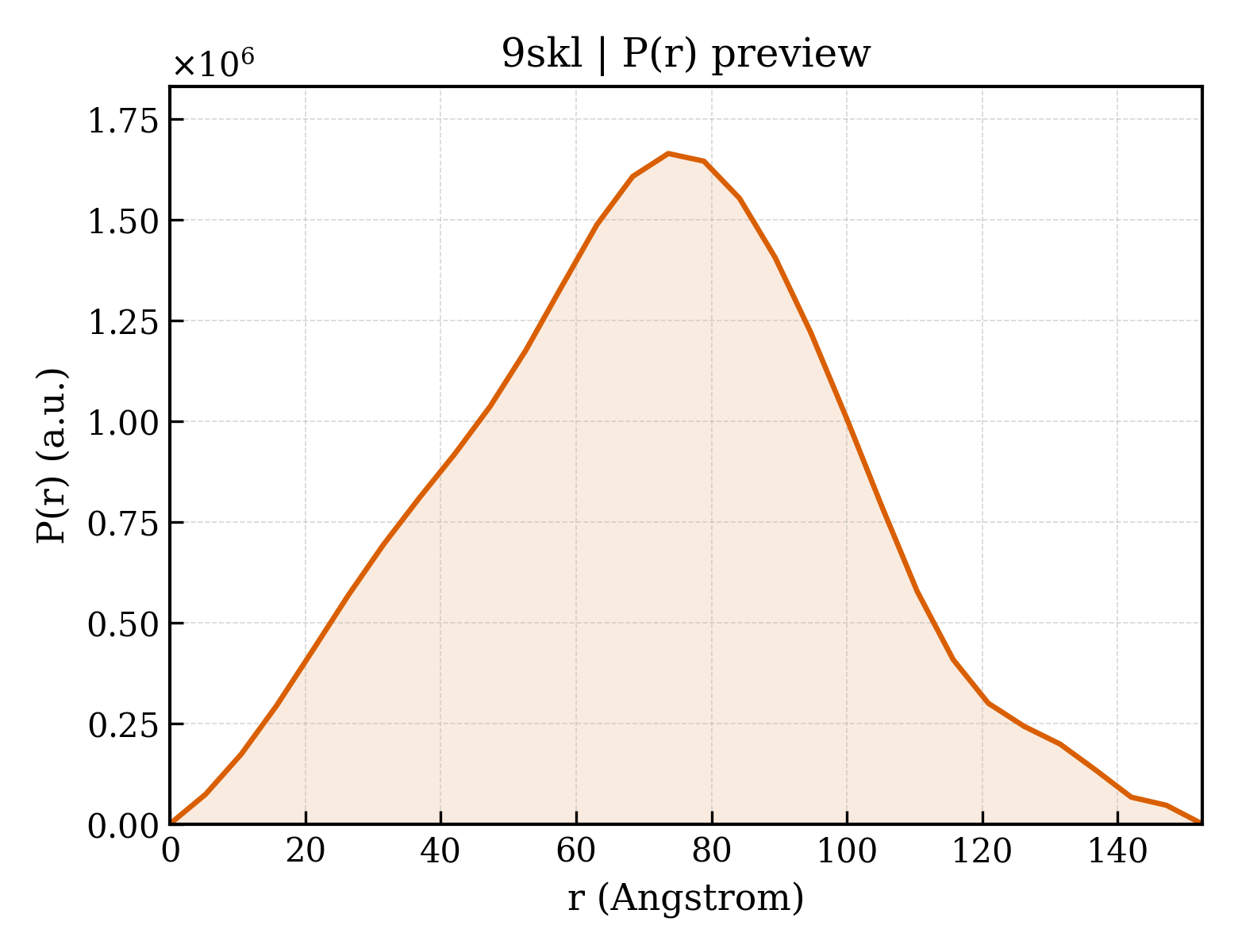

P(r) Distribution
1. Structure Basics
| entry_id | 9skl |
| deposition_date | 2025-09-02 |
| title | Polysaccharide co-polymerase FepE closed 9 subunit complex C9 symmetry |
| keywords | membrane protein, enzyme, polysaccharide, co-polymerase; MEMBRANE PROTEIN |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 54.40 Å |
| rg_electron | 54.06 Å |
| i0 | 1444050000.00 |
| molecular_weight | 331900.0 kDa |
| excluded_volume | 422800 ų |
| envelope_volume | 828950 ų |
| shell_volume | 127320 ų |
| envelope_diameter | 161.6 Å |
| shell_rg | 60.37 Å |
| envelope_rg | 50.54 Å |
| shape_rg | 53.99 Å |
| total_rg | 54.57 Å |
| total_atoms | 23391 |
| n_residues | 2970 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 152.5 Å |
| rg_real | 54.07 Å |
| rg_real_error | 0.96 Å |
| i0_real | 1.4440e+09 |
| i0_real_error | 2.6530e+07 |
| rg_reciprocal | 54.67 Å |
| i0_reciprocal | 1445000000.0000 |
| total_estimate | 0.8364 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 73.6 Å |
| skewness | 0.021 |
| kurtosis | -0.357 |
| angular_range | — – 0.1450 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 134500000.0000 |
| n_real_points | 30 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.936; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.963; Smooth: 0.099 |
