9smf

Reduced bovine complex I in lipid nanodisc, NADH-active-Q10

Method: ELECTRON MICROSCOPY Dmax: 217.9 Å Quality: GOOD

SAXS Profile

SAXS profile for 9smf

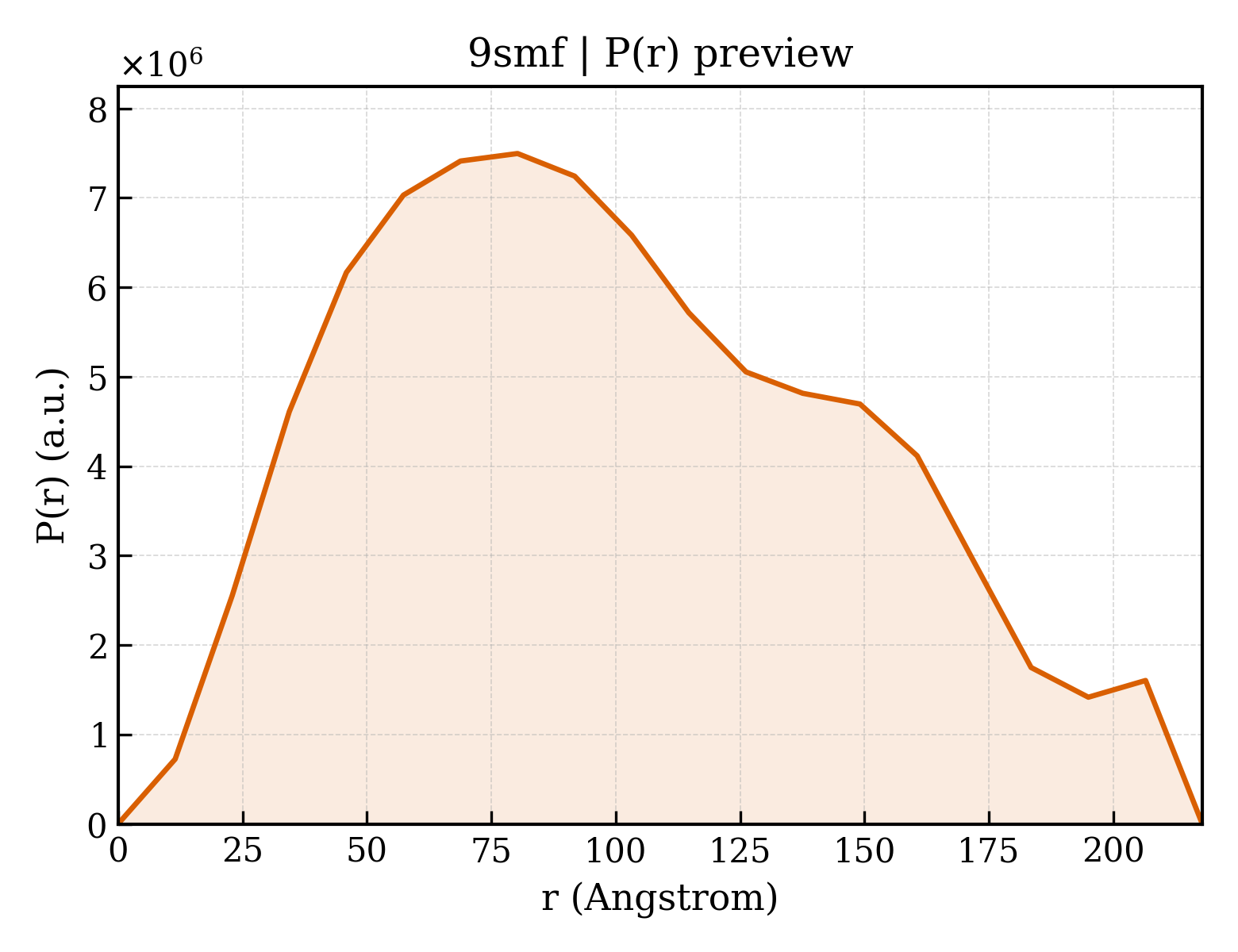

P(r) Distribution

P(r) distribution for 9smf

1. Structure Basics

entry_id9smf
deposition_date2025-09-08
titleReduced bovine complex I in lipid nanodisc, NADH-active-Q10
keywordsMitochondrial complex I, Respiratory complex I, NADH:ubiquinone oxidoreductase, Ubiquinone, Nanodisc, NADH, ELECTRON TRANSPORT; ELECTRON TRANSPORT
methodELECTRON MICROSCOPY

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier80.82
rg_electron80.68
i012136200000.00
molecular_weight982460.0 kDa
excluded_volume1247300 ų
envelope_volume1750000 ų
shell_volume183510 ų
envelope_diameter300.9
shell_rg75.28
envelope_rg80.27
shape_rg80.73
total_rg80.40
total_atoms68934
n_residues8287
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax217.9
rg_real77.45
rg_real_error0.91
i0_real1.1810e+10
i0_real_error2.5180e+08
rg_reciprocal78.70
i0_reciprocal12060000000.0000
total_estimate0.8793
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary80.3
skewness0.337
kurtosis-0.700
angular_range— – 0.0950 −1
current_alpha0.0950
highest_alpha660800000.0000
n_real_points20
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.953; Stabil: 0.981; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000

4. Crystallography & Experiment

5. Entities & Polymer Info (61)

6. Citations (1)

7. Files & Curves (10)
