9smi

Reduced bovine complex I in lipid nanodisc, NADH-deactive

Method: ELECTRON MICROSCOPY Dmax: 219.7 Å Quality: GOOD

SAXS Profile

SAXS profile for 9smi

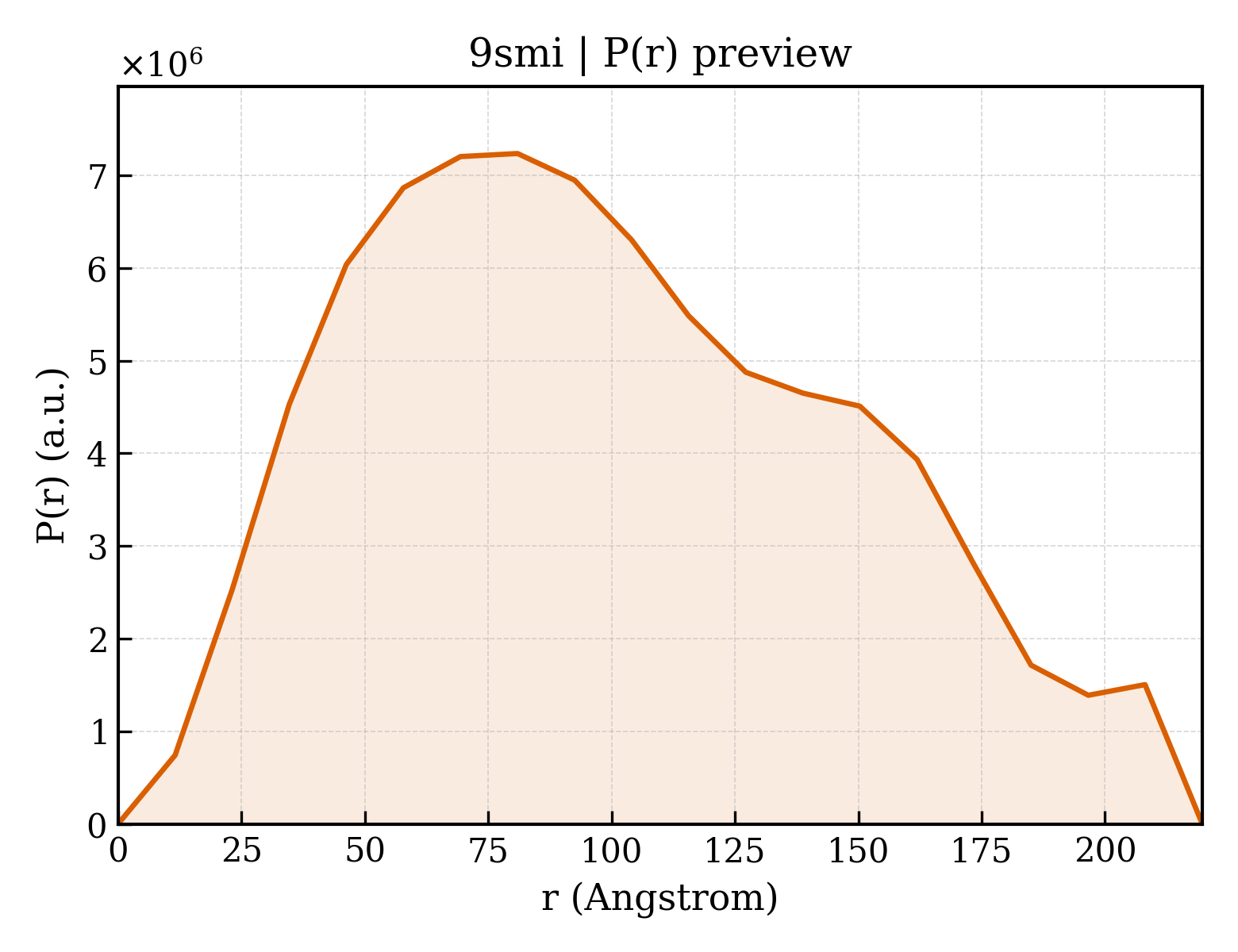

P(r) Distribution

P(r) distribution for 9smi

1. Structure Basics

entry_id9smi
deposition_date2025-09-08
titleReduced bovine complex I in lipid nanodisc, NADH-deactive
keywordsMitochondrial complex I, Respiratory complex I, NADH:ubiquinone oxidoreductase, Ubiquinone, Nanodisc, NADH, ELECTRON TRANSPORT; ELECTRON TRANSPORT
methodELECTRON MICROSCOPY

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier81.47
rg_electron81.36
i011860900000.00
molecular_weight973420.0 kDa
excluded_volume1236800 ų
envelope_volume1741800 ų
shell_volume181730 ų
envelope_diameter305.7
shell_rg74.87
envelope_rg81.02
shape_rg81.42
total_rg81.08
total_atoms68296
n_residues8207
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax219.7
rg_real77.86
rg_real_error1.05
i0_real1.1520e+10
i0_real_error2.2230e+08
rg_reciprocal79.14
i0_reciprocal11780000000.0000
total_estimate0.8857
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary80.9
skewness0.341
kurtosis-0.703
angular_range— – 0.0950 −1
current_alpha0.1142
highest_alpha616900000.0000
n_real_points20
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.958; Stabil: 0.982; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.001

4. Crystallography & Experiment

5. Entities & Polymer Info (61)

6. Citations (1)

7. Files & Curves (10)
