Human Methionine Synthase With Methyltetrahydrofolate, Hydroxocobalamin, and SAM, N-Half From Full-Length

Method: ELECTRON MICROSCOPY D_max: 96.7 Å Quality: GOOD

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9ssr
deposition_date	2025-09-26
title	Human Methionine Synthase With Methyltetrahydrofolate, Hydroxocobalamin, and SAM, N-Half From Full-Length
keywords	Methionine, Folate, Cobalamin, TRANSFERASE; TRANSFERASE
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	28.91 Å
rg_electron	28.29 Å
i0	80401400.00
molecular_weight	70308.0 kDa
excluded_volume	87927 Å³
envelope_volume	105890 Å³
shell_volume	32126 Å³
envelope_diameter	101.1 Å
shell_rg	34.54 Å
envelope_rg	28.64 Å
shape_rg	28.30 Å
total_rg	28.84 Å
total_atoms	4925
n_residues	638
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

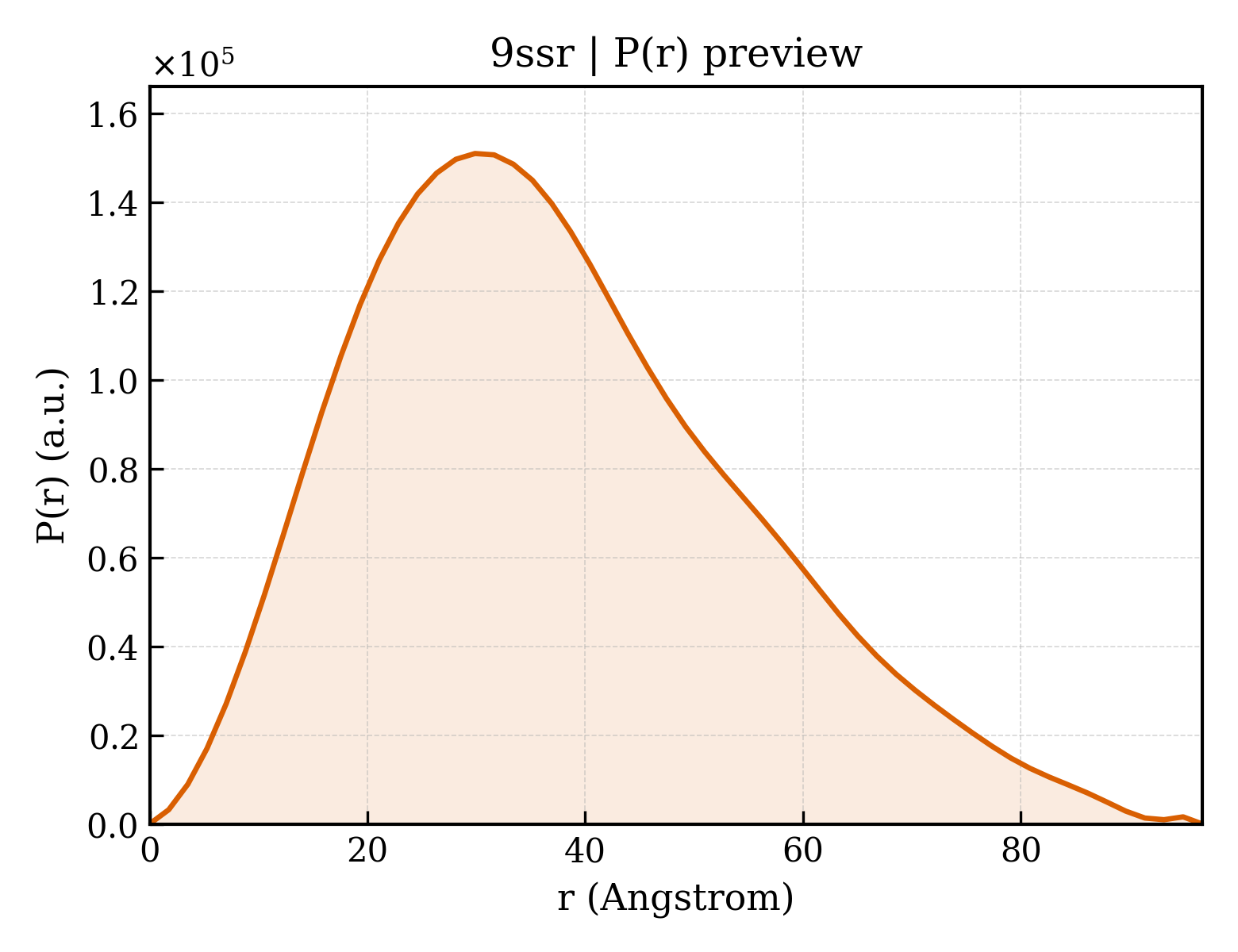

3. P(r) Analysis (GNOM)

dmax	96.7 Å
rg_real	29.05 Å
rg_real_error	0.83 Å
i0_real	8.0400e+07
i0_real_error	1.1580e+06
rg_reciprocal	28.99 Å
i0_reciprocal	80400000.0000
total_estimate	0.8517
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	29.9 Å
skewness	0.527
kurtosis	-0.185
angular_range	— – 0.2750 Å⁻¹
current_alpha	0.0000
highest_alpha	17310000.0000
n_real_points	56
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.807; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.890; Smooth: 0.758

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

Entity 1 polymer

description	Methionine synthase
formula_weight	140695.8 kDa
ec_number	2.1.1.13
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	4925

MSPALQDLSQPEGLKKTLRDEINAILQKRIMVLDGGMGTMIQREKLNEEHFRGQEFKDHARPLKGNNDILSITQPDVIYQIHKEYLLAGADIIETNTFSSTSIAQADYGLEHLAYRMNMCSAGVARKAAEEVTLQTGIKRFVAGALGPTNKTLSVSPSVERPDYRNITFDELVEAYQEQAKGLLDGGVDILLIETIFDTANAKAALFALQNLFEEKYAPRPIFISGTIVDKSGRTLSGQTGEGFVISVSHGEPLCIGLNCALGAAEMRPFIEIIGKCTTAYVLCYPNAGLPNTFGDYDETPSMMAKHLKDFAMDGLVNIVGGCCGSTPDHIREIAEAVKNCKPRVPPATAFEGHMLLSGLEPFRIGPYTNFVNIGERCNVAGSRKFAKLIMAGNYEEALCVAKVQVEMGAQVLDVNMDDGMLDGPSAMTRFCNLIASEPDIAKVPLCIDSSNFAVIEAGLKCCQGKCIVNSISLKEGEDDFLEKARKIKKYGAAMVVMAFDEEGQATETDTKIRVCTRAYHLLVKKLGFNPNDIIFDPNILTIGTGMEEHNLYAINFIHATKVIKETLPGARISGGLSNLSFSFRGMEAIREAMHGVFLYHAIKSGMDMGIVNAGNLPVYDDIHKELLQLCEDLIWNKDPEATEKLLRYAQTQGTGGKKVIQTDEWRNGPVEERLEYALVKGIEKHIIEDTEEARLNQKKYPRPLNIIEGPLMNGMKIVGDLFGAGKMFLPQVIKSARVMKKAVGHLIPFMEKEREETRVLNGTVEEEDPYQGTIVLATVKGDVHDIGKNIVGVVLGCNNFRVIDLGVMTPCDKILKAALDHKADIIGLSGLITPSLDEMIFVAKEMERLAIRIPLLIGGATTSKTHTAVKIAPRYSAPVIHVLDASKSVVVCSQLLDENLKDEYFEEIMEEYEDIRQDHYESLKERRYLPLSQARKSGFQMDWLSEPHPVKPTFIGTQVFEDYDLQKLVDYIDWKPFFDVWQLRGKYPNRGFPKIFNDKTVGGEARKVYDDAHNMLNTLISQKKLRARGVVGFWPAQSIQDDIHLYAEAAVPQAAEPIATFYGLRQQAEKDSASTEPYYCLSDFIAPLHSGIRDYLGLFAVACFGVEELSKAYEDDGDDYSSIMVKALGDRLAEAFAEELHERVRRELWAYCGSEQLDVADLRRLRYKGIRPAPGYPSQPDHTEKLTMWRLADIEQSTGIRLTESLAMAPASAVSGLYFSNLKSKYFAVGKISKDQVEDYALRKNISVAEVEKWLGPILGYDTD

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 2 non-polymer

description	N-[4-({[(6S)-2-AMINO-4-HYDROXY-5-METHYL-5,6,7,8-TETRAHYDROPTERIDIN-6-YL]METHYL}AMINO)BENZOYL]-L-GLUTAMIC ACID
formula_weight	459.5 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	2.84 Å
resolution_method	—
num_particles	76292

fit	/app/data/saxs_computation/ss/9ssr/9ssr.fit
pddf	/app/data/pr_computation/ss/9ssr/9ssr.pr.out
profile	/app/data/saxs_computation/ss/9ssr/9ssr.dat
