9ssu

Human Methionine Synthase With Methylcobalamin, N-Half From Full-Length

Method: ELECTRON MICROSCOPY Dmax: 97.7 Å Quality: GOOD

SAXS Profile

SAXS profile for 9ssu

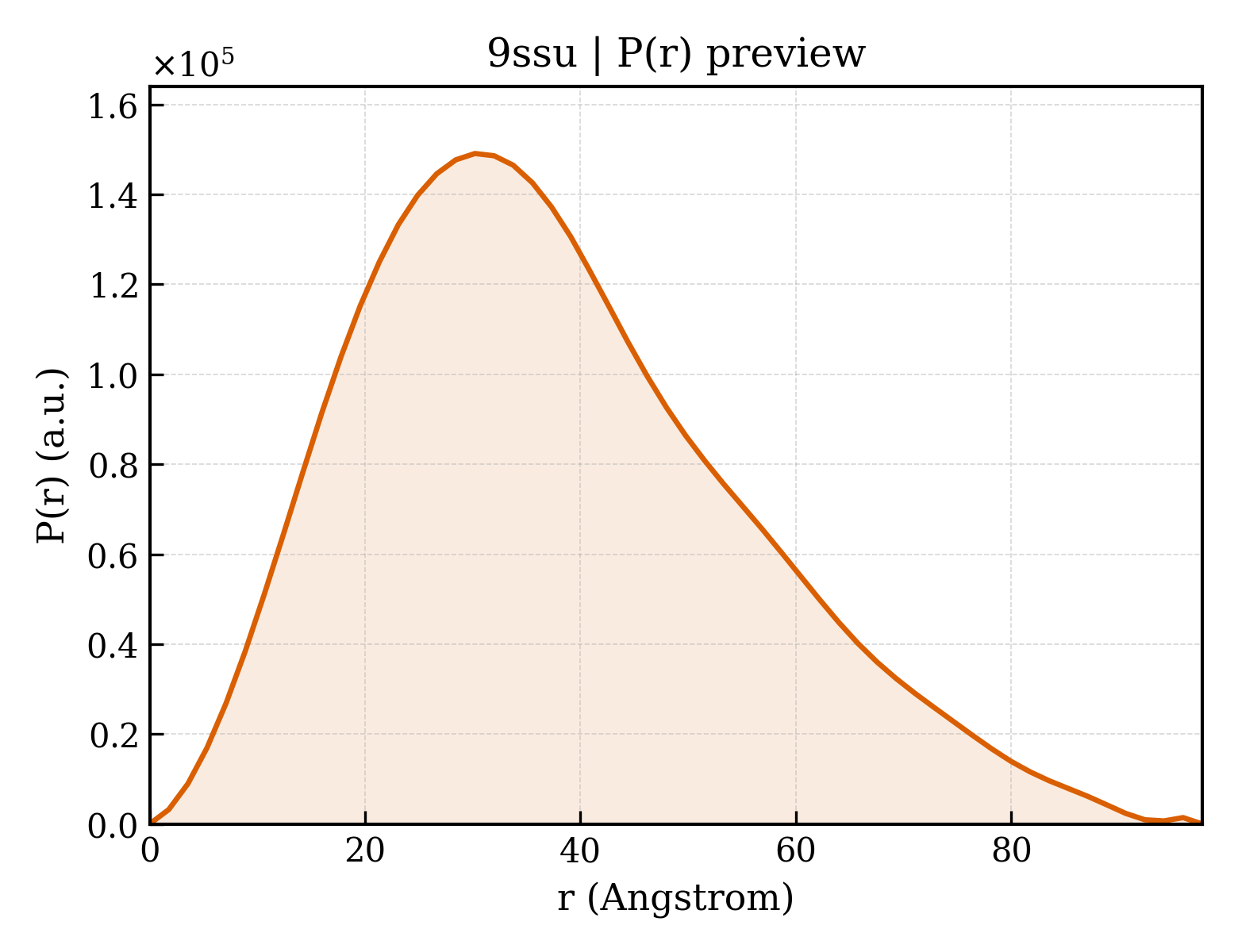

P(r) Distribution

P(r) distribution for 9ssu
▼

1. Structure Basics

entry_id9ssu
deposition_date2025-09-26
titleHuman Methionine Synthase With Methylcobalamin, N-Half From Full-Length
keywordsMethionine, Folate, Cobalamin, TRANSFERASE; TRANSFERASE
methodELECTRON MICROSCOPY
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier29.03 Å
rg_electron28.40 Å
i079322900.00
molecular_weight69848.0 kDa
excluded_volume87398 ų
envelope_volume106190 ų
shell_volume32203 ų
envelope_diameter103.0 Å
shell_rg34.55 Å
envelope_rg28.65 Å
shape_rg28.41 Å
total_rg28.95 Å
total_atoms4892
n_residues638
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax97.7 Å
rg_real29.17 Å
rg_real_error0.85 Å
i0_real7.9320e+07
i0_real_error1.2160e+06
rg_reciprocal29.11 Å
i0_reciprocal79320000.0000
total_estimate0.8521
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary30.2 Å
skewness0.531
kurtosis-0.177
angular_range— – 0.2750 Å−1
current_alpha0.0000
highest_alpha16200000.0000
n_real_points56
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.792; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.884; Smooth: 0.813
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

▶

6. Citations (1)

▶

7. Files & Curves (10)
