Human Methionine Synthase With Methyltetrahydrofolate, Hydroxocobalamin, and SAM, C-Half His-OFF From Full-Length

Method: ELECTRON MICROSCOPY D_max: 94.8 Å Quality: GOOD

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9sst
deposition_date	2025-09-26
title	Human Methionine Synthase With Methyltetrahydrofolate, Hydroxocobalamin, and SAM, C-Half His-OFF From Full-Length
keywords	Methionine, Folate, Cobalamin, TRANSFERASE; TRANSFERASE
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	28.17 Å
rg_electron	27.21 Å
i0	73616600.00
molecular_weight	68579.0 kDa
excluded_volume	86398 Å³
envelope_volume	107630 Å³
shell_volume	33032 Å³
envelope_diameter	100.2 Å
shell_rg	34.41 Å
envelope_rg	27.43 Å
shape_rg	27.23 Å
total_rg	27.91 Å
total_atoms	4830
n_residues	596
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

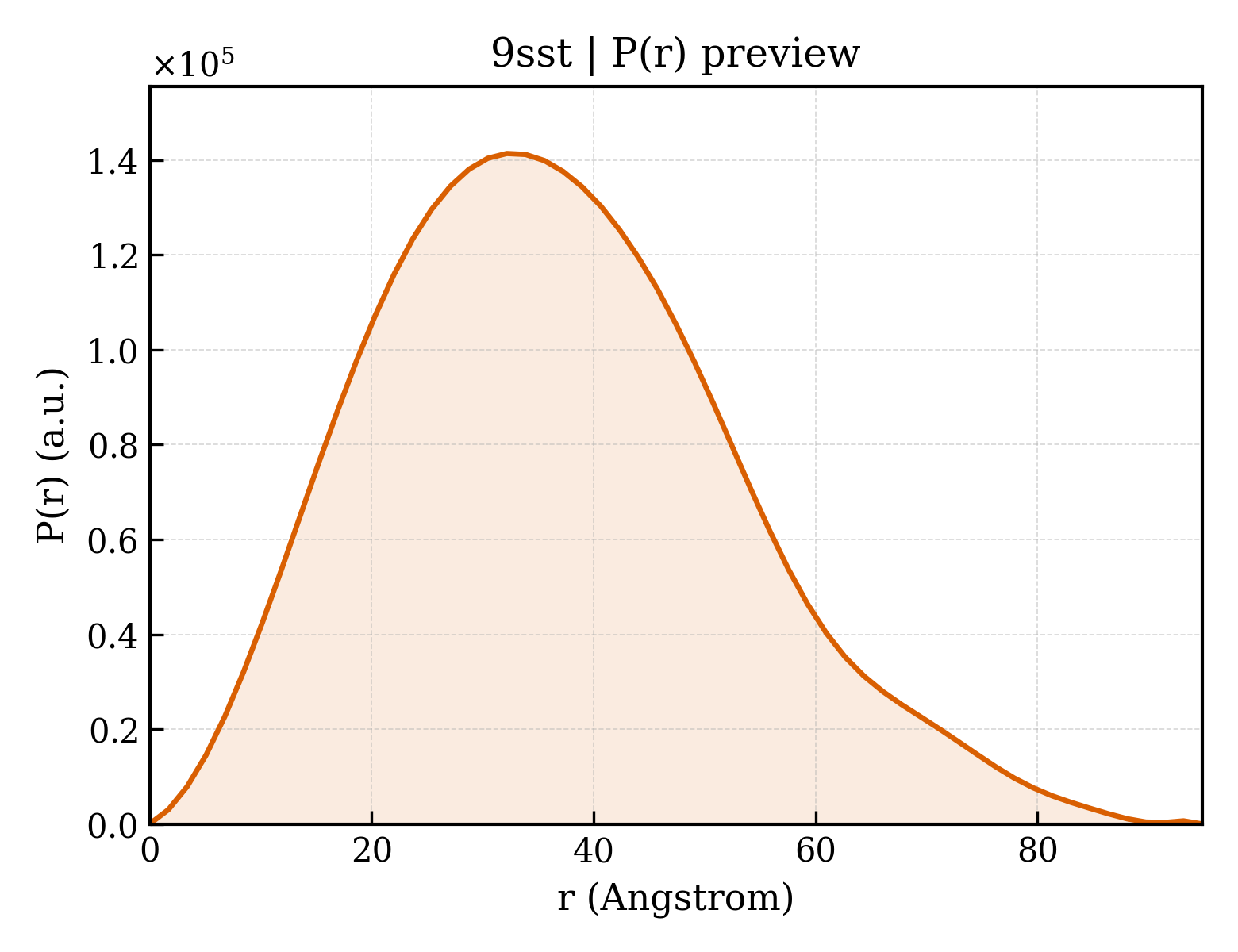

3. P(r) Analysis (GNOM)

dmax	94.8 Å
rg_real	28.19 Å
rg_real_error	0.75 Å
i0_real	7.3620e+07
i0_real_error	1.1830e+06
rg_reciprocal	28.18 Å
i0_reciprocal	73620000.0000
total_estimate	0.8771
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	32.2 Å
skewness	0.406
kurtosis	-0.162
angular_range	— – 0.2800 Å⁻¹
current_alpha	0.0000
highest_alpha	15270000.0000
n_real_points	57
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.826; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.939

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

Entity 1 polymer

description	Methionine synthase
formula_weight	140695.8 kDa
ec_number	2.1.1.13
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	4830

MSPALQDLSQPEGLKKTLRDEINAILQKRIMVLDGGMGTMIQREKLNEEHFRGQEFKDHARPLKGNNDILSITQPDVIYQIHKEYLLAGADIIETNTFSSTSIAQADYGLEHLAYRMNMCSAGVARKAAEEVTLQTGIKRFVAGALGPTNKTLSVSPSVERPDYRNITFDELVEAYQEQAKGLLDGGVDILLIETIFDTANAKAALFALQNLFEEKYAPRPIFISGTIVDKSGRTLSGQTGEGFVISVSHGEPLCIGLNCALGAAEMRPFIEIIGKCTTAYVLCYPNAGLPNTFGDYDETPSMMAKHLKDFAMDGLVNIVGGCCGSTPDHIREIAEAVKNCKPRVPPATAFEGHMLLSGLEPFRIGPYTNFVNIGERCNVAGSRKFAKLIMAGNYEEALCVAKVQVEMGAQVLDVNMDDGMLDGPSAMTRFCNLIASEPDIAKVPLCIDSSNFAVIEAGLKCCQGKCIVNSISLKEGEDDFLEKARKIKKYGAAMVVMAFDEEGQATETDTKIRVCTRAYHLLVKKLGFNPNDIIFDPNILTIGTGMEEHNLYAINFIHATKVIKETLPGARISGGLSNLSFSFRGMEAIREAMHGVFLYHAIKSGMDMGIVNAGNLPVYDDIHKELLQLCEDLIWNKDPEATEKLLRYAQTQGTGGKKVIQTDEWRNGPVEERLEYALVKGIEKHIIEDTEEARLNQKKYPRPLNIIEGPLMNGMKIVGDLFGAGKMFLPQVIKSARVMKKAVGHLIPFMEKEREETRVLNGTVEEEDPYQGTIVLATVKGDVHDIGKNIVGVVLGCNNFRVIDLGVMTPCDKILKAALDHKADIIGLSGLITPSLDEMIFVAKEMERLAIRIPLLIGGATTSKTHTAVKIAPRYSAPVIHVLDASKSVVVCSQLLDENLKDEYFEEIMEEYEDIRQDHYESLKERRYLPLSQARKSGFQMDWLSEPHPVKPTFIGTQVFEDYDLQKLVDYIDWKPFFDVWQLRGKYPNRGFPKIFNDKTVGGEARKVYDDAHNMLNTLISQKKLRARGVVGFWPAQSIQDDIHLYAEAAVPQAAEPIATFYGLRQQAEKDSASTEPYYCLSDFIAPLHSGIRDYLGLFAVACFGVEELSKAYEDDGDDYSSIMVKALGDRLAEAFAEELHERVRRELWAYCGSEQLDVADLRRLRYKGIRPAPGYPSQPDHTEKLTMWRLADIEQSTGIRLTESLAMAPASAVSGLYFSNLKSKYFAVGKISKDQVEDYALRKNISVAEVEKWLGPILGYDTD

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 2 non-polymer

description	COBALAMIN
formula_weight	1330.4 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	2.82 Å
resolution_method	—
num_particles	97889

fit	/app/data/saxs_computation/ss/9sst/9sst.fit
pddf	/app/data/pr_computation/ss/9sst/9sst.pr.out
profile	/app/data/saxs_computation/ss/9sst/9sst.dat
