9swq
Stimulator of interferon genes protein mutant - I165H
SAXS Profile

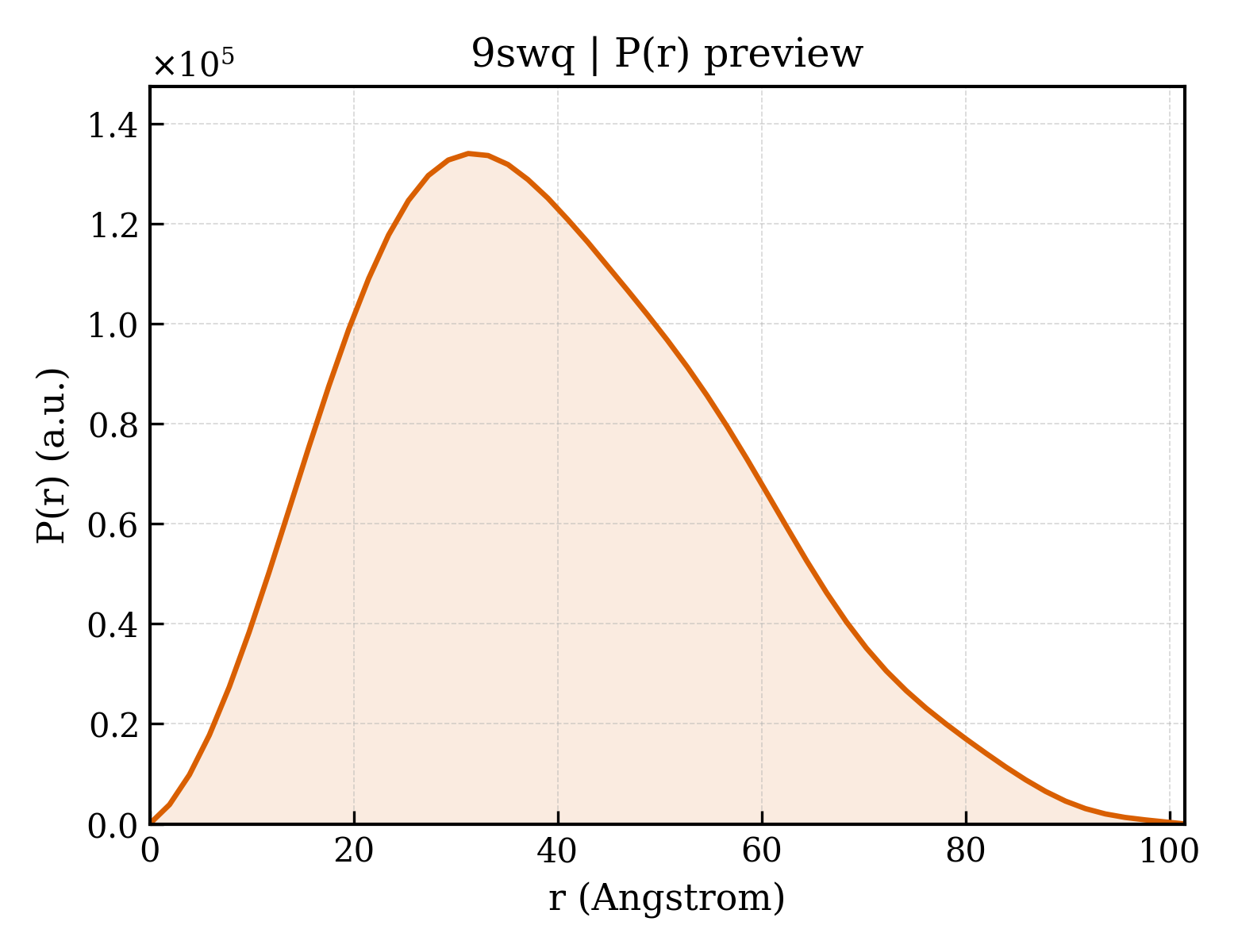

P(r) Distribution
1. Structure Basics
| entry_id | 9swq |
| deposition_date | 2025-10-07 |
| title | Stimulator of interferon genes protein mutant - I165H |
| keywords | STING, Innate Immunity, IMMUNE SYSTEM; IMMUNE SYSTEM |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 30.64 Å |
| rg_electron | 30.51 Å |
| i0 | 78294500.00 |
| molecular_weight | 70998.0 kDa |
| excluded_volume | 89411 ų |
| envelope_volume | 119340 ų |
| shell_volume | 33742 ų |
| envelope_diameter | 106.3 Å |
| shell_rg | 36.34 Å |
| envelope_rg | 30.80 Å |
| shape_rg | 30.56 Å |
| total_rg | 30.88 Å |
| total_atoms | 5006 |
| n_residues | 642 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 101.5 Å |
| rg_real | 30.72 Å |
| rg_real_error | 0.66 Å |
| i0_real | 7.8290e+07 |
| i0_real_error | 1.1120e+06 |
| rg_reciprocal | 30.69 Å |
| i0_reciprocal | 78290000.0000 |
| total_estimate | 0.6661 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 31.2 Å |
| skewness | 0.409 |
| kurtosis | -0.339 |
| angular_range | — – 0.2600 Å−1 |
| current_alpha | 0.0001 |
| highest_alpha | 15180000.0000 |
| n_real_points | 53 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.878; Stabil: 1.000; Sysdev: 0.077; Positv: 1.000; Valcen: 0.952; Smooth: 0.837 |
