9taj

E. coli Complex I WT purified in LMNG

Method: ELECTRON MICROSCOPY D_max: 219.5 Å Quality: GOOD

SAXS Profile

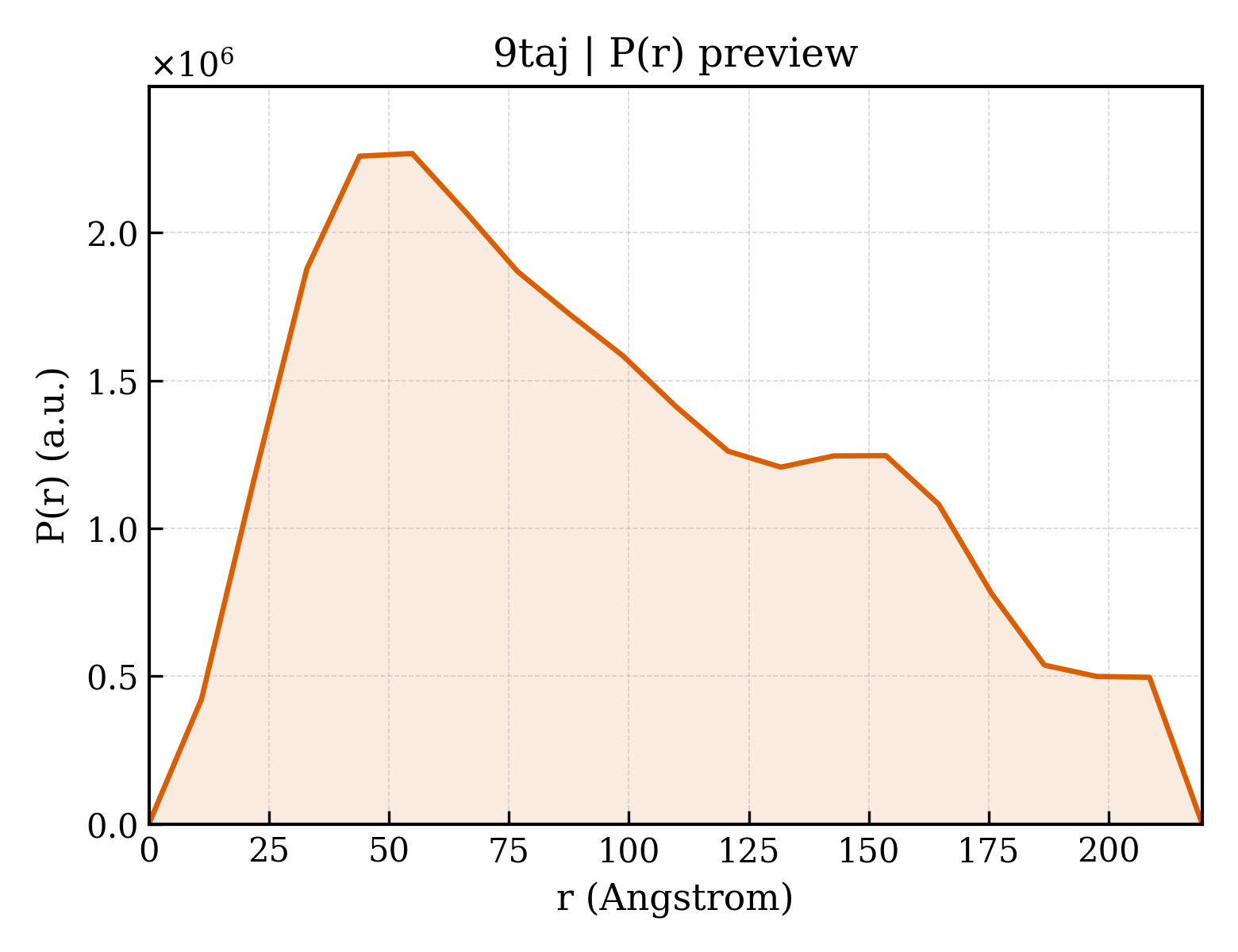

P(r) Distribution

▼

1. Structure Basics

entry_id	9taj
deposition_date	2025-11-18
title	E. coli Complex I WT purified in LMNG
keywords	PROTON TRANSPORT, bioenergetics; PROTON TRANSPORT
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	78.29 Å
rg_electron	80.05 Å
i0	3520360000.00
molecular_weight	538120.0 kDa
excluded_volume	686970 Å³
envelope_volume	971270 Å³
shell_volume	107500 Å³
envelope_diameter	280.9 Å
shell_rg	68.79 Å
envelope_rg	79.13 Å
shape_rg	80.06 Å
total_rg	79.88 Å
total_atoms	37747
n_residues	4698
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	219.5 Å
rg_real	75.71 Å
rg_real_error	1.41 Å
i0_real	3.4490e+09
i0_real_error	7.3970e+07
rg_reciprocal	74.58 Å
i0_reciprocal	3486000000.0000
total_estimate	0.7947
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	54.9 Å
skewness	0.427
kurtosis	-0.815
angular_range	— – 0.1000 Å⁻¹
current_alpha	0.0784
highest_alpha	83400000.0000
n_real_points	21
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.738; Stabil: 0.976; Sysdev: 1.000; Positv: 1.000; Valcen: 0.827; Smooth: 0.011

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (23)

Entity 1 polymer

description	NADH-quinone oxidoreductase subunit E
formula_weight	18614.0 kDa
ec_number	7.1.1.-
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	E
atom_count	38186

MHENQQPQTEAFELSAAEREAIEHEMHHYEDPRAASIEALKIVQKQRGWVPDGAIHAIADVLGIPASDVEGVATFYSQIFRQPVGRHVIRYCDSVVCHINGYQGIQAALEKKLNIKPGQTTFDGRFTLLPTCCLGNCDKGPNMMIDEDTHAHLTPEAIPELLERYK

Source

organism	Escherichia coli BW25113
ncbi_taxonomy_id	679895
host_organism	Escherichia coli BW25113

Entity 2 polymer

description	NADH-quinone oxidoreductase subunit F
formula_weight	51208.4 kDa
ec_number	7.1.1.-
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	F

MRGSHHHHHHTDPALRAKNIIRTPETHPLTWRLRDDKQPVWLDEYRSKNGYEGARKALTGLSPDEIVNQVKDAGLKGRGGAGFSTGLKWSLMPKDESMNIRYLLCNADEMEPGTYKDRLLMEQLPHLLVEGMLISAFALKAYRGYIFLRGEYIEAAVNLRRAIAEATEAGLLGKNIMGTGFDFELFVHTGAGRYICGEETALINSLEGRRANPRSKPPFPATSGAWGKPTCVNNVETLCNVPAILANGVEWYQNISKSKDAGTKLMGFSGRVKNPGLWELPFGTTAREILEDYAGGMRDGLKFKAWQPGGAGTDFLTEAHLDLPMEFESIGKAGSRLGTALAMAVDHEINMVSLVRNLEEFFARESCGWCTPCRDGLPWSVKILRALERGEGQPGDIETLEQLCRFLGPGKTFCAHAPGAVEPLQSAIKYFREEFEAGIKQPFSNTHLINGIQPNLLKERW

Source

organism	Escherichia coli BW25113
ncbi_taxonomy_id	679895
host_organism	Escherichia coli BW25113

Entity 3 polymer

description	NADH-quinone oxidoreductase subunit G
formula_weight	100663.6 kDa
ec_number	7.1.1.-
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	G

MLMATIHVDGKEYEVNGADNLLEACLSLGLDIPYFCWHPALGSVGACRQCAVKQYQNAEDTRGRLVMSCMTPASDGTFISIDDEEAKQFRESVVEWLMTNHPHDCPVCEEGGNCHLQDMTVMTGHSFRRYRFTKRTHRNQDLGPFISHEMNRCIACYRCVRYYKDYADGTDLGVYGAHDNVYFGRPEDGTLESEFSGNLVEICPTGVFTDKTHSERYNRKWDMQFAPSICQQCSIGCNISPGERYGELRRIENRYNGTVNHYFLCDRGRFGYGYVNLKDRPRQPVQRRGDDFITLNAEQAMQGAADILRQSKKVIGIGSPRASVESNFALRELVGEENFYTGIAHGEQERLQLALKVLREGGIYTPALREIESYDAVLVLGEDVTQTGARVALAVRQAVKGKAREMAAAQKVADWQIAAILNIGQRAKHPLFVTNVDDTRLDDIAAWTYRAPVEDQARLGFAIAHALDNSAPAVDGIEPELQSKIDVIVQALAGAKKPLIISGTNAGSLEVIQAAANVAKALKGRGADVGITMIARSVNSMGLGIMGGGSLEEALTELETGRADAVVVLENDLHRHASAIRVNAALAKAPLVMVVDHQRTAIMENAHLVLSAASFAESDGTVINNEGRAQRFFQVYDPAYYDSKTVMLESWRWLHSLHSTLLSREVDWTQLDHVIDAVVAKIPELAGIKDAAPDATFRIRGQKLAREPHRYSGRTAMRANISVHEPRQPQDIDTMFTFSMEGNNQPTAHRSQVPFAWAPGWNSPQAWNKFQDEVGGKLRFGDPGVRLFETSENGLDYFTSVPARFQPQDGKWRIAPYYHLFGSDELSQRAPVFQSRMPQPYIKLNPADAAKLGVNAGTRVSFSYDGNTVTLPVEIAEGLTAGQVGLPMGMSGIAPVLAGAHLEDLKEAQQ

Source

organism	Escherichia coli BW25113
ncbi_taxonomy_id	679895
host_organism	Escherichia coli BW25113

Entity 4 polymer

description	NADH-quinone oxidoreductase subunit I
formula_weight	20562.8 kDa
ec_number	7.1.1.-
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	I

MTLKELLVGFGTQVRSIWMIGLHAFAKRETRMYPEEPVYLPPRYRGRIVLTRDPDGEERCVACNLCAVACPVGCISLQKAETKDGRWYPEFFRINFSRCIFCGLCEEACPTTAIQLTPDFEMGEYKRQDLVYEKEDLLISGPGKYPEYNFYRMAGMAIDGKDKGEAENEAKPIDVKSLLP

Source

organism	Escherichia coli BL21(DE3)
ncbi_taxonomy_id	469008
host_organism	Escherichia coli BW25113

Entity 5 polymer

description	NADH-quinone oxidoreductase subunit B
formula_weight	25081.8 kDa
ec_number	7.1.1.-
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

MDYTLTRIDPNGENDRYPLQKQEIVTDPLEQEVNKNVFMGKLNDMVNWGRKNSIWPYNFGLSCCYVEMVTSFTAVHDVARFGAEVLRASPRQADLMVVAGTCFTKMAPVIQRLYDQMLEPKWVISMGACANSGGMYDIYSVVQGVDKFIPVDVYIPGCPPRPEAYMQALMLLQESIGKERRPLSWVVGDQGVYRANMQSERERKRGERIAVTNLRTPDEI

Source

organism	Escherichia coli BW25113
ncbi_taxonomy_id	679895
host_organism	Escherichia coli BW25113

Entity 6 polymer

description	NADH-quinone oxidoreductase subunit C/D
formula_weight	68780.5 kDa
ec_number	7.1.1.-
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

MVNNMTDLTAQEPAWQTRDHLDDPVIGELRNRFGPDAFTVQATRTGVPVVWIKREQLLEVGDFLKKLPKPYVMLFDLHGMDERLRTHREGLPAADFSVFYHLISIDRNRDIMLKVALAENDLHVPTFTKLFPNANWYERETWDLFGITFDGHPNLRRIMMPQTWKGHPLRKDYPARATEFSPFELTKAKQDLEMEALTFKPEEWGMKRGTENEDFMFLNLGPNHPSAHGAFRIVLQLDGEEIVDCVPDIGYHHRGAEKMGERQSWHSYIPYTDRIEYLGGCVNEMPYVLAVEKLAGITVPDRVNVIRVMLSELFRINSHLLYISTFIQDVGAMTPVFFAFTDRQKIYDLVEAITGFRMHPAWFRIGGVAHDLPRGWDRLLREFLDWMPKRLASYEKAALQNTILKGRSQGVAAYGAKEALEWGTTGAGLRATGIDFDVRKARPYSGYENFDFEIPVGGGVSDCYTRVMLKVEELRQSLRILEQCLNNMPEGPFKADHPLTTPPPKERTLQHIETLITHFLQVSWGPVMPANESFQMIEATKGINSYYLTSDGSTMSYRTRVRTPSFAHLQQIPAAIRGSLVSDLIVYLGSIDFVMSDVDR

Source

organism	Escherichia coli BL21(DE3)
ncbi_taxonomy_id	469008
host_organism	Escherichia coli BW25113

Entity 7 polymer

description	NADH-quinone oxidoreductase subunit H
formula_weight	36240.9 kDa
ec_number	7.1.1.-
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	H

MSWISPELIEILLTILKAVVILLVVVTCGAFMSFGERRLLGLFQNRYGPNRVGWGGSLQLVADMIKMFFKEDWIPKFSDRVIFTLAPMIAFTSLLLAFAIVPVSPGWVVADLNIGILFFLMMAGLAVYAVLFAGWSSNNKYSLLGAMRASAQTLSYEVFLGLSLMGVVAQAGSFNMTDIVNSQAHVWNVIPQFFGFITFAIAGVAVCHRHPFDQPEAEQELADGYHIEYSGMKFGLFFVGEYIGIVTISALMVTLFFGGWQGPLLPPFIWFALKTAFFMMMFILIRASLPRPRYDQVMSFGWKICLPLTLINLLVTAAVILWQAQ

Source

organism	Escherichia coli BW25113
ncbi_taxonomy_id	679895
host_organism	Escherichia coli BW25113

Entity 8 polymer

description	NADH-quinone oxidoreductase subunit J
formula_weight	19889.6 kDa
ec_number	7.1.1.-
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	J

MEFAFYICGLIAILATLRVITHTNPVHALLYLIISLLAISGVFFSLGAYFAGALEIIVYAGAIMVLFVFVVMMLNLGGSEIEQERQWLKPQVWIGPAILSAIMLVVIVYAILGVNDQGIDGTPISAKAVGITLFGPYVLAVELASMLLLAGLVVAFHVGREERAGEVLSNRKDDSAKRKTEEHA

Source

organism	Escherichia coli BW25113
ncbi_taxonomy_id	679895
host_organism	Escherichia coli BW25113

Entity 9 polymer

description	NADH-quinone oxidoreductase subunit K
formula_weight	10853.0 kDa
ec_number	7.1.1.-
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	K

MIPLQHGLILAAILFVLGLTGLVIRRNLLFMLIGLEIMINASALAFVVAGSYWGQTDGQVMYILAISLAAAEASIGLALLLQLHRRRQNLNIDSVSEMRG

Source

organism	Escherichia coli BW25113
ncbi_taxonomy_id	679895
host_organism	Escherichia coli BW25113

Entity 10 polymer

description	NADH-quinone oxidoreductase subunit M
formula_weight	56560.1 kDa
ec_number	7.1.1.-
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	M

MLLPWLILIPFIGGFLCWQTERFGVKVPRWIALITMGLTLALSLQLWLQGGYSLTQSAGIPQWQSEFDMPWIPRFGISIHLAIDGLSLLMVVLTGLLGVLAVLCSWKEIEKYQGFFHLNLMWILGGVIGVFLAIDMFLFFFFWEMMLVPMYFLIALWGHKASDGKTRITAATKFFIYTQASGLVMLIAILALVFVHYNATGVWTFNYEELLNTPMSSGVEYLLMLGFFIAFAVKMPVVPLHGWLPDAHSQAPTAGSVDLAGILLKTAAYGLLRFSLPLFPNASAEFAPIAMWLGVIGIFYGAWMAFAQTDIKRLIAYTSVSHMGFVLIAIYTGSQLAYQGAVIQMIAHGLSAAGLFILCGQLYERIHTRDMRMMGGLWSKMKWLPALSLFFAVATLGMPGTGNFVGEFMILFGSFQVVPVITVISTFGLVFASVYSLAMLHRAYFGKAKSQIASQELPGMSLRELFMILLLVVLLVLLGFYPQPILDTSHSAIGNIQQWFVNSVTTTRP

Source

organism	Escherichia coli BW25113
ncbi_taxonomy_id	679895
host_organism	Escherichia coli BW25113

Entity 11 polymer

description	NADH-quinone oxidoreductase subunit A
formula_weight	16474.3 kDa
ec_number	7.1.1.-
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A

MSMSTSTEVIAHHWAFAIFLIVAIGLCCLMLVGGWFLGGRARARSKNVPFESGIDSVGSARLRLSAKFYLVAMFFVIFDVEALYLFAWSTSIRESGWVGFVEAAIFIFVLLAGLVYLVRIGALDWTPARSRRERMNPETNSIANRQR

Source

organism	Escherichia coli BW25113
ncbi_taxonomy_id	679895
host_organism	Escherichia coli BW25113

Entity 12 polymer

description	NADH-quinone oxidoreductase subunit L
formula_weight	66483.6 kDa
ec_number	7.1.1.-
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	L

MNMLALTIILPLIGFVLLAFSRGRWSENVSAIVGVGSVGLAALVTAFIGVDFFANGEQTYSQPLWTWMSVGDFNIGFNLVLDGLSLTMLSVVTGVGFLIHMYASWYMRGEEGYSRFFAYTNLFIASMVVLVLADNLLLMYLGWEGVGLCSYLLIGFYYTDPKNGAAAMKAFVVTRVGDVFLAFALFILYNELGTLNFREMVELAPAHFADGNNMLMWATLMLLGGAVGKSAQLPLQTWLADAMAGPTPVSALIHAATMVTAGVYLIARTHGLFLMTPEVLHLVGIVGAVTLLLAGFAALVQTDIKRVLAYSTMSQIGYMFLALGVQAWDAAIFHLMTHAFFKALLFLASGSVILACHHEQNIFKMGGLRKSIPLVYLCFLVGGAALSALPLVTAGFFSKDEILAGAMANGHINLMVAGLVGAFMTSLYTFRMIFIVFHGKEQIHAHAVKGVTHSLPLIVLLILSTFVGALIVPPLQGVLPQTTELAHGSMLTLEITSGVVAVVGILLAAWLWLGKRTLVTSIANSAPGRLLGTWWYNAWGFDWLYDKVFVKPFLGIAWLLKRDPLNSMMNIPAVLSRFAGKGLLLSENGYLRWYVASMSIGAVVVLALLMVLR

Source

organism	Escherichia coli BW25113
ncbi_taxonomy_id	679895
host_organism	Escherichia coli BW25113

Entity 13 polymer

description	NADH-quinone oxidoreductase subunit N
formula_weight	52072.7 kDa
ec_number	7.1.1.-
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	N

MTITPQNLIALLPLLIVGLTVVVVMLSIAWRRNHFLNATLSVIGLNAALVSLWFVGQAGAMDVTPLMRVDGFAMLYTGLVLLASLATCTFAYPWLEGYNDNKDEFYLLVLIAALGGILLANANHLASLFLGIELISLPLFGLVGYAFRQKRSLEASIKYTILSAAASSFLLFGMALVYAQSGDLSFVALGKNLGDGMLNEPLLLAGFGLMIVGLGFKLSLVPFHLWTPDVYQGAPAPVSTFLATASKIAIFGVVMRLFLYAPVGDSEAIRVVLAIIAFASIIFGNLMALSQTNIKRLLGYSSISHLGYLLVALIALQTGEMSMEAVGVYLAGYLFSSLGAFGVVSLMSSPYRGPDADSLFSYRGLFWHRPILAAVMTVMMLSLAGIPMTLGFIGKFYVLAVGVQAHLWWLVGAVVVGSAIGLYYYLRVAVSLYLHAPEQPGRDAPSNWQYSAGGIVVLISALLVLVLGVWPQPLISIVRLAMPLM

Source

organism	Escherichia coli BW25113
ncbi_taxonomy_id	679895
host_organism	Escherichia coli BW25113

Entity 14 non-polymer

description	FE2/S2 (INORGANIC) CLUSTER
formula_weight	175.8 kDa
src_method	syn
entity_count	2

Entity 15 non-polymer

description	CALCIUM ION
formula_weight	40.1 kDa
src_method	syn
entity_count	5

Entity 16 non-polymer

description	FLAVIN MONONUCLEOTIDE
formula_weight	456.3 kDa
src_method	syn
entity_count	1

Entity 17 non-polymer

description	IRON/SULFUR CLUSTER
formula_weight	351.6 kDa
src_method	syn
entity_count	7

Entity 18 non-polymer

description	1,2-Distearoyl-sn-glycerophosphoethanolamine
formula_weight	748.1 kDa
src_method	syn
entity_count	16

Entity 19 non-polymer

description	EICOSANE
formula_weight	282.5 kDa
src_method	syn
entity_count	2

Entity 20 non-polymer

description	CARDIOLIPIN
formula_weight	1464.0 kDa
src_method	syn
entity_count	1

Entity 21 non-polymer

description	TRIDECANE
formula_weight	184.4 kDa
src_method	syn
entity_count	3

Entity 22 non-polymer

description	Ubiquinone-8
formula_weight	727.1 kDa
src_method	syn
entity_count	2

Entity 23 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	428

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	3.00 Å
resolution_method	—
num_particles	70502

fit	/app/data/saxs_computation/ta/9taj/9taj.fit
pddf	/app/data/pr_computation/ta/9taj/9taj.pr.out
profile	/app/data/saxs_computation/ta/9taj/9taj.dat
