9tke

TAF15 amyloid filament fold H (Y38C)

Method: ELECTRON MICROSCOPY D_max: 63.1 Å Quality: REASONABLE

SAXS Profile

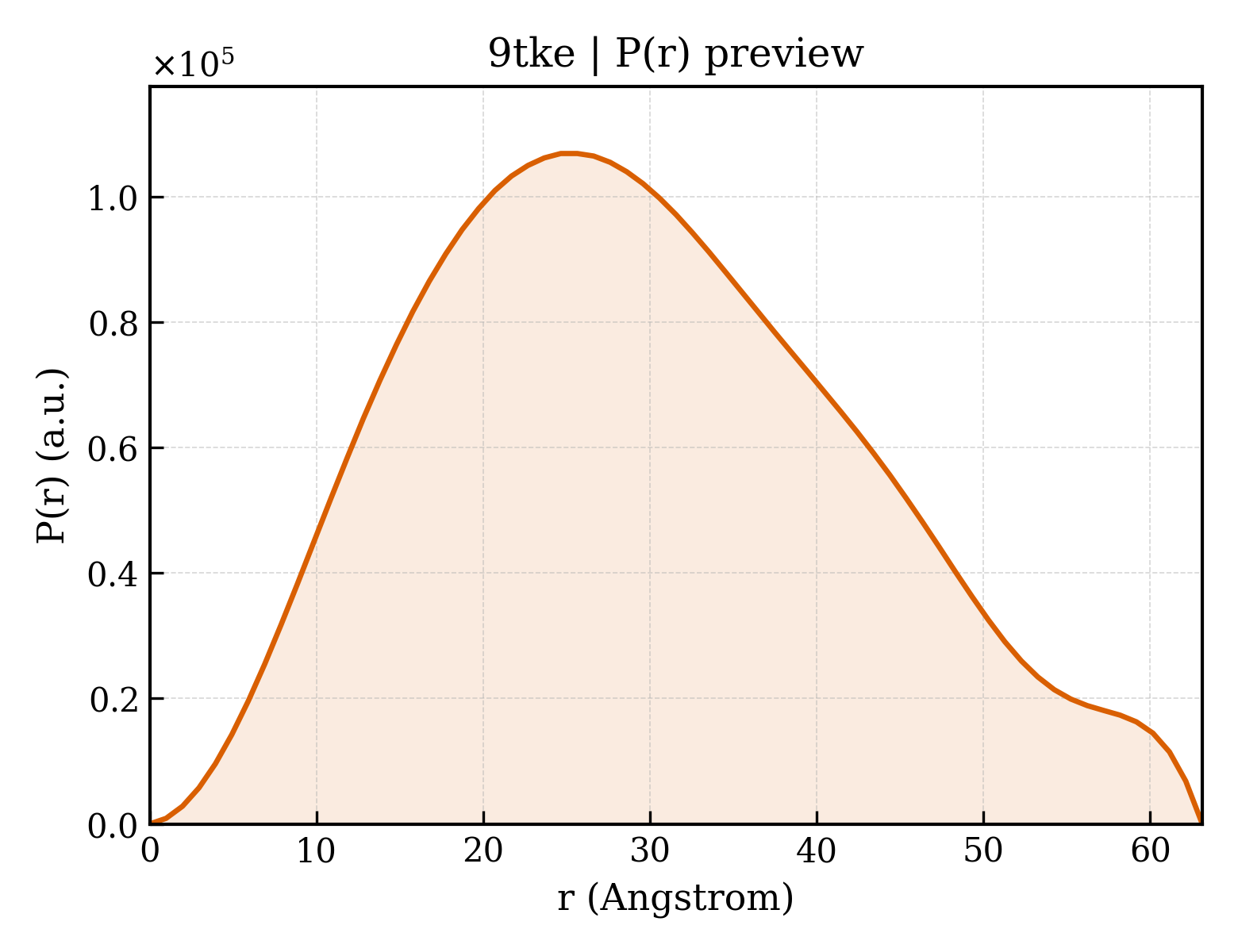

P(r) Distribution

P(r) distribution for 9tke

▼

1. Structure Basics

entry_id	9tke
deposition_date	2025-12-10
title	TAF15 amyloid filament fold H (Y38C)
keywords	Amyloid Neurodegeneration Frontotemporal lobar degeneration, PROTEIN FIBRIL; PROTEIN FIBRIL
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	23.57 Å
rg_electron	23.10 Å
i0	47423600.00
molecular_weight	45556.0 kDa
excluded_volume	53245 Å³
envelope_volume	63735 Å³
shell_volume	23517 Å³
envelope_diameter	82.2 Å
shell_rg	29.65 Å
envelope_rg	23.54 Å
shape_rg	23.08 Å
total_rg	23.78 Å
total_atoms	3210
n_residues	425
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	63.1 Å
rg_real	22.64 Å
rg_real_error	0.10 Å
i0_real	4.5440e+07
i0_real_error	4.2430e+05
rg_reciprocal	23.62 Å
i0_reciprocal	47420000.0000
total_estimate	0.6869
solution_quality	REASONABLE a REASONABLE solution
n_peaks	0
r_peak_primary	— Å
skewness	0.309
kurtosis	-0.523
angular_range	— – 0.3350 Å⁻¹
current_alpha	2.8760
highest_alpha	13060000.0000
n_real_points	65
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.994; Stabil: 0.985; Sysdev: 0.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

▶

6. Citations (1)

▶

7. Files & Curves (10)
