9tl2

TAF15 amyloid filament fold C variant 2

Method: ELECTRON MICROSCOPY D_max: 85.2 Å Quality: GOOD

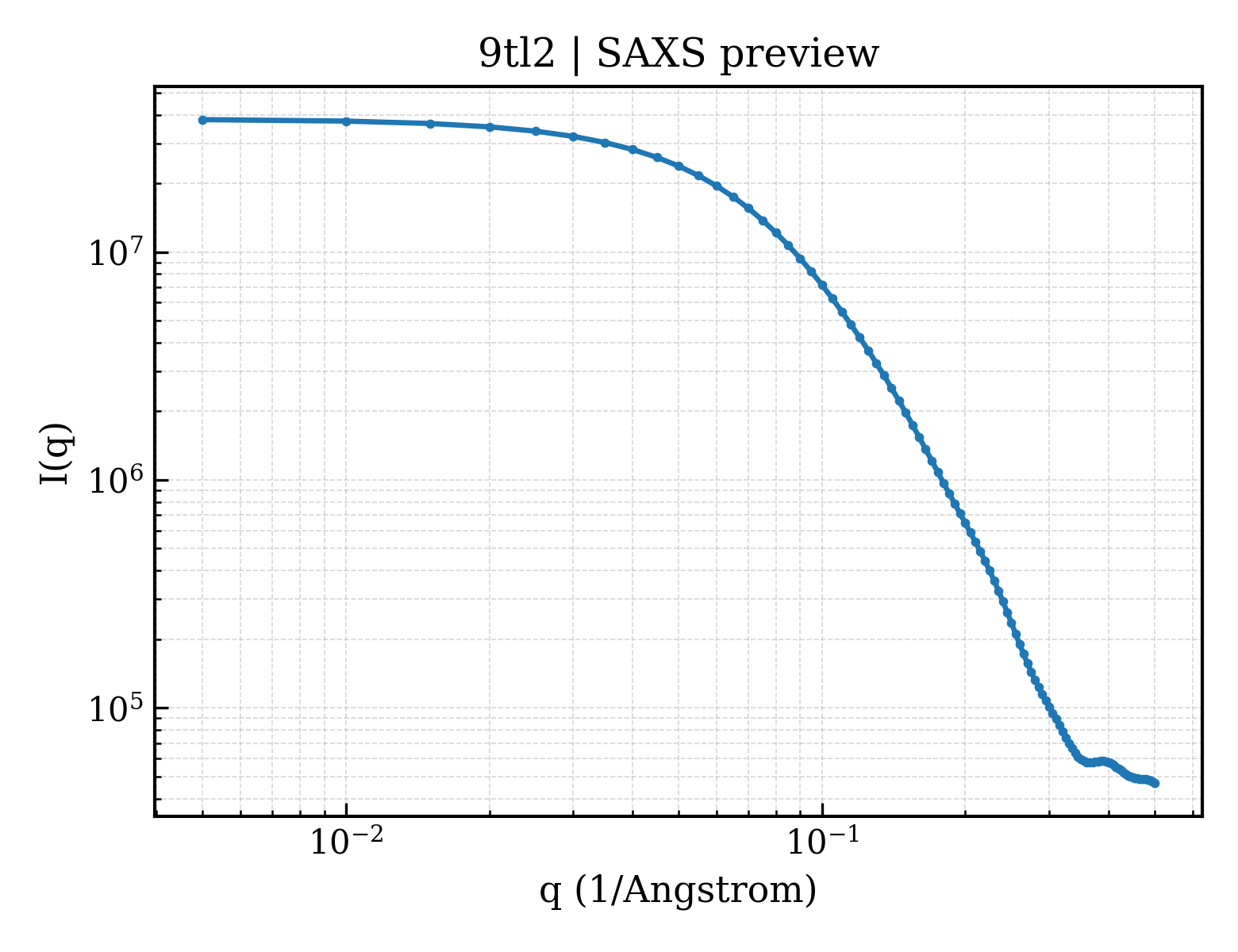

SAXS Profile

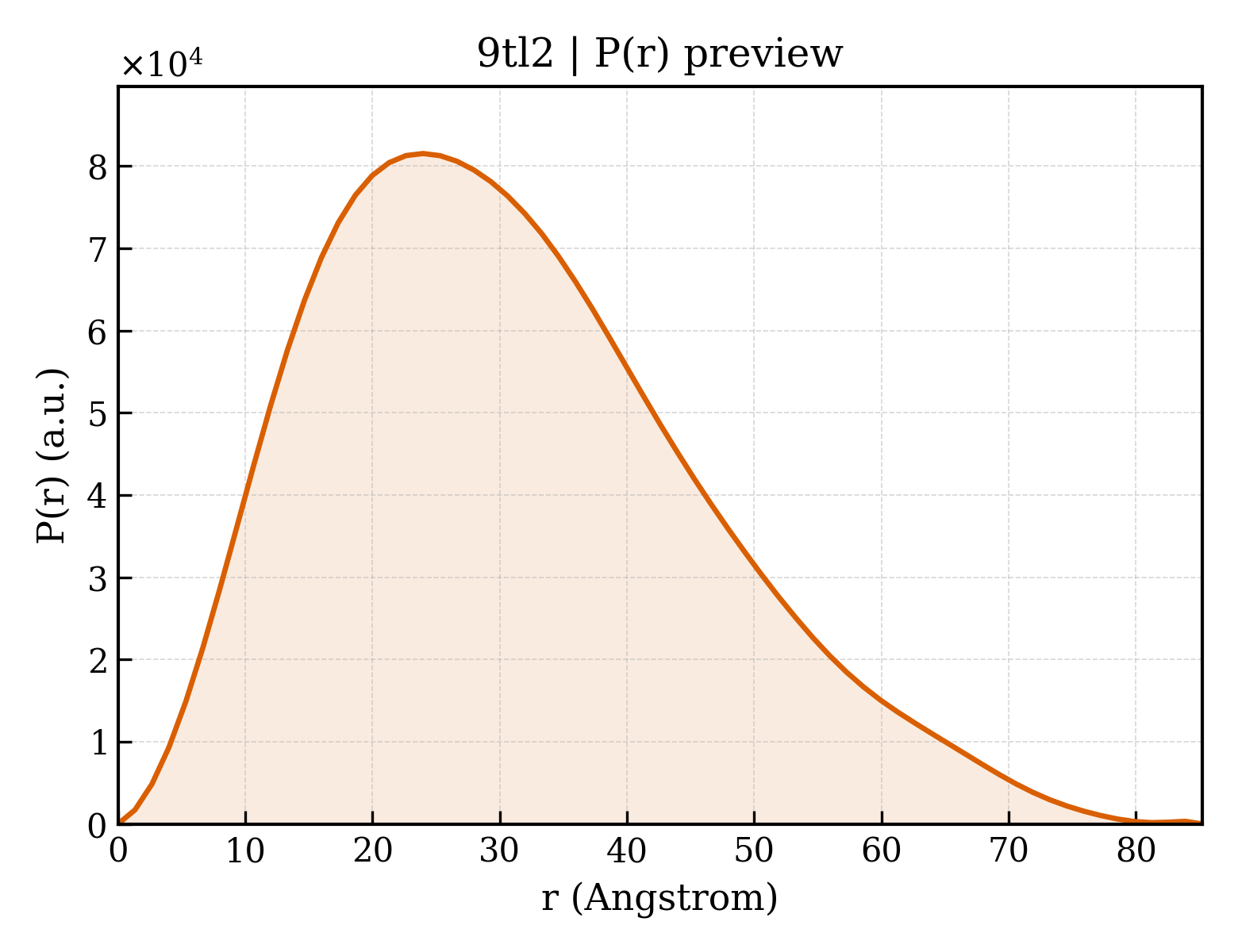

P(r) Distribution

P(r) distribution for 9tl2

▼

1. Structure Basics

entry_id	9tl2
deposition_date	2025-12-10
title	TAF15 amyloid filament fold C variant 2
keywords	Amyloid Neurodegeneration Frontotemporal lobar degeneration, PROTEIN FIBRIL; PROTEIN FIBRIL
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	23.98 Å
rg_electron	23.93 Å
i0	38248000.00
molecular_weight	40841.0 kDa
excluded_volume	47771 Å³
envelope_volume	57349 Å³
shell_volume	21226 Å³
envelope_diameter	88.2 Å
shell_rg	29.58 Å
envelope_rg	24.43 Å
shape_rg	23.96 Å
total_rg	24.42 Å
total_atoms	2884
n_residues	384
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	85.2 Å
rg_real	24.17 Å
rg_real_error	0.60 Å
i0_real	3.8250e+07
i0_real_error	5.3620e+05
rg_reciprocal	24.12 Å
i0_reciprocal	38250000.0000
total_estimate	0.8377
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	24.0 Å
skewness	0.534
kurtosis	-0.173
angular_range	— – 0.3300 Å⁻¹
current_alpha	0.0000
highest_alpha	8907000.0000
n_real_points	65
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.736; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.698; Smooth: 0.981

▶
