9tkz
TAF15 amyloid filament fold D prime

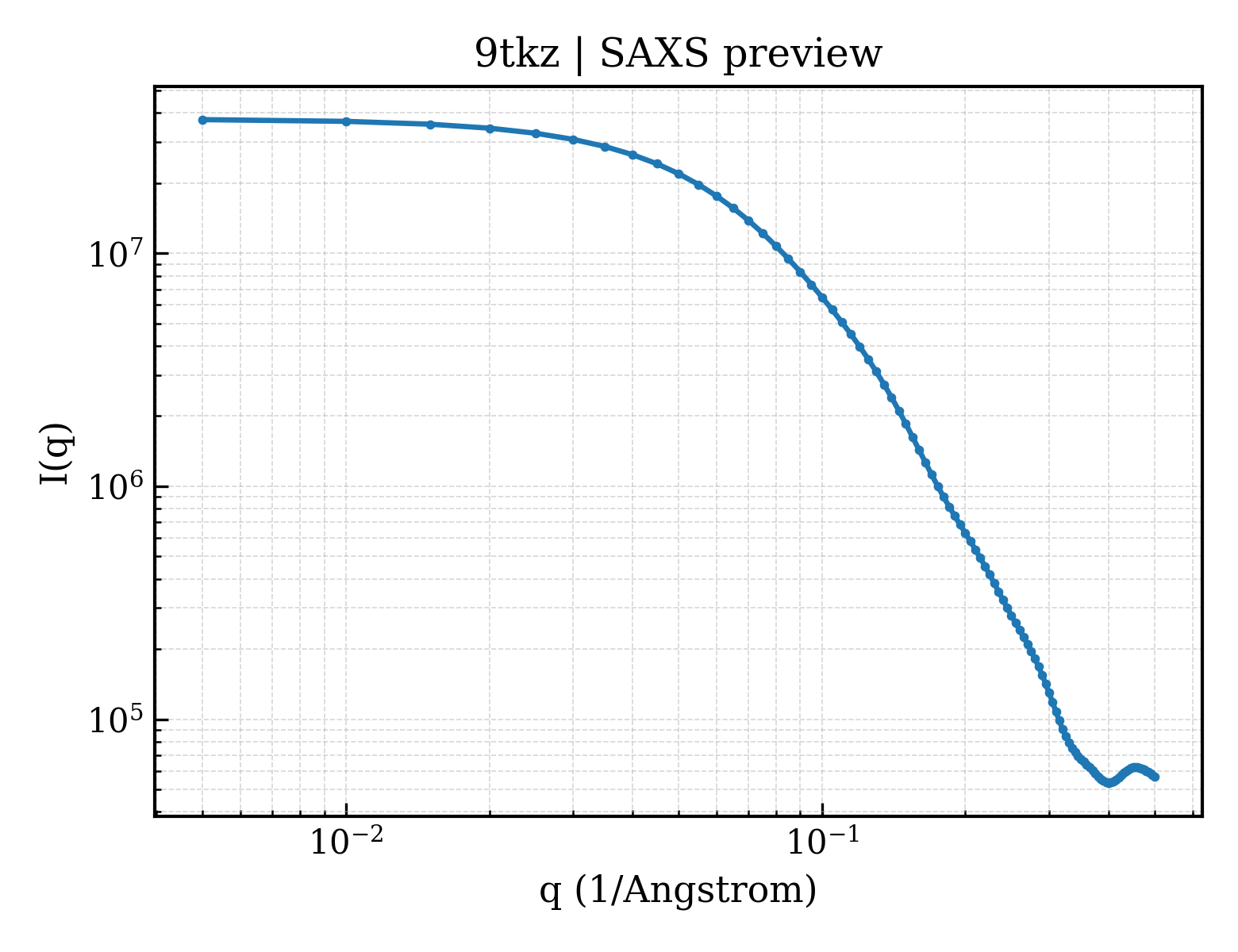

SAXS Profile

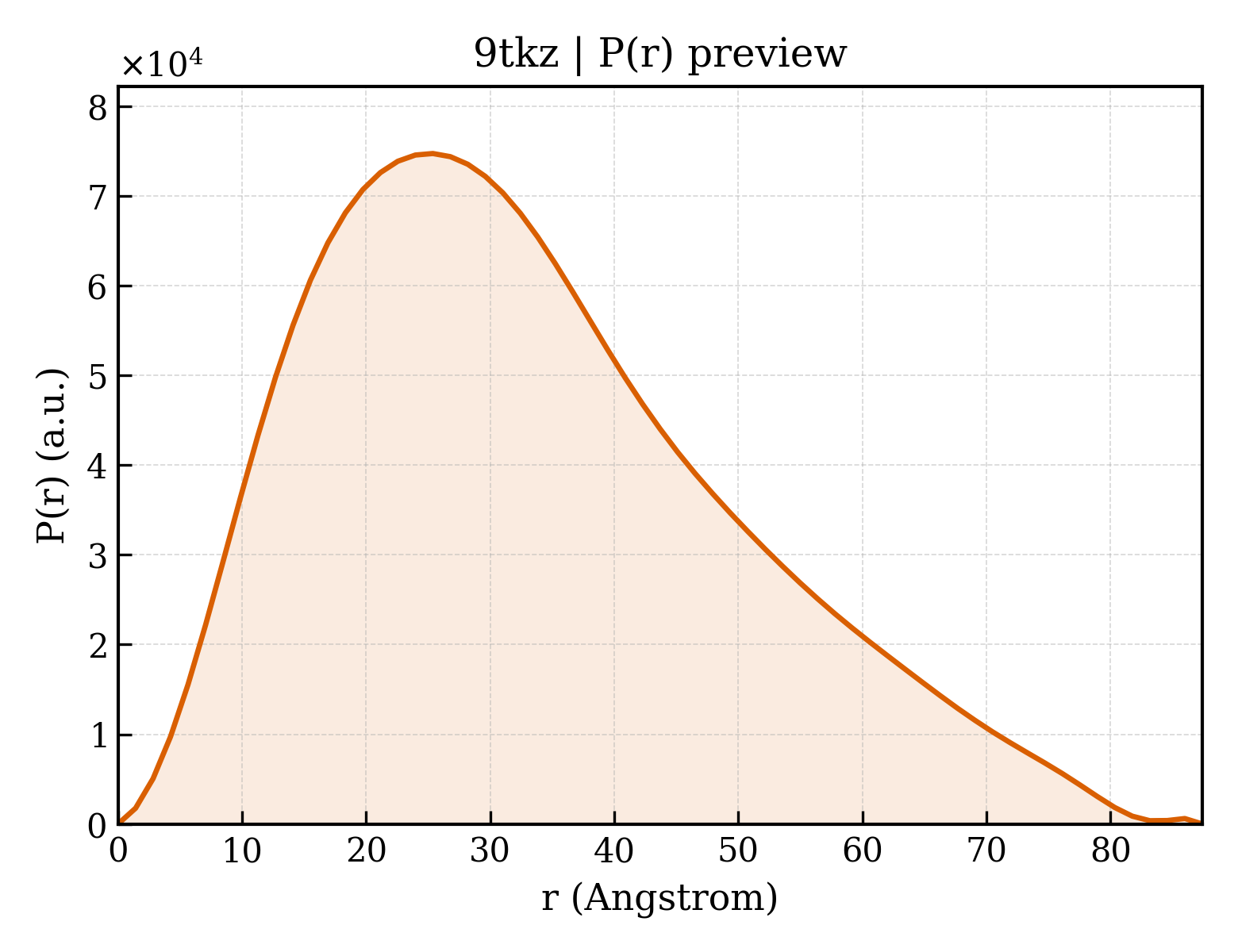

P(r) Distribution
1. Structure Basics
| entry_id | 9tkz |
| deposition_date | 2025-12-10 |
| title | TAF15 amyloid filament fold D prime |
| keywords | Amyloid Neurodegeneration Frontotemporal lobar degeneration, PROTEIN FIBRIL; PROTEIN FIBRIL |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 25.78 Å |
| rg_electron | 25.73 Å |
| i0 | 37681300.00 |
| molecular_weight | 40440.0 kDa |
| excluded_volume | 47301 ų |
| envelope_volume | 59479 ų |
| shell_volume | 20970 ų |
| envelope_diameter | 89.0 Å |
| shell_rg | 30.84 Å |
| envelope_rg | 25.94 Å |
| shape_rg | 25.73 Å |
| total_rg | 26.26 Å |
| total_atoms | 2856 |
| n_residues | 380 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 87.4 Å |
| rg_real | 26.03 Å |
| rg_real_error | 0.77 Å |
| i0_real | 3.7680e+07 |
| i0_real_error | 6.1980e+05 |
| rg_reciprocal | 25.96 Å |
| i0_reciprocal | 37680000.0000 |
| total_estimate | 0.6854 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 25.4 Å |
| skewness | 0.563 |
| kurtosis | -0.271 |
| angular_range | — – 0.3100 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3789000.0000 |
| n_real_points | 63 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.789; Stabil: 1.000; Sysdev: 0.315; Positv: 1.000; Valcen: 0.749; Smooth: 0.848 |
