Structure of the MAP2K MEK1 without bound nucleotide in complex with its substrate MAPK ERK2

Method: ELECTRON MICROSCOPY D_max: 90.8 Å Quality: REASONABLE

SAXS Profile

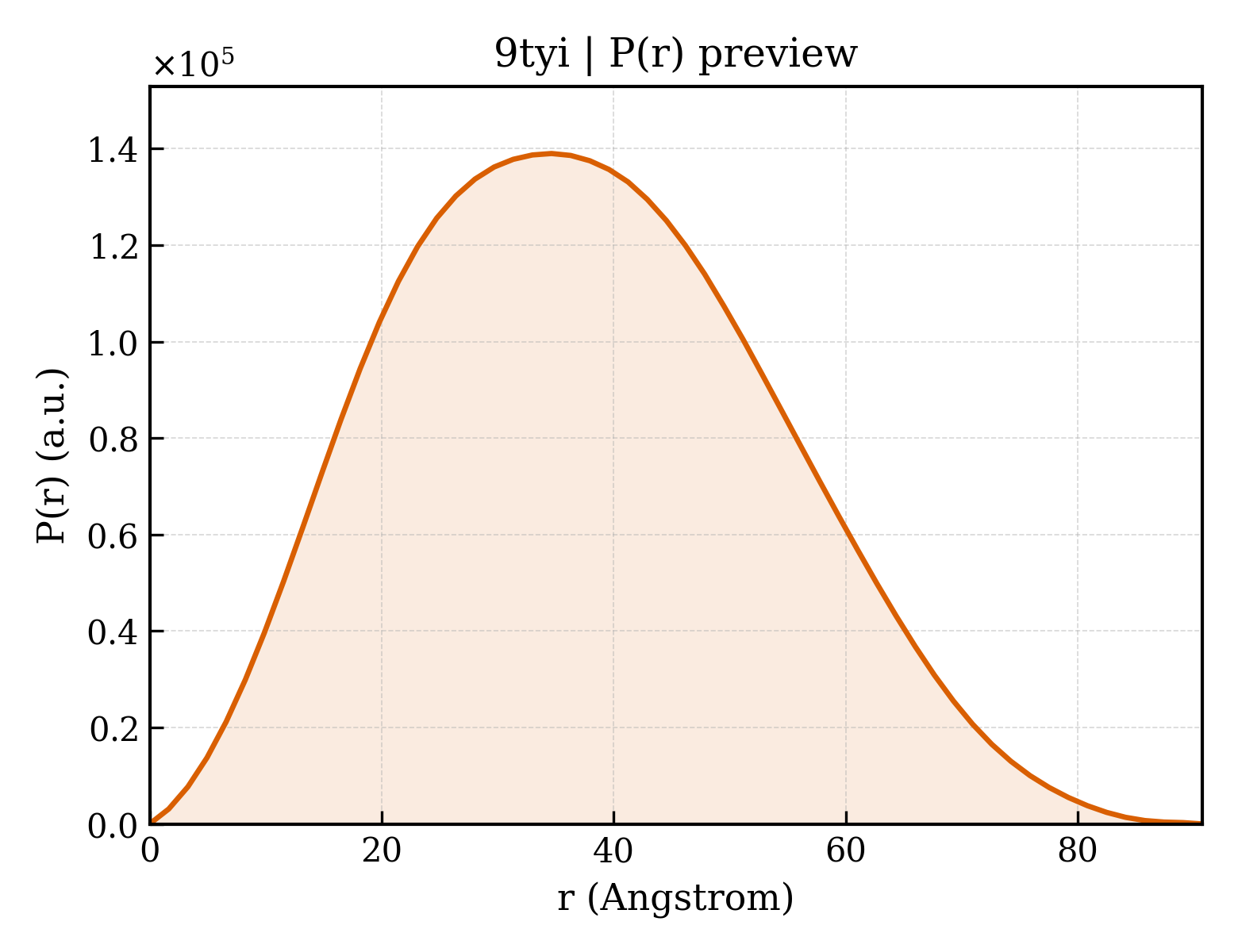

P(r) Distribution

▼

1. Structure Basics

entry_id	9tyi
deposition_date	2026-01-19
title	Structure of the MAP2K MEK1 without bound nucleotide in complex with its substrate MAPK ERK2
keywords	protein kinases, phosphoryl transfer, MAPK, MAP2K, cancer signaling, SIGNALING PROTEIN; SIGNALING PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	28.82 Å
rg_electron	27.83 Å
i0	77016600.00
molecular_weight	70635.0 kDa
excluded_volume	89329 Å³
envelope_volume	112960 Å³
shell_volume	33811 Å³
envelope_diameter	90.7 Å
shell_rg	35.05 Å
envelope_rg	27.44 Å
shape_rg	27.83 Å
total_rg	28.59 Å
total_atoms	9995
n_residues	617
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	90.8 Å
rg_real	28.76 Å
rg_real_error	0.50 Å
i0_real	7.7020e+07
i0_real_error	1.0970e+06
rg_reciprocal	28.79 Å
i0_reciprocal	77020000.0000
total_estimate	0.6858
solution_quality	REASONABLE a REASONABLE solution
n_peaks	1
r_peak_primary	34.6 Å
skewness	0.231
kurtosis	-0.508
angular_range	— – 0.2750 Å⁻¹
current_alpha	0.0000
highest_alpha	20660000.0000
n_real_points	56
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.946; Stabil: 1.000; Sysdev: 0.062; Positv: 1.000; Valcen: 0.997; Smooth: 0.888

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

Entity 1 polymer

description	Mitogen-activated protein kinase 1
formula_weight	41725.0 kDa
ec_number	2.7.11.24
mutation	Thr185Val
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B
atom_count	9995

QGPMAAAAAAGAGPEMVRGQVFDVGPRYTNLSYIGEGAYGMVCSAYDNVNKVRVAIKKISPFEHQTYCQRTLREIKILLRFRHENIIGINDIIRAPTIEQMKDVYIVQDLMETDLYKLLKTQHLSNDHICYFLYQILRGLKYIHSANVLHRDLKPSNLLLNTTCDLKICDFGLARVADPDHDHTGFLVEYVATRWYRAPEIMLNSKGYTKSIDIWSVGCILAEMLSNRPIFPGKHYLDQLNHILGILGSPSQEDLNCIINLKARNYLLSLPHKNKVPWNRLFPNADSKALDLLDKMLTFNPHKRIEVEQALAHPYLEQYYDPSDEPIAEAPFKFDMELDDLPKEKLKELIFEETARFQPGYRS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 2 polymer

description	;Dual specificity mitogen-activated protein kinase kinase 1,Uncharacterized protein,Dual specificity mitogen-activated protein kinase kinase 1 ;
formula_weight	44981.6 kDa
ec_number	2.7.12.2
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A

MPLLERRGVSELPPLYINPAPDGSAVNGTSSAETNLEALQKKLEELELDEQQRKRLEAFLTQKQKVGELKDDDFEKISELGAGNGGVVFKVSHKPSGLVMARKLIHLEIKPAIRNQIIRELQVLHECNSPYIVGFYGAFYSDGEISICMEHMDGGSLDQVLKKAGRIPEQILGKVSIAVIKGLTYLREKHKIMHRDVKPSNILVNSRGEIKLCDFGVSGQLIDDMANDFVGTRSYMSPERLQGTHYSVQSDIWSMGLSLVEMAVGRYPIPPPDAKELELMFGCQVEGDAAETPPRPRTPGRPLSSYGMDSRPPMAIFELLDYIVNEPPPKLPSGVFSLEFQDFVNKCLIKNPAERADLKQLMVHAFIKRSDAEEVDFAGWLCSTIGLNQPSTPTHAAGVLEVLFQ

Source

organism	Homo sapiens
common_name	Human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	3.600 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.60 Å
resolution_method	—
num_particles	93925

fit	/app/data/saxs_computation/ty/9tyi/9tyi.fit
pddf	/app/data/pr_computation/ty/9tyi/9tyi.pr.out
profile	/app/data/saxs_computation/ty/9tyi/9tyi.dat
