9tyh

Structure of the MAP2K MEK1 in an active conformation in complex with its substrate MAPK ERK2

Method: ELECTRON MICROSCOPY D_max: 91.2 Å Quality: GOOD

SAXS Profile

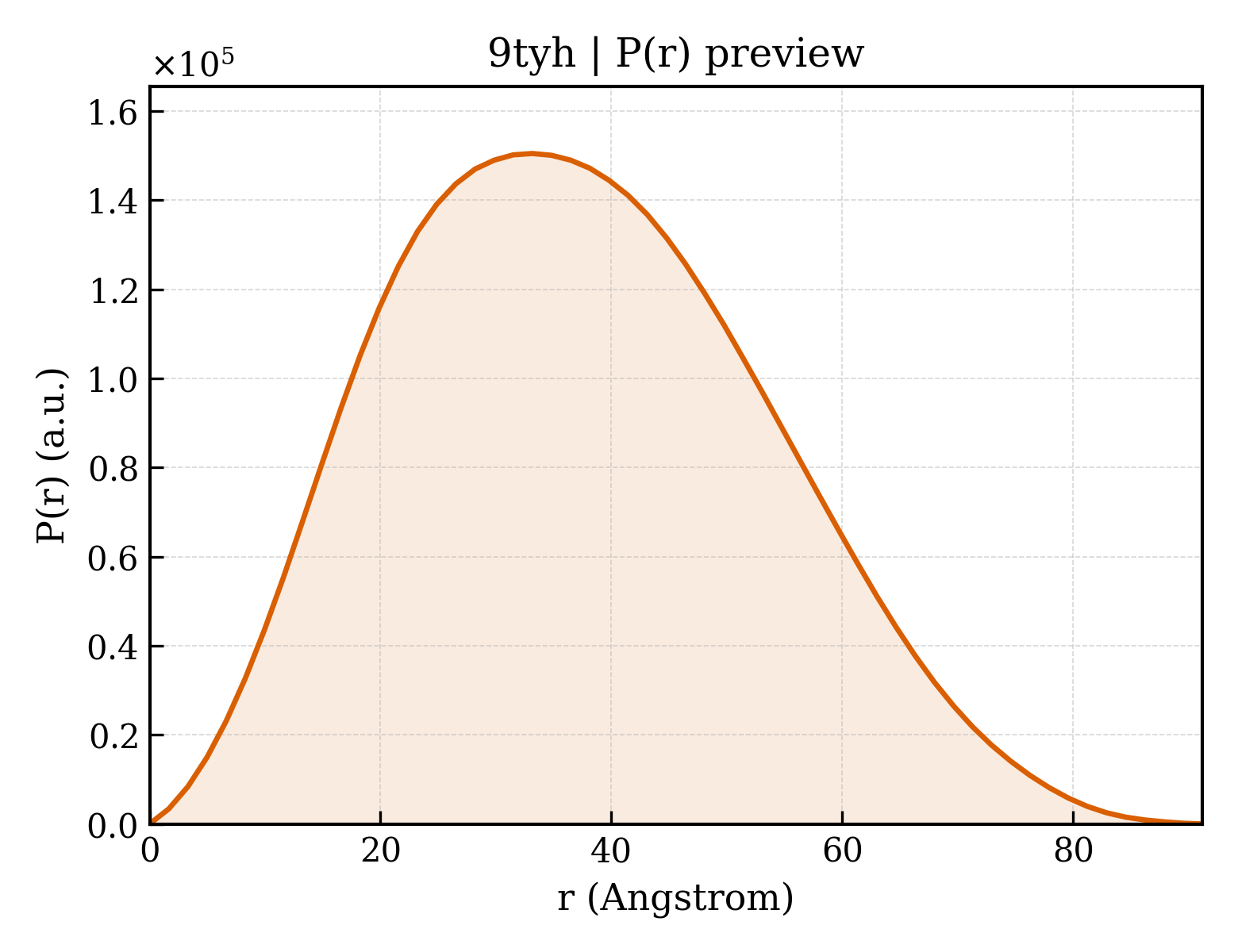

P(r) Distribution

▼

1. Structure Basics

entry_id	9tyh
deposition_date	2026-01-19
title	Structure of the MAP2K MEK1 in an active conformation in complex with its substrate MAPK ERK2
keywords	protein kinases, phosphoryl transfer, MAPK, MAP2K, cancer signaling, SIGNALING PROTEIN; SIGNALING PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	28.69 Å
rg_electron	27.86 Å
i0	83114100.00
molecular_weight	72688.0 kDa
excluded_volume	91506 Å³
envelope_volume	112660 Å³
shell_volume	33746 Å³
envelope_diameter	91.6 Å
shell_rg	35.08 Å
envelope_rg	27.52 Å
shape_rg	27.87 Å
total_rg	28.56 Å
total_atoms	10217
n_residues	628
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	91.2 Å
rg_real	28.64 Å
rg_real_error	0.57 Å
i0_real	8.3110e+07
i0_real_error	1.2640e+06
rg_reciprocal	28.67 Å
i0_reciprocal	83120000.0000
total_estimate	0.8990
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	33.2 Å
skewness	0.263
kurtosis	-0.485
angular_range	— – 0.2750 Å⁻¹
current_alpha	0.0000
highest_alpha	26440000.0000
n_real_points	56
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.934; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.886

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Mitogen-activated protein kinase 1
formula_weight	41725.0 kDa
ec_number	2.7.11.24
mutation	Thr185Val
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B
atom_count	10217

QGPMAAAAAAGAGPEMVRGQVFDVGPRYTNLSYIGEGAYGMVCSAYDNVNKVRVAIKKISPFEHQTYCQRTLREIKILLRFRHENIIGINDIIRAPTIEQMKDVYIVQDLMETDLYKLLKTQHLSNDHICYFLYQILRGLKYIHSANVLHRDLKPSNLLLNTTCDLKICDFGLARVADPDHDHTGFLVEYVATRWYRAPEIMLNSKGYTKSIDIWSVGCILAEMLSNRPIFPGKHYLDQLNHILGILGSPSQEDLNCIINLKARNYLLSLPHKNKVPWNRLFPNADSKALDLLDKMLTFNPHKRIEVEQALAHPYLEQYYDPSDEPIAEAPFKFDMELDDLPKEKLKELIFEETARFQPGYRS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 2 polymer

description	;Dual specificity mitogen-activated protein kinase kinase 1,Uncharacterized protein,Dual specificity mitogen-activated protein kinase kinase 1 ;
formula_weight	44981.6 kDa
ec_number	2.7.12.2
mutation	residue 3-11 replaced with GRA24 KIM (15 residues),Ser218Asp,Ser222Asp
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A

MPLLERRGVSELPPLYINPAPDGSAVNGTSSAETNLEALQKKLEELELDEQQRKRLEAFLTQKQKVGELKDDDFEKISELGAGNGGVVFKVSHKPSGLVMARKLIHLEIKPAIRNQIIRELQVLHECNSPYIVGFYGAFYSDGEISICMEHMDGGSLDQVLKKAGRIPEQILGKVSIAVIKGLTYLREKHKIMHRDVKPSNILVNSRGEIKLCDFGVSGQLIDDMANDFVGTRSYMSPERLQGTHYSVQSDIWSMGLSLVEMAVGRYPIPPPDAKELELMFGCQVEGDAAETPPRPRTPGRPLSSYGMDSRPPMAIFELLDYIVNEPPPKLPSGVFSLEFQDFVNKCLIKNPAERADLKQLMVHAFIKRSDAEEVDFAGWLCSTIGLNQPSTPTHAAGVLEVLFQ

Source

organism	Toxoplasma gondii ME49
ncbi_taxonomy_id	508771
host_organism	Trichoplusia ni

Entity 3 non-polymer

description	ADENOSINE-5'-DIPHOSPHATE
formula_weight	427.2 kDa
src_method	syn
entity_count	2

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	3.40 Å
resolution_method	—
num_particles	113564

fit	/app/data/saxs_computation/ty/9tyh/9tyh.fit
pddf	/app/data/pr_computation/ty/9tyh/9tyh.pr.out
profile	/app/data/saxs_computation/ty/9tyh/9tyh.dat
