RAF proto-oncogene serine/threonine-protein kinase
Homo sapiens

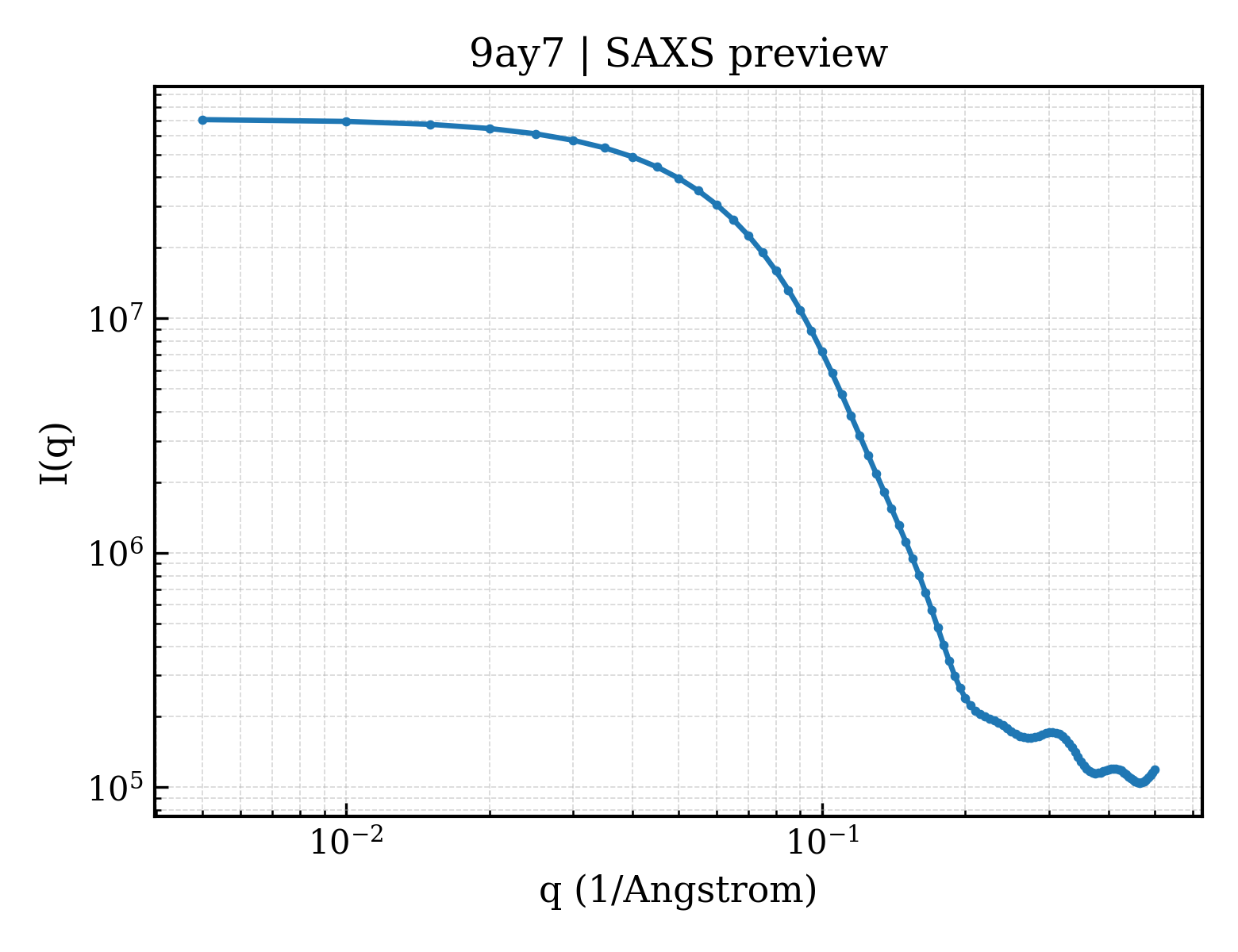

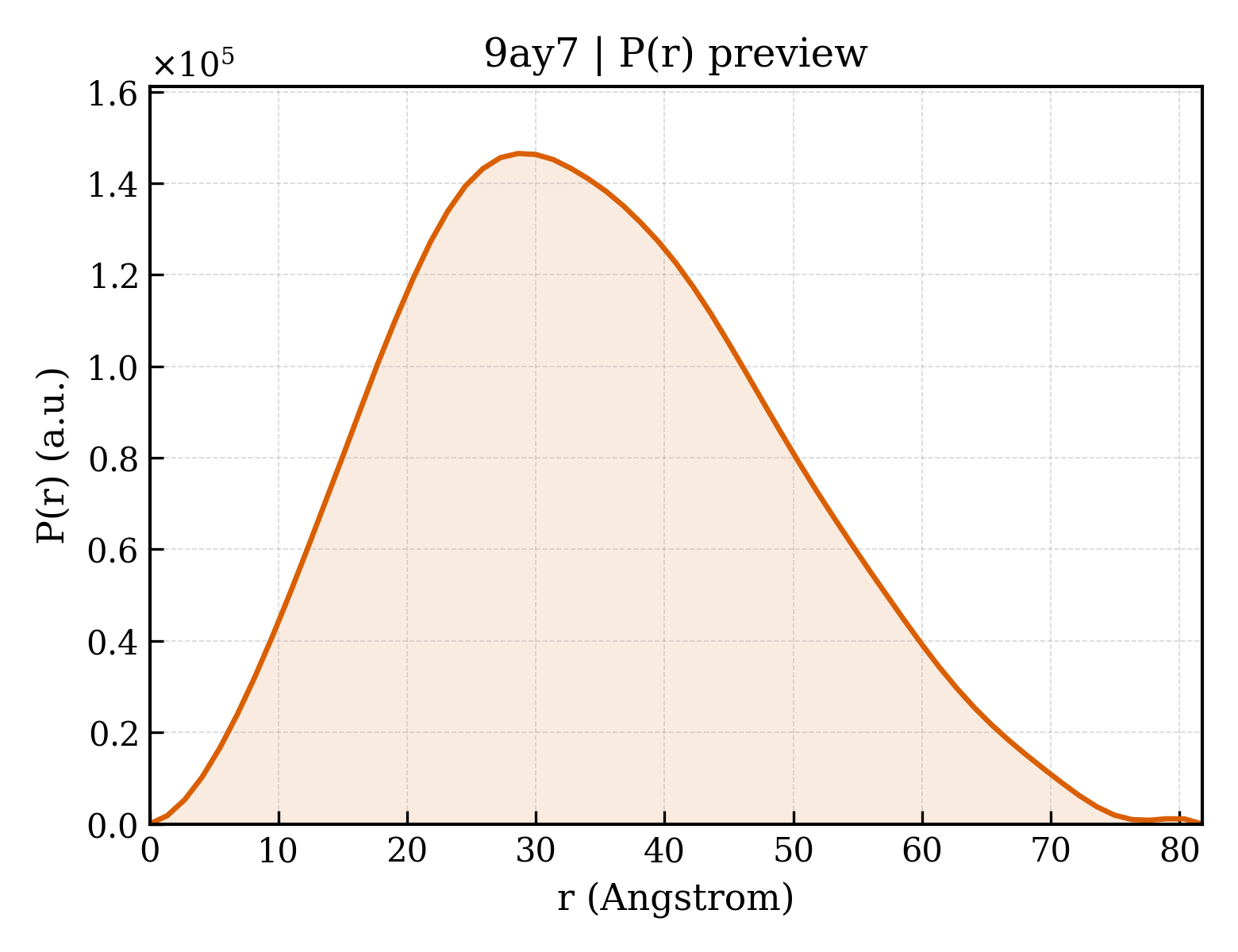

State in the Current Structure
| Assembly | Oligomeric State | Construct | Mutations and Modifications | Ligands, Ions and Associated Components | Method and Experimental Conditions | Structure Quality |
|---|---|---|---|---|---|---|
| 1 | Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count | Chain A； UniProt 337–615 | Mutation：Y340D Y341D | Dual specificity mitogen-activated protein kinase kinase 1 × 1 （Q02750） ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 NI NICKEL (II) ION × 1 ACT ACETATE ION × 5 EDO 1,2-ETHANEDIOL × 1 A1AHE N-[3-fluoro-4-({7-[(3-fluoropyridin-2-yl)oxy]-4-methyl-2-oxo-2H-1-benzopyran-3-yl}methyl)pyridin-2-yl]-N'-methylsulfuric diamide × 1 | X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；291 K；0.2M sodium acetate pH 8.0, 20% w/v PEG 3350 | Resolution 2.41 Å R-free 0.236 |
Other States of the Same Protein in the Database
Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.
| Other PDB | Difference from Current Entry 9AY7 | Assembly / Oligomeric State | Construct | Mutations and Modifications | Ligands, Ions and Non-polymers | Method and Experimental Conditions | Structure Quality |
|---|---|---|---|---|---|---|---|
| 1C1Y CRYSTAL STRUCTURE OF RAP.GMPPNP IN COMPLEX WITH THE RAS-BINDING-DOMAIN OF C-RAF1 KINASE (RAFRBD). Deposited 1999-07-22 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
55–131（77 aa）
Fragment：RAFRBD, RESIDUES 51-131
|
Not recorded | MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 7.6；300 K；mmePeg5000, magnesium chloride, calcium chloride, ammonium sulphate., pH 7.6, VAPOR DIFFUSION, HANGING DROP, temperature 300K
|
Resolution 1.90 Å R-free 0.257 |
| 1FAQ RAF-1 CYSTEINE RICH DOMAIN, NMR, 27 STRUCTURES Deposited 1996-09-05 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
136–187（52 aa）
Fragment：CYSTEINE-RICH DOMAIN
|
Not recorded | ZN ZINC ION × 2 | SOLUTION NMR mmCIF provides none of the parsed conditions | Resolution not provided |
| 1FAR RAF-1 CYSTEINE RICH DOMAIN, NMR, MINIMIZED AVERAGE STRUCTURE Deposited 1996-09-05 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
136–187（52 aa）
Fragment：CYSTEINE-RICH DOMAIN
|
Not recorded | ZN ZINC ION × 2 | SOLUTION NMR mmCIF provides none of the parsed conditions | Resolution not provided |
| 1GUA HUMAN RAP1A, RESIDUES 1-167, DOUBLE MUTANT (E30D,K31E) COMPLEXED WITH GPPNHP AND THE RAS-BINDING-DOMAIN OF HUMAN C-RAF1, RESIDUES 51-131 Deposited 1996-06-18 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
51–131（81 aa）
Fragment：RESIDUES 51-131
|
Not recorded | MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 CA CALCIUM ION × 1 | X-RAY DIFFRACTION mmCIF provides none of the parsed conditions | Resolution 2.00 Å |
| 1RFA NMR SOLUTION STRUCTURE OF THE RAS-BINDING DOMAIN OF C-RAF-1 Deposited 1995-04-26 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
55–132（78 aa）
Fragment：RAS BINDING DOMAIN, RESIDUES 55 - 132 WITH AN ADDITIONAL ALA AT THE N-TERMINUS
|
Not recorded | No recorded non-water small molecule | SOLUTION NMR mmCIF provides none of the parsed conditions | Resolution not provided |
| 3CU8 Impaired binding of 14-3-3 to Raf1 is linked to Noonan and LEOPARD syndrome Deposited 2008-04-16 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain P
256–264（9 aa）
Fragment：Phosphorylated cRaf1 peptide
Chain Q
256–264（9 aa）
Fragment：Phosphorylated cRaf1 peptide
|
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) | MG MAGNESIUM ION × 2 PPI PROPANOIC ACID × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M (Sodium propionate, sodium cacodylate, BIS-TRIS propane), 27% PEG 1500, 2mM DTT, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
|
Resolution 2.40 Å R-free 0.259 |
| 3IQJ Crystal Structure of human 14-3-3 sigma in Complex with Raf1 peptide (10mer) Deposited 2009-08-20 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain P
255–264（10 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) | CL CHLORIDE ION × 2 MG MAGNESIUM ION × 6 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；0.1M Hepes/NaOH ph 7.5, 0.2M CaCl2, 28% PEG 400, 5% glycerol, 2mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 277K
|
Resolution 1.15 Å R-free 0.153 |
| 3IQU Crystal Structure of human 14-3-3 sigma in Complex with Raf1 peptide (6mer) Deposited 2009-08-21 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain P
255–260（6 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) | CL CHLORIDE ION × 2 MG MAGNESIUM ION × 6 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；0.1M Hepes/NaOH ph 7.5, 0.2M CaCl2, 28% PEG 400, 5% glycerol, 2mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 277K
|
Resolution 1.05 Å R-free 0.151 |
| 3IQV Crystal Structure of human 14-3-3 sigma in Complex with Raf1 peptide (6mer) and stabilisator Fusicoccin Deposited 2009-08-21 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain P
255–260（6 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) | FSC FUSICOCCIN × 2 CL CHLORIDE ION × 4 MG MAGNESIUM ION × 8 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；20mM Hepes/NaOH pH 7.5, 2mM MgCl2 and 2 mM DTT, set up for crystallization in 0.1 M Hepes/NaOH ph 7.5, 0.2 M CaCl2, 28% PEG 400, 5% glycerol, 2mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 277K
|
Resolution 1.20 Å R-free 0.153 |
| 3KUC Complex of Rap1A(E30D/K31E)GDP with RafRBD(A85K/N71R) Deposited 2009-11-27 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
51–131（81 aa）
Fragment：UNP residues 51-131
|
Mutation：A85K, N71R | GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 CA CALCIUM ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；20-25% PEG 8000, 100 mM Tris or HEPES pH 7.2-7.6, 10-200 mM Ca Acetate or 100 mM Ammonium Sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 298K
|
Resolution 1.92 Å R-free 0.209 |
| 3KUD Complex of Ras-GDP with RafRBD(A85K) Deposited 2009-11-27 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
51–131（81 aa）
Fragment：UNP residues 51-131
|
Mutation：A85K | GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；1.3M Na-Malonat pH 6.0, 100 mM MES pH 6.1, 4% Betaine, 2% Sarcosine, 2% N,N-dimethylglycine, VAPOR DIFFUSION, HANGING DROP, temperature 298K
|
Resolution 2.15 Å R-free 0.264 |
| 3NKX Impaired binding of 14-3-3 to Raf1 is linked to Noonan and LEOPARD syndrome Deposited 2010-06-21 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain P
255–264（10 aa）
Fragment：phosphorylated C-Raf peptide, UNP residues 255-264
Chain Q
255–264（10 aa）
Fragment：phosphorylated C-Raf peptide, UNP residues 255-264
|
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) | PPI PROPANOIC ACID × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M (Sodium propionate, sodium cacodylate, BIS-TRIS propane), 27% PEG 1500, 2mM DTT, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
|
Resolution 2.40 Å R-free 0.247 |
| 3O8I Structure of 14-3-3 isoform sigma in complex with a C-Raf1 peptide and a stabilizing small molecule fragment Deposited 2010-08-03 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain B
255–264（10 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) | M1T 6,6-dihydroxy-1-methoxyhexan-2-one × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 7.5；277.15 K；0.095M HEPES Na, 26.6%(v/v) PEG400, 0.19M CaCl2, 5%(v/v) Glycerol, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277.15K
|
Resolution 2.00 Å R-free 0.239 |
| 3OMV Crystal structure of c-raf (raf-1) Deposited 2010-08-27 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric |
Chain A
323–618（296 aa）
Fragment：C-RAF kinase domain, UNP residues 323-618
Chain B
323–618（296 aa）
Fragment：C-RAF kinase domain, UNP residues 323-618
|
Not recorded | SM5 (1E)-5-(1-piperidin-4-yl-3-pyridin-4-yl-1H-pyrazol-4-yl)-2,3-dihydro-1H-inden-1-one oxime × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8；285 K；12% PEG 8K, 100 MM TRIS PH 8.0, 10% TACSIMATE, VAPOR DIFFUSION, HANGING DROP, temperature 285K
|
Resolution 4.00 Å R-free 0.364 |
| 4FJ3 14-3-3 isoform zeta in complex with a diphoyphorylated C-RAF peptide Deposited 2012-06-11 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric |
Chain P
229–264（36 aa）
Fragment：UNP residues 229-264
|
Non-standard monomer：Yes (specific site not provided by mmCIF) | No recorded non-water small molecule |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；0.1 M Na-acetate pH 7.0, 0.8 M NaH2PO4 and 1.2 M K2HPO4 , VAPOR DIFFUSION, SITTING DROP, temperature 277K
|
Resolution 1.95 Å R-free 0.208 |
| 4G0N Crystal Structure of wt H-Ras-GppNHp bound to the RBD of Raf Kinase Deposited 2012-07-09 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
54–131（78 aa）
Fragment：UNP residues 54-131
|
Not recorded | GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 CA CALCIUM ION × 2 MG MAGNESIUM ION × 1 ACT ACETATE ION × 1 DTU (2R,3S)-1,4-DIMERCAPTOBUTANE-2,3-DIOL × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；pH 6.8；291 K；Protein solution: 10 - 16 mg/mL, 50 mM HEPES, pH 7.2, 50 mM NaCl, 10mM MgCl2 5% Glycerol, 1mM DTE, 10 M ZnCl2
Reservoir solution:200mM calcium acetate, 100mM sodium cacodylate pH 6.5, 18% PEG 8000.
Drop: 1uL protein, 1uL reservoir, VAPOR DIFFUSION, SITTING DROP, temperature 291K
|
Resolution 2.45 Å R-free 0.229 |
| 4G3X Crystal Structure of Q61L H-Ras-GppNHp bound to the RBD of Raf Kinase Deposited 2012-07-15 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
55–131（77 aa）
Fragment：UNP residues 55-131
|
Not recorded | GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 6.8；291 K；Protein solution: 10 - 18 mg/mL, 50 mM HEPES, pH 7.2, 50 mM NaCl, 10mM MgCl2 5% Glycerol, 1mM DTE, 10 M ZnCl2 Reservoir solution:200mM calcium acetate, 100mM sodium cacodylate pH 6.5, 18% PEG 8000. Drop: 3uL protein, 3uL reservoir , VAPOR DIFFUSION, HANGING DROP, temperature 291K
|
Resolution 3.25 Å R-free 0.271 |
| 4IEA 14-3-3 isoform sigma in complex with a phosphorylated C-RAF peptide Deposited 2012-12-13 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain P
618–625（8 aa）
Fragment：UNP residues 618-625
|
Non-standard monomer：Yes (specific site not provided by mmCIF) | No recorded non-water small molecule |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 7.4；277 K；95 mM Na-HEPES pH 7.4, 25.6 % PEG 400, 190 mM CaCl2, 5 % Glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 277K
|
Resolution 1.70 Å R-free 0.208 |
| 4IHL Human 14-3-3 isoform zeta in complex with a diphoyphorylated C-RAF peptide and Cotylenin A Deposited 2012-12-19 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric |
Chain P
229–264（36 aa）
Fragment：UNP residues 229-264
|
Non-standard monomer：Yes (specific site not provided by mmCIF) | K POTASSIUM ION × 2 1F5 (1R,3aS,4R,5R,6R,9aR,10E)-6-({(1S,2R,4S,5R,6R,8S,9S)-5-hydroxy-2-(methoxymethyl)-9-methyl-9-[(2S)-oxiran-2-yl]-3,7,10,1 1-tetraoxatricyclo[6.2.1.0~1,6~]undec-4-yl}oxy)-1-(methoxymethyl)-4,9a-dimethyl-7-(propan-2-yl)-1,2,3,3a,4,5,6,8,9,9a-de cahydrodicyclopenta[a,d][8]annulene-1,5-diol × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；0.1 M NA-ACETATE PH 7.0, 0.8 M NAH2PO4 AND 1.2 M K2HPO4, VAPOR DIFFUSION, SITTING DROP, temperature 277K
|
Resolution 2.20 Å R-free 0.243 |
| 6NTC Crystal Structure of G12V HRas-GppNHp bound in complex with the engineered RBD variant 1 of CRAF Kinase protein Deposited 2019-01-28 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
55–131（77 aa）
|
Mutation：F61L, K65Q, Q66E, R67W, N71K, C81S, V88R, R89H, C95S, C96S | GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 GOL GLYCEROL × 1 MG MAGNESIUM ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；pH 6.5；293.15 K；30% PEG4000, 200mM NH4SO4, 100mM Na CaCo pH 6.5
|
Resolution 2.90 Å R-free 0.278 |
| 6NTD Crystal Structure of G12V HRas-GppNHp bound in complex with the engineered RBD variant 12 of CRAF Kinase protein Deposited 2019-01-28 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
55–131（77 aa）
|
Mutation：F61L, K65H, Q66E, N71K, C81S, V88R, R89H, C95S, C96S | MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；pH 5.6；293.15 K；30% PEG4000, 200mM NH4SO4, 100mM Na Citrate
|
Resolution 3.15 Å R-free 0.287 |
| 6PTS NMR data-driven model of KRas-GMPPNP:RBD-CRD complex tethered to a nanodisc (state A) Deposited 2019-07-16 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain D
56–187（132 aa）
Fragment：RBD-CRD (UNP residues 56-187)
|
Not recorded | PCW 1,2-DIOLEOYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 64 17F O-[(S)-({(2R)-2,3-bis[(9Z)-octadec-9-enoyloxy]propyl}oxy)(hydroxy)phosphoryl]-L-serine × 16 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 2 |
SOLUTION NMR
NMR measurement conditions
pH 5.5；298 K；Ionic strength (raw mmCIF value) 450；Pressure 1
NMR measurement conditions
pH 5.5；308 K；Ionic strength (raw mmCIF value) 150；Pressure 1
NMR sample composition
0.2 mM U-2H; U-15N; Ile Leu C-delta-13C, Val C-gamma-13C KRAS, 0.2 mM U-12C, 14N, 1H RBD-CRD, 0.4 mM U-12C, 14N, 1H MSP, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition
0.2 mM U-12C, 14N, 1H KRAS, 0.2 mM U-2H; U-15N; Ile Leu C-delta-13C, Val C-gamma-13C RBD-CRD, 0.4 mM U-12C, 14N, 1H MSP, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition
0.2 mM U-12C, 14N, 1H KRAS, 0.2 mM U-2H; U-15N; Ile Leu C-delta-13C, Val C-gamma-13C RBD-CRD, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition
0.2 mM U-12C, 14N, 1H KRAS, 0.2 mM U-2H; U-15N; Ile Leu C-delta-13C, Val C-gamma-13C RBD-CRD, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition
0.5 mM U-15N; Ile C-delta-13C, Met methyl-13C KRAS, 0.5 mM Leu C-delta-13C, Val C-gamma-13C, RBD-CRD, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition
0.5 mM [U-99% 15N]; [U-13C]; RBD, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition
0.3 mM [U-99% 15N]; [U-13C]; CRD, 90% H2O/10% D2O | 90% H2O/10% D2O
|
Resolution not provided |
| 6PTW NMR data-driven model of KRas-GMPPNP:RBD-CRD complex tethered to a nanodisc (state B) Deposited 2019-07-16 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain D
56–187（132 aa）
Fragment：RBD-CRD (UNP residues 56-187)
|
Not recorded | PCW 1,2-DIOLEOYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 64 17F O-[(S)-({(2R)-2,3-bis[(9Z)-octadec-9-enoyloxy]propyl}oxy)(hydroxy)phosphoryl]-L-serine × 16 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 2 |
SOLUTION NMR
NMR measurement conditions
pH 5.5；298 K；Ionic strength (raw mmCIF value) 450；Pressure 1
NMR measurement conditions
pH 5.5；308 K；Ionic strength (raw mmCIF value) 150；Pressure 1
NMR sample composition
0.2 mM [Ile, Leu C-delta-13C; Val C-gamma-13C; U-15N; U-2H] KRAS, 0.2 mM [U-12C; U-14N; U-1H] RBD-CRD, 0.4 mM [U-12C; U-14N; U-1H] MSP, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition
0.2 mM [U-12C; U-14N; U-1H] KRAS, 0.2 mM [Ile, Leu C-delta-13C; Val C-gamma-13C; U-15N; U-2H] RBD-CRD, 0.4 mM [U-12C; U-14N; U-1H] MSP, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition
0.2 mM [Ile, Leu C-delta-13C; Val C-gamma-13C; U-15N] RBD-CRD, 0.2 mM [U-12C; U-14N; U-1H] KRAS Q43C, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition
0.2 mM [Ile, Leu C-delta-13C; Val C-gamma-13C; U-15N] RBD-CRD, 0.2 mM [U-12C; U-14N; U-1H] KRAS N-term C, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition
0.5 mM [U-15N; Ile C-delta-13C; Met methyl-13C] KRAS, 0.5 mM [Leu C-delta-13C; Val C-gamma-13C] RBD-CRD, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition
0.5 mM [U-13C; U-15N] RBD, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition
0.5 mM [U-13C; U-15N] CRD, 90% H2O/10% D2O | 90% H2O/10% D2O
|
Resolution not provided |
| 6VJJ Crystal Structure of wild-type KRAS4b (GMPPNP-bound) in complex with RAS-binding domain (RBD) of RAF1/CRAF Deposited 2020-01-16 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
52–131（80 aa）
|
Not recorded | MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 CL CHLORIDE ION × 3 EDO 1,2-ETHANEDIOL × 2 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；293 K；0.09M Halogens, 0.1M Imidazole.MES pH 6.5, 37.5% MPD, PEG 1000 and PEG 3350
|
Resolution 1.40 Å R-free 0.195 |
| 6XGU Crystal Structure of KRAS-Q61R (GMPPNP-bound) in complex with RAS-binding domain (RBD) and cysteine-rich domain (CRD) of RAF1/CRAF Deposited 2020-06-18 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
52–188（137 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) | GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 3 GOL GLYCEROL × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；pH 7.8；293 K；100 mM Tris 7.8, 200 mM KBr, 200 mM KSCN, 3% PGA, 0.35 mM D-myo-phosphatidylinositol 3,4,5-triphosphate
|
Resolution 2.70 Å R-free 0.236 |
| 6XGV Crystal Structure of KRAS-G13D (GMPPNP-bound) in complex with RAS-binding domain (RBD) and cysteine-rich domain (CRD) of RAF1/CRAF Deposited 2020-06-18 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
52–188（137 aa）
|
Mutation：Modified Cys95 Non-standard monomer：Yes (specific site not provided by mmCIF) | GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 3 GOL GLYCEROL × 2 CL CHLORIDE ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；100 mM sodium cacodylate pH 6.5, 700 mM sodium acetate, 0.35 mM D-myo-phosphatidylinositol 3,4,5-triphosphate
|
Resolution 2.11 Å R-free 0.204 |
| 6XHA Crystal Structure of KRAS-G12V (GMPPNP-bound) in complex with RAS-binding domain (RBD) and cysteine-rich domain (CRD) of RAF1/CRAF Deposited 2020-06-18 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
52–188（137 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) | GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 GOL GLYCEROL × 4 MG MAGNESIUM ION × 1 CL CHLORIDE ION × 2 ZN ZINC ION × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；100 mM sodium cacodylate pH 6.5, 200 mM MgCl2, 8% PGA, 0.35 mM D-myo-phosphatidylinositol 3,4,5-triphosphate
|
Resolution 2.87 Å R-free 0.269 |
| 6XHB Crystal Structure of wild-type KRAS (GMPPNP-bound) in complex with RAS-binding domain (RBD) and cysteine-rich domain (CRD) of RAF1/CRAF (crystal form II) Deposited 2020-06-18 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
52–188（137 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) | GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 CL CHLORIDE ION × 3 GOL GLYCEROL × 2 IPA ISOPROPYL ALCOHOL × 1 ZN ZINC ION × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；100 mM sodium cacodylate pH 6.5, 200 mM sodium citrate, 15% 2-propanol, 0.25% (w/v) n-octyl-beta-D-glucoside, 0.35 mM D-myo-phosphatidylinositol 3,4,5-triphosphate, and 0.25% (w/v) n-dodecyl-beta-D-maltoside
|
Resolution 2.50 Å R-free 0.221 |
| 6XI7 Crystal Structure of wild-type KRAS (GMPPNP-bound) in complex with RAS-binding domain (RBD) and cysteine-rich domain (CRD) of RAF1/CRAF (crystal form I) Deposited 2020-06-19 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
52–188（137 aa）
|
Not recorded | GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 SO4 SULFATE ION × 2 CL CHLORIDE ION × 5 ZN ZINC ION × 3 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；pH 5.3；293 K；2218.18 mM AMSO4, 6.5% (w/v) PEG 400, pH 5.3
|
Resolution 1.95 Å R-free 0.232 |
| 7JHP Crystal structure of HRas in complex with the Ras-binding and cysteine-rich domains of CRaf-kinase Deposited 2020-07-21 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain C
55–187（133 aa）
Fragment：UNP residues 55-187
|
Not recorded | GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；291 K；0.1 M ammonium acetate, 0.1 M Bis-Tris, pH 5.5, 17% w/v PEG10000
|
Resolution 2.77 Å R-free 0.264 |
| 7Z37 Structure of the RAF1-HSP90-CDC37 complex (RHC-II) Deposited 2022-03-01 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain CP1
1–648（648 aa）
|
Not recorded | ATP ADENOSINE-5'-TRIPHOSPHATE × 2 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.5
cryo-EM vitrification conditions
Cryogen ETHANE；blot for 3 seconds before plunging
|
Resolution 3.67 Å |
| 7Z38 Structure of the RAF1-HSP90-CDC37 complex (RHC-I) Deposited 2022-03-01 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain C
1–648（648 aa）
|
Not recorded | ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.5
cryo-EM vitrification conditions
Cryogen ETHANE；blot for 3 seconds before plunging
|
Resolution 3.16 Å |
| 8A68 Small molecule stabilizer (compound 5) for C-RAF(pS259) and 14-3-3 Deposited 2022-06-16 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain B
255–263（9 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) | MG MAGNESIUM ION × 6 L7U ~{N}-[2-[2-(dimethylamino)ethyldisulfanyl]ethyl]-1-[(2~{R})-2-(6-methoxynaphthalen-2-yl)propanoyl]piperidine-4-carboxamide × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；277 K；0.095 M HEPES pH 7.5,
0.19 M CaCl2, 5% glycerol, 28% PEG 400
|
Resolution 1.60 Å R-free 0.179 |
| 8A6F Small molecule stabilizer (compound 8) for C-RAF and 14-3-3 Deposited 2022-06-17 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain P
255–264（10 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) | CL CHLORIDE ION × 2 MG MAGNESIUM ION × 4 O56 1-[4-[4-chloranyl-3-(trifluoromethyl)phenyl]-4-oxidanyl-piperidin-1-yl]-3-[2-(dimethylamino)ethyldisulfanyl]propan-1-one × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；277 K；0.095 M HEPES pH 7.5, 0.19 M CaCl2, 26% (v/v) PEG 400 and 5% (v/v)
glycerol
|
Resolution 1.60 Å R-free 0.181 |
| 8A6H Small molecule stabilizer (compound 7) for C-RAF and 14-3-3 Deposited 2022-06-17 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain P
255–264（10 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) | CL CHLORIDE ION × 2 MG MAGNESIUM ION × 4 L6L 3-[2-(dimethylamino)ethyldisulfanyl]-1-[4-oxidanyl-4-[3-(trifluoromethyl)phenyl]piperidin-1-yl]propan-1-one × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；277 K；0.095 M HEPES pH 7.7, 0.19 M CaCl2, 24 % (v/v) PEG 400 and 5% (v/v) glycerol)
|
Resolution 1.60 Å R-free 0.174 |
| 8ATR Small molecular stabilizer for C-RAF (pS259) and 14-3-3 (1075297) Deposited 2022-08-24 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain P
255–263（9 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) | CL CHLORIDE ION × 2 MG MAGNESIUM ION × 4 O6L 2-chloranyl-~{N}-[[1-[1-(4-chloranylphenoxy)cyclopentyl]carbonylpiperidin-4-yl]methyl]ethanamide × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；277 K；0.095 M HEPES (pH 7.1), PEG400 (24% (v/v)), 0.19 M CaCl2 and 5% (v/v) Glycerol
|
Resolution 1.70 Å R-free 0.211 |
| 8ATS Small molecular stabilizer for C-RAF (pS259) and 14-3-3 (1075306) Deposited 2022-08-24 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain P
255–263（9 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) | CL CHLORIDE ION × 2 MG MAGNESIUM ION × 6 O5I 2-chloranyl-~{N}-[[1-[1-[(4-chlorophenyl)amino]cyclopentyl]carbonylpiperidin-4-yl]methyl]ethanamide × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；277 K；0.095 M HEPES (pH 7.1), PEG400 (24% (v/v)), 0.19 M CaCl2 and 5% (v/v) Glycerol
|
Resolution 1.40 Å R-free 0.171 |
| 8AV0 small molecule stabilizer (compound 1) for C-RAF pS259 and 14-3-3 Deposited 2022-08-26 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain P
256–264（9 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) | CL CHLORIDE ION × 2 MG MAGNESIUM ION × 6 O6C 1-[2-(4-chloranylphenoxy)-2-methyl-propanoyl]-~{N}-[2-[2-(dimethylamino)ethyldisulfanyl]ethyl]piperidine-4-carboxamide × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；277 K；0.095 M HEPES (pH 7.1), PEG400 (24% (v/v)), 0.19 M CaCl2 and 5% (v/v) Glycerol
|
Resolution 1.50 Å R-free 0.180 |
| 8CHF cryo-EM Structure of Craf:14-3-3:Mek1 Deposited 2023-02-07 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric |
Chain A
1–648（648 aa）
Chain B
1–648（648 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) | 29L 2-{4-[(1E)-1-(hydroxyimino)-2,3-dihydro-1H-inden-5-yl]-3-(pyridin-4-yl)-1H-pyrazol-1-yl}ethanol × 2 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.5
cryo-EM vitrification conditions
Cryogen ETHANE-PROPANE
|
Resolution 4.25 Å |
| 8CPD Cryo-EM structure of CRaf dimer with 14:3:3 Deposited 2023-03-02 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain A
1–648（648 aa）
Chain B
1–648（648 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) | No recorded non-water small molecule |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.5
cryo-EM vitrification conditions
Cryogen ETHANE-PROPANE
|
Resolution 3.46 Å |
| 8EPW Crystal Structure of KRAS4b-G13D (GMPPNP-bound) in complex with RAS-binding domain (RBD) of RAF1/CRAF Deposited 2022-10-06 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
52–131（80 aa）
|
Not recorded | GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；293 K；0.15 M potassium bromide, 30% PEG 2000 MME
|
Resolution 2.00 Å R-free 0.253 |
| 8GAE Hsp90 provides platform for CRaf dephosphorylation by PP5 Deposited 2023-02-22 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric |
Chain D
404–610（207 aa）
|
Not recorded | K POTASSIUM ION × 2 MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MN MANGANESE (II) ION × 2 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.5
cryo-EM vitrification conditions
Cryogen ETHANE；3UL OF SAMPLE
10C
100% HUMIDITY
30S WAIT TIME
3S BLOT TIME
-2 BLOT FORCE
|
Resolution 3.30 Å |
| 8GFT Hsp90 provides platform for CRaf dephosphorylation by PP5 Deposited 2023-03-08 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric |
Chain D
336–618（283 aa）
|
Not recorded | ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 2 K POTASSIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MN MANGANESE (II) ION × 2 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.5
cryo-EM vitrification conditions
Cryogen ETHANE；3uL OF SAMPLE, 10C, 100%
HUMIDITY, 30S WAIT TIME, 3S
BLOT TIME, -2 BLOT FORCE
|
Resolution 3.80 Å |
| 8JNA CRAF ras-binding domain chimera, apo form Deposited 2023-06-06 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric |
Chain B
50–101（52 aa）
Chain B
114–141（28 aa）
|
Mutation：K65S, F99Y, S120W, D129E Mutation：K65S, F99Y, S120W, D129E | No recorded non-water small molecule |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；1.0M tri-sodium citrate, 0.1M imidazole, pH 8.0
|
Resolution 1.70 Å R-free 0.272 |
| 8JNB CRAF ras-binding domain chimera, ligand complex Deposited 2023-06-06 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric |
Chain B
50–101（52 aa）
Chain B
114–141（28 aa）
|
Mutation：K65S, F99Y, S120W, D129E Mutation：K65S, F99Y, S120W, D129E | USX 2-[4-[[(2S)-1-ethanoyl-3-oxidanylidene-2H-indol-2-yl]methyl]-2-methoxy-phenoxy]ethanamide × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；pH 5.6；293 K；0.5M ammonium sulfate, 1.0M lithium sulfate, 0.1M sodium citrate, pH 5.6
|
Resolution 1.62 Å R-free 0.242 |
| 8JOF solution-structure of Ras Binding Domain (RBD) in C-RAF Deposited 2023-06-07 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
51–131（81 aa）
|
Not recorded | No recorded non-water small molecule |
SOLUTION NMR
NMR measurement conditions
pH 6.8；298 K；Ionic strength (raw mmCIF value) 85；Pressure ambient
NMR sample composition
0.3 mM [U-100% 13C; U-100% 15N] Serine/threonine-protein Kinase C-RAF, 25 mM sodium phosphate, 50 mM sodium chloride, 10 mM magnesium dichloride, 90% H2O/10% D2O | 90% H2O/10% D2O
|
Resolution not provided |
| 8JOG solution structure of Ras Binding Domein (RBD) in C-RAF with negative allosteric modulator. Deposited 2023-06-07 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
51–131（81 aa）
|
Not recorded | No recorded non-water small molecule |
SOLUTION NMR
NMR measurement conditions
pH 6.8；298 K；Ionic strength (raw mmCIF value) 85；Pressure ambient
NMR sample composition
0.3 mM [U-100% 13C; U-100% 15N] Serin/threonine protein kinase C-RAF, 25 mM sodium phosphate, 50 mM sodium chloride, 10 mM magnesium dichloride, 90% H2O/10% D2O | 90% H2O/10% D2O
|
Resolution not provided |
| 8S42 Ternary structure of 14-3-3s, C-RAF phosphopeptide (pS259) and compound 80 (1124898) Deposited 2024-02-21 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain P
255–263（9 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) | CL CHLORIDE ION × 2 MG MAGNESIUM ION × 4 A1H5F 2-chloranyl-1-[8-[3-fluoranyl-4-(trifluoromethyl)phenyl]sulfonyl-5-oxa-2,8-diazaspiro[3.5]nonan-2-yl]ethanone × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；277 K；0.095 M HEPES pH=7.1-7.7
0.19 M CaCl2
5% glycerol
24-29% PEG400
|
Resolution 1.70 Å R-free 0.194 |
| 8T74 Crystal structure of KRAS4a (GMPPNP) in complex with RAF1 (RBD) Deposited 2023-06-19 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
52–131（80 aa）
|
Not recorded | MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；293 K；0.15 M DL-malic acid (pH 7.0), 20% PEG 3350
|
Resolution 1.65 Å R-free 0.196 |
| 8T75 Crystal Structure of KRAS4a (GMPPNP) in complex with RAF1 (RBD-CRD) Deposited 2023-06-19 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
52–188（137 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) | GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M sodium acetate (pH 4.6), 2 M sodium formate
|
Resolution 2.65 Å R-free 0.219 |
| 8T75 Crystal Structure of KRAS4a (GMPPNP) in complex with RAF1 (RBD-CRD) Deposited 2023-06-19 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain D
52–188（137 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) | GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M sodium acetate (pH 4.6), 2 M sodium formate
|
Resolution 2.65 Å R-free 0.219 |
| 8T75 Crystal Structure of KRAS4a (GMPPNP) in complex with RAF1 (RBD-CRD) Deposited 2023-06-19 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain F
52–188（137 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) | GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M sodium acetate (pH 4.6), 2 M sodium formate
|
Resolution 2.65 Å R-free 0.219 |
| 8T75 Crystal Structure of KRAS4a (GMPPNP) in complex with RAF1 (RBD-CRD) Deposited 2023-06-19 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain H
52–188（137 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) | GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M sodium acetate (pH 4.6), 2 M sodium formate
|
Resolution 2.65 Å R-free 0.219 |
| 8U1L Cryo-EM structure of the RAF1-HSP90-CDC37 complex in the closed state Deposited 2023-09-01 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain C
2–648（647 aa）
|
Not recorded | ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.3
cryo-EM vitrification conditions
Cryogen ETHANE；Grids were blotted for 4.5 seconds before plunging
|
Resolution 3.70 Å |
| 9AXA CryoEM structure of activated CRAF/MEK/14-3-3 complex with NST-628 Deposited 2024-03-06 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric |
Chain A
306–648（343 aa）
Chain C
306–648（343 aa）
|
Mutation：Y340D Y341D Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：Y340D Y341D Non-standard monomer：Yes (specific site not provided by mmCIF) | A1AHE N-[3-fluoro-4-({7-[(3-fluoropyridin-2-yl)oxy]-4-methyl-2-oxo-2H-1-benzopyran-3-yl}methyl)pyridin-2-yl]-N'-methylsulfuric diamide × 2 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.5
cryo-EM vitrification conditions
Cryogen ETHANE
|
Resolution 4.36 Å |
| 9AXC Activated CRAF/MEK heterotetramer from focused refinement of CRAF/MEK/14-3-3 complex Deposited 2024-03-06 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain A
306–648（343 aa）
Chain C
306–648（343 aa）
|
Mutation：Y340D Y341D Mutation：Y340D Y341D | A1AHE N-[3-fluoro-4-({7-[(3-fluoropyridin-2-yl)oxy]-4-methyl-2-oxo-2H-1-benzopyran-3-yl}methyl)pyridin-2-yl]-N'-methylsulfuric diamide × 2 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.5
cryo-EM vitrification conditions
Cryogen ETHANE
|
Resolution 4.16 Å |
| 9AYA Crystal structure of CRAF/MEK complex with NST-628 and active RAF dimer Deposited 2024-03-07 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain A
337–615（279 aa）
Chain C
337–615（279 aa）
|
Mutation：Y340D Y341D Mutation：Y340D Y341D | A1AHE N-[3-fluoro-4-({7-[(3-fluoropyridin-2-yl)oxy]-4-methyl-2-oxo-2H-1-benzopyran-3-yl}methyl)pyridin-2-yl]-N'-methylsulfuric diamide × 2 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；0.2M magnesium chloride, 0.1M tris pH 7.0, 10% w/v PEG 8000
|
Resolution 2.59 Å R-free 0.257 |
| 9EW1 Ternary structure of 14-3-3s, CRAF phosphopeptide (pS259) and compound 79 (1124379). Deposited 2024-04-03 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain P
255–263（9 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) | CL CHLORIDE ION × 2 MG MAGNESIUM ION × 6 WQT 2-chloranyl-1-[8-(4-iodophenyl)sulfonyl-5-oxa-2,8-diazaspiro[3.5]nonan-2-yl]ethanone × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；277 K；0.095 M HEPES pH=7.1-7.7
0.19 M CaCl2
5% glycerol
24-29% PEG400
|
Resolution 1.40 Å R-free 0.168 |
| 9EW3 Ternary structure of 14-3-3s, C-RAF phosphopeptide 12-mer (pS259) and compound 78 (1084378) Deposited 2024-04-03 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain P
255–263（9 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) | CL CHLORIDE ION × 2 MG MAGNESIUM ION × 6 WQN 1-[8-(4-bromophenyl)sulfonyl-5-oxa-2,8-diazaspiro[3.5]nonan-2-yl]-2-chloranyl-ethanone × 2 CA CALCIUM ION × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；277 K；0.095 M HEPES pH=7.1-7.7
0.19 M CaCl2
5% glycerol
24-29% PEG400
|
Resolution 1.40 Å R-free 0.229 |
| 9EW4 Ternary structure of 14-3-3s, C-RAF phosphopeptide 12mer (pS259) and compound 86 (1124384) Deposited 2024-04-03 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain P
255–263（9 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) | CL CHLORIDE ION × 2 MG MAGNESIUM ION × 8 WQ9 1-[(5~{R})-2-(4-bromanyl-3-fluoranyl-phenyl)sulfonyl-2,7-diazaspiro[4.4]nonan-7-yl]-2-chloranyl-ethanone × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；277 K；0.095 M HEPES pH=7.1-7.7
0.19 M CaCl2
5% glycerol
24-29% PEG400
|
Resolution 1.60 Å R-free 0.211 |
| 9EW5 Ternary structure of 14-3-3s, C-RAF phosphopeptide (pS259) 12mer and compound 23 (1083848) Deposited 2024-04-03 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain C
255–265（11 aa）
Chain F
255–265（11 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) | WQI 2-chloranyl-~{N}-[[1-(4-iodophenyl)sulfonylpiperidin-4-yl]methyl]ethanamide × 2 CA CALCIUM ION × 3 MG MAGNESIUM ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；277 K；0.095 M HEPES pH=7.1-7.7
0.19 M CaCl2
5% glycerol
24-29% PEG400
|
Resolution 1.50 Å R-free 0.216 |
| 9EW7 Binary structure of 14-3-3s and CRAF phosphopeptide (pS259) Deposited 2024-04-03 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain P
255–264（10 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) | CL CHLORIDE ION × 2 MG MAGNESIUM ION × 4 CA CALCIUM ION × 4 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；277 K；0.095 M HEPES pH=7.1-7.7
0.19 M CaCl2
5% glycerol
24-29% PEG400
|
Resolution 1.80 Å R-free 0.193 |
| 9MMP Cryo-EM structure of CRAF/MEK1/14-3-3 complex (autoinhibited conformation) Deposited 2024-12-20 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain A
1–648（648 aa）
|
Mutation：Q156R, D587E Non-standard monomer：Yes (specific site not provided by mmCIF) | AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 ZN ZINC ION × 2 LCJ 5-[(2-fluoro-4-iodophenyl)amino]-N-(2-hydroxyethoxy)imidazo[1,5-a]pyridine-6-carboxamide × 1 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.5；50 mM Tris pH 7.5, 150 mM NaCl, 2 mM MgCl2, 0.5 mM TCEP, 2 uM ATPgS, 1 uM GDC0623
cryo-EM vitrification conditions
Cryogen ETHANE
|
Resolution 3.40 Å |
| 9MMQ Cryo-EM structure of CRAF/MEK1 complex (kinase domain) Deposited 2024-12-20 | Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain A
1–648（648 aa）
|
Mutation：Q156R, D587E | AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 LCJ 5-[(2-fluoro-4-iodophenyl)amino]-N-(2-hydroxyethoxy)imidazo[1,5-a]pyridine-6-carboxamide × 1 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.5；50 mM Tris pH 7.5, 150 mM NaCl, 2 mM MgCl2, 0.5 mM TCEP, 2 uM ATPgS, 1 uM GDC0623
cryo-EM vitrification conditions
Cryogen ETHANE
|
Resolution 2.90 Å |
| 9MMR Cryo-EM structure of CRAF/MEK1/14-3-3 complex (open monomer conformation, CRAF Y340D/Y341D mutant) Deposited 2024-12-20 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain A
1–648（648 aa）
|
Mutation：Q156R, Y340D, Y341D, D587E Non-standard monomer：Yes (specific site not provided by mmCIF) | AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 LCJ 5-[(2-fluoro-4-iodophenyl)amino]-N-(2-hydroxyethoxy)imidazo[1,5-a]pyridine-6-carboxamide × 1 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.5；50 mM Tris pH 7.5, 150 mM NaCl, 2 mM MgCl2, 0.5 mM TCEP, 2 uM ATPgS, 1 uM GDC0623
cryo-EM vitrification conditions
Cryogen ETHANE
|
Resolution 3.90 Å |
| 9MMS Cryo-EM structure of CRAF/MEK1 complex (kinase domain, CRAF Y340D/Y341D mutant) Deposited 2024-12-20 | Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain A
1–648（648 aa）
|
Mutation：Q156R, Y340D, Y341D, D587E | AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 LCJ 5-[(2-fluoro-4-iodophenyl)amino]-N-(2-hydroxyethoxy)imidazo[1,5-a]pyridine-6-carboxamide × 1 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.5；50 mM Tris pH 7.5, 150 mM NaCl, 2 mM MgCl2, 0.5 mM TCEP, 2 uM ATPgS, 1 uM GDC0623
cryo-EM vitrification conditions
Cryogen ETHANE
|
Resolution 3.30 Å |
| 9O0U Crystal structure of CRAF/MEK1 complex with PLX4720 and CH5126766 Deposited 2025-04-03 | Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain A
337–615（279 aa）
|
Mutation：Y340D, Y341D | 324 N-{3-[(5-chloro-1H-pyrrolo[2,3-b]pyridin-3-yl)carbonyl]-2,4-difluorophenyl}propane-1-sulfonamide × 1 CHU N-(3-fluoro-4-{[4-methyl-2-oxo-7-(pyrimidin-2-yloxy)-2H-chromen-3-yl]methyl}pyridin-2-yl)-N'-methylsulfuric diamide × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；295 K；18% PEG 3350, 0.1 M Sodium citrate pH 5.6, 4% Tacsimate pH 5
|
Resolution 2.91 Å R-free 0.264 |
| 9O0U Crystal structure of CRAF/MEK1 complex with PLX4720 and CH5126766 Deposited 2025-04-03 | Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain C
337–615（279 aa）
|
Mutation：Y340D, Y341D | 324 N-{3-[(5-chloro-1H-pyrrolo[2,3-b]pyridin-3-yl)carbonyl]-2,4-difluorophenyl}propane-1-sulfonamide × 1 CHU N-(3-fluoro-4-{[4-methyl-2-oxo-7-(pyrimidin-2-yloxy)-2H-chromen-3-yl]methyl}pyridin-2-yl)-N'-methylsulfuric diamide × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；295 K；18% PEG 3350, 0.1 M Sodium citrate pH 5.6, 4% Tacsimate pH 5
|
Resolution 2.91 Å R-free 0.264 |
| 9O0U Crystal structure of CRAF/MEK1 complex with PLX4720 and CH5126766 Deposited 2025-04-03 | Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain E
337–615（279 aa）
|
Mutation：Y340D, Y341D | 324 N-{3-[(5-chloro-1H-pyrrolo[2,3-b]pyridin-3-yl)carbonyl]-2,4-difluorophenyl}propane-1-sulfonamide × 1 CHU N-(3-fluoro-4-{[4-methyl-2-oxo-7-(pyrimidin-2-yloxy)-2H-chromen-3-yl]methyl}pyridin-2-yl)-N'-methylsulfuric diamide × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；295 K；18% PEG 3350, 0.1 M Sodium citrate pH 5.6, 4% Tacsimate pH 5
|
Resolution 2.91 Å R-free 0.264 |
| 9O0U Crystal structure of CRAF/MEK1 complex with PLX4720 and CH5126766 Deposited 2025-04-03 | Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain G
337–615（279 aa）
|
Mutation：Y340D, Y341D | 324 N-{3-[(5-chloro-1H-pyrrolo[2,3-b]pyridin-3-yl)carbonyl]-2,4-difluorophenyl}propane-1-sulfonamide × 1 CHU N-(3-fluoro-4-{[4-methyl-2-oxo-7-(pyrimidin-2-yloxy)-2H-chromen-3-yl]methyl}pyridin-2-yl)-N'-methylsulfuric diamide × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；295 K；18% PEG 3350, 0.1 M Sodium citrate pH 5.6, 4% Tacsimate pH 5
|
Resolution 2.91 Å R-free 0.264 |
| 9O0V Crystal structure of CRAF/MEK1 complex with PLX4720, CH5126766, and AMPPNP Deposited 2025-04-03 | Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain A
337–615（279 aa）
|
Mutation：Y340D, Y341D | 324 N-{3-[(5-chloro-1H-pyrrolo[2,3-b]pyridin-3-yl)carbonyl]-2,4-difluorophenyl}propane-1-sulfonamide × 1 CHU N-(3-fluoro-4-{[4-methyl-2-oxo-7-(pyrimidin-2-yloxy)-2H-chromen-3-yl]methyl}pyridin-2-yl)-N'-methylsulfuric diamide × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；295 K；18% PEG 3350, 0.1 M Sodium citrate pH 5.6, 4% Tacsimate pH 5
|
Resolution 3.50 Å R-free 0.254 |
| 9O0V Crystal structure of CRAF/MEK1 complex with PLX4720, CH5126766, and AMPPNP Deposited 2025-04-03 | Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain C
337–615（279 aa）
|
Mutation：Y340D, Y341D | 324 N-{3-[(5-chloro-1H-pyrrolo[2,3-b]pyridin-3-yl)carbonyl]-2,4-difluorophenyl}propane-1-sulfonamide × 1 CHU N-(3-fluoro-4-{[4-methyl-2-oxo-7-(pyrimidin-2-yloxy)-2H-chromen-3-yl]methyl}pyridin-2-yl)-N'-methylsulfuric diamide × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；295 K；18% PEG 3350, 0.1 M Sodium citrate pH 5.6, 4% Tacsimate pH 5
|
Resolution 3.50 Å R-free 0.254 |
| 9O0V Crystal structure of CRAF/MEK1 complex with PLX4720, CH5126766, and AMPPNP Deposited 2025-04-03 | Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain E
337–615（279 aa）
|
Mutation：Y340D, Y341D | 324 N-{3-[(5-chloro-1H-pyrrolo[2,3-b]pyridin-3-yl)carbonyl]-2,4-difluorophenyl}propane-1-sulfonamide × 1 CHU N-(3-fluoro-4-{[4-methyl-2-oxo-7-(pyrimidin-2-yloxy)-2H-chromen-3-yl]methyl}pyridin-2-yl)-N'-methylsulfuric diamide × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；295 K；18% PEG 3350, 0.1 M Sodium citrate pH 5.6, 4% Tacsimate pH 5
|
Resolution 3.50 Å R-free 0.254 |
| 9O0V Crystal structure of CRAF/MEK1 complex with PLX4720, CH5126766, and AMPPNP Deposited 2025-04-03 | Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain G
337–615（279 aa）
|
Mutation：Y340D, Y341D | 324 N-{3-[(5-chloro-1H-pyrrolo[2,3-b]pyridin-3-yl)carbonyl]-2,4-difluorophenyl}propane-1-sulfonamide × 1 CHU N-(3-fluoro-4-{[4-methyl-2-oxo-7-(pyrimidin-2-yloxy)-2H-chromen-3-yl]methyl}pyridin-2-yl)-N'-methylsulfuric diamide × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；295 K；18% PEG 3350, 0.1 M Sodium citrate pH 5.6, 4% Tacsimate pH 5
|
Resolution 3.50 Å R-free 0.254 |
| 9S2I Ternary structure of 14-3-3, CRAF R256S NS mutant phosphopeptide (pS259), and compound 78 (1124378) Deposited 2025-07-21 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain P
255–265（11 aa）
|
Mutation：R256S Non-standard monomer：Yes (specific site not provided by mmCIF) | CL CHLORIDE ION × 2 MG MAGNESIUM ION × 4 WQN 1-[8-(4-bromophenyl)sulfonyl-5-oxa-2,8-diazaspiro[3.5]nonan-2-yl]-2-chloranyl-ethanone × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；277 K；0.095 M HEPES pH=7.1-7.7 0.19 M CaCl2 5% glycerol 24-29% PEG400
|
Resolution 1.67 Å R-free 0.201 |
| 9S2J Ternary structure of 14-3-3s, CRAF S257L NS mutant phosphopeptide (pS259) and compound 78 (1084378) Deposited 2025-07-21 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain P
255–265（11 aa）
|
Mutation：S257L Non-standard monomer：Yes (specific site not provided by mmCIF) | CL CHLORIDE ION × 2 MG MAGNESIUM ION × 4 WQN 1-[8-(4-bromophenyl)sulfonyl-5-oxa-2,8-diazaspiro[3.5]nonan-2-yl]-2-chloranyl-ethanone × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；277 K；0.095 M HEPES pH=7.1-7.7 0.19 M CaCl2 5% glycerol 24-29% PEG400
|
Resolution 1.50 Å R-free 0.203 |
| 9S2K Ternary structure of 14-3-3s, CRAF V263A NS mutant phosphopeptide (pS259), and compound 78 (1124378) Deposited 2025-07-21 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain P
255–265（11 aa）
|
Mutation：V263A Non-standard monomer：Yes (specific site not provided by mmCIF) | CL CHLORIDE ION × 2 MG MAGNESIUM ION × 6 WQN 1-[8-(4-bromophenyl)sulfonyl-5-oxa-2,8-diazaspiro[3.5]nonan-2-yl]-2-chloranyl-ethanone × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；277 K；0.095 M HEPES pH=7.1-7.7 0.19 M CaCl2 5% glycerol 24-29% PEG400
|
Resolution 2.15 Å R-free 0.233 |
| 9S2L Ternary structure of 14-3-3s, CRAF R256S NS mutant phosphopeptide (pS259), and compound 23 (1083848) Deposited 2025-07-21 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain H
255–265（11 aa）
Chain S
255–265（11 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) | WQI 2-chloranyl-~{N}-[[1-(4-iodophenyl)sulfonylpiperidin-4-yl]methyl]ethanamide × 2 MG MAGNESIUM ION × 6 CL CHLORIDE ION × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；277 K；0.095 M HEPES pH=7.1-7.7 0.19 M CaCl2 5% glycerol 24-29% PEG400
|
Resolution 1.85 Å R-free 0.223 |
| 9S2M Ternary structure of 14-3-3s, CRAF S257L NS mutant phosphopeptide (pS259), and compound 23 (1083848) Deposited 2025-07-21 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain H
255–265（11 aa）
Chain S
255–265（11 aa）
|
Mutation：S257L Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：S257L Non-standard monomer：Yes (specific site not provided by mmCIF) | WQI 2-chloranyl-~{N}-[[1-(4-iodophenyl)sulfonylpiperidin-4-yl]methyl]ethanamide × 2 MG MAGNESIUM ION × 5 CL CHLORIDE ION × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；277 K；0.095 M HEPES pH=7.1-7.7 0.19 M CaCl2 5% glycerol 24-29% PEG400
|
Resolution 2.00 Å R-free 0.227 |
| 9S2N Ternary structure of 14-3-3s, CRAF V263A NS mutant phosphopeptide (pS259), and compound 23 (1083848) Deposited 2025-07-21 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain H
255–264（10 aa）
Chain S
255–264（10 aa）
|
Mutation：V263A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：V263A Non-standard monomer：Yes (specific site not provided by mmCIF) | WQI 2-chloranyl-~{N}-[[1-(4-iodophenyl)sulfonylpiperidin-4-yl]methyl]ethanamide × 2 MG MAGNESIUM ION × 6 CL CHLORIDE ION × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；277 K；0.095 M HEPES pH=7.1-7.7 0.19 M CaCl2 5% glycerol 24-29% PEG400
|
Resolution 1.85 Å R-free 0.239 |
| 9S2O Ternary structure of 14-3-3s, CRAF R256S NS mutant phosphopeptide (pS259), and compound 22 (1083853) Deposited 2025-07-21 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain H
255–265（11 aa）
Chain S
255–265（11 aa）
|
Mutation：R256S Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：R256S Non-standard monomer：Yes (specific site not provided by mmCIF) | WPN ~{N}-[[1-(4-bromophenyl)sulfonylpiperidin-4-yl]methyl]-2-chloranyl-ethanamide × 2 MG MAGNESIUM ION × 6 CL CHLORIDE ION × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；277 K；0.095 M HEPES pH=7.1-7.7 0.19 M CaCl2 5% glycerol 24-29% PEG400
|
Resolution 1.80 Å R-free 0.213 |
| 9S2P Ternary structure of 14-3-3s, CRAF V263A NS mutant phosphopeptide (pS259), and compound 22 (1083853) Deposited 2025-07-21 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain P
255–265（11 aa）
|
Mutation：V263A Non-standard monomer：Yes (specific site not provided by mmCIF) | CL CHLORIDE ION × 2 MG MAGNESIUM ION × 4 WPN ~{N}-[[1-(4-bromophenyl)sulfonylpiperidin-4-yl]methyl]-2-chloranyl-ethanamide × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；277 K；0.095 M HEPES pH=7.1-7.7 0.19 M CaCl2 5% glycerol 24-29% PEG400
|
Resolution 1.50 Å R-free 0.197 |
| 9YGS Crystal structure of GMPPNP bound KRAS-Y71H in complex with RBD domain of CRAF(RAF1) Deposited 2025-09-29 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
52–131（80 aa）
|
Not recorded | GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；291.15 K；100 mM Potassium thiocyanate, 30% PEG monomethyl ether 2000.
|
Resolution 1.68 Å R-free 0.233 |
74 other PDB entries and 83 assemblies. Open the comparison page and filter oligomeric states
View Construct and Data Evidence
| UniProt name | RAF1_HUMAN |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 2–280； UniProt 337–615 |
