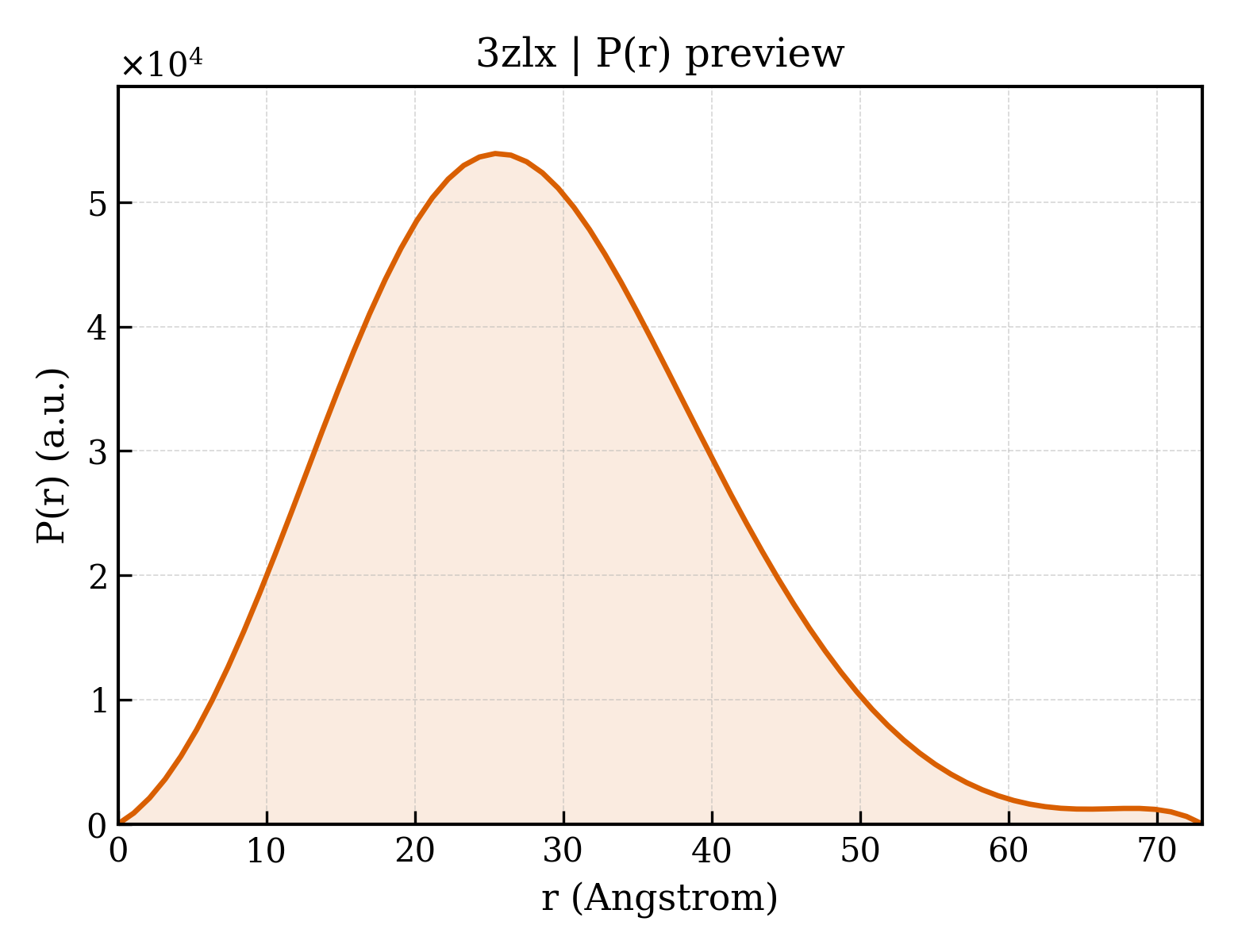

DUAL SPECIFICITY MITOGEN-ACTIVATED PROTEIN KINASE KINASE 1
HOMO SAPIENS
State in the Current Structure
| Assembly | Oligomeric State | Construct | Mutations and Modifications | Ligands, Ions and Associated Components | Method and Experimental Conditions | Structure Quality |
|---|---|---|---|---|---|---|
| 1 | Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count | Chain A； UniProt 37–383 | Mutation：YES | 5EZ 7-choro-6-[(3R)-pyrrolidin-3-ylmethoxy]isoquinolin-1(2H)-one × 1 | X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.7；Appropriate single crystals were grown using this set-up in PEG 4000 18%, Tris 100mM pH7.7, DMSO 2% and CaCl2 0.2M and were extracted from the low volume drops, cryo-protected in mother liquor with 20% glycerol and flash cooled for synchrotron collection | Resolution 2.20 Å R-free 0.236 |
Other States of the Same Protein in the Database
Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.
| Other PDB | Difference from Current Entry 3ZLX | Assembly / Oligomeric State | Construct | Mutations and Modifications | Ligands, Ions and Non-polymers | Method and Experimental Conditions | Structure Quality |
|---|---|---|---|---|---|---|---|
| 1S9J X-ray structure of the human mitogen-activated protein kinase kinase 1 (MEK1) in a complex with ligand and MgATP Deposited 2004-02-04 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric |
Chain A
61–392（332 aa）
|
Not recorded | MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 BBM 5-BROMO-N-(2,3-DIHYDROXYPROPOXY)-3,4-DIFLUORO-2-[(2-FLUORO-4-IODOPHENYL)AMINO]BENZAMIDE × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 5；288 K；PEG8K, Ammonium phosphate, Imidazole-malate, DTT, pH 5, VAPOR DIFFUSION, HANGING DROP, temperature 288K
|
Resolution 2.40 Å R-free 0.269 |
| 2P55 X-ray structure of the human mitogen-activated protein kinase kinase 1 (MEK1) in a complex with ligand and MgATP Deposited 2007-03-14 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric |
Chain A
62–393（332 aa）
|
Not recorded | MG MAGNESIUM ION × 2 MRA 2-[(4-ETHYNYL-2-FLUOROPHENYL)AMINO]-3,4-DIFLUORO-N-(2-HYDROXYETHOXY)BENZAMIDE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 | X-RAY DIFFRACTION mmCIF provides none of the parsed conditions | Resolution 2.80 Å R-free 0.301 |
| 3DV3 MEK1 with PF-04622664 Bound Deposited 2008-07-18 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric |
Chain A
62–382（321 aa）
Fragment：UNP residues 62-382
|
Not recorded | MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MEK 3,4-difluoro-2-[(2-fluoro-4-iodophenyl)amino]-N-(2-hydroxyethoxy)-5-[(2-hydroxyethoxy)methyl]benzamide × 2 GOL GLYCEROL × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；VAPOR DIFFUSION, HANGING DROP
|
Resolution 2.30 Å R-free 0.221 |
| 3DV3 MEK1 with PF-04622664 Bound Deposited 2008-07-18 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
62–382（321 aa）
Fragment：UNP residues 62-382
|
Not recorded | MG MAGNESIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MEK 3,4-difluoro-2-[(2-fluoro-4-iodophenyl)amino]-N-(2-hydroxyethoxy)-5-[(2-hydroxyethoxy)methyl]benzamide × 1 GOL GLYCEROL × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；VAPOR DIFFUSION, HANGING DROP
|
Resolution 2.30 Å R-free 0.221 |
| 3DY7 X-ray structure of the human mitogen-activated protein kinase kinase 1 (MEK1) in a complex with ligand and MgATP Deposited 2008-07-25 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
62–393（332 aa）
Fragment：Protein Kinase Domain, UNP residues 62-393
|
Not recorded | MG MAGNESIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 1CX (5S)-4,5-difluoro-6-[(2-fluoro-4-iodophenyl)imino]-N-(2-hydroxyethoxy)cyclohexa-1,3-diene-1-carboxamide × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 5；288 K；PEG8K, Ammonium phosphate, Imidazole-malate, DTT, pH 5, VAPOR DIFFUSION, HANGING DROP, temperature 288K
|
Resolution 2.70 Å R-free 0.269 |
| 3E8N X-ray structure of the human mitogen-activated protein kinase kinase 1 (MEK1) complexed with a potent inhibitor RDEA119 and MgATP Deposited 2008-08-20 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
62–393（332 aa）
|
Not recorded | MG MAGNESIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 VRA N-{3,4-difluoro-2-[(2-fluoro-4-iodophenyl)amino]-6-methoxyphenyl}-1-[(2S)-2,3-dihydroxypropyl]cyclopropanesulfonamide × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 7.8；277 K；20 mM HEPES, 150 mM NH4H2PO4, 0.5 mM EDTA, 2 mM TCEP, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 277K
|
Resolution 2.50 Å R-free 0.252 |
| 3E8N X-ray structure of the human mitogen-activated protein kinase kinase 1 (MEK1) complexed with a potent inhibitor RDEA119 and MgATP Deposited 2008-08-20 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric |
Chain A
62–393（332 aa）
|
Not recorded | MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 VRA N-{3,4-difluoro-2-[(2-fluoro-4-iodophenyl)amino]-6-methoxyphenyl}-1-[(2S)-2,3-dihydroxypropyl]cyclopropanesulfonamide × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 7.8；277 K；20 mM HEPES, 150 mM NH4H2PO4, 0.5 mM EDTA, 2 mM TCEP, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 277K
|
Resolution 2.50 Å R-free 0.252 |
| 3EQB X-ray structure of the human mitogen-activated protein kinase kinase 1 (MEK1) in a complex with ligand and MgATP Deposited 2008-09-30 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric |
Chain A
62–393（332 aa）
|
Not recorded | ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 LUG N-(5-{3,4-difluoro-2-[(2-fluoro-4-iodophenyl)amino]phenyl}-1,3,4-oxadiazol-2-yl)ethane-1,2-diamine × 2 | X-RAY DIFFRACTION mmCIF provides none of the parsed conditions | Resolution 2.62 Å R-free 0.264 |
| 3EQC X-ray structure of the human mitogen-activated protein kinase kinase 1 (MEK1) in a ternary complex with compound 1, ATP-GS AND MG2P Deposited 2008-09-30 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
35–393（359 aa）
Fragment：Protein kinase domain, UNP residues 35-393
|
Mutation：S265N, S266K, Y267F | 3BM 2-[(2-chloro-4-iodophenyl)amino]-N-{[(2R)-2,3-dihydroxypropyl]oxy}-3,4-difluorobenzamide × 1 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1 CA CALCIUM ION × 1 NA SODIUM ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8；281 K；0.1M TRIS-CL, pH 8.0; 18% PEG 4000; 0.2M CALCIUM CHLORIDE; 3% DMSO, VAPOR DIFFUSION HANGING DROP, temperature 281K
|
Resolution 1.80 Å R-free 0.235 |
| 3EQC X-ray structure of the human mitogen-activated protein kinase kinase 1 (MEK1) in a ternary complex with compound 1, ATP-GS AND MG2P Deposited 2008-09-30 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric |
Chain A
35–393（359 aa）
Fragment：Protein kinase domain, UNP residues 35-393
|
Mutation：S265N, S266K, Y267F | 3BM 2-[(2-chloro-4-iodophenyl)amino]-N-{[(2R)-2,3-dihydroxypropyl]oxy}-3,4-difluorobenzamide × 2 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 CA CALCIUM ION × 2 NA SODIUM ION × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8；281 K；0.1M TRIS-CL, pH 8.0; 18% PEG 4000; 0.2M CALCIUM CHLORIDE; 3% DMSO, VAPOR DIFFUSION HANGING DROP, temperature 281K
|
Resolution 1.80 Å R-free 0.235 |
| 3EQD X-ray structure of the human mitogen-activated protein kinase kinase 1 (MEK1) in a binary complex with ATP-GS and MG2P Deposited 2008-09-30 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
35–393（359 aa）
Fragment：Protein kinase domain, UNP residues 35-393
|
Mutation：S265N, S266K, Y267F | AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1 CA CALCIUM ION × 1 NA SODIUM ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8；281 K；0.1M TRIS-CL, pH 8.0; 18% PEG 4000; 0.2M CALCIUM CHLORIDE; 3% DMSO, VAPOR DIFFUSION HANGING DROP, temperature 281K
|
Resolution 2.10 Å |
| 3EQD X-ray structure of the human mitogen-activated protein kinase kinase 1 (MEK1) in a binary complex with ATP-GS and MG2P Deposited 2008-09-30 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric |
Chain A
35–393（359 aa）
Fragment：Protein kinase domain, UNP residues 35-393
|
Mutation：S265N, S266K, Y267F | AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 CA CALCIUM ION × 2 NA SODIUM ION × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8；281 K；0.1M TRIS-CL, pH 8.0; 18% PEG 4000; 0.2M CALCIUM CHLORIDE; 3% DMSO, VAPOR DIFFUSION HANGING DROP, temperature 281K
|
Resolution 2.10 Å |
| 3EQF X-ray structure of the human mitogen-activated protein kinase kinase 1 (MEK1) in a binary complex with K252A and MG2P Deposited 2008-09-30 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
35–393（359 aa）
Fragment：Protein kinase domain, UNP residues 35-393
|
Mutation：S265N, S266K, Y267F | KSA K-252A × 1 MG MAGNESIUM ION × 1 CA CALCIUM ION × 1 NA SODIUM ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8；281 K；0.1M TRIS-CL, pH 8.0; 18% PEG 4000; 0.2M CALCIUM CHLORIDE; 3% DMSO, VAPOR DIFFUSION HANGING DROP, temperature 281K
|
Resolution 2.70 Å |
| 3EQF X-ray structure of the human mitogen-activated protein kinase kinase 1 (MEK1) in a binary complex with K252A and MG2P Deposited 2008-09-30 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric |
Chain A
35–393（359 aa）
Fragment：Protein kinase domain, UNP residues 35-393
|
Mutation：S265N, S266K, Y267F | KSA K-252A × 2 MG MAGNESIUM ION × 2 CA CALCIUM ION × 2 NA SODIUM ION × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8；281 K；0.1M TRIS-CL, pH 8.0; 18% PEG 4000; 0.2M CALCIUM CHLORIDE; 3% DMSO, VAPOR DIFFUSION HANGING DROP, temperature 281K
|
Resolution 2.70 Å |
| 3EQG X-ray structure of the human mitogen-activated protein kinase kinase 1 (MEK1) in a ternary complex with PD, ADP AND MG2P Deposited 2008-09-30 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
35–393（359 aa）
Fragment：Protein kinase domain, UNP residues 35-393
|
Mutation：S265N, S266K, Y267F | ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 CA CALCIUM ION × 1 NA SODIUM ION × 1 4BM N-{[(2R)-2,3-dihydroxypropyl]oxy}-3,4-difluoro-2-[(2-fluoro-4-iodophenyl)amino]benzamide × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8；281 K；0.1M TRIS-CL, pH 8.0; 18% PEG 4000; 0.2M CALCIUM CHLORIDE; 3% DMSO, VAPOR DIFFUSION HANGING DROP, temperature 281K
|
Resolution 2.50 Å R-free 0.273 |
| 3EQG X-ray structure of the human mitogen-activated protein kinase kinase 1 (MEK1) in a ternary complex with PD, ADP AND MG2P Deposited 2008-09-30 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric |
Chain A
35–393（359 aa）
Fragment：Protein kinase domain, UNP residues 35-393
|
Mutation：S265N, S266K, Y267F | ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 CA CALCIUM ION × 2 NA SODIUM ION × 2 4BM N-{[(2R)-2,3-dihydroxypropyl]oxy}-3,4-difluoro-2-[(2-fluoro-4-iodophenyl)amino]benzamide × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8；281 K；0.1M TRIS-CL, pH 8.0; 18% PEG 4000; 0.2M CALCIUM CHLORIDE; 3% DMSO, VAPOR DIFFUSION HANGING DROP, temperature 281K
|
Resolution 2.50 Å R-free 0.273 |
| 3EQH X-ray structure of the human mitogen-activated protein kinase kinase 1 (MEK1) in a ternary complex with U0126, ADP and MG2P Deposited 2008-09-30 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
35–393（359 aa）
Fragment：Protein kinase domain, UNP residues 35-393
|
Mutation：S265N, S266K, Y267F | 5BM (2Z)-bis{amino[(2-aminophenyl)sulfanyl]methylidene}butanedinitrile × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 CA CALCIUM ION × 1 NA SODIUM ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8；281 K；0.1M TRIS-CL, pH 8.0; 18% PEG 4000; 0.2M CALCIUM CHLORIDE; 3% DMSO, VAPOR DIFFUSION HANGING DROP, temperature 281K
|
Resolution 2.00 Å |
| 3EQH X-ray structure of the human mitogen-activated protein kinase kinase 1 (MEK1) in a ternary complex with U0126, ADP and MG2P Deposited 2008-09-30 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric |
Chain A
35–393（359 aa）
Fragment：Protein kinase domain, UNP residues 35-393
|
Mutation：S265N, S266K, Y267F | 5BM (2Z)-bis{amino[(2-aminophenyl)sulfanyl]methylidene}butanedinitrile × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 CA CALCIUM ION × 2 NA SODIUM ION × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8；281 K；0.1M TRIS-CL, pH 8.0; 18% PEG 4000; 0.2M CALCIUM CHLORIDE; 3% DMSO, VAPOR DIFFUSION HANGING DROP, temperature 281K
|
Resolution 2.00 Å |
| 3EQI X-ray structure of the human mitogen-activated protein kinase kinase 1 (MEK1) in a binary complex with ADP and MG2P Deposited 2008-09-30 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
35–393（359 aa）
Fragment：Protein kinase domain, UNP residues 35-393
|
Mutation：S265N, S266K, Y267F | ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 CA CALCIUM ION × 1 NA SODIUM ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8；281 K；0.1M TRIS-CL, pH 8.0; 18% PEG 4000; 0.2M CALCIUM CHLORIDE; 3% DMSO, VAPOR DIFFUSION HANGING DROP, temperature 281K
|
Resolution 1.90 Å |
| 3EQI X-ray structure of the human mitogen-activated protein kinase kinase 1 (MEK1) in a binary complex with ADP and MG2P Deposited 2008-09-30 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric |
Chain A
35–393（359 aa）
Fragment：Protein kinase domain, UNP residues 35-393
|
Mutation：S265N, S266K, Y267F | ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 CA CALCIUM ION × 2 NA SODIUM ION × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8；281 K；0.1M TRIS-CL, pH 8.0; 18% PEG 4000; 0.2M CALCIUM CHLORIDE; 3% DMSO, VAPOR DIFFUSION HANGING DROP, temperature 281K
|
Resolution 1.90 Å |
| 3MBL Crystal Structure of the human mitogen-activated protein kinase kinase 1 (MEK 1) in complex with ligand and MgADP Deposited 2010-03-25 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric |
Chain A
62–382（321 aa）
Fragment：Kinase Domain
|
Not recorded | ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 LSG 5-acetyl-2-[(2-fluoro-4-iodophenyl)amino]-N-(2-hydroxyethoxy)-1-methyl-1H-pyrrole-3-carboxamide × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；298 K；VAPOR DIFFUSION, SITTING DROP, temperature 298K
|
Resolution 2.60 Å R-free 0.215 |
| 3MBL Crystal Structure of the human mitogen-activated protein kinase kinase 1 (MEK 1) in complex with ligand and MgADP Deposited 2010-03-25 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
62–382（321 aa）
Fragment：Kinase Domain
|
Not recorded | ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 LSG 5-acetyl-2-[(2-fluoro-4-iodophenyl)amino]-N-(2-hydroxyethoxy)-1-methyl-1H-pyrrole-3-carboxamide × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；298 K；VAPOR DIFFUSION, SITTING DROP, temperature 298K
|
Resolution 2.60 Å R-free 0.215 |
| 3ORN Mitogen-activated protein kinase kinase 1 (MEK1) in complex with CH4987655 and MgAMP-PNP Deposited 2010-09-07 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
62–270（209 aa）
Fragment：UNP RESIDUES 62-270, 303-393
Chain A
303–393（91 aa）
Fragment：UNP RESIDUES 62-270, 303-393
|
Not recorded | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1 3OR 3,4-difluoro-2-[(2-fluoro-4-iodophenyl)amino]-N-(2-hydroxyethoxy)-5-[(3-oxo-1,2-oxazinan-2-yl)methyl]benzamide × 1 PGE TRIETHYLENE GLYCOL × 1 SO4 SULFATE ION × 6 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；2M Ammonium sulfate, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K
|
Resolution 2.80 Å R-free 0.277 |
| 3ORN Mitogen-activated protein kinase kinase 1 (MEK1) in complex with CH4987655 and MgAMP-PNP Deposited 2010-09-07 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric |
Chain A
62–270（209 aa）
Fragment：UNP RESIDUES 62-270, 303-393
Chain A
303–393（91 aa）
Fragment：UNP RESIDUES 62-270, 303-393
|
Not recorded | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 3OR 3,4-difluoro-2-[(2-fluoro-4-iodophenyl)amino]-N-(2-hydroxyethoxy)-5-[(3-oxo-1,2-oxazinan-2-yl)methyl]benzamide × 2 PGE TRIETHYLENE GLYCOL × 2 SO4 SULFATE ION × 12 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；2M Ammonium sulfate, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K
|
Resolution 2.80 Å R-free 0.277 |
| 3OS3 Mitogen-activated protein kinase kinase 1 (MEK1) in complex with CH4858061 and MgATP Deposited 2010-09-08 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
62–270（209 aa）
Fragment：UNP RESIDUES 62-270, 303-393
Chain A
303–393（91 aa）
Fragment：UNP RESIDUES 62-270, 303-393
|
Not recorded | ATP ADENOSINE-5'-TRIPHOSPHATE × 1 3OS 2-[(4-ethynyl-2-fluorophenyl)amino]-3,4-difluoro-N-(2-hydroxyethoxy)-5-{[(2-hydroxyethoxy)imino]methyl}benzamide × 1 MG MAGNESIUM ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 4.2；277 K；7.5-10% PEG 8000, 0.2M NaCl, 0.2M Ammonium sulfate, 0.1M citrate buffer, pH 4.2, VAPOR DIFFUSION, HANGING DROP, temperature 277K
|
Resolution 2.80 Å R-free 0.356 |
| 3OS3 Mitogen-activated protein kinase kinase 1 (MEK1) in complex with CH4858061 and MgATP Deposited 2010-09-08 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric |
Chain A
62–270（209 aa）
Fragment：UNP RESIDUES 62-270, 303-393
Chain A
303–393（91 aa）
Fragment：UNP RESIDUES 62-270, 303-393
|
Not recorded | ATP ADENOSINE-5'-TRIPHOSPHATE × 2 3OS 2-[(4-ethynyl-2-fluorophenyl)amino]-3,4-difluoro-N-(2-hydroxyethoxy)-5-{[(2-hydroxyethoxy)imino]methyl}benzamide × 2 MG MAGNESIUM ION × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 4.2；277 K；7.5-10% PEG 8000, 0.2M NaCl, 0.2M Ammonium sulfate, 0.1M citrate buffer, pH 4.2, VAPOR DIFFUSION, HANGING DROP, temperature 277K
|
Resolution 2.80 Å R-free 0.356 |
| 3PP1 Crystal Structure of the Human Mitogen-activated protein kinase kinase 1 (MEK 1) in complex with ligand and MgATP Deposited 2010-11-23 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
62–382（321 aa）
Fragment：kinase domain
|
Not recorded | ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 IZG 3-[(2R)-2,3-dihydroxypropyl]-6-fluoro-5-[(2-fluoro-4-iodophenyl)amino]-8-methylpyrido[2,3-d]pyrimidine-4,7(3H,8H)-dione × 1 ACT ACETATE ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；10% MPD, 0.1M MES, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K
|
Resolution 2.70 Å R-free 0.219 |
| 3SLS Crystal Structure of human MEK-1 kinase in complex with UCB1353770 and AMPPNP Deposited 2011-06-25 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
45–383（339 aa）
Fragment：MEK-1 F11 fragment
|
Mutation：delta 264-307 | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1 77D 2-[(2-fluoro-4-iodophenyl)amino]-5,5-dimethyl-8-oxo-N-[(3R)-piperidin-3-yl]-5,6,7,8-tetrahydro-4H-thieno[2,3-c]azepine-3-carboxamide × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；291 K；18% PEG-3350, 200mM Ammonium fluoride, 4% Glycerol, 10mM DTT, VAPOR DIFFUSION, SITTING DROP, temperature 291K
|
Resolution 2.30 Å R-free 0.287 |
| 3SLS Crystal Structure of human MEK-1 kinase in complex with UCB1353770 and AMPPNP Deposited 2011-06-25 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain B
45–383（339 aa）
Fragment：MEK-1 F11 fragment
|
Mutation：delta 264-307 | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1 77D 2-[(2-fluoro-4-iodophenyl)amino]-5,5-dimethyl-8-oxo-N-[(3R)-piperidin-3-yl]-5,6,7,8-tetrahydro-4H-thieno[2,3-c]azepine-3-carboxamide × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；291 K；18% PEG-3350, 200mM Ammonium fluoride, 4% Glycerol, 10mM DTT, VAPOR DIFFUSION, SITTING DROP, temperature 291K
|
Resolution 2.30 Å R-free 0.287 |
| 3V01 Discovery of Novel Allosteric MEK Inhibitors Possessing Classical and Non-classical Bidentate Ser212 Interactions. Deposited 2011-12-07 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
62–393（332 aa）
Fragment：UNP residues 62-393
|
Not recorded | 3V0 N-{[(2R)-2,3-dihydroxypropyl]oxy}-3-[(2-fluoro-4-iodophenyl)amino]furo[3,2-c]pyridine-2-carboxamide × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 7.2；286 K；16-20% w/v PEG8K, 0.1M HEPES, 250mM NH4H2PO4, 1mM TCEP, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 286K
|
Resolution 2.71 Å R-free 0.240 |
| 3V04 Discovery of Novel Allosteric MEK Inhibitors Possessing Classical and Non-classical Bidentate Ser212 Interactions. Deposited 2011-12-07 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
62–393（332 aa）
Fragment：UNP residues 62-393
|
Not recorded | V04 4-[(2-fluoro-4-iodophenyl)amino]-N-(2-hydroxyethoxy)-1H-indazole-5-carboxamide × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 7.2；286 K；16-20 %w/v PEG8K, 0.1M HEPES, 250mM NH4H2PO4, 1mM TCEP, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 286K
|
Resolution 2.70 Å R-free 0.243 |
| 3VVH X-ray structure of the human mitogen-activated protein kinase kinase 1 (MEK1) in complex with an inhibitor and MgATP Deposited 2012-07-24 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
62–393（332 aa）
Fragment：UNP RESIDUES 62-393
|
Not recorded | MG MAGNESIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 4BM N-{[(2R)-2,3-dihydroxypropyl]oxy}-3,4-difluoro-2-[(2-fluoro-4-iodophenyl)amino]benzamide × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8.8；279 K；PEG 4000, pH 8.8, VAPOR DIFFUSION, HANGING DROP, temperature 279K
|
Resolution 2.00 Å R-free 0.225 |
| 3VVH X-ray structure of the human mitogen-activated protein kinase kinase 1 (MEK1) in complex with an inhibitor and MgATP Deposited 2012-07-24 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain B
62–393（332 aa）
Fragment：UNP RESIDUES 62-393
|
Not recorded | MG MAGNESIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 4BM N-{[(2R)-2,3-dihydroxypropyl]oxy}-3,4-difluoro-2-[(2-fluoro-4-iodophenyl)amino]benzamide × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8.8；279 K；PEG 4000, pH 8.8, VAPOR DIFFUSION, HANGING DROP, temperature 279K
|
Resolution 2.00 Å R-free 0.225 |
| 3VVH X-ray structure of the human mitogen-activated protein kinase kinase 1 (MEK1) in complex with an inhibitor and MgATP Deposited 2012-07-24 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain C
62–393（332 aa）
Fragment：UNP RESIDUES 62-393
|
Not recorded | MG MAGNESIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 4BM N-{[(2R)-2,3-dihydroxypropyl]oxy}-3,4-difluoro-2-[(2-fluoro-4-iodophenyl)amino]benzamide × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8.8；279 K；PEG 4000, pH 8.8, VAPOR DIFFUSION, HANGING DROP, temperature 279K
|
Resolution 2.00 Å R-free 0.225 |
| 3W8Q Structure of the Human Mitogen-Activated Protein Kinase Kinase 1 (MEK1) Deposited 2013-03-20 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric |
Chain A
39–382（344 aa）
Fragment：kinase domain, UNP residues 39-382
|
Mutation：T292A, S298A | AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；16%(w/v) PEG 3350, 0.1M ammonium citrate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 277.0K
|
Resolution 2.20 Å R-free 0.268 |
| 3WIG Human MEK1 kinase in complex with CH5126766 and MgAMP-PNP Deposited 2013-09-12 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
62–270（209 aa）
Chain A
303–393（91 aa）
|
Not recorded | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1 CHU N-(3-fluoro-4-{[4-methyl-2-oxo-7-(pyrimidin-2-yloxy)-2H-chromen-3-yl]methyl}pyridin-2-yl)-N'-methylsulfuric diamide × 1 PG4 TETRAETHYLENE GLYCOL × 1 CL CHLORIDE ION × 5 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；pH 4.2；277 K；7.5-10% PEG 8000, 0.2M NaCl, 0.2M Ammonium sulfate, 0.1M citrate buffer, pH 4.2, vapor diffusion, sitting drop, temperature 277K
|
Resolution 2.70 Å R-free 0.250 |
| 3WIG Human MEK1 kinase in complex with CH5126766 and MgAMP-PNP Deposited 2013-09-12 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric |
Chain A
62–270（209 aa）
Chain A
303–393（91 aa）
|
Not recorded | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 CHU N-(3-fluoro-4-{[4-methyl-2-oxo-7-(pyrimidin-2-yloxy)-2H-chromen-3-yl]methyl}pyridin-2-yl)-N'-methylsulfuric diamide × 2 PG4 TETRAETHYLENE GLYCOL × 2 CL CHLORIDE ION × 10 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；pH 4.2；277 K；7.5-10% PEG 8000, 0.2M NaCl, 0.2M Ammonium sulfate, 0.1M citrate buffer, pH 4.2, vapor diffusion, sitting drop, temperature 277K
|
Resolution 2.70 Å R-free 0.250 |
| 3ZLS Crystal structure of MEK1 in complex with fragment 6 Deposited 2013-02-04 | Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
37–383（347 aa）
Fragment：RESIDUES 37-383
|
Mutation：YES | 92P 1H-PYRROLO[2,3-B]PYRIDINE-3-CARBOXYLIC ACID × 1 NA SODIUM ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
pH 7.7；pH 7.7
|
Resolution 2.50 Å R-free 0.234 |
| 3ZLW Crystal structure of MEK1 in complex with fragment 3 Deposited 2013-02-04 | Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
37–383（347 aa）
|
Mutation：YES | MT8 (1R)-1-hydroxy-1-methyl-2,3,6,7-tetrahydro-1H,5H-pyrido[3,2,1-ij]quinolin-5-one × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
pH 7.7；pH 7.7
|
Resolution 2.12 Å R-free 0.248 |
| 3ZLY Crystal structure of MEK1 in complex with fragment 8 Deposited 2013-02-04 | Different construct Different ligand/ion Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
37–383（347 aa）
Fragment：RESIDUES 37-383
|
Mutation：YES | YSO 3-AMINO-1H-INDAZOLE-4-CARBONITRILE × 1 NA SODIUM ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
pH 7.7；Appropriate single crystals were grown using this set-up in PEG 4000 18%, Tris 100mM pH7.7, DMSO 2% and CaCl2 0.2M and were extracted from the low volume drops, cryo-protected in mother liquor with 20% glycerol and flash cooled for synchrotron collection
|
Resolution 2.11 Å R-free 0.248 |
| 3ZM4 Crystal structure of MEK1 in complex with fragment 1 Deposited 2013-02-05 | Different construct Different ligand/ion Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
37–383（347 aa）
Fragment：RESIDUES 37-383
|
Mutation：YES | 22T 7-chloranyl-6-[(3S)-pyrrolidin-3-yl]oxy-2H-isoquinolin-1-one × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
pH 7.7；Appropriate single crystals were grown using this set-up in PEG 4000 18%, Tris 100mM pH7.7, DMSO 2% and CaCl2 0.2M and were extracted from the low volume drops, cryo-protected in mother liquor with 20% glycerol and flash cooled for synchrotron collection
|
Resolution 2.37 Å R-free 0.241 |
| 4AN2 Crystal structures of human MEK1 with carboxamide-based allosteric inhibitor XL518 (GDC-0973), or related analogs. Deposited 2012-03-14 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
61–262（202 aa）
Fragment：PROTEIN KINASE DOMAIN, RESIDUES 61-262,305-392
Chain A
305–392（88 aa）
Fragment：PROTEIN KINASE DOMAIN, RESIDUES 61-262,305-392
|
Mutation：YES Mutation：YES | EUI [3,4-BIS(FLUORANYL)-2-[(2-FLUORANYL-4-IODANYL-PHENYL)AMINO]PHENYL]-[3-OXIDANYL-3-[(2S)-PIPERIDIN-2-YL]AZETIDIN-1-YL]METHANONE × 1 ACP PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
pH 8.9；MEK1 (8 MG/ML) WAS INCUBATED WITH INHIBITOR (300 MICROMOLAR FINAL CONCENTRATION) AND AMPPCP (2.8 MM FINAL CONCENTRATION) FOR TWO HOURS ON ICE, FOLLOWED BY CRYSTALLIZION VS. 26.5% PEG-2000 MME, 0.1 M TRIMETHYLAMINE N- OXIDE AND 0.1 M TRIS (PH 8.9)
|
Resolution 2.50 Å R-free 0.299 |
| 4AN3 Crystal structures of human MEK1 with carboxamide-based allosteric inhibitor XL518 (GDC-0973), or related analogs. Deposited 2012-03-15 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
61–262（202 aa）
Fragment：PROTEIN KINASE DOMAIN, RESIDUES 61-262,305-392
Chain A
305–392（88 aa）
Fragment：PROTEIN KINASE DOMAIN, RESIDUES 61-262,305-392
|
Mutation：YES Mutation：YES | MG MAGNESIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 5Y0 N-[(2S)-2,3-bis(oxidanyl)propoxy]-3,4-bis(fluoranyl)-2-[(2-fluoranyl-4-iodanyl-phenyl)amino]benzamide × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；pH 7.9；SITTING DROP VAPOR DIFFUSION VS. 26.5 % PEG-2000 MME, 0.1 M TRIMETHYLAMINE N-OXIDE, 0.1 M TRIS (PH 8.9)
|
Resolution 2.10 Å R-free 0.283 |
| 4AN9 Crystal structures of human MEK1 with carboxamide-based allosteric inhibitor XL518 (GDC-0973), or related analogs. Deposited 2012-03-16 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
61–262（202 aa）
Fragment：PROTEIN KINASE DOMAIN, RESIDUES 61-262,305-392
Chain A
305–392（88 aa）
Fragment：PROTEIN KINASE DOMAIN, RESIDUES 61-262,305-392
|
Mutation：YES Mutation：YES | ACP PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1 2P7 [3,4-BIS(FLUORANYL)-2-[(2-FLUORANYL-4-IODANYL-PHENYL)AMINO]PHENYL]-(3-OXIDANYLAZETIDIN-1-YL)METHANONE × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；pH 8.9；SITTING DROP VAPOR-DIFFUSION VS. 26.5 % PEG-2000 MME, 0.1 M TRIMETHYLAMINE N-OXIDE, 0.1 M TRIS (PH 8.9)
|
Resolution 2.80 Å R-free 0.313 |
| 4ANB Crystal structures of human MEK1 with carboxamide-based allosteric inhibitor XL518 (GDC-0973), or related analogs. Deposited 2012-03-16 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
61–262（202 aa）
Fragment：PROTEIN KINASE DOMAIN, RESIDUES 61-262,305-392
Chain A
305–392（88 aa）
Fragment：PROTEIN KINASE DOMAIN, RESIDUES 61-262,305-392
|
Mutation：YES Mutation：YES | YQY [3-(AMINOMETHYL)-3-OXIDANYL-AZETIDIN-1-YL]-[3,4-BIS(FLUORANYL)-2-[(2-FLUORANYL-4-IODANYL-PHENYL)AMINO]PHENYL]METHANONE × 1 ACP PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；pH 8.9；SITTING DROP VAPOR DIFFUSION VS. 26.5 % PEG-2000 MME, 0.1 M TRIMETHYLAMINE N-OXIDE, 0.1 M TRIS (PH 8.9)
|
Resolution 2.20 Å R-free 0.296 |
| 4ARK CRYSTAL STRUCTURE OF THE CATALYTIC DOMAIN OF HUMAN MAP KINASE KINASE 1 (MEK1) IN COMPLEX WITH A SMALL MOLECULE INHIBITOR AND ADP Deposited 2012-04-24 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric |
Chain A
62–393（332 aa）
Fragment：CATALYTIC DOMAIN, RESIDUES 62-393
|
Not recorded | ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 M3K 2-([3R-3,4-dihydroxybutyl]oxy)-4-fluoro-6-[(2-fluoro-4-iodophenyl)amino]benzamide × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
0.1 M IMIDAZOLE-MALATE, 300 MM(NH4)H2PO4, 13% PEG 8000, PH 5.8
|
Resolution 2.60 Å R-free 0.211 |
| 4LMN Crystal Structure of MEK1 kinase bound to GDC0973 Deposited 2013-07-10 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
62–393（332 aa）
Fragment：Kinase domain (UNP residues 62-393)
|
Not recorded | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1 EUI [3,4-BIS(FLUORANYL)-2-[(2-FLUORANYL-4-IODANYL-PHENYL)AMINO]PHENYL]-[3-OXIDANYL-3-[(2S)-PIPERIDIN-2-YL]AZETIDIN-1-YL]METHANONE × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 6.9；291 K；12% w/v PEG 8000, 0.4M NH4H2PO4, 0.1M HEPES, pH 6.9, VAPOR DIFFUSION, HANGING DROP, temperature 291K
|
Resolution 2.80 Å R-free 0.233 |
| 4LMN Crystal Structure of MEK1 kinase bound to GDC0973 Deposited 2013-07-10 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric |
Chain A
62–393（332 aa）
Fragment：Kinase domain (UNP residues 62-393)
|
Not recorded | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 EUI [3,4-BIS(FLUORANYL)-2-[(2-FLUORANYL-4-IODANYL-PHENYL)AMINO]PHENYL]-[3-OXIDANYL-3-[(2S)-PIPERIDIN-2-YL]AZETIDIN-1-YL]METHANONE × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 6.9；291 K；12% w/v PEG 8000, 0.4M NH4H2PO4, 0.1M HEPES, pH 6.9, VAPOR DIFFUSION, HANGING DROP, temperature 291K
|
Resolution 2.80 Å R-free 0.233 |
| 4MNE Crystal structure of the BRAF:MEK1 complex Deposited 2013-09-10 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain A
62–393（332 aa）
Fragment：UNP residues 62-393
Chain D
62–393（332 aa）
Fragment：UNP residues 62-393
|
Not recorded | ACP PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 573 7-fluoro-3-[(2-fluoro-4-iodophenyl)amino]-N-{[(2S)-2-hydroxypropyl]oxy}furo[3,2-c]pyridine-2-carboxamide × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8.5；292 K；20% PEG8000, 0.1 M Tris, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 292K
|
Resolution 2.85 Å R-free 0.240 |
| 4MNE Crystal structure of the BRAF:MEK1 complex Deposited 2013-09-10 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain E
62–393（332 aa）
Fragment：UNP residues 62-393
Chain H
62–393（332 aa）
Fragment：UNP residues 62-393
|
Not recorded | ACP PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 573 7-fluoro-3-[(2-fluoro-4-iodophenyl)amino]-N-{[(2S)-2-hydroxypropyl]oxy}furo[3,2-c]pyridine-2-carboxamide × 3 CL CHLORIDE ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8.5；292 K；20% PEG8000, 0.1 M Tris, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 292K
|
Resolution 2.85 Å R-free 0.240 |
| 4U7Z Mitogen-Activated Protein Kinase Kinase (MEK1) bound to G805 Deposited 2014-07-31 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
62–393（332 aa）
Fragment：kinase domain (UNP residues 62-393)
|
Not recorded | MG MAGNESIUM ION × 1 3EW 5-[(4-bromo-2-chlorophenyl)amino]-4-fluoro-N-(2-hydroxyethoxy)-1-methyl-1H-benzimidazole-6-carboxamide × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 6.9；291 K；The protein was concentrated to 15mg/ml and incubated with 10 fold molar excess inhibitor plus 1mM MgAMP-PNP before crystallization. MEK1 crystals grew from hanging drop vapor diffusion using 12% w/v PEG 8000, 0.4M NH4H2PO4 and 0.1M HEPES pH 6.9 at 18 degC.
|
Resolution 2.81 Å R-free 0.214 |
| 4U80 MEK 1 kinase bound to G799 Deposited 2014-07-31 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
62–393（332 aa）
Fragment：Kinase domain (UNP residues 62-393)
|
Not recorded | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 3EX 3-[(4-cyclopropyl-2-fluorophenyl)amino]-N-(2-hydroxyethoxy)furo[3,2-c]pyridine-2-carboxamide × 1 MG MAGNESIUM ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 6.9；291 K；The protein was concentrated to 15mg/m1 and incubated with 10 fold molar excess inhibitor plus 1mM MgAMP-PNP before crystallization. MEK1 crystals grew from hanging drop vapor diffusion using 12% w/v PEG 8000, 0.4M NH4H2PO4 and 0.1M HEPES pH 6.9 at 18 degC
.
|
Resolution 2.80 Å R-free 0.224 |
| 4U81 MEK1 Kinase bound to small molecule inhibitor G659 Deposited 2014-07-31 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
62–393（332 aa）
Fragment：Kinase domain (UNP residues 62-393)
|
Not recorded | MG MAGNESIUM ION × 1 3EY 8-[(4-cyclopropyl-2-fluorophenyl)amino]-N-(2-hydroxyethoxy)imidazo[1,5-a]pyridine-7-carboxamide × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 6.9；291 K；The protein was concentrated to 15mg/ml and incubated with 10 fold molar excess inhibitor plus 1mM MgAMP-PNP before crystallization. MEK1 crystals grew from hanging drop vapor diffusion using 12% w/v PEG 8000, 0.4M NH4H2PO4 and 0.1M HEPES pH 6.9 at 18 degC.
|
Resolution 2.70 Å R-free 0.218 |
| 5BX0 An Automated Microscale Thermophoresis Screening Approach for Fragment-Based Lead Discovery Deposited 2015-06-08 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
37–383（347 aa）
Fragment：residues 37-383
|
Not recorded | 4W5 ethyl 2H-indazole-5-carboxylate × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
EVAPORATION；pH 7.65；277 K；PEG4000 20%
CaCl2 200mM
Glycerol 25%
ph7.7
|
Resolution 2.93 Å R-free 0.252 |
| 5EYM MEK1 IN COMPLEX WITH BI 847325 Deposited 2015-11-25 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
35–393（359 aa）
Fragment：UNP residues 35-393
|
Mutation：S298N, S299K, Y300F | 5U5 3-[(3~{Z})-3-[[[4-[(dimethylamino)methyl]phenyl]amino]-phenyl-methylidene]-2-oxidanylidene-1~{H}-indol-6-yl]-~{N}-ethyl-prop-2-ynamide × 1 CA CALCIUM ION × 3 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；18 % PEG 4000, 100 mM Tris, 300 mM NaCl
|
Resolution 2.70 Å R-free 0.308 |
| 5EYM MEK1 IN COMPLEX WITH BI 847325 Deposited 2015-11-25 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain B
35–393（359 aa）
Fragment：UNP residues 35-393
|
Mutation：S298N, S299K, Y300F | 5U5 3-[(3~{Z})-3-[[[4-[(dimethylamino)methyl]phenyl]amino]-phenyl-methylidene]-2-oxidanylidene-1~{H}-indol-6-yl]-~{N}-ethyl-prop-2-ynamide × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；18 % PEG 4000, 100 mM Tris, 300 mM NaCl
|
Resolution 2.70 Å R-free 0.308 |
| 5HZE Mek1 adopts DFG-out conformation when bound to an analog of E6201. Deposited 2016-02-02 | Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
37–383（347 aa）
|
Mutation：S298N, S299K, Y300F | E62 (3S,4R,8S,9S,11E)-8,9,16-trihydroxy-3,4-dimethyl-14-(methylamino)-3,4,5,6,9,10-hexahydro-1H-2-benzoxacyclotetradecine-1,7(8H)-dione × 1 MG MAGNESIUM ION × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；0.1 M Tris pH 8.0, 180 mM CaCl2, 14-18% PEG 4000. Co-crystallized with 1mM ATPgammaS (30 mM stock formulated in H2O). Crystals backsoaked for 2 weeks in 1 mM compound 3.3% DMSO final.
|
Resolution 2.40 Å R-free 0.287 |
| 5YT3 Structure of the Human Mitogen-Activated Protein Kinase Kinase 1 S218D and S222D mutant Deposited 2017-11-16 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric |
Chain A
39–382（344 aa）
Chain B
39–382（344 aa）
|
Mutation：S218D,S222D,T292A,S298A Mutation：S218D,S222D,T292A,S298A | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；0.1M HEPES, 12%(w/v) PEG3350, 0.1M ammonium citrate,
|
Resolution 2.90 Å R-free 0.289 |
| 5YT3 Structure of the Human Mitogen-Activated Protein Kinase Kinase 1 S218D and S222D mutant Deposited 2017-11-16 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric |
Chain C
39–382（344 aa）
Chain D
39–382（344 aa）
|
Mutation：S218D,S222D,T292A,S298A Mutation：S218D,S222D,T292A,S298A | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；0.1M HEPES, 12%(w/v) PEG3350, 0.1M ammonium citrate,
|
Resolution 2.90 Å R-free 0.289 |
| 6NYB Structure of a MAPK pathway complex Deposited 2019-02-11 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain B
1–393（393 aa）
|
Mutation：S218A, S222A | AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 LCJ 5-[(2-fluoro-4-iodophenyl)amino]-N-(2-hydroxyethoxy)imidazo[1,5-a]pyridine-6-carboxamide × 1 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.4
cryo-EM vitrification conditions
Cryogen ETHANE
|
Resolution 4.10 Å |
| 6PP9 Crystal structure of BRAF:MEK1 complex Deposited 2019-07-05 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
1–393（393 aa）
|
Mutation：S218A, S222A | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 CL CHLORIDE ION × 2 LCJ 5-[(2-fluoro-4-iodophenyl)amino]-N-(2-hydroxyethoxy)imidazo[1,5-a]pyridine-6-carboxamide × 1 SO4 SULFATE ION × 1 GOL GLYCEROL × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 6.4；293 K；100 mM Bis-Tris pH 6.4, 200 mM Ammonium Sulfate, and 22% PEG3350
|
Resolution 2.59 Å R-free 0.245 |
| 6Q0J Structure of a MAPK pathway complex Deposited 2019-08-01 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric |
Chain C
1–393（393 aa）
Chain D
1–393（393 aa）
|
Mutation：S218A, S222A Mutation：S218A, S222A | MG MAGNESIUM ION × 2 LCJ 5-[(2-fluoro-4-iodophenyl)amino]-N-(2-hydroxyethoxy)imidazo[1,5-a]pyridine-6-carboxamide × 2 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.5
cryo-EM vitrification conditions
Cryogen ETHANE
|
Resolution 4.90 Å |
| 6Q0T Structure of a MAPK pathway complex Deposited 2019-08-02 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric |
Chain C
1–392（392 aa）
|
Mutation：S218A, S222A | MG MAGNESIUM ION × 1 LCJ 5-[(2-fluoro-4-iodophenyl)amino]-N-(2-hydroxyethoxy)imidazo[1,5-a]pyridine-6-carboxamide × 1 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.5
cryo-EM vitrification conditions
Cryogen ETHANE
|
Resolution 5.70 Å |
| 6U2G BRAF-MEK complex with AMP-PCP bound to BRAF Deposited 2019-08-19 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain A
2–393（392 aa）
|
Not recorded | ACP PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 SO4 SULFATE ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；Ammonium sulfate, MES, PEK 8000
|
Resolution 2.89 Å R-free 0.276 |
| 6V2W Crystal structure of the BRAF:MEK1 kinases in complex with AMPPNP Deposited 2019-11-25 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
1–393（393 aa）
|
Mutation：S218A, S222A | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；100 mM Bis-Tris pH 8.5, 200 mM Lithium Sulfate, and 22% PEG3350
|
Resolution 3.12 Å R-free 0.237 |
| 6X2P Crystal Structure of the Mek1NES peptide bound to CRM1 Deposited 2020-05-20 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain D
28–44（17 aa）
Fragment：residues 28-44
|
Not recorded | GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 3 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；273 K；17% (weight/vol) PEG3350, 100 mM Bis-Tris (pH 6.4), 200 mM ammonium nitrate, and 10 mM Spermine HCl
|
Resolution 2.40 Å R-free 0.252 |
| 6X2S Crystal Structure of Mek1(NQ)NES peptide bound to CRM Deposited 2020-05-20 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain D
29–44（16 aa）
Fragment：residues 29-44
|
Mutation：D43N, E44Q | GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 3 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；273 K；17% (weight/vol) PEG3350, 100 mM Bis-Tris (pH 6.4), 200 mM ammonium nitrate, and 10 mM Spermine HCl
|
Resolution 2.50 Å R-free 0.246 |
| 6X2X Crystal Structure of Mek1NES peptide bound to CRM1(E571K) Deposited 2020-05-21 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain D
29–44（16 aa）
Fragment：residues 29-44
|
Not recorded | GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 3 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；273 K；17% (weight/vol) PEG3350, 100 mM Bis-Tris (pH 6.4), 200 mM ammonium nitrate, and 10 mM Spermine HCl
|
Resolution 2.46 Å R-free 0.250 |
| 7B3M MEK1 in complex with compound 6 Deposited 2020-12-01 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
37–263（227 aa）
Chain A
308–383（76 aa）
|
Not recorded | MG MAGNESIUM ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 SU5 1~{H}-indol-2-yl(pyridin-3-yl)methanone × 1 SO4 SULFATE ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；293 K；MEK1 was prepared in buffer containing 25 mM Tris pH 7.5, 150 mM NaCl, 5% glycerol and 1 mM TCEP at a concentration of 10 mg/ml mixed with 2 mM MgCl2 and 2 mM AMP-PNP, and incubated at room temperature for 30 minutes. Crystals were obtained from hanging drops by mixing a 1:1 ratio of protein solution with well solution containing 2 M AmSO4, 0.1 M NaCl and 0.1 M Bis-tris pH 6.1-6.2 at room temperature.
|
Resolution 2.30 Å R-free 0.268 |
| 7B3M MEK1 in complex with compound 6 Deposited 2020-12-01 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain B
37–263（227 aa）
Chain B
308–383（76 aa）
|
Not recorded | MG MAGNESIUM ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 SU5 1~{H}-indol-2-yl(pyridin-3-yl)methanone × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；293 K；MEK1 was prepared in buffer containing 25 mM Tris pH 7.5, 150 mM NaCl, 5% glycerol and 1 mM TCEP at a concentration of 10 mg/ml mixed with 2 mM MgCl2 and 2 mM AMP-PNP, and incubated at room temperature for 30 minutes. Crystals were obtained from hanging drops by mixing a 1:1 ratio of protein solution with well solution containing 2 M AmSO4, 0.1 M NaCl and 0.1 M Bis-tris pH 6.1-6.2 at room temperature.
|
Resolution 2.30 Å R-free 0.268 |
| 7B7R MEK1 in complex with compound 4 Deposited 2020-12-11 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
37–263（227 aa）
Chain A
308–383（76 aa）
|
Not recorded | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1 T1K 2-[5-[ethyl(methyl)amino]imidazo[1,2-a]pyrimidin-7-yl]phenol × 1 SO4 SULFATE ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；293 K；Crystals were obtained from hanging drops by mixing a 1:1 ratio of protein solution with well solution containing 2 M AmSO4, 0.1 M NaCl and 0.1 M Bis-tris pH 6.1-6.2
|
Resolution 1.70 Å R-free 0.218 |
| 7B7R MEK1 in complex with compound 4 Deposited 2020-12-11 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain B
37–263（227 aa）
Chain B
308–383（76 aa）
|
Not recorded | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1 T1K 2-[5-[ethyl(methyl)amino]imidazo[1,2-a]pyrimidin-7-yl]phenol × 1 SO4 SULFATE ION × 1 PO4 PHOSPHATE ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；293 K；Crystals were obtained from hanging drops by mixing a 1:1 ratio of protein solution with well solution containing 2 M AmSO4, 0.1 M NaCl and 0.1 M Bis-tris pH 6.1-6.2
|
Resolution 1.70 Å R-free 0.218 |
| 7B94 MEK1 in complex with compound 6 Deposited 2020-12-14 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
37–263（227 aa）
Chain A
308–383（76 aa）
|
Not recorded | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1 T3W 2-(4-iodophenyl)-8~{H}-imidazo[1,2-c]pyrimidin-5-one × 1 SO4 SULFATE ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；293 K；Crystals were obtained from hanging drops by mixing a 1:1 ratio of protein solution with well solution containing 2 M AmSO4, 0.1 M NaCl and 0.1 M Bis-tris pH 6.1-6.2
|
Resolution 2.00 Å R-free 0.265 |
| 7B94 MEK1 in complex with compound 6 Deposited 2020-12-14 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain B
37–263（227 aa）
Chain B
308–383（76 aa）
|
Not recorded | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1 T3W 2-(4-iodophenyl)-8~{H}-imidazo[1,2-c]pyrimidin-5-one × 1 SO4 SULFATE ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；293 K；Crystals were obtained from hanging drops by mixing a 1:1 ratio of protein solution with well solution containing 2 M AmSO4, 0.1 M NaCl and 0.1 M Bis-tris pH 6.1-6.2
|
Resolution 2.00 Å R-free 0.265 |
| 7B9L MEK1 in complex with compound 23 Deposited 2020-12-14 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
37–263（227 aa）
Chain A
308–383（76 aa）
|
Not recorded | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 T4N ~{N}-(4-methoxyphenyl)-2-[(2~{S})-3-oxidanylidenethiomorpholin-2-yl]ethanamide × 1 GOL GLYCEROL × 1 SO4 SULFATE ION × 1 MG MAGNESIUM ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；293 K；Crystals were obtained from hanging drops by mixing a 1:1 ratio of protein solution with well solution containing 2 M AmSO4, 0.1 M NaCl and 0.1 M Bis-tris pH 6.1-6.2
|
Resolution 1.70 Å R-free 0.214 |
| 7B9L MEK1 in complex with compound 23 Deposited 2020-12-14 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain B
37–263（227 aa）
Chain B
308–383（76 aa）
|
Not recorded | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 T4N ~{N}-(4-methoxyphenyl)-2-[(2~{S})-3-oxidanylidenethiomorpholin-2-yl]ethanamide × 1 MG MAGNESIUM ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；293 K；Crystals were obtained from hanging drops by mixing a 1:1 ratio of protein solution with well solution containing 2 M AmSO4, 0.1 M NaCl and 0.1 M Bis-tris pH 6.1-6.2
|
Resolution 1.70 Å R-free 0.214 |
| 7M0T Crystal structure of the BRAF:MEK1 kinases in complex with AMPPNP and Selumetinib Deposited 2021-03-11 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
1–393（393 aa）
|
Mutation：S218A, S222A | 3EW 5-[(4-bromo-2-chlorophenyl)amino]-4-fluoro-N-(2-hydroxyethoxy)-1-methyl-1H-benzimidazole-6-carboxamide × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；100 mM Tris 8.5, 200 mM Lithium Sulfate and 22% PEG 3350
|
Resolution 3.19 Å R-free 0.254 |
| 7M0U Crystal structure of the BRAF:MEK1 kinases in complex with AMPPNP and Binimetinib Deposited 2021-03-11 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
1–393（393 aa）
|
Mutation：S218A, S222A | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 QO7 5-[(4-bromo-2-fluorophenyl)amino]-4-fluoro-N-(2-hydroxyethoxy)-1-methyl-1H-benzimidazole-6-carboxamide × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；100 mM Bis-Tris pH 8.5, 200 mM Lithium Sulfate, and 22% PEG3350
|
Resolution 3.09 Å R-free 0.230 |
| 7M0V Crystal structure of the BRAF:MEK1 kinases in complex with AMPPNP and Cobimetinib Deposited 2021-03-11 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
1–393（393 aa）
|
Mutation：S218A, S222A | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 EUI [3,4-BIS(FLUORANYL)-2-[(2-FLUORANYL-4-IODANYL-PHENYL)AMINO]PHENYL]-[3-OXIDANYL-3-[(2S)-PIPERIDIN-2-YL]AZETIDIN-1-YL]METHANONE × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；100 mM Tris 8.5, 200 mM Lithium Sulfate and 22% PEG 3,350
|
Resolution 3.16 Å R-free 0.234 |
| 7M0W Crystal structure of the BRAF:MEK1 kinases in complex with AMPPNP and Pimasertib Deposited 2021-03-11 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
1–393（393 aa）
|
Mutation：S218A, S222A | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 QOA N-[(2S)-2,3-dihydroxypropyl]-3-[(2-fluoro-4-iodophenyl)amino]pyridine-4-carboxamide × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；293 K；100 mM Tris 8.5, 200 mM Lithium Sulfate and 22% PEG 3,350
|
Resolution 3.09 Å R-free 0.233 |
| 7M0X Crystal structure of the BRAF:MEK1 kinases in complex with AMPPNP and PD0325901 Deposited 2021-03-11 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
1–393（393 aa）
|
Mutation：S218A, S222A | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 CL CHLORIDE ION × 1 4BM N-{[(2R)-2,3-dihydroxypropyl]oxy}-3,4-difluoro-2-[(2-fluoro-4-iodophenyl)amino]benzamide × 1 SO4 SULFATE ION × 2 GOL GLYCEROL × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 6.4；293 K；100 mM Bis-Tris pH 6.4, 200 mM Ammonium Sulfate, and 22% PEG3350
|
Resolution 2.47 Å R-free 0.215 |
| 7M0Y Crystal structure of the BRAF:MEK1 kinases in complex with AMPPNP and Trametinib Deposited 2021-03-11 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
1–393（393 aa）
|
Mutation：S218A, S222A | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 SO4 SULFATE ION × 1 QOM Trametinib × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；100 mM Tris 8.5, 200 mM Lithium Sulfate and 22% PEG 3,350
|
Resolution 3.45 Å R-free 0.218 |
| 7M0Z Crystal structure of the BRAF:MEK1 kinases in complex with AMPPNP and CH5126766 Deposited 2021-03-11 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
1–393（393 aa）
|
Mutation：S218A, S222A | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 SO4 SULFATE ION × 1 CHU N-(3-fluoro-4-{[4-methyl-2-oxo-7-(pyrimidin-2-yloxy)-2H-chromen-3-yl]methyl}pyridin-2-yl)-N'-methylsulfuric diamide × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；100 mM Tris 8.5, 200 mM Lithium Sulfate and 22% PEG 3,350
|
Resolution 3.12 Å R-free 0.225 |
| 7MFD Autoinhibited BRAF:(14-3-3)2:MEK complex with the BRAF RBD resolved Deposited 2021-04-09 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain B
1–393（393 aa）
|
Not recorded | ZN ZINC ION × 2 CHU N-(3-fluoro-4-{[4-methyl-2-oxo-7-(pyrimidin-2-yloxy)-2H-chromen-3-yl]methyl}pyridin-2-yl)-N'-methylsulfuric diamide × 1 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 8
cryo-EM vitrification conditions
Cryogen ETHANE
|
Resolution 3.66 Å |
| 7PQV MEK1 IN COMPLEX WITH COMPOUND 7 Deposited 2021-09-20 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
39–382（344 aa）
Fragment：KINASE DOMAIN
|
Not recorded | 80C 8-(2-chloranyl-4-methoxy-phenyl)-7-fluoranyl-1-piperidin-4-yl-imidazo[4,5-c]quinoline × 1 CA CALCIUM ION × 2 MG MAGNESIUM ION × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
BATCH MODE；310 K；The purified protein was used in crystallisation trials employing both, a standard screen with approximately 1200 different conditions, as well as crystallisation conditions identified using literature data. Condi- tions initially obtained have been optimised using standard strategies, systematically varying parameters critically influencing crystallisation, such as temperature, protein concentration, drop ratio, and others. These conditions were also refined by systematically varying pH or precipitant concentrations.
|
Resolution 2.13 Å R-free 0.287 |
| 7UMB NanoBRET tracer Tram-bo bound to a KSR2-MEK1 complex Deposited 2022-04-06 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain C
35–393（359 aa）
|
Not recorded | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 U9F {3-[(1M,2M)-2-{[(1S,2P)-1H,1'H-[2,2'-bipyrrol]-5-yl-kappaN~1~]methylidene}-2H-pyrrol-5-yl-kappaN]-N-(2-{2-[3-({(3M)-3-[(4aM)-3-cyclopropyl-5-(2-fluoro-4-iodoanilino)-6,8-dimethyl-2,4,7-trioxo-3,4,6,7-tetrahydropyrido[4,3-d]pyrimidin-1(2H)-yl]phenyl}amino)-3-oxopropoxy]ethoxy}ethyl)propanamidato}(difluorido)boron × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；293 K；PEG 2000, MES, pH 6.5, Magnesium acetate
|
Resolution 3.23 Å R-free 0.268 |
| 7XLP MEK1 bound to DS03090629 Deposited 2022-04-22 | Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
37–383（347 aa）
|
Mutation：S298N, S299K, Y300K | FZC (1~{R},3~{S})-3-[[6-[2-chloranyl-4-(4-methylpyrimidin-2-yl)oxy-phenyl]-3-methyl-1~{H}-indazol-4-yl]oxy]cyclohexan-1-amine × 1 DMS DIMETHYL SULFOXIDE × 1 CA CALCIUM ION × 3 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 7.75；277 K；100 mM Tris (pH 7.75), 200 mM calcium chloride, 2% DMSO, 18-20% PEG 3350
|
Resolution 2.10 Å R-free 0.246 |
| 7XNC MEK1 bound to DS94070624 Deposited 2022-04-28 | Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
37–383（347 aa）
|
Mutation：S298N, S299K, Y300K | GIK ~{N}-[4-[[6-(3-chloranylpyridin-4-yl)-3-methyl-1~{H}-indazol-4-yl]oxy]cyclohexyl]ethanamide × 1 DMS DIMETHYL SULFOXIDE × 1 CA CALCIUM ION × 3 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 7.75；277 K；100 mM Tris (pH 7.75), 200 mM calcium chloride, 2% DMSO, 18-20% PEG 3350
|
Resolution 2.10 Å R-free 0.251 |
| 8CHF cryo-EM Structure of Craf:14-3-3:Mek1 Deposited 2023-02-07 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric |
Chain E
1–393（393 aa）
Chain F
1–393（393 aa）
|
Not recorded | 29L 2-{4-[(1E)-1-(hydroxyimino)-2,3-dihydro-1H-inden-5-yl]-3-(pyridin-4-yl)-1H-pyrazol-1-yl}ethanol × 2 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.5
cryo-EM vitrification conditions
Cryogen ETHANE-PROPANE
|
Resolution 4.25 Å |
| 8DGS Cryo-EM structure of a RAS/RAF complex (state 1) Deposited 2022-06-24 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric |
Chain B
1–392（392 aa）
|
Not recorded | AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 ZN ZINC ION × 2 MG MAGNESIUM ION × 2 LCJ 5-[(2-fluoro-4-iodophenyl)amino]-N-(2-hydroxyethoxy)imidazo[1,5-a]pyridine-6-carboxamide × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.5
cryo-EM vitrification conditions
Cryogen ETHANE
|
Resolution 4.30 Å |
| 8DGT Cryo-EM structure of a RAS/RAF complex (state 2) Deposited 2022-06-24 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric |
Chain B
1–392（392 aa）
|
Not recorded | AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 ZN ZINC ION × 2 MG MAGNESIUM ION × 2 LCJ 5-[(2-fluoro-4-iodophenyl)amino]-N-(2-hydroxyethoxy)imidazo[1,5-a]pyridine-6-carboxamide × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.5
cryo-EM vitrification conditions
Cryogen ETHANE
|
Resolution 3.90 Å |
| 8YP4 Structure of MAP2K1 complexed with 5Z7-oxozeaenol Deposited 2024-03-15 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain A
34–386（353 aa）
|
Mutation：T286A, T292A, S298A | WNT (4~{S},9~{S},10~{S},12~{E})-16-methoxy-4-methyl-9,10,18-tris(oxidanyl)-3-oxabicyclo[12.4.0]octadeca-1(18),12,14,16-tetraene-2,8-dione × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；277 K；8% Tacsimete pH 5.0, 19.5% PEG 3350
|
Resolution 2.35 Å R-free 0.284 |
| 8YP4 Structure of MAP2K1 complexed with 5Z7-oxozeaenol Deposited 2024-03-15 | Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric |
Chain B
34–386（353 aa）
|
Mutation：T286A, T292A, S298A | WNT (4~{S},9~{S},10~{S},12~{E})-16-methoxy-4-methyl-9,10,18-tris(oxidanyl)-3-oxabicyclo[12.4.0]octadeca-1(18),12,14,16-tetraene-2,8-dione × 1 GOL GLYCEROL × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；277 K；8% Tacsimete pH 5.0, 19.5% PEG 3350
|
Resolution 2.35 Å R-free 0.284 |
| 9AXA CryoEM structure of activated CRAF/MEK/14-3-3 complex with NST-628 Deposited 2024-03-06 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric |
Chain B
1–393（393 aa）
Chain D
1–393（393 aa）
|
Mutation：S218A S222A Mutation：S218A S222A | A1AHE N-[3-fluoro-4-({7-[(3-fluoropyridin-2-yl)oxy]-4-methyl-2-oxo-2H-1-benzopyran-3-yl}methyl)pyridin-2-yl]-N'-methylsulfuric diamide × 2 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.5
cryo-EM vitrification conditions
Cryogen ETHANE
|
Resolution 4.36 Å |
| 9AXC Activated CRAF/MEK heterotetramer from focused refinement of CRAF/MEK/14-3-3 complex Deposited 2024-03-06 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain B
1–393（393 aa）
Chain D
1–393（393 aa）
|
Mutation：S218A S222A Mutation：S218A S222A | A1AHE N-[3-fluoro-4-({7-[(3-fluoropyridin-2-yl)oxy]-4-methyl-2-oxo-2H-1-benzopyran-3-yl}methyl)pyridin-2-yl]-N'-methylsulfuric diamide × 2 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.5
cryo-EM vitrification conditions
Cryogen ETHANE
|
Resolution 4.16 Å |
| 9AXH Crystal structure of KSR1/MEK1 complex heterotetramer with NST-628 Deposited 2024-03-06 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain A
37–263（227 aa）
Chain A
308–383（76 aa）
Chain B
37–263（227 aa）
Chain B
308–383（76 aa）
|
Not recorded | A1AHE N-[3-fluoro-4-({7-[(3-fluoropyridin-2-yl)oxy]-4-methyl-2-oxo-2H-1-benzopyran-3-yl}methyl)pyridin-2-yl]-N'-methylsulfuric diamide × 2 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 4 EDO 1,2-ETHANEDIOL × 1 CL CHLORIDE ION × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；0.1M SPG buffer pH 7.0, 25% w/v PEG 1500
|
Resolution 2.81 Å R-free 0.253 |
| 9AXM Crystal structure of ARAF/MEK1 complex with NST-628 and a RAF dimer Deposited 2024-03-06 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain A
37–263（227 aa）
Chain A
308–383（76 aa）
Chain C
37–263（227 aa）
Chain C
308–383（76 aa）
|
Mutation：S218A S222A Mutation：S218A S222A Mutation：S218A S222A Mutation：S218A S222A | A1AHE N-[3-fluoro-4-({7-[(3-fluoropyridin-2-yl)oxy]-4-methyl-2-oxo-2H-1-benzopyran-3-yl}methyl)pyridin-2-yl]-N'-methylsulfuric diamide × 2 MG MAGNESIUM ION × 2 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 EDO 1,2-ETHANEDIOL × 1 GOL GLYCEROL × 3 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；pH 5.6；291 K；0.1M tri-sodium citrate pH 5.6, 20% 2-propanol, 20% PEG 4000
|
Resolution 2.42 Å R-free 0.301 |
| 9AXX Crystal structure of BRAF/MEK1 complex with NST-628 and an active RAF dimer Deposited 2024-03-06 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain A
37–263（227 aa）
Chain A
308–383（76 aa）
Chain C
37–263（227 aa）
Chain C
308–383（76 aa）
|
Mutation：S218A S222A Mutation：S218A S222A Mutation：S218A S222A Mutation：S218A S222A | A1AHE N-[3-fluoro-4-({7-[(3-fluoropyridin-2-yl)oxy]-4-methyl-2-oxo-2H-1-benzopyran-3-yl}methyl)pyridin-2-yl]-N'-methylsulfuric diamide × 2 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 3 MG MAGNESIUM ION × 2 EDO 1,2-ETHANEDIOL × 11 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8；291 K；0.24 M di-ammonium hydrogen phosphate pH 8.0, 20% w/v PEG 3350
|
Resolution 2.07 Å R-free 0.248 |
| 9AXY Crystal structure of BRAF/MEK complex with NST-628 and inactive RAF Deposited 2024-03-06 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
1–393（393 aa）
|
Not recorded | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 A1AHE N-[3-fluoro-4-({7-[(3-fluoropyridin-2-yl)oxy]-4-methyl-2-oxo-2H-1-benzopyran-3-yl}methyl)pyridin-2-yl]-N'-methylsulfuric diamide × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 8；291 K；0.2 M Lithium chloride, 0.1 M TRIS pH 8, 20% w/v PEG 8000
|
Resolution 3.60 Å R-free 0.237 |
| 9AY7 Crystal structure of CRAF/MEK1 complex with NST-628 and inactive RAF Deposited 2024-03-07 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
1–393（393 aa）
|
Mutation：S218A S222A | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 NI NICKEL (II) ION × 1 ACT ACETATE ION × 5 EDO 1,2-ETHANEDIOL × 1 A1AHE N-[3-fluoro-4-({7-[(3-fluoropyridin-2-yl)oxy]-4-methyl-2-oxo-2H-1-benzopyran-3-yl}methyl)pyridin-2-yl]-N'-methylsulfuric diamide × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；pH 8；291 K；0.2M sodium acetate pH 8.0, 20% w/v PEG 3350
|
Resolution 2.41 Å R-free 0.236 |
| 9AYA Crystal structure of CRAF/MEK complex with NST-628 and active RAF dimer Deposited 2024-03-07 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain B
37–263（227 aa）
Chain B
308–383（76 aa）
Chain D
37–263（227 aa）
Chain D
308–383（76 aa）
|
Mutation：S218A S222A Mutation：S218A S222A Mutation：S218A S222A Mutation：S218A S222A | A1AHE N-[3-fluoro-4-({7-[(3-fluoropyridin-2-yl)oxy]-4-methyl-2-oxo-2H-1-benzopyran-3-yl}methyl)pyridin-2-yl]-N'-methylsulfuric diamide × 2 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；0.2M magnesium chloride, 0.1M tris pH 7.0, 10% w/v PEG 8000
|
Resolution 2.59 Å R-free 0.257 |
| 9ECU Crystal structure of the inactive BRAF/MEK1 complex bound to IK-595 Deposited 2024-11-15 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
1–393（393 aa）
|
Not recorded | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 SO4 SULFATE ION × 4 A1BIS 4-[2-chloro-3-(methylsulfamamido)phenoxy]-N-cyclopropyl-2-(2-fluoro-4-iodoanilino)-1,5-dimethyl-6-oxo-1,6-dihydropyridine-3-carboxamide × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, SITTING DROP；291.15 K；0.2 M Ammonium Sulfate, 0.1 M Tris pH 8.5, 25% w/v PEG 3350
|
Resolution 3.46 Å R-free 0.237 |
| 9MMP Cryo-EM structure of CRAF/MEK1/14-3-3 complex (autoinhibited conformation) Deposited 2024-12-20 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain B
1–393（393 aa）
|
Mutation：S218A, S222A | AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 ZN ZINC ION × 2 LCJ 5-[(2-fluoro-4-iodophenyl)amino]-N-(2-hydroxyethoxy)imidazo[1,5-a]pyridine-6-carboxamide × 1 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.5；50 mM Tris pH 7.5, 150 mM NaCl, 2 mM MgCl2, 0.5 mM TCEP, 2 uM ATPgS, 1 uM GDC0623
cryo-EM vitrification conditions
Cryogen ETHANE
|
Resolution 3.40 Å |
| 9MMQ Cryo-EM structure of CRAF/MEK1 complex (kinase domain) Deposited 2024-12-20 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
1–393（393 aa）
|
Mutation：S218A, S222A | AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 LCJ 5-[(2-fluoro-4-iodophenyl)amino]-N-(2-hydroxyethoxy)imidazo[1,5-a]pyridine-6-carboxamide × 1 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.5；50 mM Tris pH 7.5, 150 mM NaCl, 2 mM MgCl2, 0.5 mM TCEP, 2 uM ATPgS, 1 uM GDC0623
cryo-EM vitrification conditions
Cryogen ETHANE
|
Resolution 2.90 Å |
| 9MMR Cryo-EM structure of CRAF/MEK1/14-3-3 complex (open monomer conformation, CRAF Y340D/Y341D mutant) Deposited 2024-12-20 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain B
1–393（393 aa）
|
Mutation：S218A, S222A | AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 LCJ 5-[(2-fluoro-4-iodophenyl)amino]-N-(2-hydroxyethoxy)imidazo[1,5-a]pyridine-6-carboxamide × 1 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.5；50 mM Tris pH 7.5, 150 mM NaCl, 2 mM MgCl2, 0.5 mM TCEP, 2 uM ATPgS, 1 uM GDC0623
cryo-EM vitrification conditions
Cryogen ETHANE
|
Resolution 3.90 Å |
| 9MMS Cryo-EM structure of CRAF/MEK1 complex (kinase domain, CRAF Y340D/Y341D mutant) Deposited 2024-12-20 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
1–393（393 aa）
|
Mutation：S218A, S222A | AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 LCJ 5-[(2-fluoro-4-iodophenyl)amino]-N-(2-hydroxyethoxy)imidazo[1,5-a]pyridine-6-carboxamide × 1 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.5；50 mM Tris pH 7.5, 150 mM NaCl, 2 mM MgCl2, 0.5 mM TCEP, 2 uM ATPgS, 1 uM GDC0623
cryo-EM vitrification conditions
Cryogen ETHANE
|
Resolution 3.30 Å |
| 9O0U Crystal structure of CRAF/MEK1 complex with PLX4720 and CH5126766 Deposited 2025-04-03 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
1–393（393 aa）
|
Mutation：S218A, S222A | 324 N-{3-[(5-chloro-1H-pyrrolo[2,3-b]pyridin-3-yl)carbonyl]-2,4-difluorophenyl}propane-1-sulfonamide × 1 CHU N-(3-fluoro-4-{[4-methyl-2-oxo-7-(pyrimidin-2-yloxy)-2H-chromen-3-yl]methyl}pyridin-2-yl)-N'-methylsulfuric diamide × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；295 K；18% PEG 3350, 0.1 M Sodium citrate pH 5.6, 4% Tacsimate pH 5
|
Resolution 2.91 Å R-free 0.264 |
| 9O0U Crystal structure of CRAF/MEK1 complex with PLX4720 and CH5126766 Deposited 2025-04-03 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain D
1–393（393 aa）
|
Mutation：S218A, S222A | 324 N-{3-[(5-chloro-1H-pyrrolo[2,3-b]pyridin-3-yl)carbonyl]-2,4-difluorophenyl}propane-1-sulfonamide × 1 CHU N-(3-fluoro-4-{[4-methyl-2-oxo-7-(pyrimidin-2-yloxy)-2H-chromen-3-yl]methyl}pyridin-2-yl)-N'-methylsulfuric diamide × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；295 K；18% PEG 3350, 0.1 M Sodium citrate pH 5.6, 4% Tacsimate pH 5
|
Resolution 2.91 Å R-free 0.264 |
| 9O0U Crystal structure of CRAF/MEK1 complex with PLX4720 and CH5126766 Deposited 2025-04-03 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain F
1–393（393 aa）
|
Mutation：S218A, S222A | 324 N-{3-[(5-chloro-1H-pyrrolo[2,3-b]pyridin-3-yl)carbonyl]-2,4-difluorophenyl}propane-1-sulfonamide × 1 CHU N-(3-fluoro-4-{[4-methyl-2-oxo-7-(pyrimidin-2-yloxy)-2H-chromen-3-yl]methyl}pyridin-2-yl)-N'-methylsulfuric diamide × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；295 K；18% PEG 3350, 0.1 M Sodium citrate pH 5.6, 4% Tacsimate pH 5
|
Resolution 2.91 Å R-free 0.264 |
| 9O0U Crystal structure of CRAF/MEK1 complex with PLX4720 and CH5126766 Deposited 2025-04-03 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain H
1–393（393 aa）
|
Mutation：S218A, S222A | 324 N-{3-[(5-chloro-1H-pyrrolo[2,3-b]pyridin-3-yl)carbonyl]-2,4-difluorophenyl}propane-1-sulfonamide × 1 CHU N-(3-fluoro-4-{[4-methyl-2-oxo-7-(pyrimidin-2-yloxy)-2H-chromen-3-yl]methyl}pyridin-2-yl)-N'-methylsulfuric diamide × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；295 K；18% PEG 3350, 0.1 M Sodium citrate pH 5.6, 4% Tacsimate pH 5
|
Resolution 2.91 Å R-free 0.264 |
| 9O0V Crystal structure of CRAF/MEK1 complex with PLX4720, CH5126766, and AMPPNP Deposited 2025-04-03 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain B
1–393（393 aa）
|
Mutation：S218A, S222A | 324 N-{3-[(5-chloro-1H-pyrrolo[2,3-b]pyridin-3-yl)carbonyl]-2,4-difluorophenyl}propane-1-sulfonamide × 1 CHU N-(3-fluoro-4-{[4-methyl-2-oxo-7-(pyrimidin-2-yloxy)-2H-chromen-3-yl]methyl}pyridin-2-yl)-N'-methylsulfuric diamide × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；295 K；18% PEG 3350, 0.1 M Sodium citrate pH 5.6, 4% Tacsimate pH 5
|
Resolution 3.50 Å R-free 0.254 |
| 9O0V Crystal structure of CRAF/MEK1 complex with PLX4720, CH5126766, and AMPPNP Deposited 2025-04-03 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain D
1–393（393 aa）
|
Mutation：S218A, S222A | 324 N-{3-[(5-chloro-1H-pyrrolo[2,3-b]pyridin-3-yl)carbonyl]-2,4-difluorophenyl}propane-1-sulfonamide × 1 CHU N-(3-fluoro-4-{[4-methyl-2-oxo-7-(pyrimidin-2-yloxy)-2H-chromen-3-yl]methyl}pyridin-2-yl)-N'-methylsulfuric diamide × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；295 K；18% PEG 3350, 0.1 M Sodium citrate pH 5.6, 4% Tacsimate pH 5
|
Resolution 3.50 Å R-free 0.254 |
| 9O0V Crystal structure of CRAF/MEK1 complex with PLX4720, CH5126766, and AMPPNP Deposited 2025-04-03 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain F
1–393（393 aa）
|
Mutation：S218A, S222A | 324 N-{3-[(5-chloro-1H-pyrrolo[2,3-b]pyridin-3-yl)carbonyl]-2,4-difluorophenyl}propane-1-sulfonamide × 1 CHU N-(3-fluoro-4-{[4-methyl-2-oxo-7-(pyrimidin-2-yloxy)-2H-chromen-3-yl]methyl}pyridin-2-yl)-N'-methylsulfuric diamide × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；295 K；18% PEG 3350, 0.1 M Sodium citrate pH 5.6, 4% Tacsimate pH 5
|
Resolution 3.50 Å R-free 0.254 |
| 9O0V Crystal structure of CRAF/MEK1 complex with PLX4720, CH5126766, and AMPPNP Deposited 2025-04-03 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics | Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain H
1–393（393 aa）
|
Mutation：S218A, S222A | 324 N-{3-[(5-chloro-1H-pyrrolo[2,3-b]pyridin-3-yl)carbonyl]-2,4-difluorophenyl}propane-1-sulfonamide × 1 CHU N-(3-fluoro-4-{[4-methyl-2-oxo-7-(pyrimidin-2-yloxy)-2H-chromen-3-yl]methyl}pyridin-2-yl)-N'-methylsulfuric diamide × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 |
X-RAY DIFFRACTION
X-ray crystallization conditions
VAPOR DIFFUSION, HANGING DROP；295 K；18% PEG 3350, 0.1 M Sodium citrate pH 5.6, 4% Tacsimate pH 5
|
Resolution 3.50 Å R-free 0.254 |
| 9O2Z Autoinhibited BRAF:(14-3-3)2:MEK complex from Insect cells Deposited 2025-04-04 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric |
Chain B
1–393（393 aa）
|
Not recorded | ZN ZINC ION × 2 CHU N-(3-fluoro-4-{[4-methyl-2-oxo-7-(pyrimidin-2-yloxy)-2H-chromen-3-yl]methyl}pyridin-2-yl)-N'-methylsulfuric diamide × 1 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 8
cryo-EM vitrification conditions
Cryogen ETHANE
|
Resolution 3.83 Å |
| 9TYG Structure of the MAP2K MEK1 in an inactive conformation in complex with its substrate MAPK ERK2 Deposited 2026-01-19 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric |
Chain A
1–2（2 aa）
Chain A
12–393（382 aa）
|
Mutation：residue 3-11 replaced with 15 residues GRA24 KIM,Ser218Asp,Ser222Asp Mutation：residue 3-11 replaced with 15 residues GRA24 KIM,Ser218Asp,Ser222Asp | ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 1 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.5
cryo-EM vitrification conditions
Cryogen ETHANE
|
Resolution 2.90 Å |
| 9TYH Structure of the MAP2K MEK1 in an active conformation in complex with its substrate MAPK ERK2 Deposited 2026-01-19 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric |
Chain A
1–2（2 aa）
Chain A
12–393（382 aa）
|
Mutation：residue 3-11 replaced with GRA24 KIM (15 residues),Ser218Asp,Ser222Asp Mutation：residue 3-11 replaced with GRA24 KIM (15 residues),Ser218Asp,Ser222Asp | ADP ADENOSINE-5'-DIPHOSPHATE × 2 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.5
cryo-EM vitrification conditions
Cryogen ETHANE
|
Resolution 3.40 Å |
| 9TYI Structure of the MAP2K MEK1 without bound nucleotide in complex with its substrate MAPK ERK2 Deposited 2026-01-19 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric |
Chain A
1–2（2 aa）
Chain A
12–393（382 aa）
|
Not recorded | No recorded non-water small molecule |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.5
cryo-EM vitrification conditions
Cryogen ETHANE
|
Resolution 3.60 Å |
| 9UUR The complex of human pMEK1 and uERK1 (ANP) Deposited 2025-05-08 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain A
1–393（393 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 1 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.4
cryo-EM vitrification conditions
Cryogen ETHANE
|
Resolution 3.36 Å |
| 9UUX The complex of human pMEK1 and ERK1 pT202 (ANP) Deposited 2025-05-08 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain A
1–393（393 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 1 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.4
cryo-EM vitrification conditions
Cryogen ETHANE
|
Resolution 3.12 Å |
| 9UW3 The complex of human pMEK1 and ERK1 pY204 (ANP) Deposited 2025-05-12 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain A
1–393（393 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) | ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 1 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.4
cryo-EM vitrification conditions
Cryogen ETHANE
|
Resolution 3.36 Å |
| 9UW4 The complex of human pMEK1 and uERK1 (ANP)(from pY204ERK1) Deposited 2025-05-12 | Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics | Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric |
Chain A
1–393（393 aa）
|
Non-standard monomer：Yes (specific site not provided by mmCIF) | MG MAGNESIUM ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 |
ELECTRON MICROSCOPY
cryo-EM buffer
pH 7.4
cryo-EM vitrification conditions
Cryogen ETHANE
|
Resolution 3.20 Å |
92 other PDB entries and 122 assemblies. Open the comparison page and filter oligomeric states
View Construct and Data Evidence
| UniProt name | MP2K1_HUMAN |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 2–348； UniProt 37–383 |
