9udv

Cryo-EM structure of the human G6P transporter SLC37A2 in the presence of G6P with an asymmetric conformation.

Method: ELECTRON MICROSCOPY Dmax: 116.1 Å Quality: GOOD

SAXS Profile

SAXS profile for 9udv

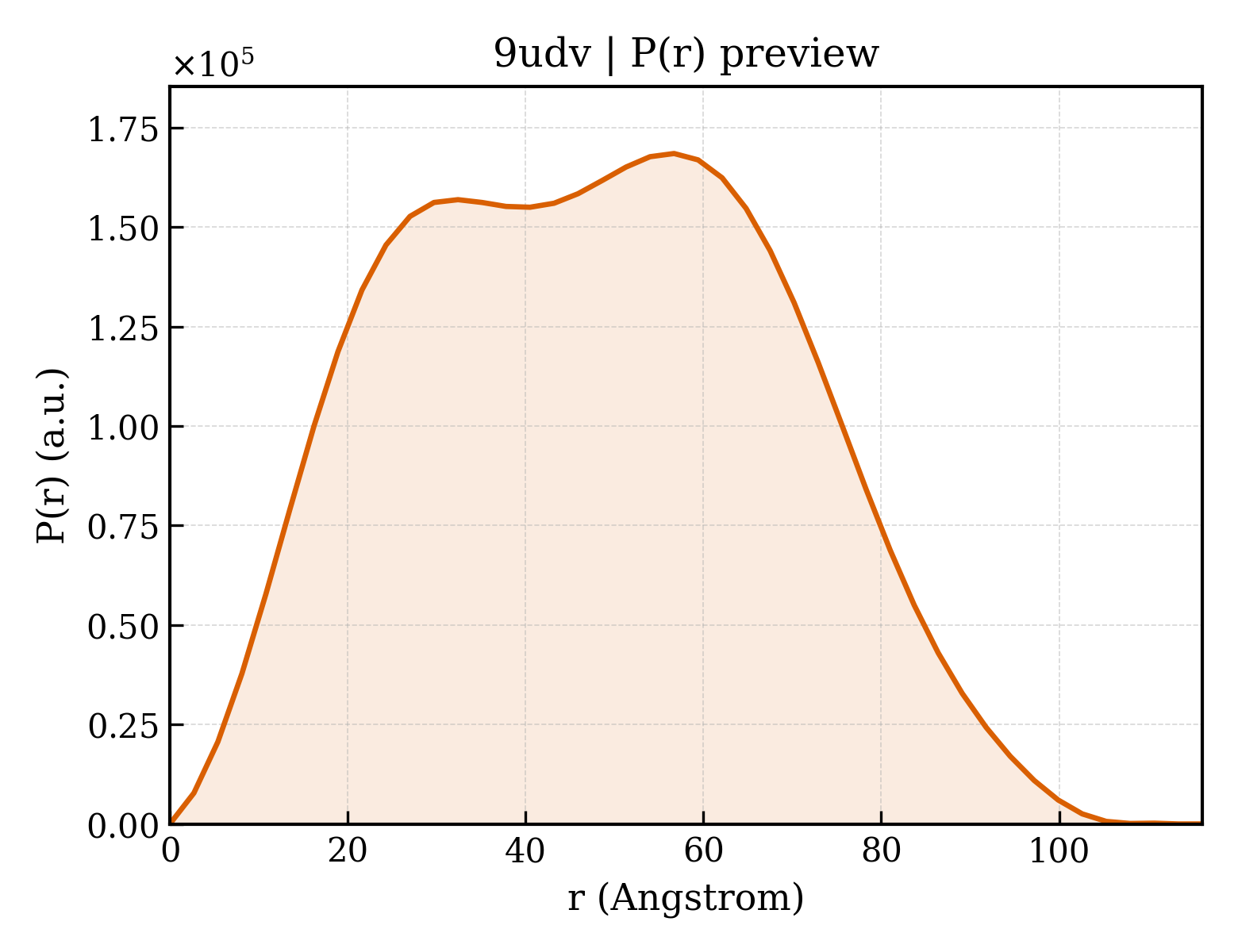

P(r) Distribution

P(r) distribution for 9udv
▼

1. Structure Basics

entry_id9udv
deposition_date2025-04-07
titleCryo-EM structure of the human G6P transporter SLC37A2 in the presence of G6P with an asymmetric conformation.
keywordsTransporter, G6P, MFS, ER membrane, MEMBRANE PROTEIN; MEMBRANE PROTEIN
methodELECTRON MICROSCOPY
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier36.87 Å
rg_electron36.06 Å
i0133395000.00
molecular_weight100210.0 kDa
excluded_volume128330 ų
envelope_volume186550 ų
shell_volume41936 ų
envelope_diameter114.9 Å
shell_rg44.12 Å
envelope_rg35.33 Å
shape_rg36.03 Å
total_rg36.76 Å
total_atoms7065
n_residues918
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax116.1 Å
rg_real36.79 Å
rg_real_error1.03 Å
i0_real1.3340e+08
i0_real_error2.1780e+06
rg_reciprocal36.84 Å
i0_reciprocal133400000.0000
total_estimate0.8261
solution_quality GOOD a GOOD solution
n_peaks3
r_peak_primary56.7 Å
skewness0.100
kurtosis-0.791
angular_range— – 0.2150 Å−1
current_alpha0.0000
highest_alpha24270000.0000
n_real_points44
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.925; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.960; Smooth: 0.000
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

▶

6. Citations (1)

▶

7. Files & Curves (10)
