9udw

Cryo-EM structure of the human G6P transporter SLC37A2 in the G6P bound state with a symmetric cytosolic-open conformation.

Method: ELECTRON MICROSCOPY Dmax: 116.4 Å Quality: GOOD

SAXS Profile

SAXS profile for 9udw

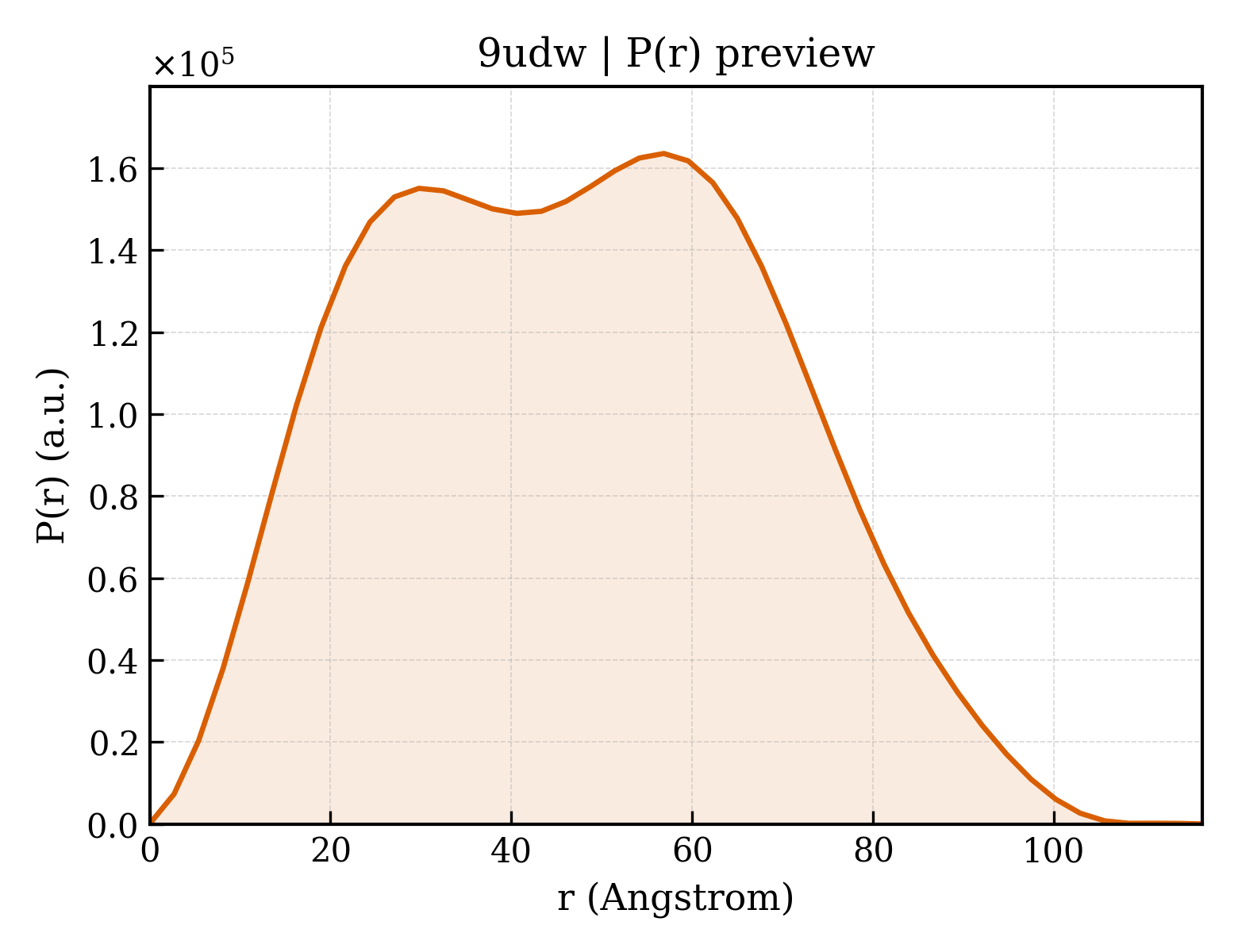

P(r) Distribution

P(r) distribution for 9udw
▼

1. Structure Basics

entry_id9udw
deposition_date2025-04-07
titleCryo-EM structure of the human G6P transporter SLC37A2 in the G6P bound state with a symmetric cytosolic-open conformation.
keywordsTransporter, G6P, MFS, ER membrane, MEMBRANE PROTEIN; MEMBRANE PROTEIN
methodELECTRON MICROSCOPY
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier36.63 Å
rg_electron35.95 Å
i0129857000.00
molecular_weight99054.0 kDa
excluded_volume126940 ų
envelope_volume182710 ų
shell_volume41258 ų
envelope_diameter119.6 Å
shell_rg43.89 Å
envelope_rg35.22 Å
shape_rg35.92 Å
total_rg36.68 Å
total_atoms6982
n_residues904
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax116.4 Å
rg_real36.59 Å
rg_real_error0.92 Å
i0_real1.2990e+08
i0_real_error2.0660e+06
rg_reciprocal36.62 Å
i0_reciprocal129900000.0000
total_estimate0.8908
solution_quality GOOD a GOOD solution
n_peaks3
r_peak_primary56.9 Å
skewness0.132
kurtosis-0.780
angular_range— – 0.2150 Å−1
current_alpha0.0000
highest_alpha35370000.0000
n_real_points44
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.900; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.933; Smooth: 0.942
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

▶

6. Citations (1)

▶

7. Files & Curves (10)
