9udx

Cryo-EM structure of the human G6P transporter SLC37A2 in the presence of G6P with a symmetric ER luminal-open conformation.

Method: ELECTRON MICROSCOPY Dmax: 115.8 Å Quality: EXCELLENT

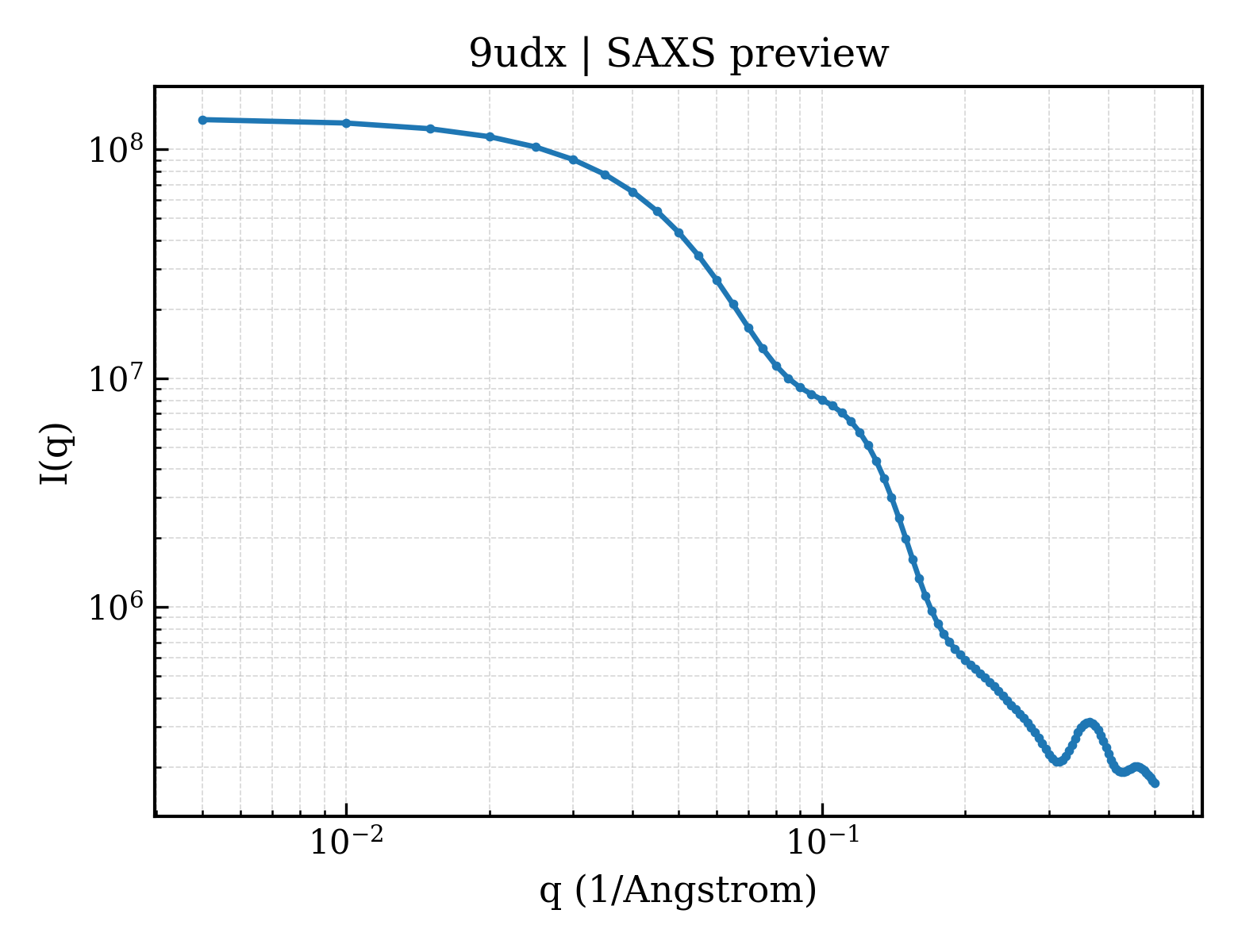

SAXS Profile

SAXS profile for 9udx

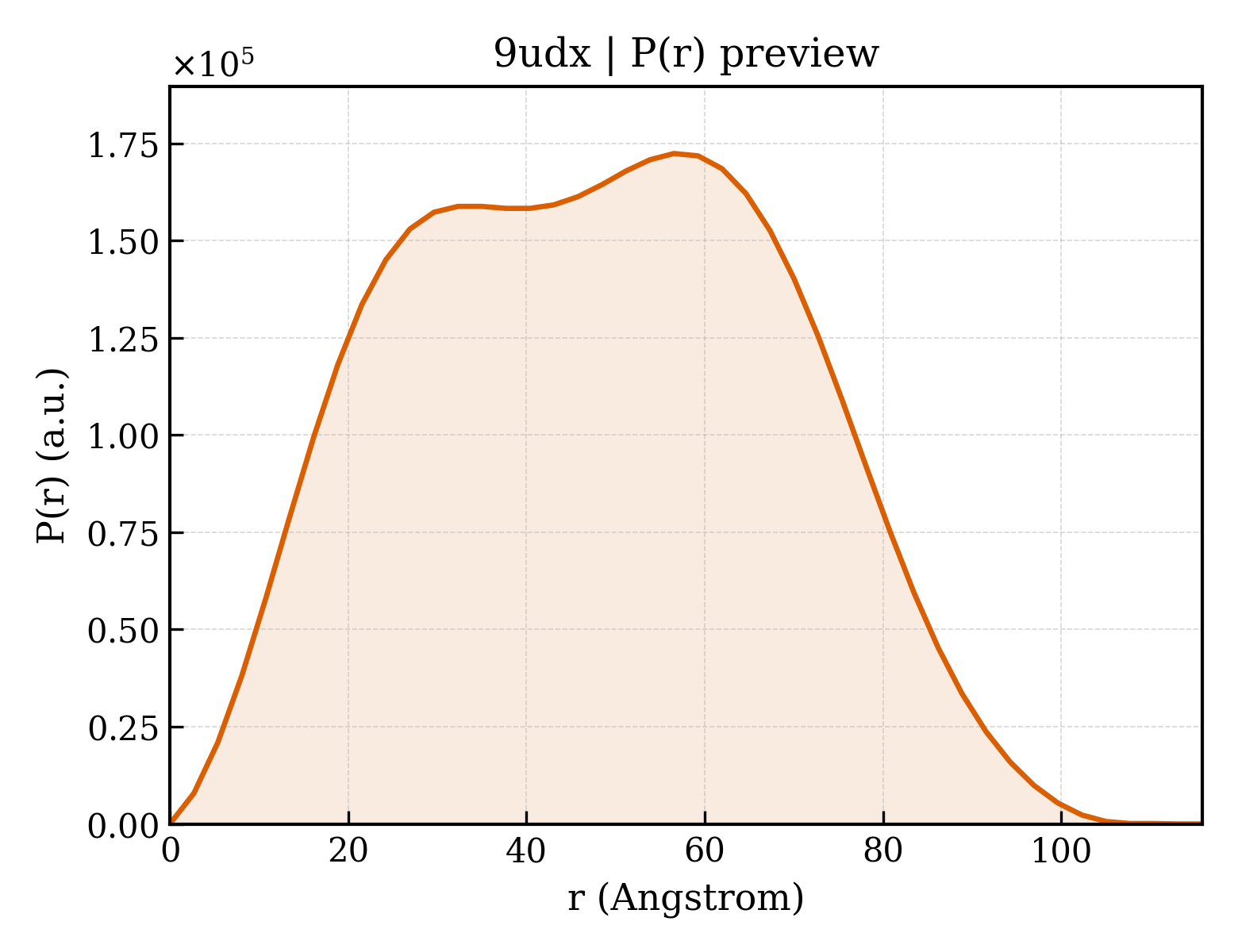

P(r) Distribution

P(r) distribution for 9udx
▼

1. Structure Basics

entry_id9udx
deposition_date2025-04-07
titleCryo-EM structure of the human G6P transporter SLC37A2 in the presence of G6P with a symmetric ER luminal-open conformation.
keywordsTransporter, G6P, MFS, ER membrane, MEMBRANE PROTEIN; MEMBRANE PROTEIN
methodELECTRON MICROSCOPY
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier37.05 Å
rg_electron36.16 Å
i0136523000.00
molecular_weight101280.0 kDa
excluded_volume129670 ų
envelope_volume189120 ų
shell_volume42339 ų
envelope_diameter111.8 Å
shell_rg44.16 Å
envelope_rg35.37 Å
shape_rg36.14 Å
total_rg36.84 Å
total_atoms7142
n_residues930
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax115.8 Å
rg_real36.94 Å
rg_real_error0.99 Å
i0_real1.3650e+08
i0_real_error2.1370e+06
rg_reciprocal37.02 Å
i0_reciprocal136500000.0000
total_estimate0.9019
solution_quality EXCELLENT a EXCELLENT solution
n_peaks2
r_peak_primary56.5 Å
skewness0.066
kurtosis-0.819
angular_range— – 0.2150 Å−1
current_alpha0.0000
highest_alpha19500000.0000
n_real_points44
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.931; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.972; Smooth: 0.956
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

▶

6. Citations (1)

▶

7. Files & Curves (10)
