9uh7

large lobe of human Ribonuclease MRP

Method: ELECTRON MICROSCOPY D_max: 163.1 Å Quality: GOOD

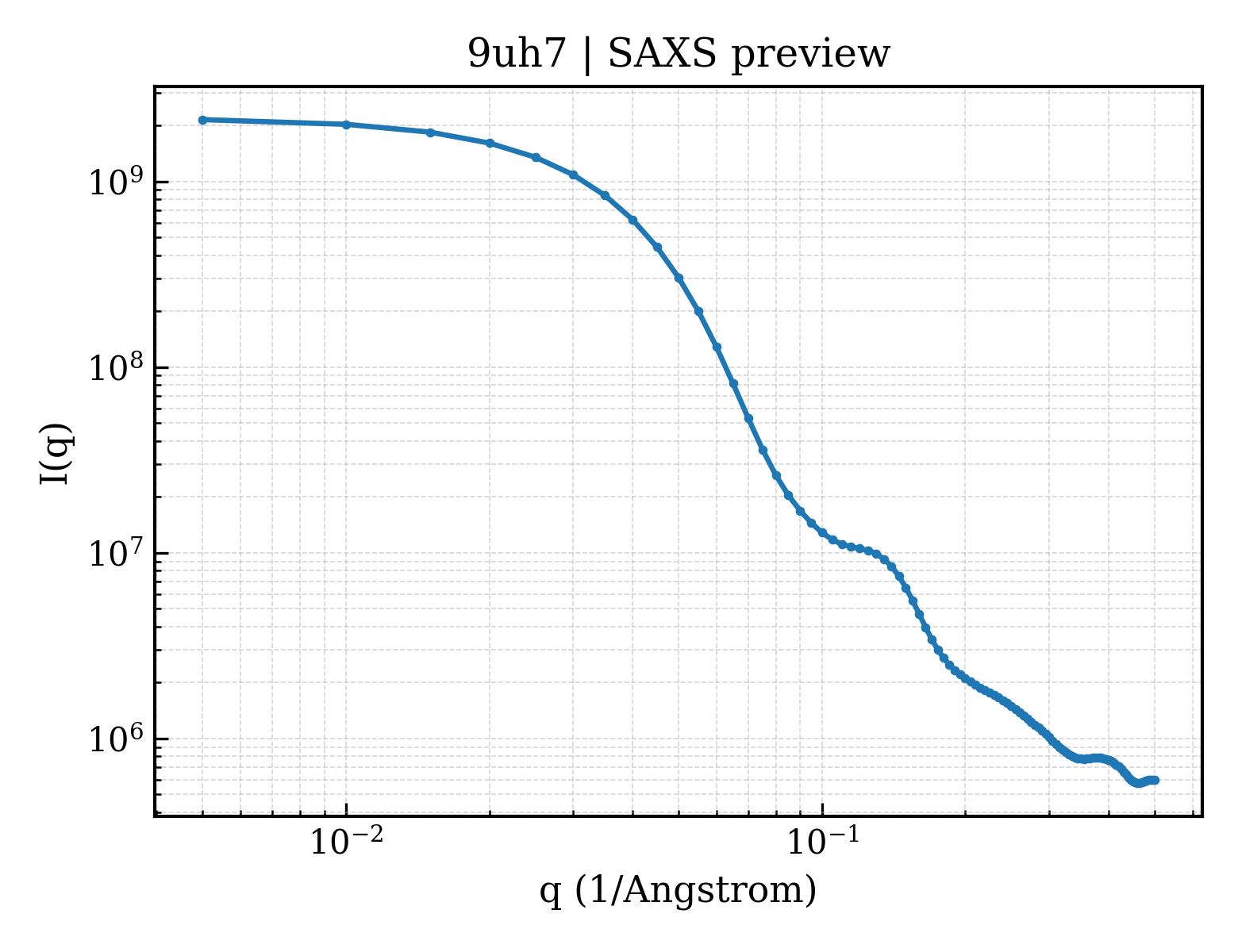

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9uh7
deposition_date	2025-04-14
title	large lobe of human Ribonuclease MRP
keywords	RNase MRP, RNA BINDING PROTEIN/RNA, RNA BINDING PROTEIN-RNA complex; RNA BINDING PROTEIN/RNA
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	48.20 Å
rg_electron	49.13 Å
i0	2194970000.00
molecular_weight	349270.0 kDa
excluded_volume	420110 Å³
envelope_volume	629760 Å³
shell_volume	103720 Å³
envelope_diameter	179.2 Å
shell_rg	55.56 Å
envelope_rg	48.32 Å
shape_rg	49.17 Å
total_rg	49.19 Å
total_atoms	24267
n_residues	2723
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	163.1 Å
rg_real	48.05 Å
rg_real_error	1.43 Å
i0_real	2.1950e+09
i0_real_error	4.2210e+07
rg_reciprocal	48.20 Å
i0_reciprocal	2195000000.0000
total_estimate	0.7993
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	59.3 Å
skewness	0.300
kurtosis	-0.278
angular_range	— – 0.1650 Å⁻¹
current_alpha	0.0000
highest_alpha	263300000.0000
n_real_points	34
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.801; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (11)

Entity 1 polymer

description	RNA (270-MER)
formula_weight	86578.1 kDa
src_method	nat
entity_count	1

Polymer

type	polyribonucleotide
strand_id	A
atom_count	24267

UGGUUCGUGCUGAAGGCCUGUAUCCUAGGCUACACACUGAGGACUCUGUUCCUCCCCUUUCCGCCUAGGGGAAAGUCCCCGGACCUCGGGCAGAGAGUGCCACGUGCAUACGCACGUAGACAUUCCCCGCUUCCCACUCCAAAGUCCGCCAAGAAGCGUAUCCCGCUGAGCGGCGUGGCGCGGGGGCGUCAUCCGUCAGCUCCCUCUAGUUACGCAGGCAGUGCGUGUCCGCGCACCAACCACACGGGGCUCAUUCUCAGCGCGGCUGUU

Entity 2 polymer

description	Ribonucleases P/MRP protein subunit POP1
formula_weight	114896.1 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

MSNAKERKHAKKMRNQPTNVTLSSGFVADRGVKHHSGGEKPFQAQKQEPHPGTSRQRQTRVNPHSLPDPEVNEQSSSKGMFRKKGGWKAGPEGTSQEIPKYITASTFAQARAAEISAMLKAVTQKSSNSLVFQTLPRHMRRRAMSHNVKRLPRRLQEIAQKEAEKAVHQKKEHSKNKCHKARRCHMNRTLEFNRRQKKNIWLETHIWHAKRFHMVKKWGYCLGERPTVKSHRACYRAMTNRCLLQDLSYYCCLELKGKEEEILKALSGMCNIDTGLTFAAVHCLSGKRQGSLVLYRVNKYPREMLGPVTFIWKSQRTPGDPSESRQLWIWLHPTLKQDILEEIKAACQCVEPIKSAVCIADPLPTPSQEKSQTELPDEKIGKKRKRKDDGENAKPIKKIIGDGTRDPCLPYSWISPTTGIIISDLTMEMNRFRLIGPLSHSILTEAIKAASVHTVGEDTEETPHRWWIETCKKPDSVSLHCRQEAIFELLGGITSPAEIPAGTILGLTVGDPRINLPQKKSKALPNPEKCQDNEKVRQLLLEGVPVECTHSFIWNQDICKSVTENKISDQDLNRMRSELLVPGSQLILGPHESKIPILLIQQPGKVTGEDRLGWGSGWDVLLPKGWGMAFWIPFIYRGVRVGGLKESAVHSQYKRSPNVPGDFPDCPAGMLFAEEQAKNLLEKYKRRPPAKRPNYVKLGTLAPFCCPWEQLTQDWESRVQAYEEPSVASSPNGKESDLRRSEVPCAPMPKKTHQPSDEVGTSIEHPREAEEVMDAGCQESAGPERITDQEASENHVAATGSHLCVLRSRKLLKQLSAWCGPSSEDSRGGRRAPGRGQQGLTREACLSILGHFPRALVWVSLSLLSKGSPEPHTMICVPAKEDFLQLHEDWHYCGPQESKHSDPFRSKILKQKEKKKREKRQKPGRASSDGPAGEEPVAGQEALTLGLWSGPLPRVTLHCSRTLLGFVTQGDFSMAVGCGEALGFVSLTGLLDMLSSQPAAQRGLVLLRPPASLQYRFARIAIEV

Entity 3 polymer

description	Ribonuclease P protein subunit p29
formula_weight	25474.9 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	D

MKSVIYHALSQKEANDSDVQPSGAQRAEAFVRAFLKRSTPRMSPQAREDQLQRKAVVLEYFTRHKRKEKKKKAKGLSARQRRELRLFDIKPEQQRYSLFLPLHELWKQYIRDLCSGLKPDTQPQMIQAKLLKADLHGAIISVTKSKCPSYVGITGILLQETKHIFKIITKEDRLKVIPKLNCVFTVETDGFISYIYGSKFQLRSSERSAKKFKAKGTIDL

Entity 4 polymer

description	Ribonuclease P/MRP protein subunit POP5
formula_weight	18844.7 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	E

MVRFKHRYLLCELVSDDPRCRLSLDDRVLSSLVRDTIARVHGTFGAAACSIGFAVRYLNAYTGIVLLRCRKEFYQLVWSALPFITYLENKGHRYPCFFNTLHVGGTIRTCQKFLIQYNRRQLLILLQNCTDEGEREAIQKSVTRSCLLEEEEESGEEAAEAME

Entity 5 polymer

description	Ribonuclease P protein subunit p25
formula_weight	20659.4 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	F

MENFRKVRSEEAPAGCGAEGGGPGSGPFADLAPGAVHMRVKEGSKIRNLMAFATASMAQPATRAIVFSGCGRATTKTVTCAEILKRRLAGLHQVTRLRYRSVREVWQSLPPGPTQGQTPGEPAASLSVLKNVPGLAILLSKDALDPRQPGYQPPNPHPGPSSPPAAPASKRSLGEPAAGEGSAKRSQPEPGVADEDQTA

Entity 6 polymer

description	Ribonuclease P protein subunit p20
formula_weight	15672.9 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	G

MAENREPRGAVEAELDPVEYTLRKRLPSRLPRRPNDIYVNMKTDFKAQLARCQKLLDGGARGQNACSEIYIHGLGLAINRAINIALQLQAGSFGSLQVAANTSTVELVDELEPETDTREPLTRIRNNSAIHIRVFRVTPK

Entity 7 polymer

description	Ribonuclease P protein subunit p14
formula_weight	13707.0 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	H

MPAPAATYERVVYKNPSEYHYMKVCLEFQDCGVGLNAAQFKQLLISAVKDLFGEVDAALPLDILTYEEKTLSAILRICSSGLVKLWSSLTLLGSYKGKKCAFRVIQVSPFLLALSGNSRELVLD

Entity 8 polymer

description	Ribonuclease P protein subunit p30
formula_weight	29364.3 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	I,J

MAVFADLDLRAGSDLKALRGLVETAAHLGYSVVAINHIVDFKEKKQEIEKPVAVSELFTTLPIVQGKSRPIKILTRLTIIVSDPSHCNVLRATSSRARLYDVVAVFPKTEKLFHIACTHLDVDLVCITVTEKLPFYFKRPPINVAIDRGLAFELVYSPAIKDSTMRRYTISSALNLMQICKGKNVIISSAAERPLEIRGPYDVANLGLLFGLSESDAKAAVSTNCRAALLHGETRKTAFGIISTVKKPRPSEGDEDCLPASKKAKCEG

Entity 9 polymer

description	UPF0711 protein C18orf21
formula_weight	24876.9 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	K

MRQKHYLEAAARGLHDSCPGQARYLLWAYTSSHDDKSTFEETCPYCFQLLVLDNSRVRLKPKARLTPKIQKLLNREARNYTLSFKEAKMVKKFKDSKSVLLITCKTCNRTVKHHGKSRSFVSTLKSNPATPTSKLSLKTPERRTANPNHDMSGSKGKSPASVFRTPTSGQSVSTCSSKNTSKTKKHFSQLKMLLSQNESQKIPKVDFRNFLSSLKGGLLK

Entity 10 polymer

description	Ribonuclease P protein subunit p40
formula_weight	41884.8 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	L

MATLRRLREAPRHLLVCEKSNFGNHKSRHRHLVQTHYYNYRVSFLIPECGILSEELKNLVMNTGPYYFVKNLPLHELITPEFISTFIKKGSCYALTYNTHIDEDNTVALLPNGKLILSLDKDTYEETGLQGHPSQFSGRKIMKFIVSIDLMELSLNLDSKKYERISWSFKEKKPLKFDFLLAWHKTGSEESTMMSYFSKYQIQEHQPKVALSTLRDLQCPVLQSSELEGTPEVSCRALELFDWLGAVFSNVDLNNEPNNFISTYCCPEPSTVVAKAYLCTITGFILPEKICLLLEHLCHYFDEPKLAPWVTLSVQGFADSPVSWEKNEHGFRKGGEHLYNFVIFNNQDYWLQMAVGANDHCPP

Entity 11 polymer

description	Nucleolus and neural progenitor protein
formula_weight	64653.8 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	M

MMAAVPPGLEPWNRVRIPKAGNRSAVTVQNPGAALDLCIAAVIKECHLVILSLKSQTLDAETDVLCAVLYSNHNRMGRHKPHLALKQVEQCLKRLKNMNLEGSIQDLFELFSSNENQPLTTKVCVVPSQPVVELVLMKVLGACKLLLRLLDCCCKTFLLTVKHLGLQEFIILNLVMVGLVSRLWVLYKGVLKRLILLYEPLFGLLQEVARIQPMPYFKDFTFPSDITEFLGQPYFEAFKKKMPIAFAAKGINKLLNKLFLINEQSPRASEETLLGISKKAKQMKINVQNNVDLGQPVKNKRVFKEESSEFDVRAFCNQLKHKATQETSFDFKCSQSRLKTTKYSSQKVIGTPHAKSFVQRFREAESFTQLSEEIQMAVVWCRSKKLKAQAIFLGNKLLKSNRLKHLEAQGTSLPKKLECIKTSICNHLLRGSGIKTSKHHLRQRRSQNKFLRRQRKPQRKLQSTLLREIQQFSQGTRKSATDTSAKWRLSHCTVHRTDLYPNSKQLLNSGVSMPVIQTKEKMIHENLRGIHENETDSWTVMQINKNSTSGTIKETDDIDDIFALMGV

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.840 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.84 Å
resolution_method	—
num_particles	777423

fit	/app/data/saxs_computation/uh/9uh7/9uh7.fit
pddf	/app/data/pr_computation/uh/9uh7/9uh7.pr.out
profile	/app/data/saxs_computation/uh/9uh7/9uh7.dat
