Recombinant Human Serum Albumin protein 3

Method: X-RAY DIFFRACTION D_max: 89.3 Å Quality: GOOD

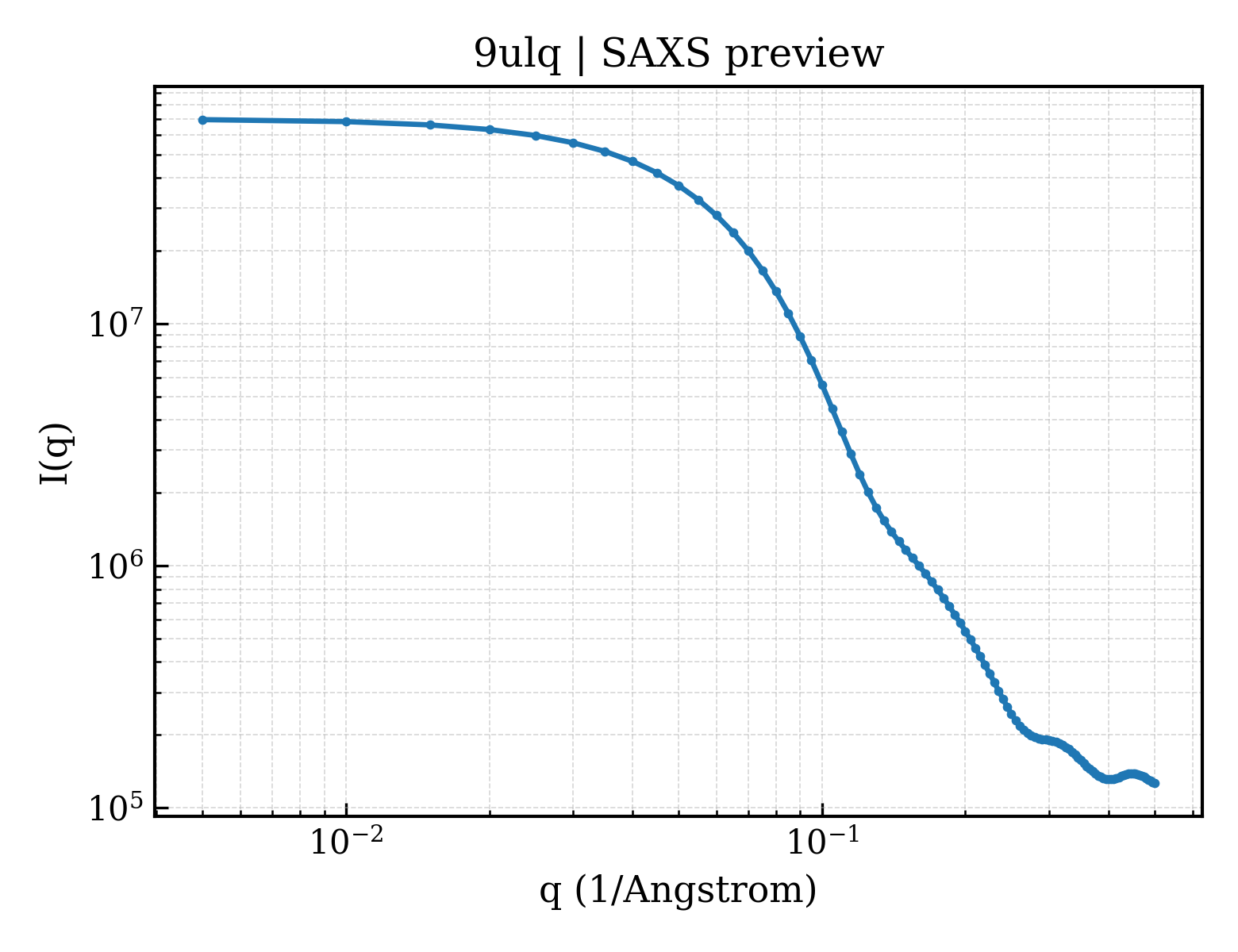

SAXS Profile

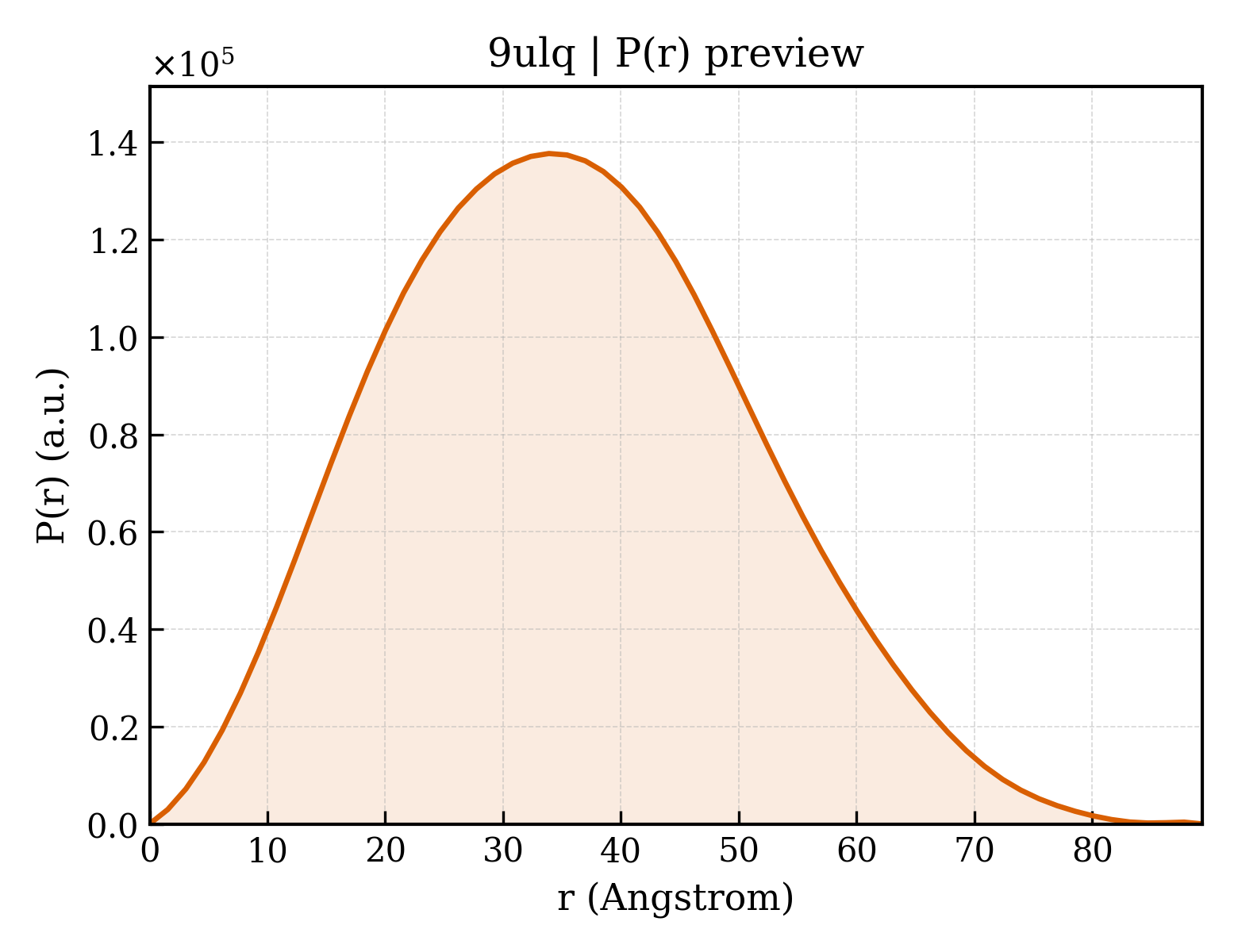

P(r) Distribution

▼

1. Structure Basics

entry_id	9ulq
deposition_date	2025-04-21
last_revision	2026-04-29
title	Recombinant Human Serum Albumin protein 3
keywords	Recombinant Human Serum Albumin protein 3, TRANSPORT PROTEIN; TRANSPORT PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	27.49 Å
rg_electron	26.47 Å
i0	70016200.00
molecular_weight	64820.0 kDa
excluded_volume	80917 Å³
envelope_volume	101010 Å³
shell_volume	31998 Å³
envelope_diameter	94.9 Å
shell_rg	33.63 Å
envelope_rg	26.60 Å
shape_rg	26.46 Å
total_rg	27.26 Å
total_atoms	4538
n_residues	570
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	89.3 Å
rg_real	27.39 Å
rg_real_error	0.57 Å
i0_real	7.0020e+07
i0_real_error	8.7380e+05
rg_reciprocal	27.42 Å
i0_reciprocal	70020000.0000
total_estimate	0.8994
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	33.9 Å
skewness	0.232
kurtosis	-0.422
angular_range	— – 0.2900 Å⁻¹
current_alpha	0.0000
highest_alpha	11110000.0000
n_real_points	59
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.899; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.993

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	56.086 Å
length_b	87.442 Å
length_c	58.869 Å
angle_alpha	90.00 °
angle_beta	104.76 °
angle_gamma	90.00 °
z_pdb	2

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	2.450 Å
resolution_low	19.940 Å
r_factor	0.2502
r_work	0.2462
r_free	0.2866

description	Albumin
formula_weight	66571.2 kDa
src_method	man
entity_count	1

type	polypeptide(L)
strand_id	A
atom_count	4626

Recombinant Human Serum Albumin protein 3

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 water

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Komagataella pastoris

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	88

fit	/app/data/saxs_computation/ul/9ulq/9ulq.fit
pddf	/app/data/pr_computation/ul/9ulq/9ulq.pr.out
profile	/app/data/saxs_computation/ul/9ulq/9ulq.dat
