Recombinant Human Serum Albumin protein 1

Method: X-RAY DIFFRACTION D_max: 88.3 Å Quality: EXCELLENT

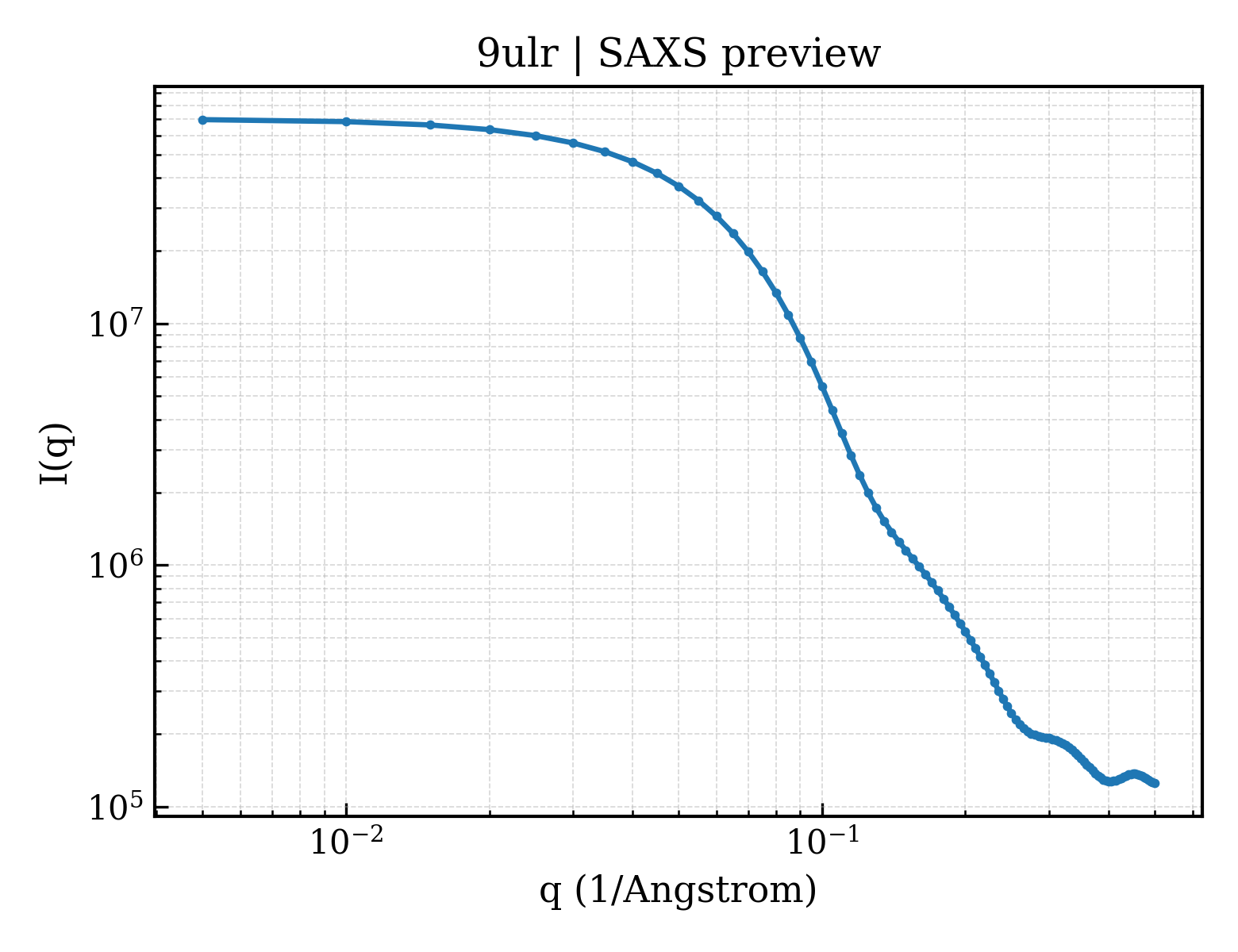

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9ulr
deposition_date	2025-04-21
last_revision	2026-04-29
title	Recombinant Human Serum Albumin protein 1
keywords	Recombinant Human Serum Albumin protein 1, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	27.63 Å
rg_electron	26.61 Å
i0	70150600.00
molecular_weight	64820.0 kDa
excluded_volume	80917 Å³
envelope_volume	101380 Å³
shell_volume	32087 Å³
envelope_diameter	95.2 Å
shell_rg	33.66 Å
envelope_rg	26.66 Å
shape_rg	26.60 Å
total_rg	27.39 Å
total_atoms	4538
n_residues	570
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	88.3 Å
rg_real	27.53 Å
rg_real_error	0.60 Å
i0_real	7.0150e+07
i0_real_error	1.1150e+06
rg_reciprocal	27.57 Å
i0_reciprocal	70150000.0000
total_estimate	0.9035
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	34.1 Å
skewness	0.233
kurtosis	-0.426
angular_range	— – 0.2850 Å⁻¹
current_alpha	0.0000
highest_alpha	10890000.0000
n_real_points	58
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.919; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.984

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	55.815 Å
length_b	87.347 Å
length_c	59.299 Å
angle_alpha	90.00 °
angle_beta	103.65 °
angle_gamma	90.00 °
z_pdb	2

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	2.010 Å
resolution_low	19.850 Å
r_factor	0.2229
r_work	0.2210
r_free	0.2553

description	Albumin
formula_weight	66571.2 kDa
src_method	man
entity_count	1

type	polypeptide(L)
strand_id	A
atom_count	4890

Recombinant Human Serum Albumin protein 1

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 water

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Komagataella pastoris

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	352

fit	/app/data/saxs_computation/ul/9ulr/9ulr.fit
pddf	/app/data/pr_computation/ul/9ulr/9ulr.pr.out
profile	/app/data/saxs_computation/ul/9ulr/9ulr.dat
