Recombinant Human Serum Albumin protein 2

Method: X-RAY DIFFRACTION D_max: 88.8 Å Quality: EXCELLENT

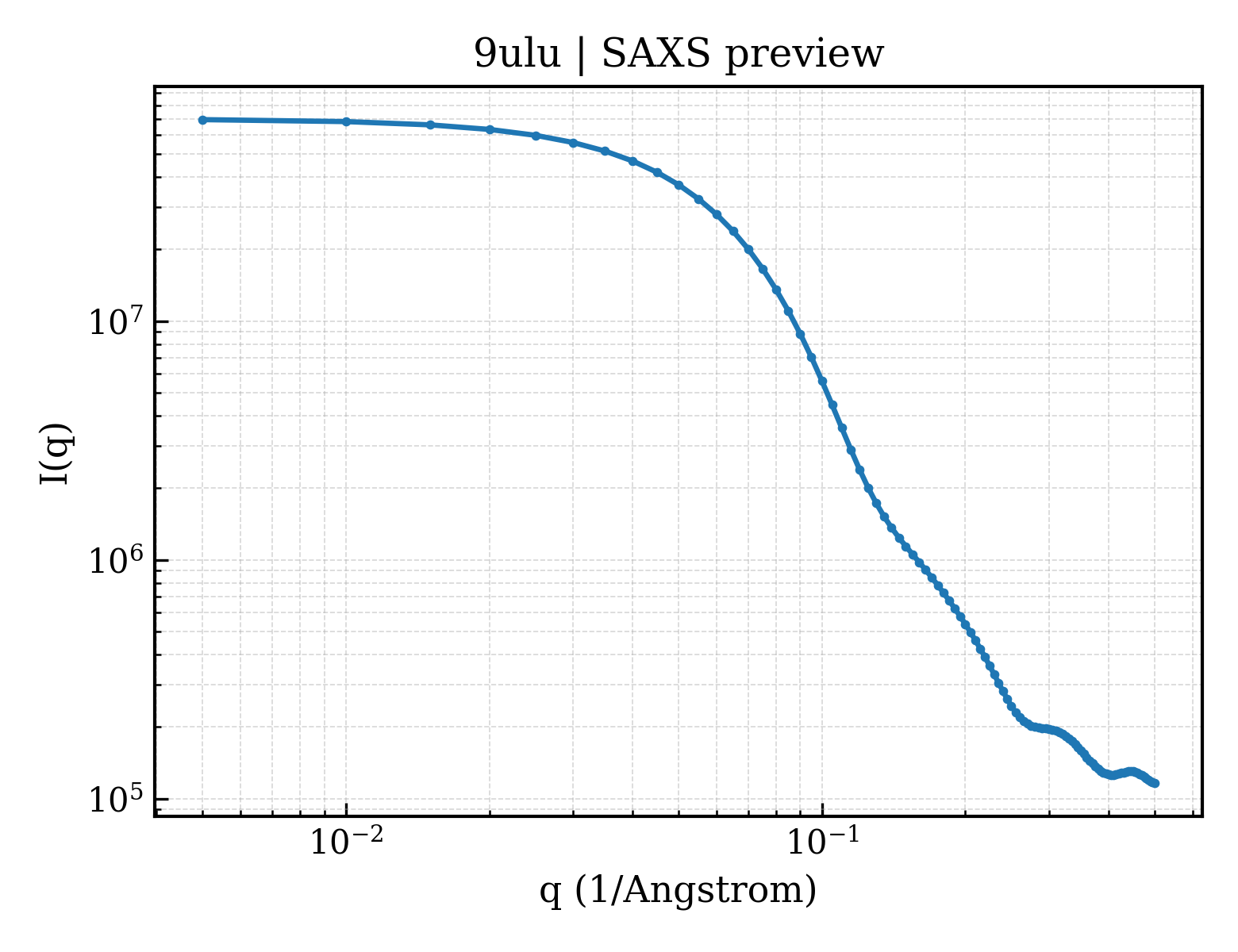

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9ulu
deposition_date	2025-04-21
last_revision	2026-04-29
title	Recombinant Human Serum Albumin protein 2
keywords	Recombinant Human Serum Albumin protein 2, TRANSPORT PROTEIN; TRANSPORT PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	27.52 Å
rg_electron	26.49 Å
i0	70093000.00
molecular_weight	64820.0 kDa
excluded_volume	80917 Å³
envelope_volume	101000 Å³
shell_volume	32047 Å³
envelope_diameter	94.3 Å
shell_rg	33.60 Å
envelope_rg	26.59 Å
shape_rg	26.47 Å
total_rg	27.28 Å
total_atoms	4538
n_residues	570
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	88.8 Å
rg_real	27.42 Å
rg_real_error	0.62 Å
i0_real	7.0090e+07
i0_real_error	9.9830e+05
rg_reciprocal	27.46 Å
i0_reciprocal	70090000.0000
total_estimate	0.9009
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	33.7 Å
skewness	0.237
kurtosis	-0.417
angular_range	— – 0.2900 Å⁻¹
current_alpha	0.0000
highest_alpha	10920000.0000
n_real_points	59
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.907; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.988

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	58.220 Å
length_b	87.169 Å
length_c	59.045 Å
angle_alpha	90.00 °
angle_beta	102.20 °
angle_gamma	90.00 °
z_pdb	2

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	2.490 Å
resolution_low	19.660 Å
r_factor	0.2732
r_work	0.2707
r_free	0.2958

description	Albumin
formula_weight	66571.2 kDa
src_method	man
entity_count	1

type	polypeptide(L)
strand_id	A
atom_count	4621

Recombinant Human Serum Albumin protein 2

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 water

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Komagataella pastoris

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	83

fit	/app/data/saxs_computation/ul/9ulu/9ulu.fit
pddf	/app/data/pr_computation/ul/9ulu/9ulu.pr.out
profile	/app/data/saxs_computation/ul/9ulu/9ulu.dat
