9uvn

Crystal structure of UMPK from S. aureus in complex with U5P

Method: X-RAY DIFFRACTION D_max: 104.2 Å Quality: GOOD

SAXS Profile

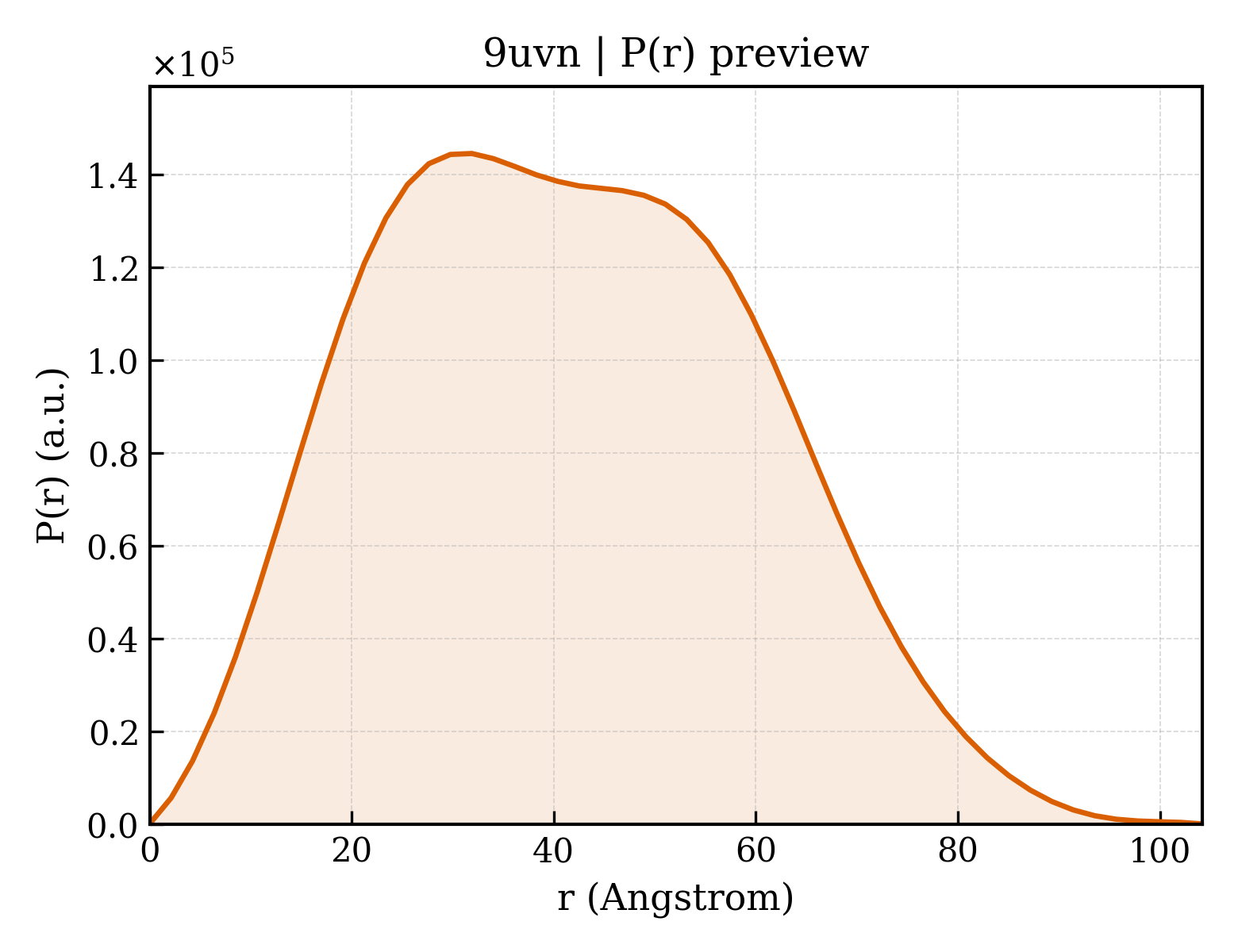

P(r) Distribution

▼

1. Structure Basics

entry_id	9uvn
deposition_date	2025-05-10
last_revision	2026-05-13
title	Crystal structure of UMPK from S. aureus in complex with U5P
keywords	Allosteric effect, hexamers, TRANSFERASE; TRANSFERASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	32.06 Å
rg_electron	31.46 Å
i0	96745800.00
molecular_weight	77373.0 kDa
excluded_volume	96891 Å³
envelope_volume	124820 Å³
shell_volume	33880 Å³
envelope_diameter	112.0 Å
shell_rg	37.32 Å
envelope_rg	31.63 Å
shape_rg	31.47 Å
total_rg	31.94 Å
total_atoms	5400
n_residues	708
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	104.2 Å
rg_real	32.02 Å
rg_real_error	0.68 Å
i0_real	9.6750e+07
i0_real_error	1.4320e+06
rg_reciprocal	32.04 Å
i0_reciprocal	96750000.0000
total_estimate	0.8988
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	31.9 Å
skewness	0.205
kurtosis	-0.624
angular_range	— – 0.2450 Å⁻¹
current_alpha	0.0000
highest_alpha	19680000.0000
n_real_points	50
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.911; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.964

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Uridylate kinase
formula_weight	27193.5 kDa
ec_number	2.7.4.22
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	C,A,B
atom_count	5408

MGHHHHHHMAQISKYKRVVLKLSGEALAGEKGFGINPVIIKSVAEQVAEVAKMDCEIAVIVGGGNIWRGKTGSDLGMDRGTADYMGMLATVMNALALQDSLEQLDCDTRVLTSIEMKQVAEPYIRRRAIRHLEKKRVVIFAAGIGNPYFSTDTTAALRAAEVEADVILMGKNNVDGVYSADPKVNKDAVKYEHLTHIQMLQEGLQVMDSTASSFCMDNNIPLTVFSIMEEGNIKRAVMGEKIGTLITK

Source

organism	Staphylococcus aureus subsp. aureus NCTC 8325
ncbi_taxonomy_id	93061
host_organism	Escherichia coli

Entity 2 non-polymer

description	URIDINE-5'-MONOPHOSPHATE
formula_weight	324.2 kDa
src_method	syn
entity_count	1

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	8

▶

6. Citations (1)

▶

length_a	117.357 Å
length_b	96.302 Å
length_c	75.840 Å
angle_alpha	90.00 °
angle_beta	103.45 °
angle_gamma	90.00 °
z_pdb	12

space_group	C 1 2 1
int_tables_number	5
crystal_system	monoclinic

resolution	3.260 Å
resolution_low	13.033 Å
r_factor	0.2380
r_work	0.2360
r_free	0.2763

fit	/app/data/saxs_computation/uv/9uvn/9uvn.fit
pddf	/app/data/pr_computation/uv/9uvn/9uvn.pr.out
profile	/app/data/saxs_computation/uv/9uvn/9uvn.dat
