9uy1

Crystal structure of UMPK from S. aureus in complex with ATP and GTP

Method: X-RAY DIFFRACTION Dmax: 210.8 Å Quality: GOOD

SAXS Profile

SAXS profile for 9uy1

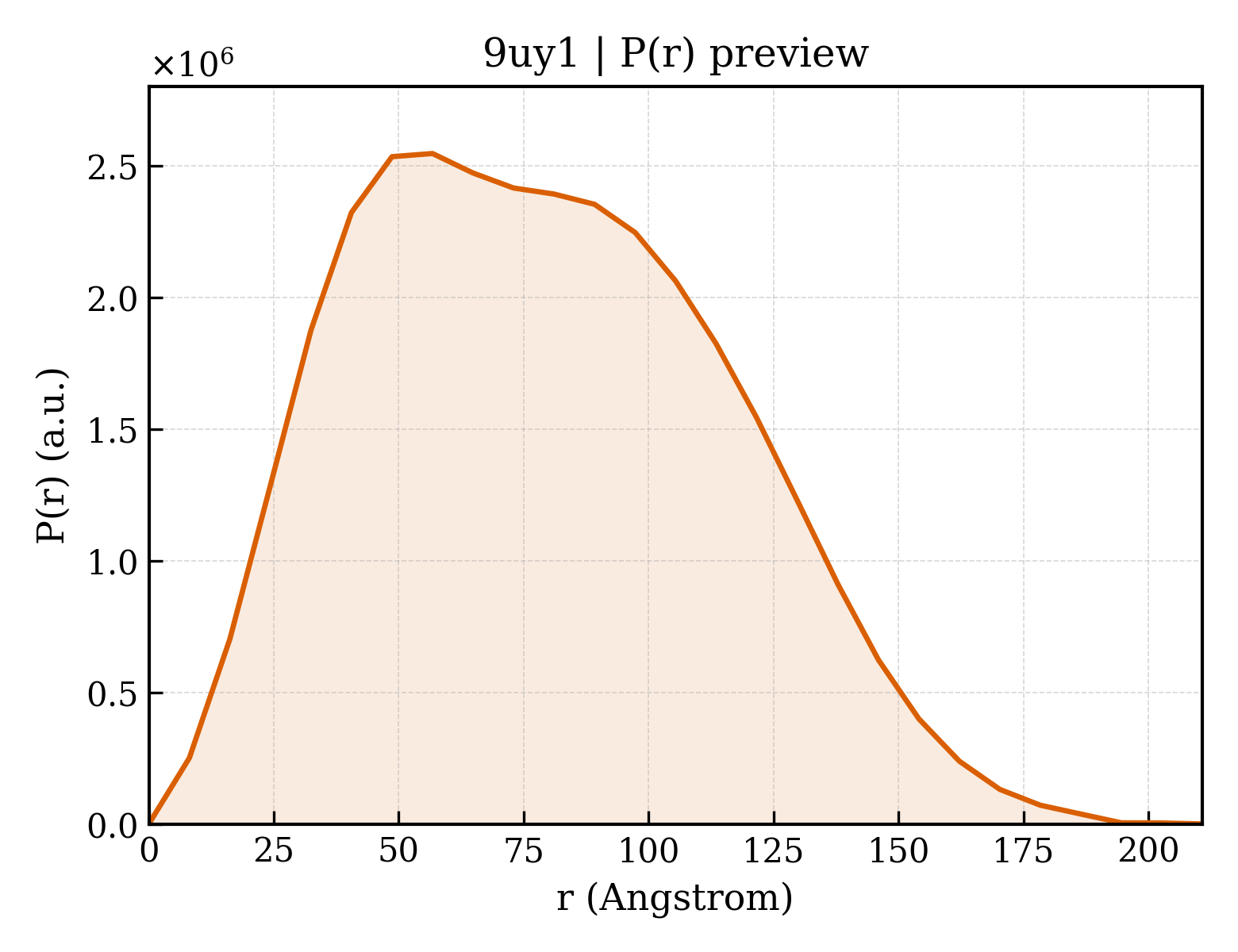

P(r) Distribution

P(r) distribution for 9uy1

1. Structure Basics

entry_id9uy1
deposition_date2025-05-14
last_revision2026-05-27
titleCrystal structure of UMPK from S. aureus in complex with ATP and GTP
keywordsAllosteric effect, hexamers, TRANSFERASE; TRANSFERASE
methodX-RAY DIFFRACTION

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier61.17
rg_electron61.33
i03310340000.00
molecular_weight473730.0 kDa
excluded_volume589600 ų
envelope_volume839370 ų
shell_volume114040 ų
envelope_diameter220.0
shell_rg62.90
envelope_rg59.95
shape_rg61.34
total_rg61.34
total_atoms32992
n_residues4265
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax210.8
rg_real61.28
rg_real_error2.22
i0_real3.3100e+09
i0_real_error6.4820e+07
rg_reciprocal61.04
i0_reciprocal3309000000.0000
total_estimate0.8633
solution_quality GOOD a GOOD solution
n_peaks1
r_peak_primary56.8
skewness0.291
kurtosis-0.585
angular_range— – 0.1300 −1
current_alpha0.0000
highest_alpha804300000.0000
n_real_points27
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.826; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.742

4. Crystallography & Experiment

5. Entities & Polymer Info (6)

6. Citations (1)

7. Files & Curves (10)
