9uy2

Crystal structure of UMPK from S. aureus in complex with ATP

Method: X-RAY DIFFRACTION D_max: 110.3 Å Quality: GOOD

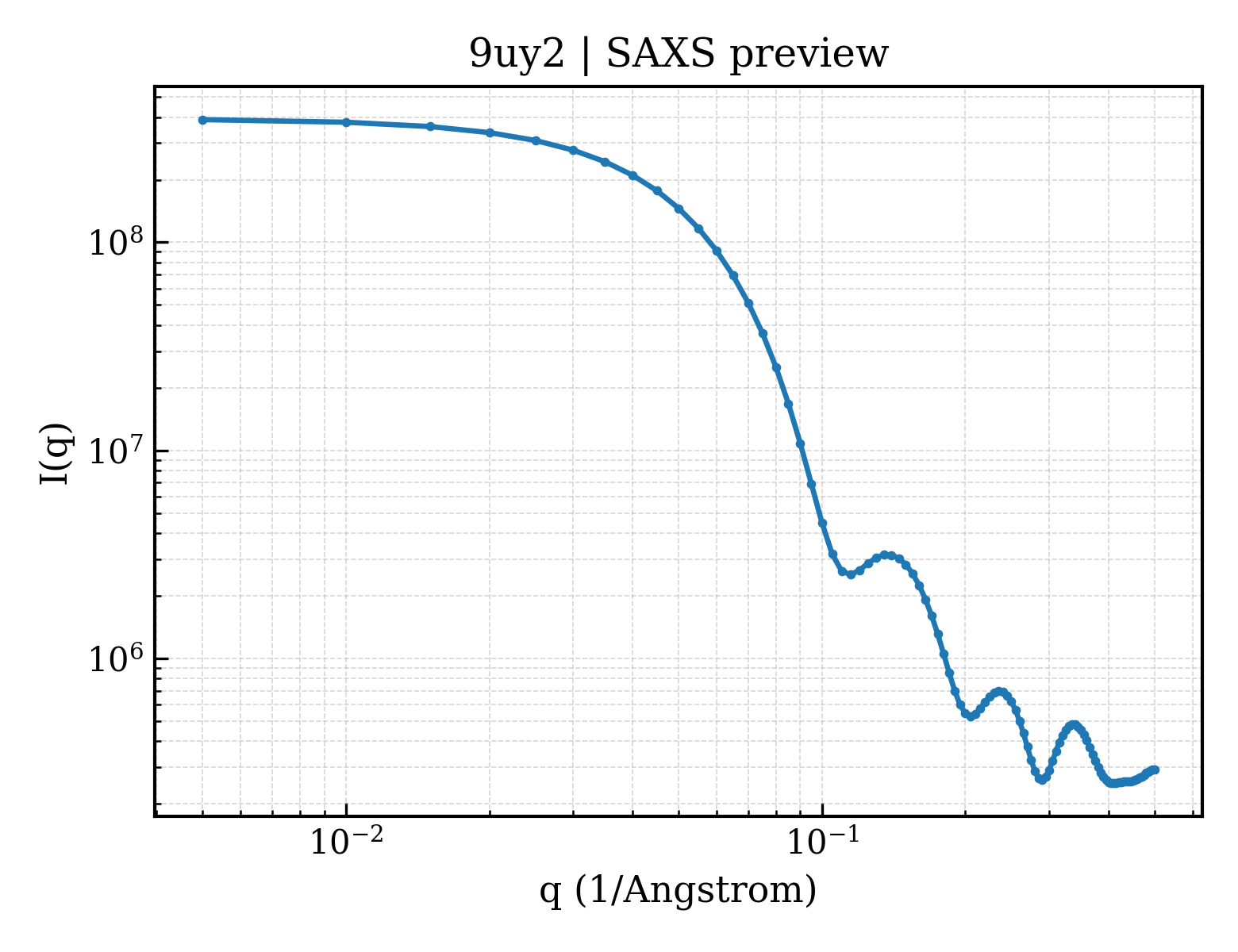

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9uy2
deposition_date	2025-05-14
last_revision	2026-05-27
title	Crystal structure of UMPK from S. aureus in complex with ATP
keywords	Allosteric effect, hexamers, TRANSFERASE; TRANSFERASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	33.94 Å
rg_electron	33.28 Å
i0	392701000.00
molecular_weight	157610.0 kDa
excluded_volume	196760 Å³
envelope_volume	244320 Å³
shell_volume	58215 Å³
envelope_diameter	119.9 Å
shell_rg	42.07 Å
envelope_rg	33.56 Å
shape_rg	33.30 Å
total_rg	33.84 Å
total_atoms	10982
n_residues	1421
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	110.3 Å
rg_real	33.77 Å
rg_real_error	0.62 Å
i0_real	3.9270e+08
i0_real_error	5.6580e+06
rg_reciprocal	33.87 Å
i0_reciprocal	392700000.0000
total_estimate	0.8788
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	44.6 Å
skewness	0.188
kurtosis	-0.329
angular_range	— – 0.2350 Å⁻¹
current_alpha	0.0000
highest_alpha	129800000.0000
n_real_points	48
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.824; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.957

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Uridylate kinase
formula_weight	27193.5 kDa
ec_number	2.7.4.22
src_method	man
entity_count	6

Polymer

type	polypeptide(L)
strand_id	A,B,C,D,E,F
atom_count	11001

MGHHHHHHMAQISKYKRVVLKLSGEALAGEKGFGINPVIIKSVAEQVAEVAKMDCEIAVIVGGGNIWRGKTGSDLGMDRGTADYMGMLATVMNALALQDSLEQLDCDTRVLTSIEMKQVAEPYIRRRAIRHLEKKRVVIFAAGIGNPYFSTDTTAALRAAEVEADVILMGKNNVDGVYSADPKVNKDAVKYEHLTHIQMLQEGLQVMDSTASSFCMDNNIPLTVFSIMEEGNIKRAVMGEKIGTLITK

Source

organism	Staphylococcus aureus subsp. aureus NCTC 8325
ncbi_taxonomy_id	93061
host_organism	Escherichia coli

Entity 2 non-polymer

description	GLYCEROL
formula_weight	92.1 kDa
src_method	syn
entity_count	10

Entity 3 non-polymer

description	ADENOSINE-5'-TRIPHOSPHATE
formula_weight	507.2 kDa
src_method	syn
entity_count	4

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	19

▶

6. Citations (1)

▶

length_a	75.781 Å
length_b	114.709 Å
length_c	99.206 Å
angle_alpha	90.00 °
angle_beta	90.58 °
angle_gamma	90.00 °
z_pdb	12

space_group	P 1 21 1
int_tables_number	4
crystal_system	monoclinic

resolution	2.819 Å
resolution_low	30.194 Å
r_factor	0.1935
r_work	0.1914
r_free	0.2325
