9uwk
Crystal structure of human galectin-10 produced by cell-free protein synthesis

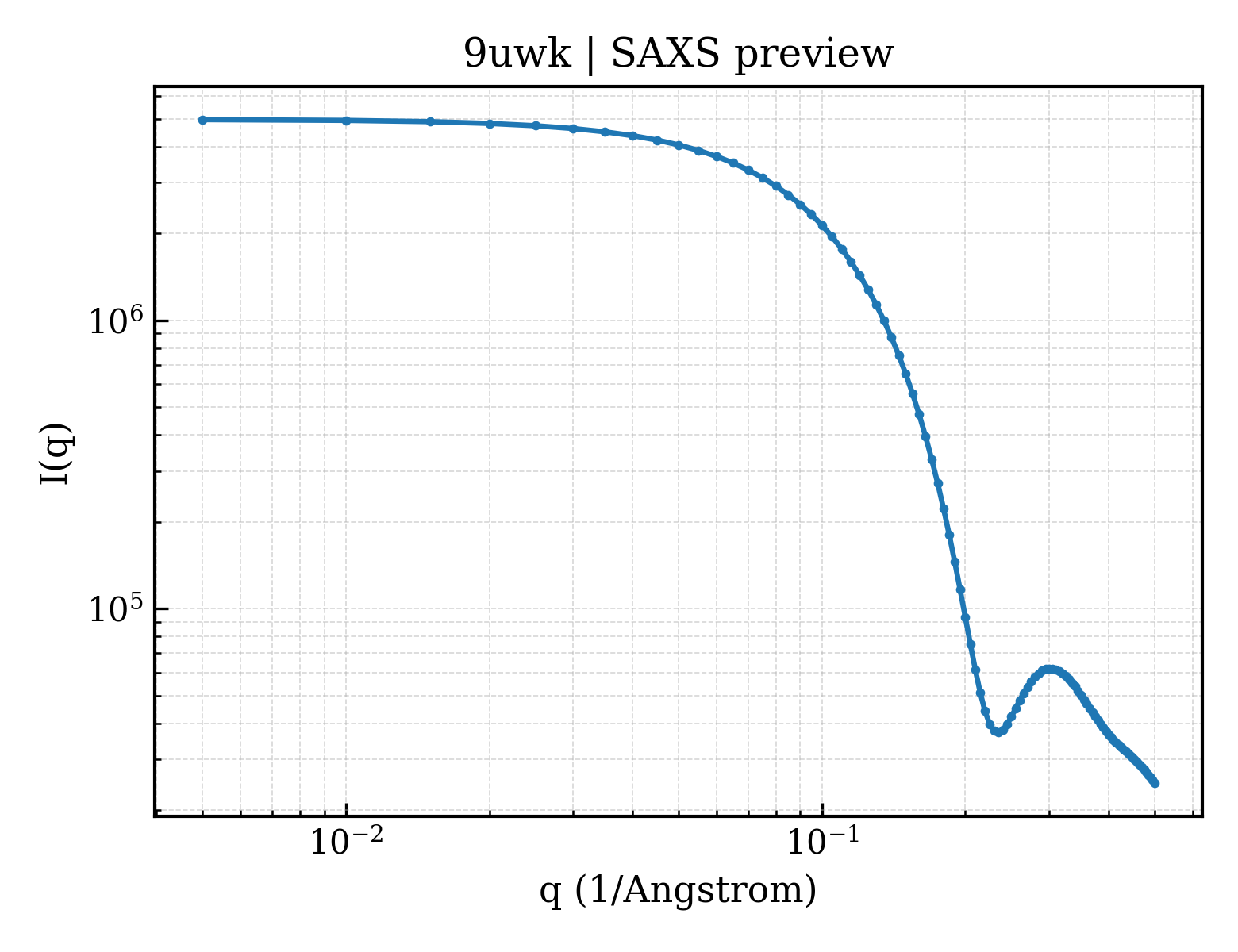

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9uwk |
| deposition_date | 2025-05-12 |
| last_revision | 2026-02-18 |
| title | Crystal structure of human galectin-10 produced by cell-free protein synthesis |
| keywords | Galectin, CLC, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.69 Å |
| rg_electron | 14.38 Å |
| i0 | 4981000.00 |
| molecular_weight | 16283.0 kDa |
| excluded_volume | 20509 ų |
| envelope_volume | 22793 ų |
| shell_volume | 13351 ų |
| envelope_diameter | 53.4 Å |
| shell_rg | 20.39 Å |
| envelope_rg | 14.67 Å |
| shape_rg | 14.32 Å |
| total_rg | 15.72 Å |
| total_atoms | 1158 |
| n_residues | 140 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 52.1 Å |
| rg_real | 15.57 Å |
| rg_real_error | 0.29 Å |
| i0_real | 4.9810e+06 |
| i0_real_error | 5.9580e+04 |
| rg_reciprocal | 15.59 Å |
| i0_reciprocal | 4981000.0000 |
| total_estimate | 0.7006 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 20.4 Å |
| skewness | 0.078 |
| kurtosis | -0.374 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 924800.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.779; Stabil: 1.000; Sysdev: 0.256; Positv: 1.000; Valcen: 0.999; Smooth: 0.999 |
