9uwu
Crystal structure of human galectin-10 produced by cell-free protein synthesis in complex with melezitose
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9uwu |
| deposition_date | 2025-05-12 |
| last_revision | 2026-02-18 |
| title | Crystal structure of human galectin-10 produced by cell-free protein synthesis in complex with melezitose |
| keywords | Galectin, CLC, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.75 Å |
| rg_electron | 14.34 Å |
| i0 | 5259840.00 |
| molecular_weight | 16586.0 kDa |
| excluded_volume | 20815 ų |
| envelope_volume | 23150 ų |
| shell_volume | 13528 ų |
| envelope_diameter | 50.1 Å |
| shell_rg | 20.46 Å |
| envelope_rg | 14.61 Å |
| shape_rg | 14.29 Å |
| total_rg | 15.70 Å |
| total_atoms | 1172 |
| n_residues | 140 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

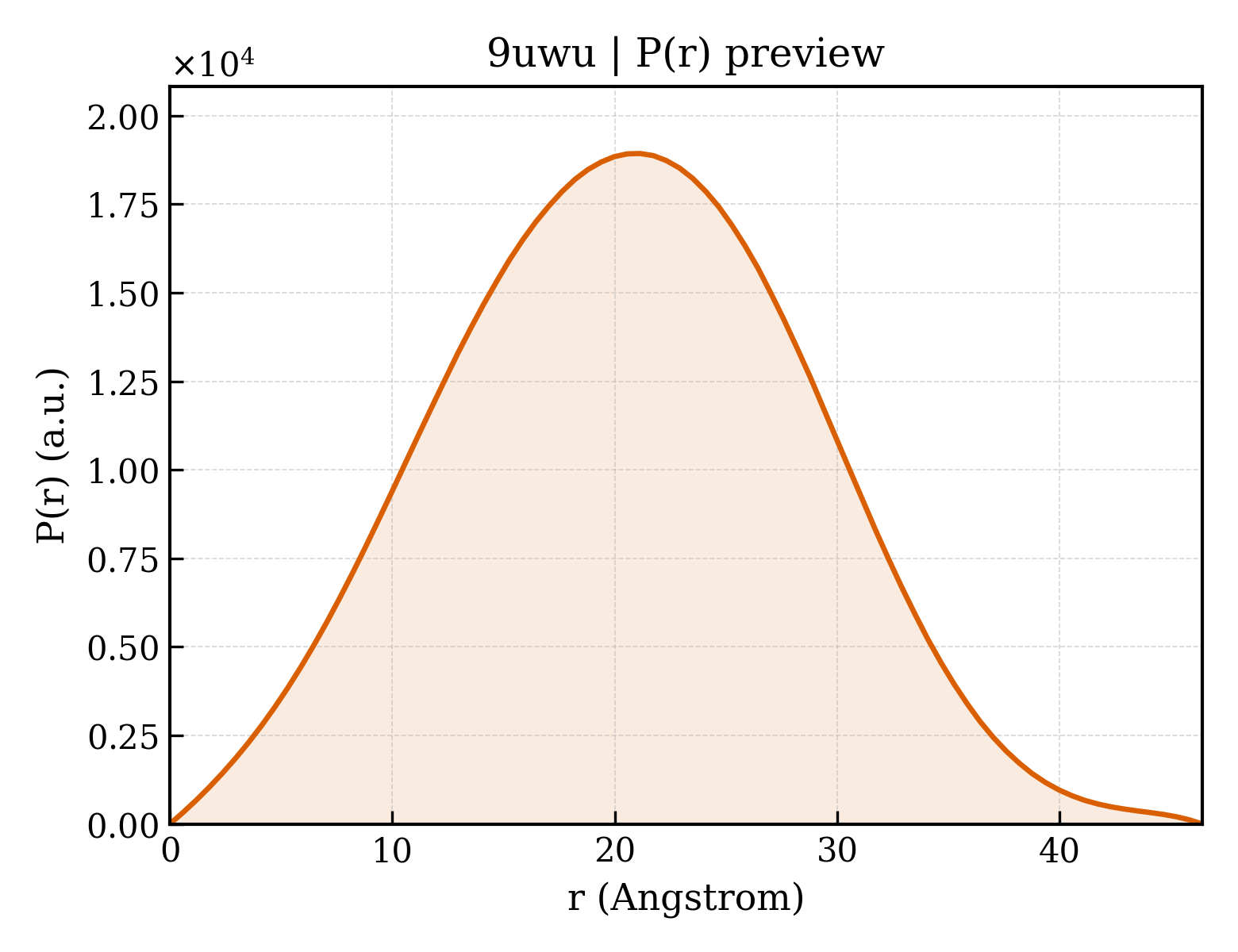

3. P(r) Analysis (GNOM)
| dmax | 46.4 Å |
| rg_real | 15.63 Å |
| rg_real_error | 0.06 Å |
| i0_real | 5.0890e+06 |
| i0_real_error | 4.2940e+04 |
| rg_reciprocal | 15.63 Å |
| i0_reciprocal | 5260000.0000 |
| total_estimate | 0.7110 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 21.1 Å |
| skewness | 0.068 |
| kurtosis | -0.390 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 11.9100 |
| highest_alpha | 998700.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.942; Stabil: 0.922; Sysdev: 0.000; Positv: 1.000; Valcen: 0.976; Smooth: 0.694 |
