9uzl

EMCV IRES captured on mammalian 40S ribosome with initiator tRNA and eIF2

Method: ELECTRON MICROSCOPY Dmax: 204.8 Å Quality: EXCELLENT

SAXS Profile

SAXS profile for 9uzl

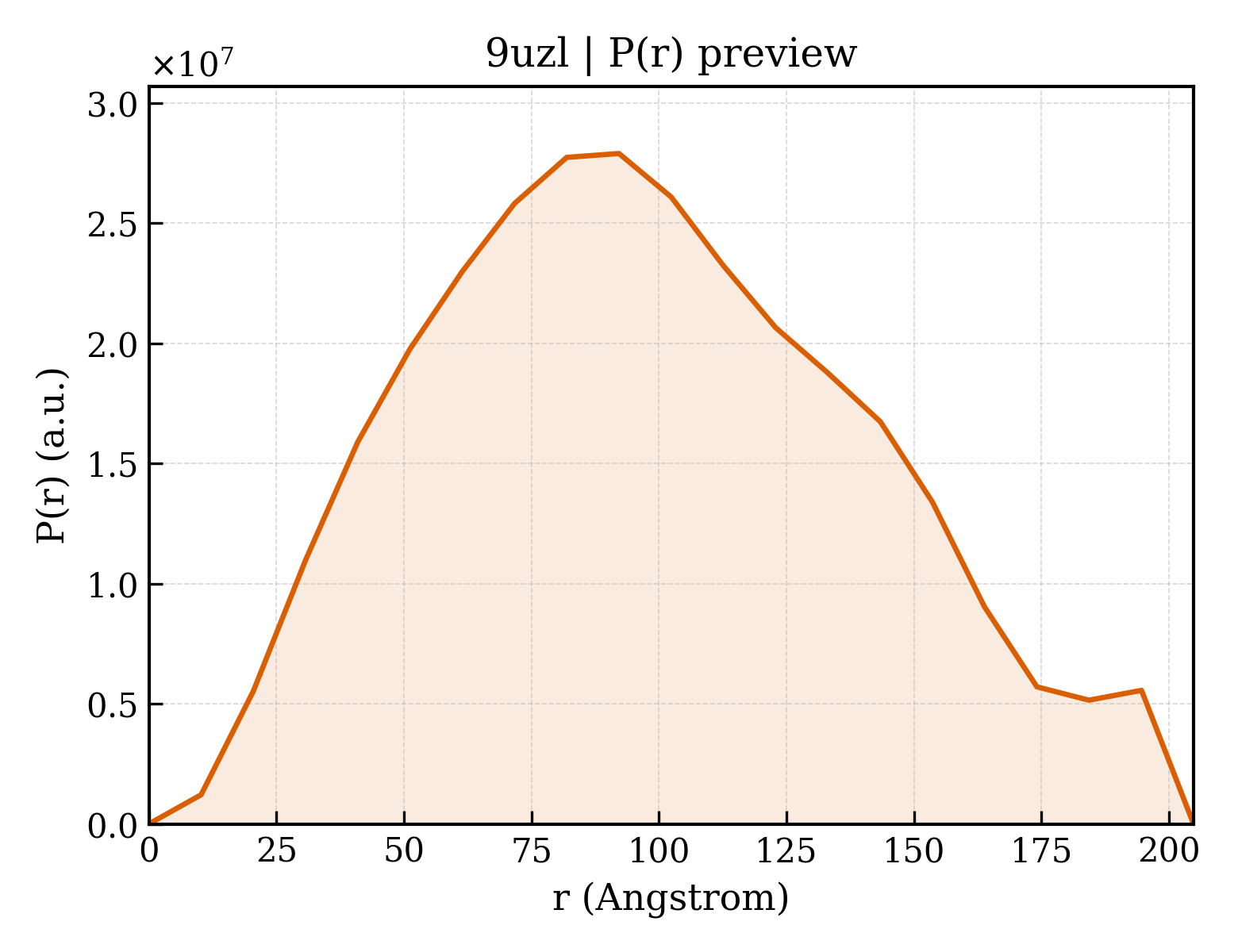

P(r) Distribution

P(r) distribution for 9uzl

1. Structure Basics

entry_id9uzl
deposition_date2025-05-16
titleEMCV IRES captured on mammalian 40S ribosome with initiator tRNA and eIF2
keywordsEMCV IRES, 40S ribosome, 48S PIC, RIBOSOME; RIBOSOME
methodELECTRON MICROSCOPY

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier78.01
rg_electron79.10
i040240600000.00
molecular_weight1228700.0 kDa
excluded_volume1340600 ų
envelope_volume2354500 ų
shell_volume238330 ų
envelope_diameter277.7
shell_rg81.31
envelope_rg78.66
shape_rg79.18
total_rg78.93
total_atoms83705
n_residues7572
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax204.8
rg_real75.09
rg_real_error0.58
i0_real3.8880e+10
i0_real_error6.7100e+08
rg_reciprocal77.69
i0_reciprocal40200000000.0000
total_estimate0.9099
solution_quality EXCELLENT a EXCELLENT solution
n_peaks2
r_peak_primary92.2
skewness0.254
kurtosis-0.589
angular_range— – 0.1000 −1
current_alpha0.2325
highest_alpha2442000000.0000
n_real_points21
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.985; Stabil: 0.984; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.004
