9v3u

Crystal structure of the aromatic prenyltransferase AtaPT(M7) mutant from Aspergillus terreus in complex with GSPP

Method: X-RAY DIFFRACTION Dmax: 99.7 Å Quality: GOOD

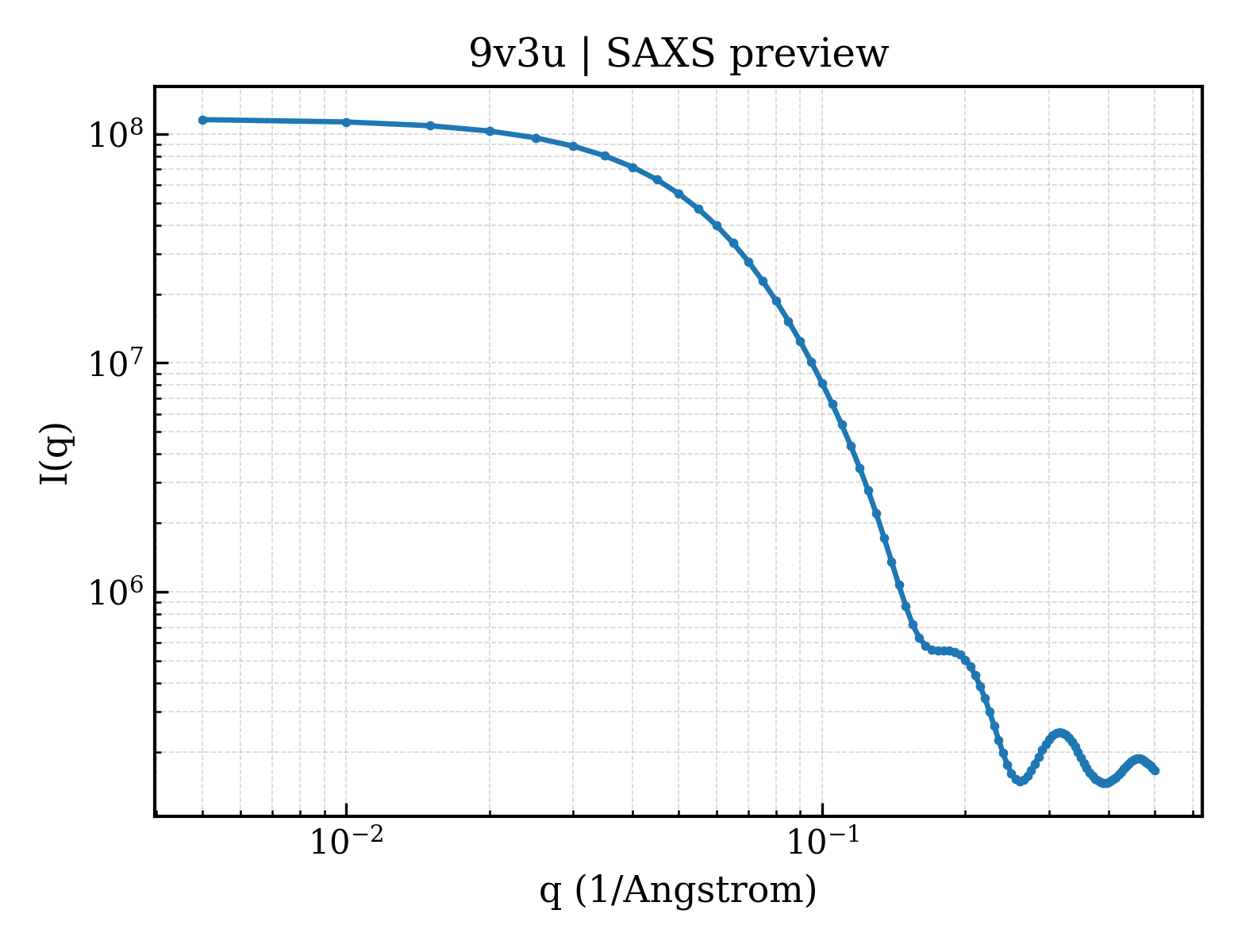

SAXS Profile

SAXS profile for 9v3u

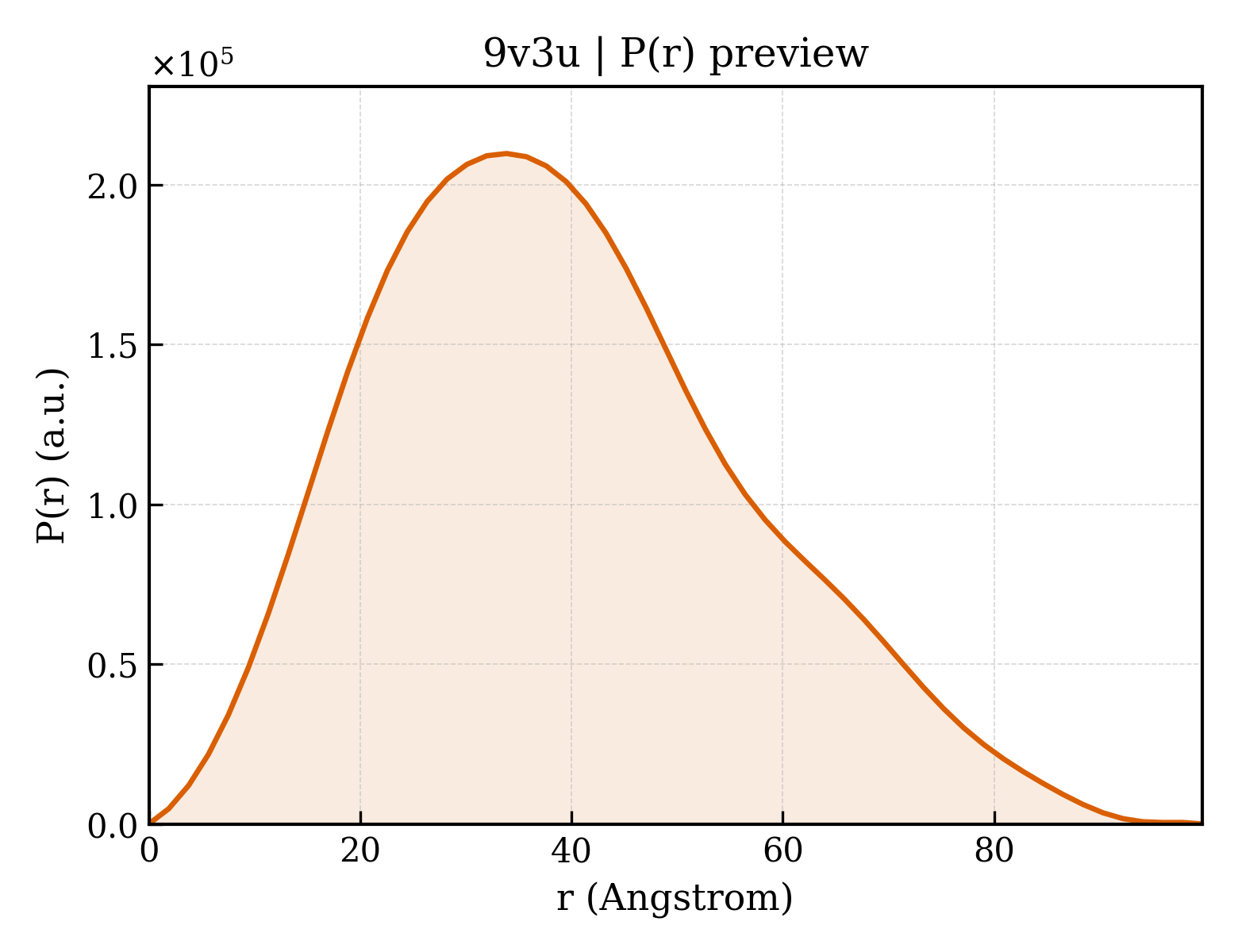

P(r) Distribution

P(r) distribution for 9v3u
▼

1. Structure Basics

entry_id9v3u
deposition_date2025-05-22
last_revision2026-05-27
titleCrystal structure of the aromatic prenyltransferase AtaPT(M7) mutant from Aspergillus terreus in complex with GSPP
keywordsaromatic prenyltransferase, TRANSFERASE; TRANSFERASE
methodX-RAY DIFFRACTION
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier30.18 Å
rg_electron29.34 Å
i0116248000.00
molecular_weight88703.0 kDa
excluded_volume112300 ų
envelope_volume134390 ų
shell_volume38307 ų
envelope_diameter102.2 Å
shell_rg36.70 Å
envelope_rg29.37 Å
shape_rg29.36 Å
total_rg29.94 Å
total_atoms6253
n_residues791
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax99.7 Å
rg_real30.24 Å
rg_real_error0.61 Å
i0_real1.1620e+08
i0_real_error1.7400e+06
rg_reciprocal30.22 Å
i0_reciprocal116200000.0000
total_estimate0.8768
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary33.9 Å
skewness0.428
kurtosis-0.309
angular_range— – 0.2650 Å−1
current_alpha0.0001
highest_alpha53860000.0000
n_real_points54
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.833; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.910
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

▶

6. Citations (1)

▶

7. Files & Curves (10)
