9v5g

Crystal structure of the aromatic prenyltransferase AtaPT(M8) mutant from Aspergillus terreus in complex with DMSPP and KMP

Method: X-RAY DIFFRACTION D_max: 99.6 Å Quality: GOOD

SAXS Profile

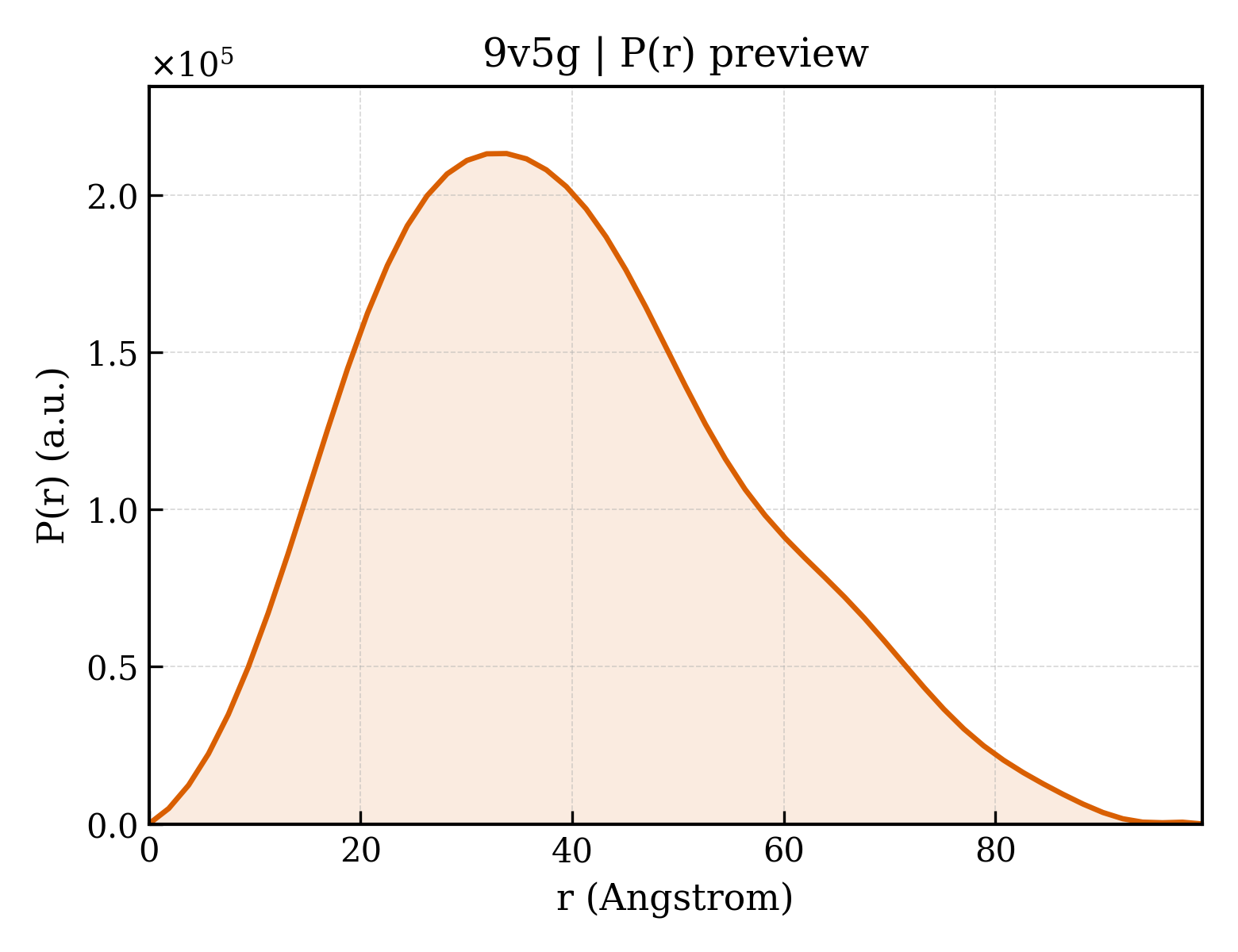

P(r) Distribution

▼

1. Structure Basics

entry_id	9v5g
deposition_date	2025-05-25
last_revision	2026-05-27
title	Crystal structure of the aromatic prenyltransferase AtaPT(M8) mutant from Aspergillus terreus in complex with DMSPP and KMP
keywords	aromatic prenyltransferase, TRANSFERASE; TRANSFERASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	30.14 Å
rg_electron	29.37 Å
i0	118471000.00
molecular_weight	89601.0 kDa
excluded_volume	113430 Å³
envelope_volume	133540 Å³
shell_volume	38104 Å³
envelope_diameter	101.2 Å
shell_rg	36.58 Å
envelope_rg	29.36 Å
shape_rg	29.38 Å
total_rg	29.98 Å
total_atoms	6320
n_residues	793
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	99.6 Å
rg_real	30.19 Å
rg_real_error	0.48 Å
i0_real	1.1850e+08
i0_real_error	1.5990e+06
rg_reciprocal	30.17 Å
i0_reciprocal	118500000.0000
total_estimate	0.8775
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	33.8 Å
skewness	0.425
kurtosis	-0.321
angular_range	— – 0.2650 Å⁻¹
current_alpha	0.0002
highest_alpha	51590000.0000
n_real_points	54
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.836; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.910

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Aromatic prenyltransferase
formula_weight	47605.6 kDa
mutation	I167A/E169A/S170Q/C175M/S177A/L323Q/P324H/N328R
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	6416

MLPPSDSKDPRPWQILSQALGFPNYDQELWWQNTAETLNRVLEQCDYSVHLQYKYLAFYHKYILPSLGPFRRPGVEPEYISGLSHGGHPLEISVKIDKSKTICRLGLQAIGPLAGTARDPLNSFGDRELLKNLATLLPHVDLRLFDHFNAQVGLDRAQCAVATTKLAKAQHNIVMTALDLKDGEVIPKVYFSTIPKGLVTETPLFDLTFAAIEQMEVYHKDAPLRTALSSLKDFLRPRVPTDASITPPLTGLIGVDCIDPMLSRLKVYLATFRMDLSLIRDYWTLGGLLTDAGTMKGLEMVETLAKTLKLGDEACETLDAERQHFGIRYAMKPGTAELAPPQIYFPLLGINDGFIADALVEFFQYMGWEDQANRYKDELKAKFPNVDISQTKNVHRWLGVAYSETKGPSMNIYYDVVAGNVARV

Source

organism	Aspergillus terreus
ncbi_taxonomy_id	33178
host_organism	Escherichia coli

Entity 2 non-polymer

description	DIMETHYLALLYL S-THIOLODIPHOSPHATE
formula_weight	262.2 kDa
src_method	syn
entity_count	2

Entity 3 non-polymer

description	3,5,7-TRIHYDROXY-2-(4-HYDROXYPHENYL)-4H-CHROMEN-4-ONE
formula_weight	286.2 kDa
src_method	syn
entity_count	2

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	96

▶

6. Citations (1)

▶

length_a	71.710 Å
length_b	95.590 Å
length_c	137.958 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	P 2 21 21
int_tables_number	18
crystal_system	orthorhombic

resolution	2.500 Å
resolution_low	44.105 Å
r_factor	0.2082
r_work	0.2053
r_free	0.2520

fit	/app/data/saxs_computation/v5/9v5g/9v5g.fit
pddf	/app/data/pr_computation/v5/9v5g/9v5g.pr.out
profile	/app/data/saxs_computation/v5/9v5g/9v5g.dat
