9v72

Structural basis of signal activation and transduction by chitin elicitor receptor kinase 1 in Oryza sativa

Method: X-RAY DIFFRACTION D_max: 86.6 Å Quality: EXCELLENT

SAXS Profile

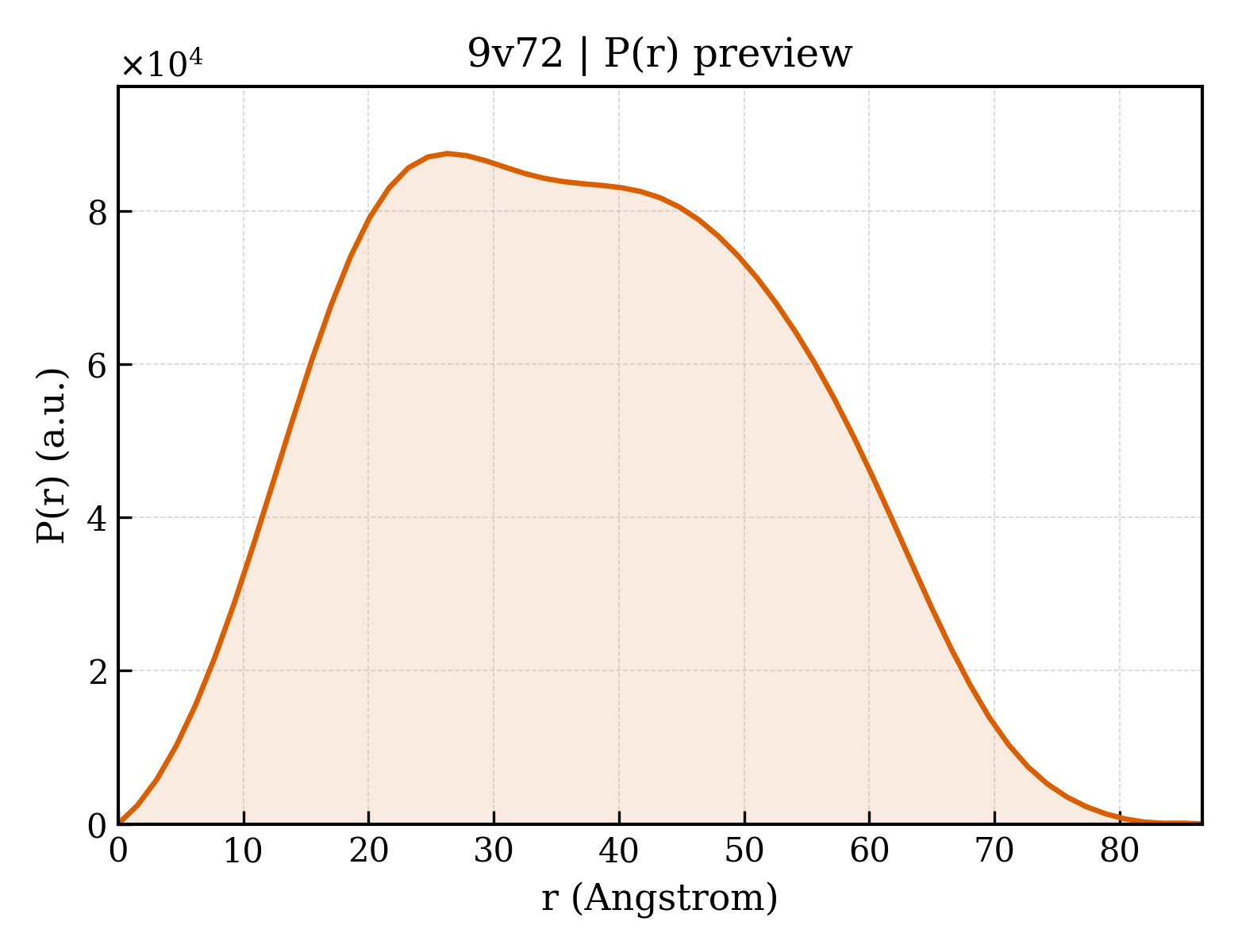

P(r) Distribution

▼

1. Structure Basics

entry_id	9v72
deposition_date	2025-05-27
title	Structural basis of signal activation and transduction by chitin elicitor receptor kinase 1 in Oryza sativa
keywords	OsCERK1-KD-ADP complex, the kinase domain of OsCERK1 bound to ADP in the normally purified state, TRANSFERASE; TRANSFERASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	28.36 Å
rg_electron	27.35 Å
i0	52098200.00
molecular_weight	57507.0 kDa
excluded_volume	72705 Å³
envelope_volume	94669 Å³
shell_volume	28985 Å³
envelope_diameter	85.3 Å
shell_rg	34.60 Å
envelope_rg	26.81 Å
shape_rg	27.37 Å
total_rg	28.15 Å
total_atoms	4050
n_residues	507
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	86.6 Å
rg_real	28.28 Å
rg_real_error	0.55 Å
i0_real	5.2100e+07
i0_real_error	7.0820e+05
rg_reciprocal	28.31 Å
i0_reciprocal	52100000.0000
total_estimate	0.9056
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	26.3 Å
skewness	0.146
kurtosis	-0.770
angular_range	— – 0.2800 Å⁻¹
current_alpha	0.0000
highest_alpha	24010000.0000
n_real_points	57
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.961; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.901

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Chitin elicitor receptor kinase 1
formula_weight	33478.2 kDa
ec_number	2.7.11.1
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	4050

GITVDKSVEFSYEELSNATQGFSIGNKIGQGGFGAVYYAELRGEKAAIKKMDMQATHEFLAELKVLTHVHHLNLVRLIGYCIESSLFLVYEFIENGNLSQHLRGMGYEPLSWAARIQIALDSARGLEYIHEHTVPVYIHRDIKSANILIDKNYRAKVADFGLTKLTEVGGTSMPTGTRVVGTFGYMPPEYARYGDVSPKVDVYAFGVVLYELISAKEAIVRSTESSSDSKGLVYLFEEALNSPDPKEGLRTLIDPKLGEDYPIDSILKLTQLAKVCTQEDPKLRPSMRSVVVALMTLSSTSE

Source

organism	Oryza sativa Japonica Group
common_name	Japanese rice
ncbi_taxonomy_id	39947
host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 2 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	ADENOSINE-5'-DIPHOSPHATE
formula_weight	427.2 kDa
src_method	syn
entity_count	2

▶

6. Citations (1)

▶

length_a	109.222 Å
length_b	109.222 Å
length_c	119.646 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	12

space_group	P 31 2 1
int_tables_number	152
crystal_system	—

resolution	2.755 Å
resolution_low	50.560 Å
r_factor	0.2439
r_work	0.2405
r_free	0.2730

fit	/app/data/saxs_computation/v7/9v72/9v72.fit
pddf	/app/data/pr_computation/v7/9v72/9v72.pr.out
profile	/app/data/saxs_computation/v7/9v72/9v72.dat
