SAXSdb — 9w98

▼

1. Structure Basics

entry_id	9w98
deposition_date	2025-08-09
title	Structure of ATPCA-bound state of the human betaine/GABA transporter 1
keywords	TRANSPORT PROTEIN, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	24.29 Å
rg_electron	23.39 Å
i0	102040000.00
molecular_weight	56947.0 kDa
excluded_volume	57103 Å³
envelope_volume	87568 Å³
shell_volume	30353 Å³
envelope_diameter	87.0 Å
shell_rg	31.50 Å
envelope_rg	23.90 Å
shape_rg	23.40 Å
total_rg	24.04 Å
total_atoms	4330
n_residues	536
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	82.7 Å
rg_real	24.26 Å
rg_real_error	0.64 Å
i0_real	1.0200e+08
i0_real_error	1.4390e+06
rg_reciprocal	24.27 Å
i0_reciprocal	102000000.0000
total_estimate	0.8630
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	28.9 Å
skewness	0.393
kurtosis	-0.106
angular_range	— – 0.3250 Å⁻¹
current_alpha	0.0000
highest_alpha	16950000.0000
n_real_points	64
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.762; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.947

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	GFP,Maltose/maltodextrin-binding periplasmic protein,Sodium- and chloride-dependent betaine transporter
formula_weight	144419.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	4330

MSKGEELFTGVVPILVELDGDVNGHKFSVRGEGEGDATIGKLTLKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKRHDFFKSAMPEGYVQERTISFKDDGKYKTRAVVKFEGDTLVNRIELKGTDFKEDGNILGHKLEYNFNSHNVYITADKQKNGIKANFTVRHNVEGSGHHHHHHHHADRKAAVSHWQQSSGLVPRGSGWSHPQFEKGSGDYKDDDDKGSGWSHPQFEKGSGDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQTKLSKDPNEKRDHMVLHEYVNAAGITGSMKIEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEEKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKLIAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGETAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLENYLLTDEGLEAVNKDKPLGAVALKSYEEELVKDPRIAATMENAQKGEIMPNIPQMSAFWYAVRTAVINAASGRQTVDEALKDAQTGGLEVLFQGPEFMDGKVAVQERGPPAVSWVPEEGEKLDQEDEDQVKDRGQWTNKMEFVLSVAGEIIGLGNVWRFPYLCYKNGGGAFFIPYFIFFFVCGIPVFFLEVALGQYTSQGSVTAWRKICPLFQGIGLASVVIESYLNVYYIIILAWALFYLFSSFTSELPWTTCNNFWNTEHCTDFLNHSGAGTVTPFENFTSPVMEFWERRVLGITSGIHDLGSLRWELALCLLLAWVICYFCIWKGVKSTGKVVYFTATFPYLMLVILLIRGVTLPGAYQGIIYYLKPDLFRLKDPQVWMDAGTQIFFSFAICQGCLTALGSYNKYHNNCYKDCIALCFLNSATSFVAGFVVFSILGFMSQEQGVPISEVAESGPGLAFIAFPKAVTMMPLSQLWSCLFFIMLIFLGLDSQFVCVECLVTASIDMFPRQLRKSGRRELLILTIAVMCYLIGLFLVTEGGMYIFQLFDYYASSGICLLFLSLFEVVCISWVYGADRFYDNIEDMIGYRPWPLVKISWLFLTPGLCLATFLFSLSKYTPLKYNNVYVYPPWGYSIGWFLALSSMVCVPLFVVITLLKTRGPFRKRLRQLITPDSSLPQPKQHPCLDGSAGRNFGPSPTREGLIAGEKETHL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 non-polymer

description	2-azanyl-1,4,5,6-tetrahydropyrimidine-5-carboxylic acid
formula_weight	143.1 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	CHLORIDE ION
formula_weight	35.5 kDa
src_method	syn
entity_count	1

Entity 4 non-polymer

description	SODIUM ION
formula_weight	23.0 kDa
src_method	syn
entity_count	2

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.710 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.71 Å
resolution_method	—
num_particles	153144

fit	/app/data/saxs_computation/w9/9w98/9w98.fit
pddf	/app/data/pr_computation/w9/9w98/9w98.pr.out
profile	/app/data/saxs_computation/w9/9w98/9w98.dat

Structure of ATPCA-bound state of the human betaine/GABA transporter 1

SAXS Profile

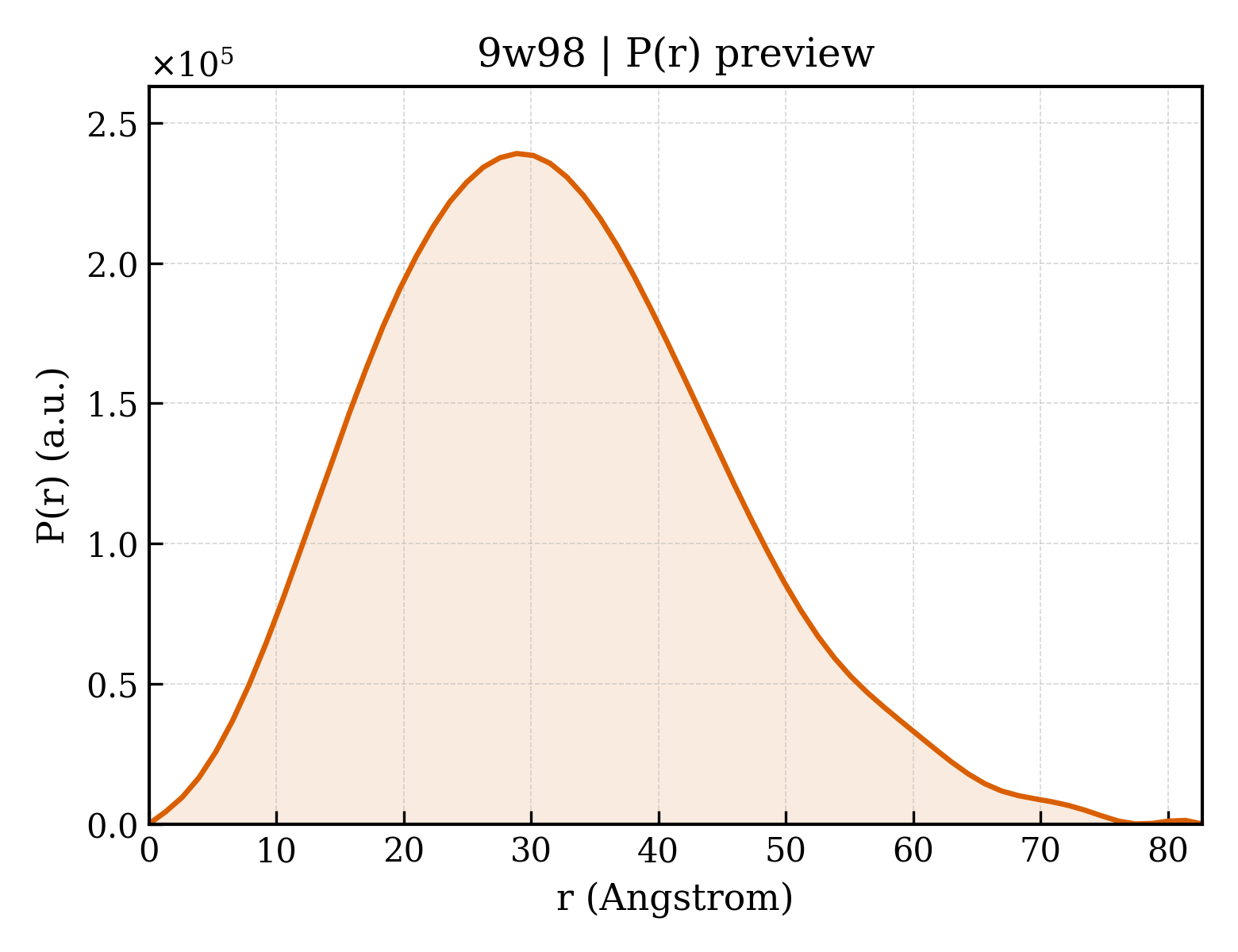

P(r) Distribution
