Structure of the apo state of human betaine/GABA transporter 1 in the occluded conformation

Method: ELECTRON MICROSCOPY D_max: 85.8 Å Quality: GOOD

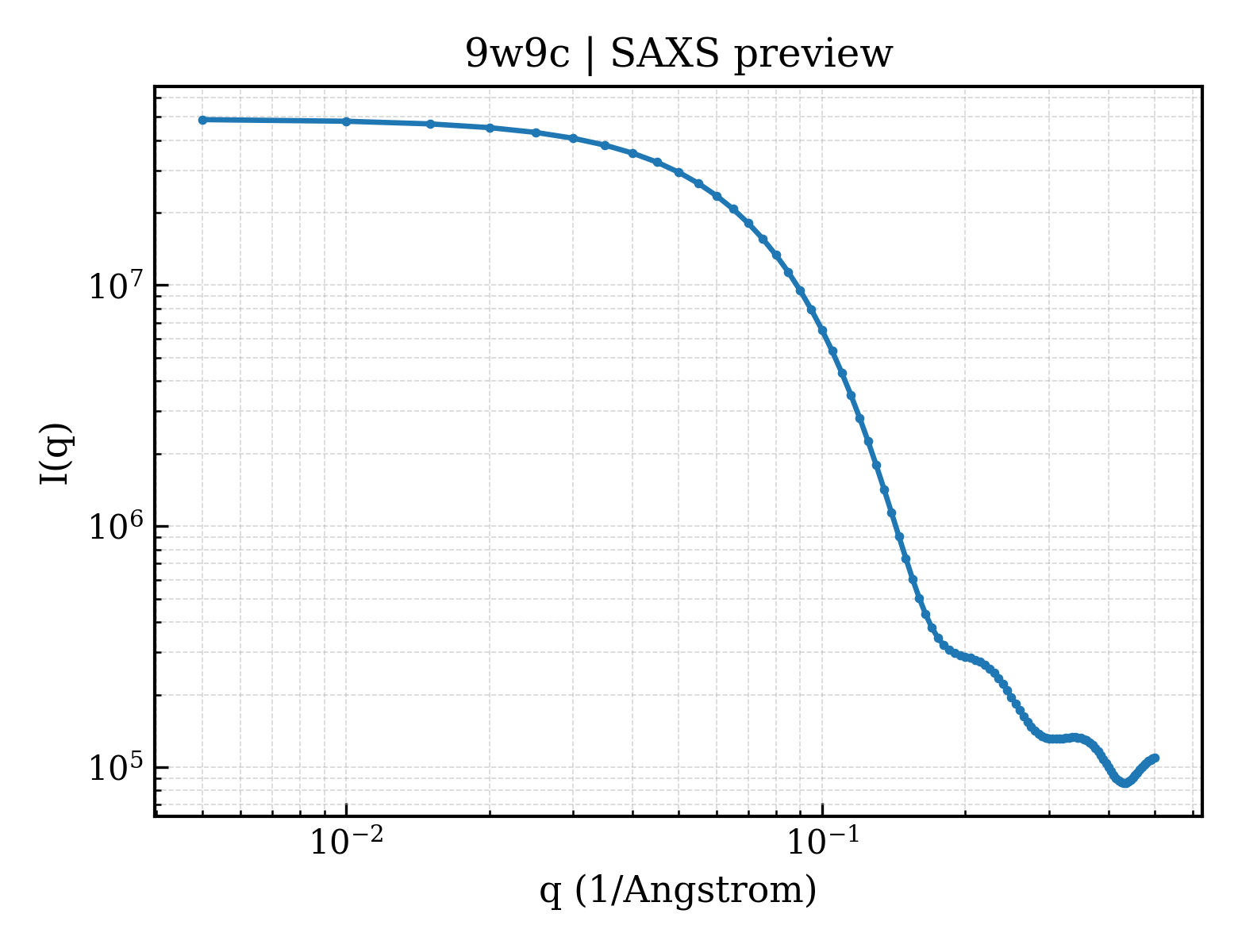

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9w9c
deposition_date	2025-08-09
title	Structure of the apo state of human betaine/GABA transporter 1 in the occluded conformation
keywords	TRANSPORT PROTEIN, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	24.68 Å
rg_electron	23.54 Å
i0	48887100.00
molecular_weight	60811.0 kDa
excluded_volume	78622 Å³
envelope_volume	88273 Å³
shell_volume	30478 Å³
envelope_diameter	88.5 Å
shell_rg	31.54 Å
envelope_rg	24.03 Å
shape_rg	23.54 Å
total_rg	24.53 Å
total_atoms	4296
n_residues	534
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	85.8 Å
rg_real	24.67 Å
rg_real_error	0.52 Å
i0_real	4.8890e+07
i0_real_error	6.4380e+05
rg_reciprocal	24.67 Å
i0_reciprocal	48890000.0000
total_estimate	0.8586
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	28.6 Å
skewness	0.408
kurtosis	-0.103
angular_range	— – 0.3200 Å⁻¹
current_alpha	0.0000
highest_alpha	11240000.0000
n_real_points	64
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.732; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.963; Smooth: 0.999

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

Entity 1 polymer

description	GFP,Maltose/maltodextrin-binding periplasmic protein,Sodium- and chloride-dependent betaine transporter
formula_weight	144419.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	4296

MSKGEELFTGVVPILVELDGDVNGHKFSVRGEGEGDATIGKLTLKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKRHDFFKSAMPEGYVQERTISFKDDGKYKTRAVVKFEGDTLVNRIELKGTDFKEDGNILGHKLEYNFNSHNVYITADKQKNGIKANFTVRHNVEGSGHHHHHHHHADRKAAVSHWQQSSGLVPRGSGWSHPQFEKGSGDYKDDDDKGSGWSHPQFEKGSGDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQTKLSKDPNEKRDHMVLHEYVNAAGITGSMKIEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEEKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKLIAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGETAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLENYLLTDEGLEAVNKDKPLGAVALKSYEEELVKDPRIAATMENAQKGEIMPNIPQMSAFWYAVRTAVINAASGRQTVDEALKDAQTGGLEVLFQGPEFMDGKVAVQERGPPAVSWVPEEGEKLDQEDEDQVKDRGQWTNKMEFVLSVAGEIIGLGNVWRFPYLCYKNGGGAFFIPYFIFFFVCGIPVFFLEVALGQYTSQGSVTAWRKICPLFQGIGLASVVIESYLNVYYIIILAWALFYLFSSFTSELPWTTCNNFWNTEHCTDFLNHSGAGTVTPFENFTSPVMEFWERRVLGITSGIHDLGSLRWELALCLLLAWVICYFCIWKGVKSTGKVVYFTATFPYLMLVILLIRGVTLPGAYQGIIYYLKPDLFRLKDPQVWMDAGTQIFFSFAICQGCLTALGSYNKYHNNCYKDCIALCFLNSATSFVAGFVVFSILGFMSQEQGVPISEVAESGPGLAFIAFPKAVTMMPLSQLWSCLFFIMLIFLGLDSQFVCVECLVTASIDMFPRQLRKSGRRELLILTIAVMCYLIGLFLVTEGGMYIFQLFDYYASSGICLLFLSLFEVVCISWVYGADRFYDNIEDMIGYRPWPLVKISWLFLTPGLCLATFLFSLSKYTPLKYNNVYVYPPWGYSIGWFLALSSMVCVPLFVVITLLKTRGPFRKRLRQLITPDSSLPQPKQHPCLDGSAGRNFGPSPTREGLIAGEKETHL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.020 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.02 Å
resolution_method	—
num_particles	92699

fit	/app/data/saxs_computation/w9/9w9c/9w9c.fit
pddf	/app/data/pr_computation/w9/9w9c/9w9c.pr.out
profile	/app/data/saxs_computation/w9/9w9c/9w9c.dat
