SAXSdb — 6hd8

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Nanobody,Maltose/maltodextrin-binding periplasmic protein

Escherichia coli (strain K12)

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 8 其他Polymer 4	TMEM175 × 4 （E4TN31） alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose × 4 DODECYL-BETA-D-MALTOSIDE × 4 POTASSIUM ION × 8 water × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MALE_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 123–483； UniProt 32–392

TMEM175

Marivirga tractuosa DSM 4126

UniProt E4TN31

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 8 其他Polymer 4	Nanobody,Maltose/maltodextrin-binding periplasmic protein × 4 （P0AEX9） alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose × 4 DODECYL-BETA-D-MALTOSIDE × 4 POTASSIUM ION × 8 water × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	E4TN31_MARTH
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 3–248； UniProt 2–247

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6hd8
Deposition date deposition_date	2018-08-17
Structure title title	Crystal structure of the potassium channel MtTMEM175 in complex with a Nanobody-MBP fusion protein
Keywords keywords	lysosome, TMEM175, potassium channel, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6hd8__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

6hd8__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

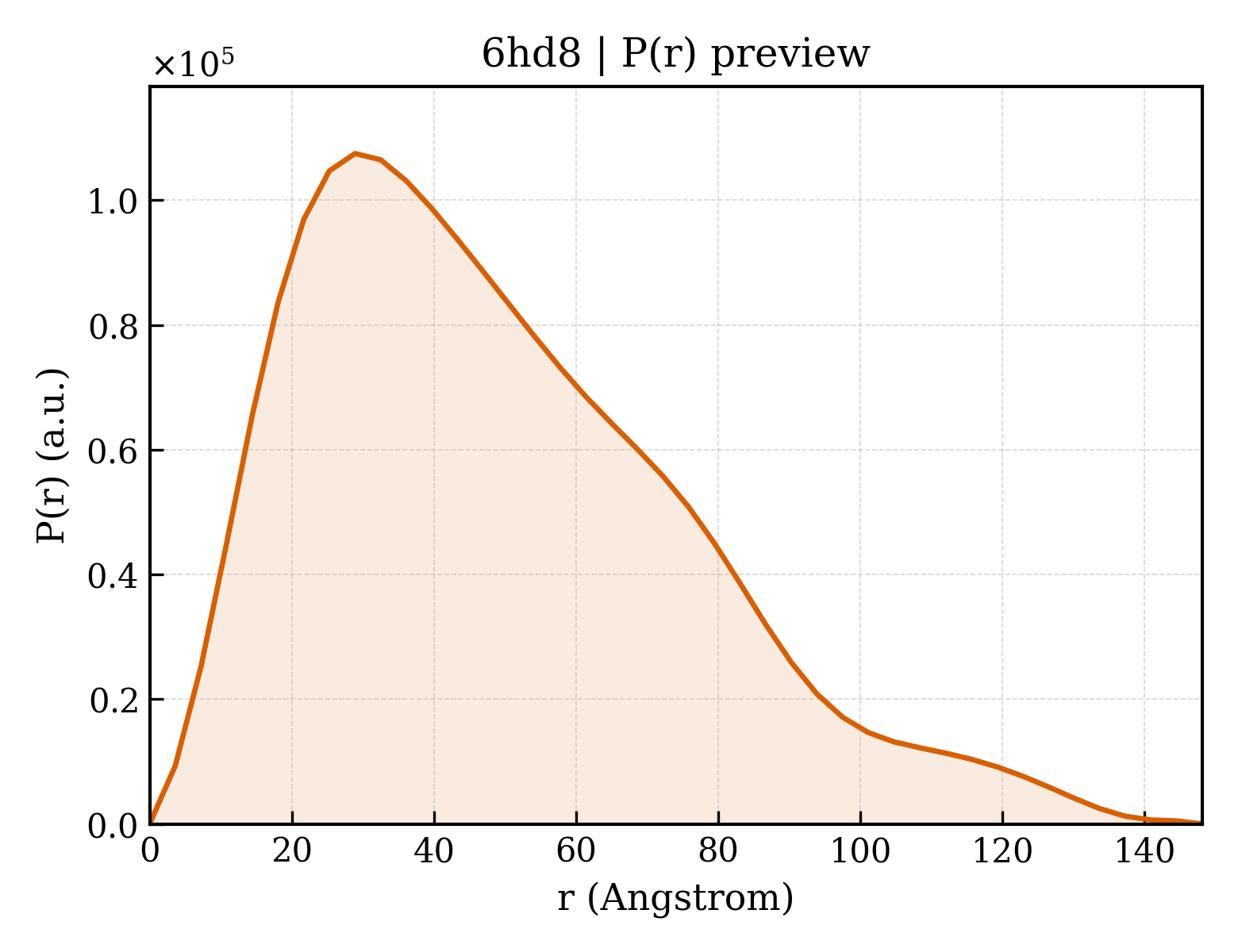

6hd8__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	51.31 Å
Rg (electron density)	50.47 Å
Total Rg	50.61 Å
Atom count	44238
Residues	2772
Excluded volume	398940 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6hd8__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Nanobody,Maltose/maltodextrin-binding periplasmic protein
Molecular weight formula_weight	53267.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	11201

GPSQRQLVESGGGLVQPGGSLRLSCAASGSILYFNRMGWYRQAPGKQRELVAAITSGDSTNYADPVKGRFTISRDNAKNTVYLQMNSLKPEDTAVYYCNAKEKGWSFSLYDYWGQGTPVTVVKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEEKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKLIAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGETAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLENYLLTDEGLEAVNKDKPLGAVALKSYEEELAKDPRIAATMENAQKGEIMPNIPQMSAFWYAVRTAVINAASGRQTVDEALKDAQTPGA

Source Source

Source organism organism	Escherichia coli (strain K12)
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli MC1061

Entity 2 Entity 2 polymer

Description description	TMEM175
Molecular weight formula_weight	29481.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MSRKVFETVVGLNPNFSFRGKQQTRIETFSDAVFALAITLLVLSSTIPETFEDLWASMRDVIPFAICVALIIVIWYQHYIFFLKYGLQDKVTILLNTILLFVLLVYVYPLKFLARFLSEIYGGIFGIIETDLSRFGEYSHQNLKLLMVNYGLGAFAIFLVFSLMYWRAYKMKSLLDLNSYEIFDTKSSIIANLLMCSVPLLSLIITLIDPWGNFRTTILSGFLYFLYVPIMIVFGRITSKKSRRLLQDALEVLFQ

Source Source

Source organism organism	Marivirga tractuosa DSM 4126
Common name common_name	Microscilla tractuosa
NCBI taxonomy ID ncbi_taxonomy_id	643867
Host organism host_organism	Escherichia coli MC1061

Entity 3 Entity 3 branched

Description description	alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose
Molecular weight formula_weight	342.3 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	DODECYL-BETA-D-MALTOSIDE
Molecular weight formula_weight	510.6 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	140

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	6hd8A01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6hd8A02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

▶

Unit-cell length a length_a	131.210 Å
Unit-cell length b length_b	131.210 Å
Unit-cell length c length_c	132.590 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 4 21 2
Space-group number int_tables_number	90
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	24.160 Å
R factor r_factor	0.2110
R_work r_work	0.2090
R_free r_free	0.2530

Crystal structure of the potassium channel MtTMEM175 in complex with a Nanobody-MBP fusion protein
