SAXSdb — 8x7v

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Maltose/maltodextrin-binding periplasmic protein,NACHT, LRR and PYD domains-containing protein 5

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 3	Oocyte-expressed protein homolog × 1 （A6NGQ2） Ubiquitin-like protein SMT3,Transducin-like enhancer protein 6 × 1 （Q12306,Q9H808）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MALE_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 22–387； UniProt 27–392

Maltose/maltodextrin-binding periplasmic protein,NACHT, LRR and PYD domains-containing protein 5

Homo sapiens

UniProt P59047

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 3	Oocyte-expressed protein homolog × 1 （A6NGQ2） Ubiquitin-like protein SMT3,Transducin-like enhancer protein 6 × 1 （Q12306,Q9H808）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NALP5_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 388–1530； UniProt 58–1200

Oocyte-expressed protein homolog

Homo sapiens

UniProt A6NGQ2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 3	Maltose/maltodextrin-binding periplasmic protein,NACHT, LRR and PYD domains-containing protein 5 × 1 （P0AEX9,P59047） Ubiquitin-like protein SMT3,Transducin-like enhancer protein 6 × 1 （Q12306,Q9H808）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	OOEP_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–149； UniProt 1–149

Ubiquitin-like protein SMT3,Transducin-like enhancer protein 6

Homo sapiens

UniProt Q12306

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 3	Maltose/maltodextrin-binding periplasmic protein,NACHT, LRR and PYD domains-containing protein 5 × 1 （P0AEX9,P59047） Oocyte-expressed protein homolog × 1 （A6NGQ2）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SMT3_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 12–109； UniProt 1–98

Ubiquitin-like protein SMT3,Transducin-like enhancer protein 6

Homo sapiens

UniProt Q9H808

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 3	Maltose/maltodextrin-binding periplasmic protein,NACHT, LRR and PYD domains-containing protein 5 × 1 （P0AEX9,P59047） Oocyte-expressed protein homolog × 1 （A6NGQ2）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TLE6_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 110–536； UniProt 146–572

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8x7v
Deposition date deposition_date	2023-11-26
Structure title title	Structure of human SCMC ternary complex
Keywords keywords	oocyte, subcortical, complex, CYTOSOLIC PROTEIN; CYTOSOLIC PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8x7v__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

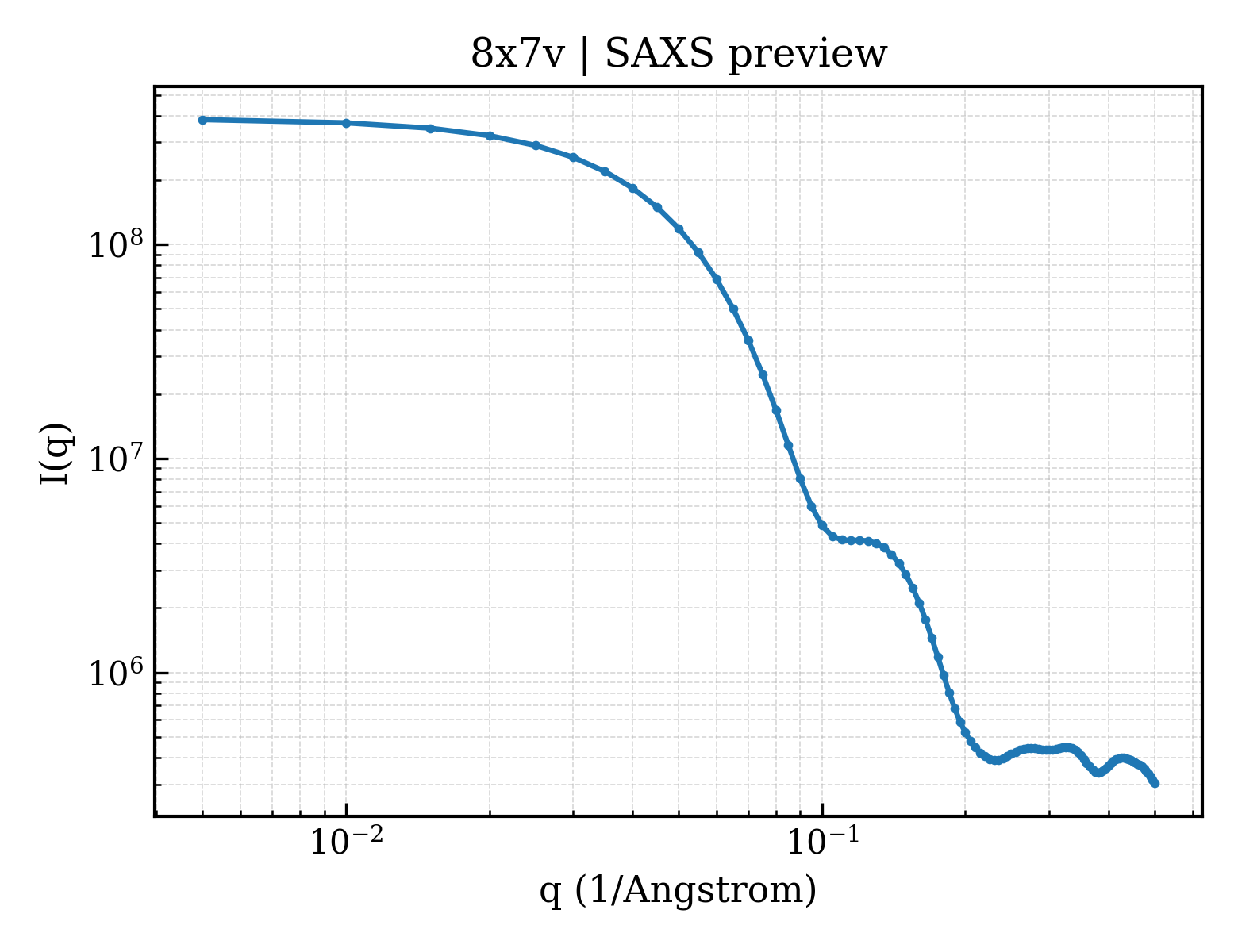

8x7v__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

8x7v__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.19 Å
Rg (electron density)	36.34 Å
Total Rg	37.01 Å
Atom count	11202
Residues	1418
Excluded volume	200150 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8x7v__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Maltose/maltodextrin-binding periplasmic protein,NACHT, LRR and PYD domains-containing protein 5
Molecular weight formula_weight	171393.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	11202

MDYKDDDDKGDYKDDDDKGSMKIEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEEKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKLIAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGETAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLENYLLTDEGLEAVNKDKPLGAVALKSYEEELAKDPRIAATMENAQKGEIMPNIPQMSAFWYAVRTAVINAASGRQTVDEALKDAQTLTFSSYGLQWCLYELDKEEFQTFKELLKKKSSESTTCSIPQFEIENANVECLALLLHEYYGASLAWATSISIFENMNLRTLSEKARDDMKRHSPEDPEATMTDQGPSKEKVPGISQAVQQDSATAAETKEQEISQAMEQEGATAAETEEQEISQAMEQEGATAAETEEQGHGGDTWDYKSHVMTKFAEEEDVRRSFENTAADWPEMQTLAGAFDSDRWGFRPRTVVLHGKSGIGKSALARRIVLCWAQGGLYQGMFSYVFFLPVREMQRKKESSVTEFISREWPDSQAPVTEIMSRPERLLFIIDGFDDLGSVLNNDTKLCKDWAEKQPPFTLIRSLLRKVLLPESFLIVTVRDVGTEKLKSEVVSPRYLLVRGISGEQRIHLLLERGIGEHQKTQGLRAIMNNRELLDQCQVPAVGSLICVALQLQDVVGESVAPFNQTLTGLHAAFVFHQLTPRGVVRRCLNLEERVVLKRFCRMAVEGVWNRKSVFDGDDLMVQGLGESELRALFHMNILLPDSHCEEYYTFFHLSLQDFCAALYYVLEGLEIEPALCPLYVEKTKRSMELKQAGFHIHSLWMKRFLFGLVSEDVRRPLEVLLGCPVPLGVKQKLLHWVSLLGQQPNATTPGDTLDAFHCLFETQDKEFVRLALNSFQEVWLPINQNLDLIASSFCLQHCPYLRKIRVDVKGIFPRDESAEACPVVPLWMRDKTLIEEQWEDFCSMLGTHPHLRQLDLGSSILTERAMKTLCAKLRHPTCKIQTLMFRNAQITPGVQHLWRIVMANRNLRSLNLGGTHLKEEDVRMACEALKHPKCLLESLRLDCCGLTHACYLKISQILTTSPSLKSLSLAGNKVTDQGVMPLSDALRVSQCALQKLILEDCGITATGCQSLASALVSNRSLTHLCLSNNSLGNEGVNLLCRSMRLPHCSLQRLMLNQCHLDTAGCGFLALALMGNSWLTHLSLSMNPVEDNGVKLLCEVMREPSCHLQDLELVKCHLTAACCESLSCVISRSRHLKSLDLTDNALGDGGVAALCEGLKQKNSVLARLGLKACGLTSDCCEALSLALSCNRHLTSLNLVQNNFSPKGMMKLCSAFACPTSNLQIIGLWKWQYPVQIRKLLEEVQLLKPRVVIDGSWHSFDEDDRYWWKN

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Oocyte-expressed protein homolog
Molecular weight formula_weight	18479.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MVDDAGAAESQRGKQTPAHSLEQLRRLPLPPPQIRIRPWWFPVQELRDPLVFYLEAWLADELFGPDRAIIPEMEWTSQALLTVDIVDSGNLVEITVFGRPRVQNRVKSMLLCLAWFHREHRARAEKMKHLEKNLKAHASDPHSPQDPVALEWSHPQFEK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Ubiquitin-like protein SMT3,Transducin-like enhancer protein 6
Molecular weight formula_weight	59899.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MWSHPQFEKGTMSDSEVNQEAKPEVKPEVKPETHINLKVSDGSSEIFFKIKKTTPLRRLMEAFAKRQGKEMDSLRFLYDGIRIQADQTPEDLDMEDNDIIEAHREQIGGLFWDKEPWFWHDTLTEQLWRIFAGVHDEKAKPRDRQQAPGLGQESKAPGSCDPGTDPCPEDASTPRPPEASSSPPEGSQDRNTSWGVVQEPPGRASRFLQSISWDPEDFEDAWKRPDALPGQSKRLAVPCKLEKMRILAHGELVLATAISSFTRHVFTCGRRGIKVWSLTGQVAEDRFPESHLPIQTPGAFLRTCLLSSNSRSLLTGGYNLASVSVWDLAAPSLHVKEQLPCAGLNCQALDANLDANLAFASFTSGVVRIWDLRDQSVVRDLKGYPDGVKSIVVKGYNIWTGGPDACLRCWDQRTIMKPLEYQFKSQIMSLSHSPQEDWVLLGMANGQQWLQSTSGSQRHMVGQKDSVILSVKFSPFGQWWASVGMDDFLGVYSMPAGTKVFEVPEMSPVTCCDVSSNNRLVVTGSGEHASVYQITY

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.01 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	280159
