9wq0

cryo-EM structure of human organic solute transporter in complex with ethinylestradiol

Method: ELECTRON MICROSCOPY D_max: 93.0 Å Quality: EXCELLENT

SAXS Profile

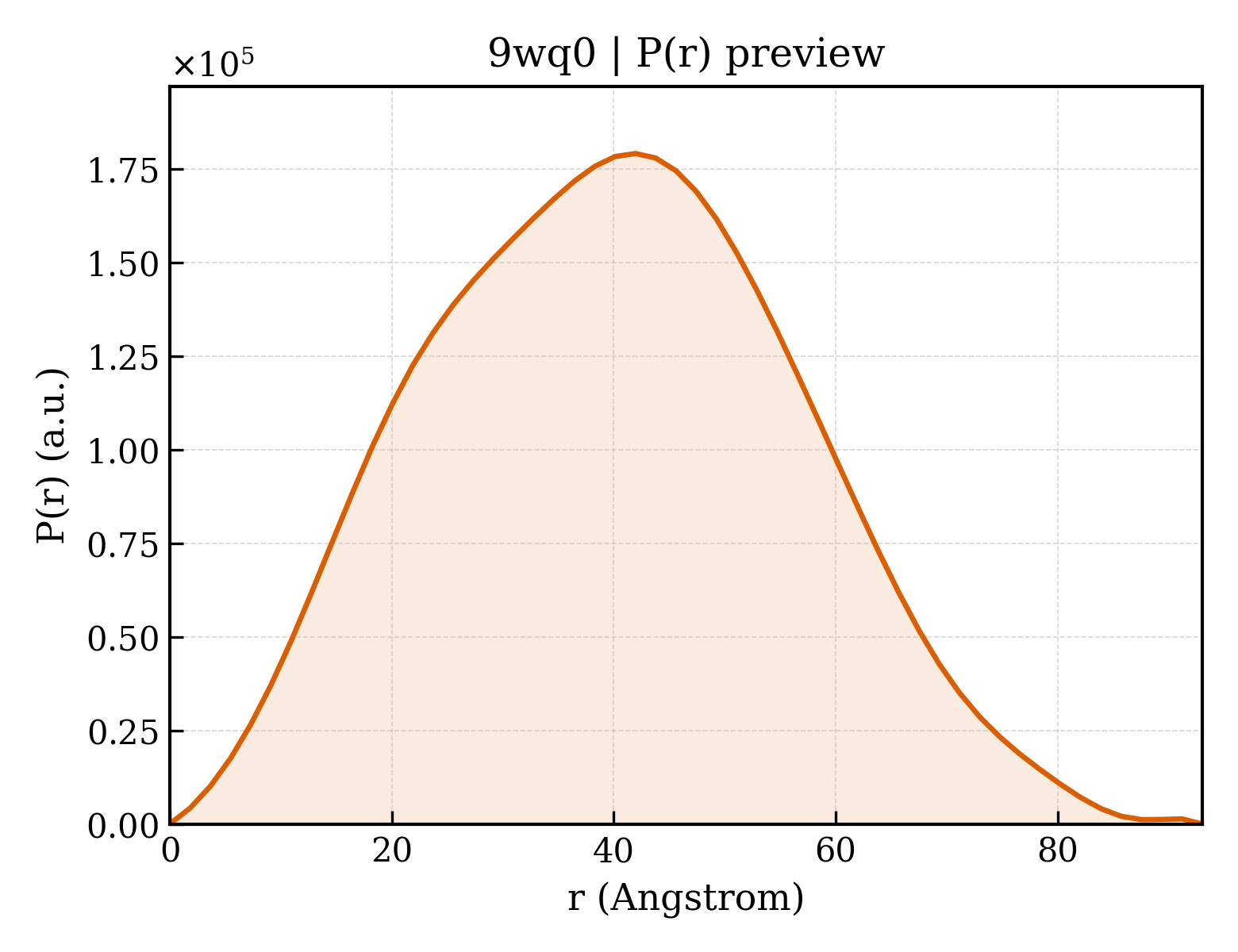

P(r) Distribution

▼

1. Structure Basics

entry_id	9wq0
deposition_date	2025-09-10
title	cryo-EM structure of human organic solute transporter in complex with ethinylestradiol
keywords	ethinylestradiol, TRANSPORTER, TRANSPORT PROTEIN; TRANSPORT PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	30.77 Å
rg_electron	28.85 Å
i0	99904100.00
molecular_weight	97159.0 kDa
excluded_volume	129830 Å³
envelope_volume	158430 Å³
shell_volume	44226 Å³
envelope_diameter	97.3 Å
shell_rg	37.48 Å
envelope_rg	28.86 Å
shape_rg	28.83 Å
total_rg	29.93 Å
total_atoms	6818
n_residues	760
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	93.0 Å
rg_real	30.60 Å
rg_real_error	0.56 Å
i0_real	9.9900e+07
i0_real_error	1.4100e+06
rg_reciprocal	30.68 Å
i0_reciprocal	99910000.0000
total_estimate	0.9071
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	42.0 Å
skewness	0.123
kurtosis	-0.507
angular_range	— – 0.2550 Å⁻¹
current_alpha	0.0000
highest_alpha	24860000.0000
n_real_points	52
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.959; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.915

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	Organic solute transporter subunit alpha
formula_weight	37768.9 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,C
atom_count	6818

MEPGRTQIKLDPRYTADLLEVLKTNYGIPSACFSQPPTAAQLLRALGPVELALTSILTLLALGSIAIFLEDAVYLYKNTLCPIKRRTLLWKSSAPTVVSVLCCFGLWIPRSLVLVEMTITSFYAVCFYLLMLVMVEGFGGKEAVLRTLRDTPMMVHTGPCCCCCPCCPRLLLTRKKLQLLMLGPFQYAFLKITLTLVGLFLVPDGIYDPADISEGSTALWINTFLGVSTLLALWTLGIISRQARLHLGEQNMGAKFALFQVLLILTALQPSIFSVLANGGQIACSPPYSSKTRSQVMNCHLLILETFLMTVLTRMYYRRKDHKVGYETFSSPDLDLNLKA

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 polymer

description	Organic solute transporter subunit beta
formula_weight	14361.3 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	B,D

MEHSEGAPGDPAGTVVPQELLEEMLWFFRVEDASPWNHSILALAAVVVIISMVLLGRSIQASRKEKMQPPEKETPEVLHLDEAKDHNSLNNLRETLLSEKPNLAQVELELKERDVLSVFLPDVPETES

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 3 non-polymer

description	CHOLESTEROL
formula_weight	386.7 kDa
src_method	syn
entity_count	10

Entity 4 non-polymer

description	PALMITIC ACID
formula_weight	256.4 kDa
src_method	syn
entity_count	14

Entity 5 non-polymer

description	(2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate
formula_weight	760.1 kDa
src_method	syn
entity_count	6

Entity 6 non-polymer

description	Ethinyl estradiol
formula_weight	296.4 kDa
src_method	syn
entity_count	4

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.680 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.68 Å
resolution_method	—
num_particles	1844744

fit	/app/data/saxs_computation/wq/9wq0/9wq0.fit
pddf	/app/data/pr_computation/wq/9wq0/9wq0.pr.out
profile	/app/data/saxs_computation/wq/9wq0/9wq0.dat
