9wz7
Full-length ASCb filament

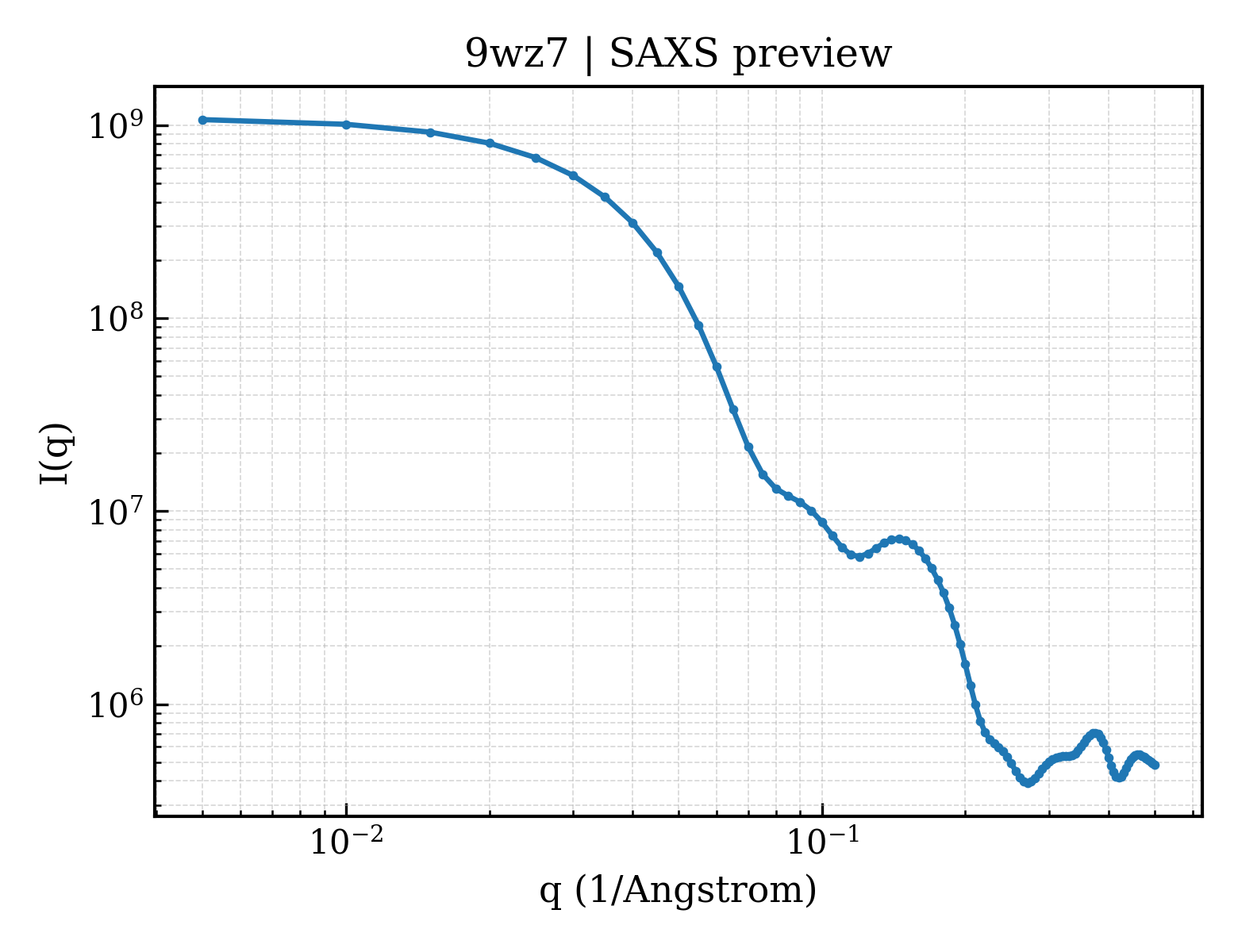

SAXS Profile

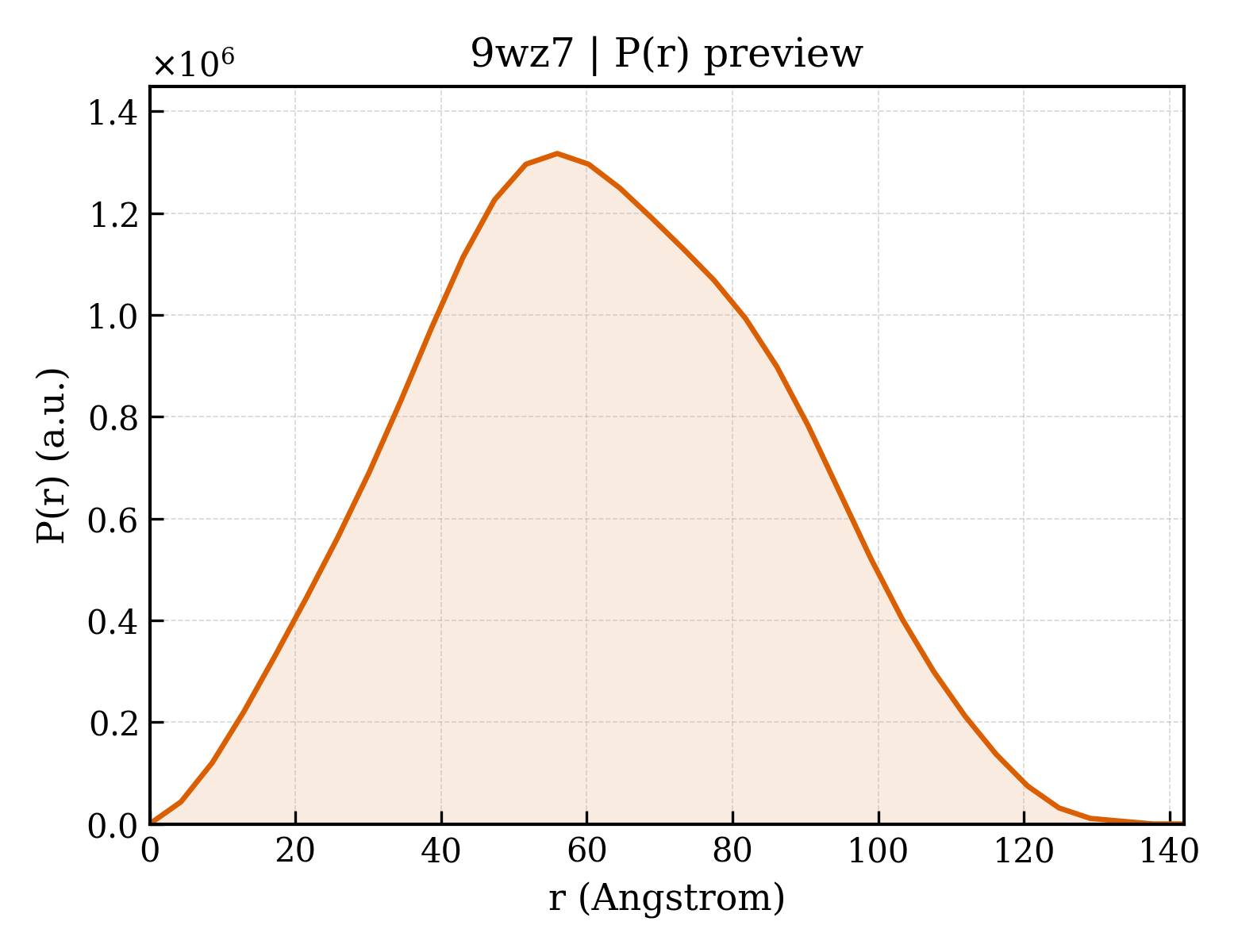

P(r) Distribution
1. Structure Basics
| entry_id | 9wz7 |
| deposition_date | 2025-09-29 |
| last_revision | 2025-12-10 |
| title | Full-length ASCb filament |
| keywords | filament, PYD, CARD, IMMUNE SYSTEM; IMMUNE SYSTEM |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 47.34 Å |
| rg_electron | 46.55 Å |
| i0 | 1088460000.00 |
| molecular_weight | 277860.0 kDa |
| excluded_volume | 350000 ų |
| envelope_volume | 512320 ų |
| shell_volume | 89322 ų |
| envelope_diameter | 144.5 Å |
| shell_rg | 53.14 Å |
| envelope_rg | 45.22 Å |
| shape_rg | 46.61 Å |
| total_rg | 46.63 Å |
| total_atoms | 19558 |
| n_residues | 2450 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 142.0 Å |
| rg_real | 47.01 Å |
| rg_real_error | 0.86 Å |
| i0_real | 1.0880e+09 |
| i0_real_error | 1.6690e+07 |
| rg_reciprocal | 47.34 Å |
| i0_reciprocal | 1089000000.0000 |
| total_estimate | 0.8765 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 56.0 Å |
| skewness | 0.094 |
| kurtosis | -0.557 |
| angular_range | — – 0.1650 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 92910000.0000 |
| n_real_points | 34 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.948; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.962; Smooth: 0.586 |
