9wz8
Full-length ASC-GFP PYD-filament

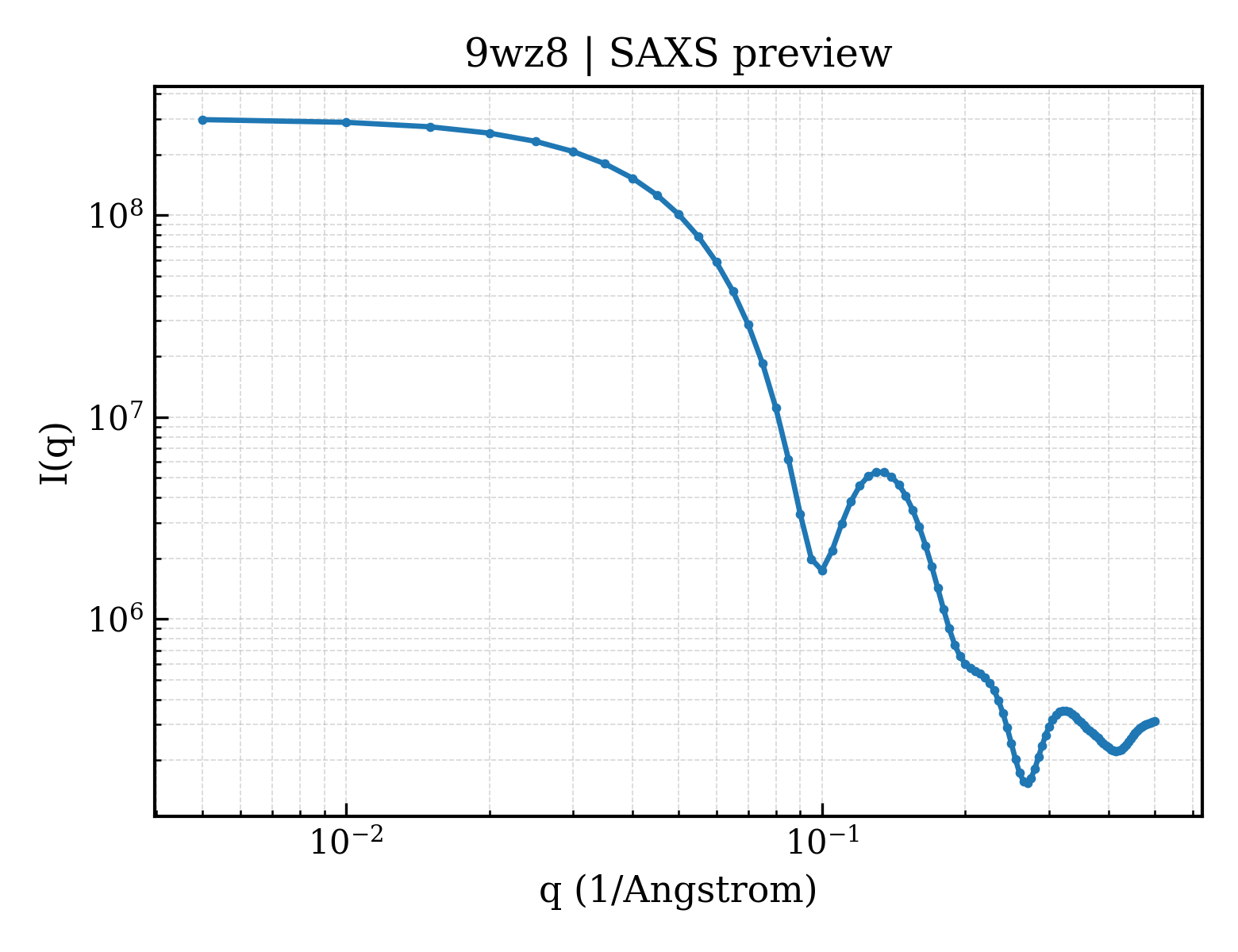

SAXS Profile

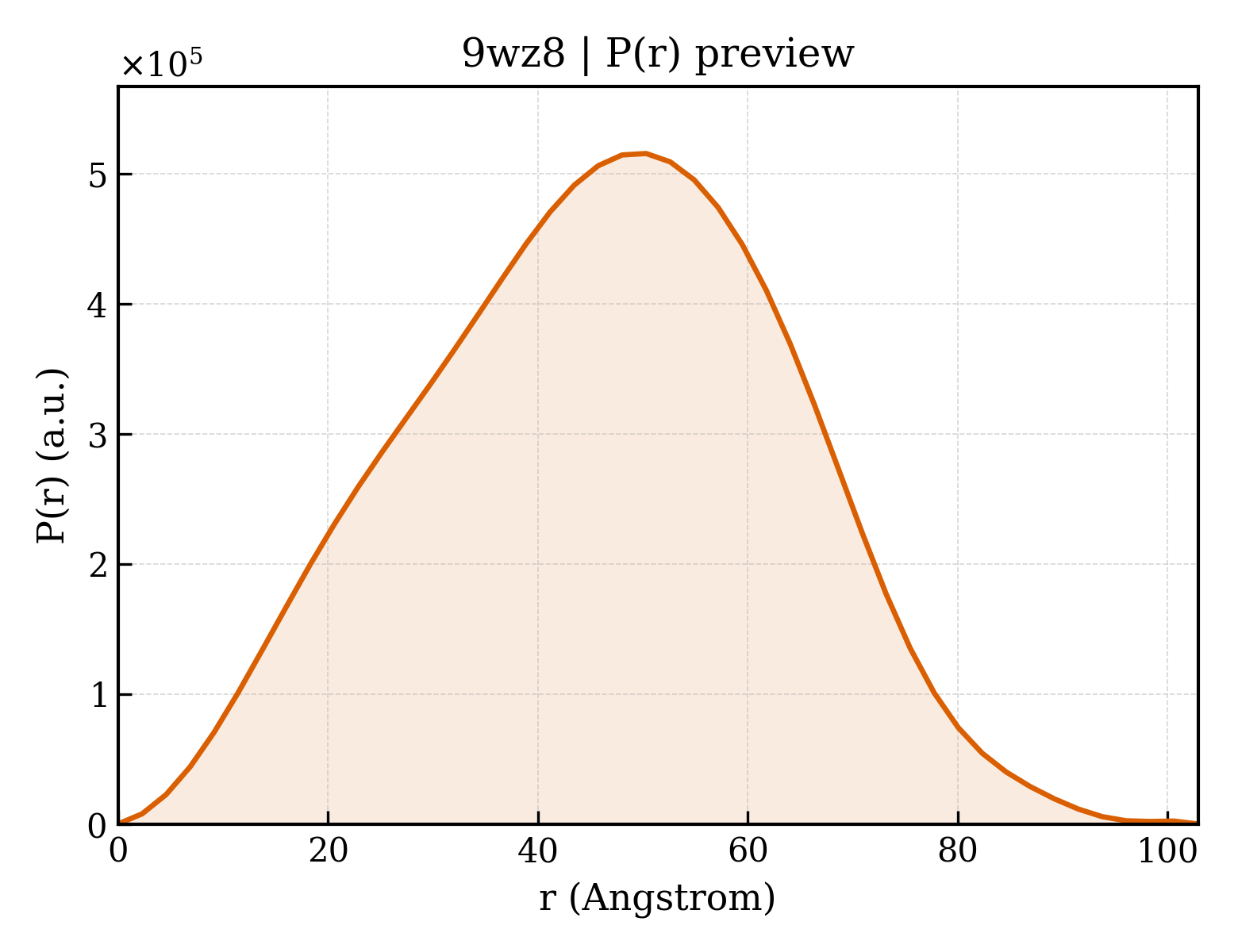

P(r) Distribution
1. Structure Basics
| entry_id | 9wz8 |
| deposition_date | 2025-09-29 |
| last_revision | 2025-12-10 |
| title | Full-length ASC-GFP PYD-filament |
| keywords | filament, PYD, CARD, IMMUNE SYSTEM; IMMUNE SYSTEM |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 35.15 Å |
| rg_electron | 33.69 Å |
| i0 | 300995000.00 |
| molecular_weight | 140850.0 kDa |
| excluded_volume | 177610 ų |
| envelope_volume | 240760 ų |
| shell_volume | 57303 ų |
| envelope_diameter | 109.4 Å |
| shell_rg | 42.36 Å |
| envelope_rg | 32.70 Å |
| shape_rg | 33.73 Å |
| total_rg | 34.23 Å |
| total_atoms | 9870 |
| n_residues | 1274 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 102.9 Å |
| rg_real | 34.85 Å |
| rg_real_error | 0.53 Å |
| i0_real | 3.0100e+08 |
| i0_real_error | 4.6120e+06 |
| rg_reciprocal | 35.04 Å |
| i0_reciprocal | 301000000.0000 |
| total_estimate | 0.8912 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 50.3 Å |
| skewness | -0.051 |
| kurtosis | -0.510 |
| angular_range | — – 0.2250 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 75540000.0000 |
| n_real_points | 46 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.908; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.958; Smooth: 0.901 |
