9wzh
Full-length ASC-CARD filament
SAXS Profile

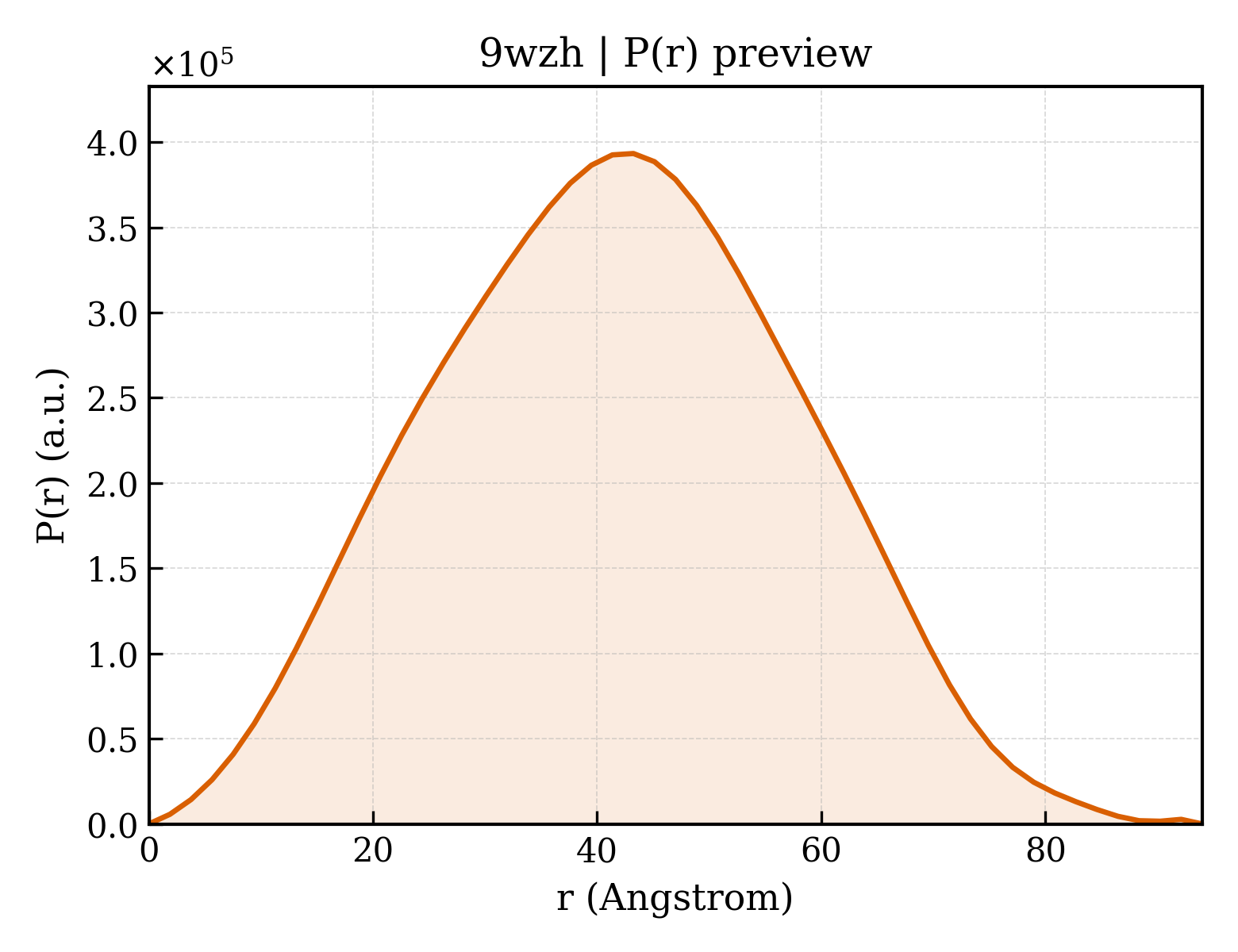

P(r) Distribution
1. Structure Basics
| entry_id | 9wzh |
| deposition_date | 2025-09-29 |
| last_revision | 2025-12-10 |
| title | Full-length ASC-CARD filament |
| keywords | filament, PYD, CARD, IMMUNE SYSTEM; IMMUNE SYSTEM |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 31.90 Å |
| rg_electron | 30.77 Å |
| i0 | 209222000.00 |
| molecular_weight | 116760.0 kDa |
| excluded_volume | 147110 ų |
| envelope_volume | 195630 ų |
| shell_volume | 51108 ų |
| envelope_diameter | 98.0 Å |
| shell_rg | 39.33 Å |
| envelope_rg | 30.21 Å |
| shape_rg | 30.80 Å |
| total_rg | 31.49 Å |
| total_atoms | 8256 |
| n_residues | 996 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 94.0 Å |
| rg_real | 31.62 Å |
| rg_real_error | 0.41 Å |
| i0_real | 2.0920e+08 |
| i0_real_error | 2.6810e+06 |
| rg_reciprocal | 31.74 Å |
| i0_reciprocal | 209200000.0000 |
| total_estimate | 0.8986 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 43.2 Å |
| skewness | 0.056 |
| kurtosis | -0.483 |
| angular_range | — – 0.2500 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 105600000.0000 |
| n_real_points | 51 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.934; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.966; Smooth: 0.911 |
