9x0y

Pseudomonas aeruginosa (PAO1) Outer membrane PilQ (Secretin) with SlkA in C14 symmetry

Method: ELECTRON MICROSCOPY D_max: 181.9 Å Quality: GOOD

SAXS Profile

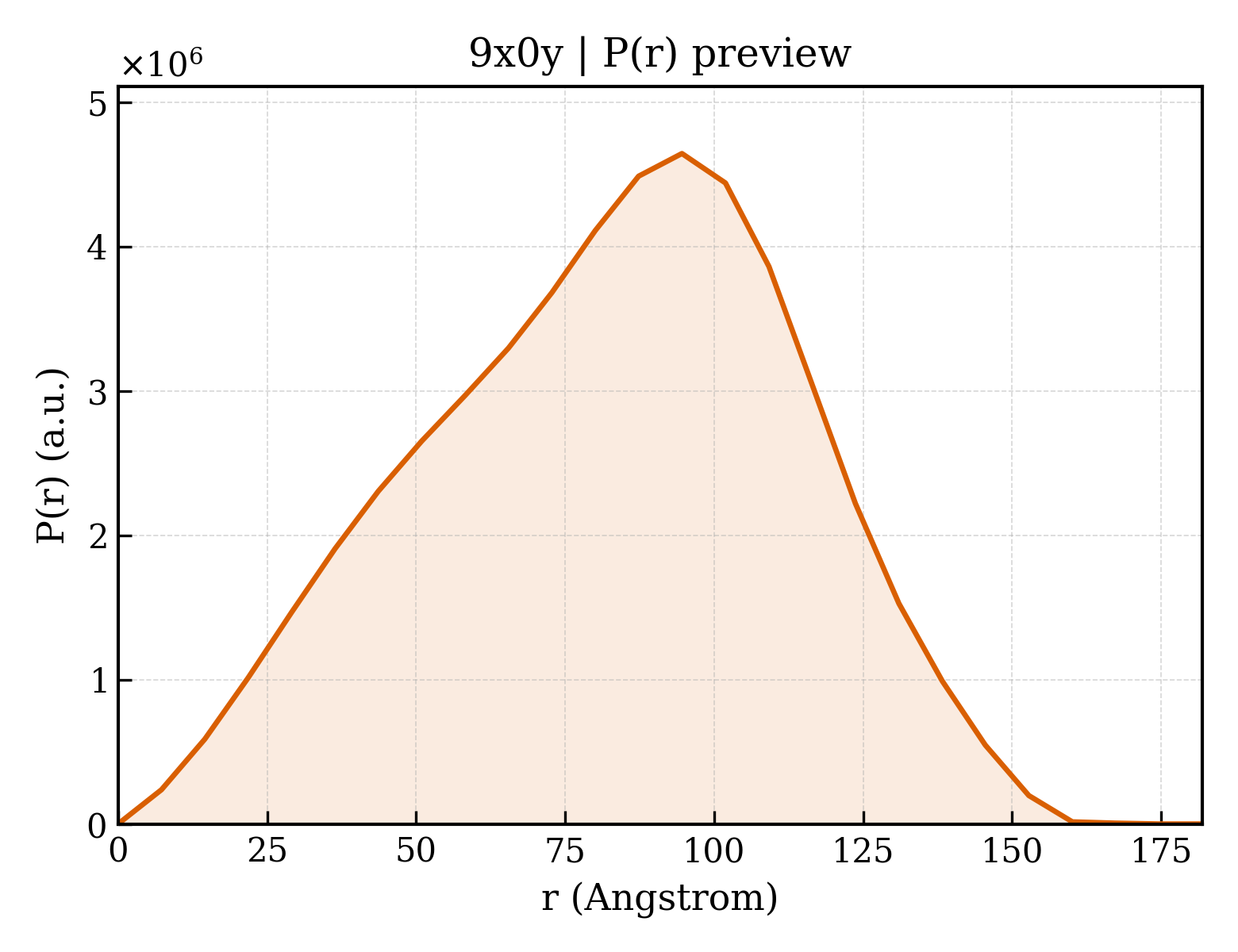

P(r) Distribution

▼

1. Structure Basics

entry_id	9x0y
deposition_date	2025-09-30
title	Pseudomonas aeruginosa (PAO1) Outer membrane PilQ (Secretin) with SlkA in C14 symmetry
keywords	type IV pili, secretin, plug, outer membrane, permeability barrier, antibiotics, drug resistance, TRANSPORT PROTEIN; TRANSPORT PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	63.08 Å
rg_electron	62.55 Å
i0	4590560000.00
molecular_weight	589870.0 kDa
excluded_volume	746510 Å³
envelope_volume	1256900 Å³
shell_volume	163480 Å³
envelope_diameter	173.2 Å
shell_rg	72.45 Å
envelope_rg	57.56 Å
shape_rg	62.55 Å
total_rg	62.73 Å
total_atoms	41454
n_residues	5390
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	181.9 Å
rg_real	62.38 Å
rg_real_error	1.15 Å
i0_real	4.5910e+09
i0_real_error	8.8710e+07
rg_reciprocal	63.66 Å
i0_reciprocal	4600000000.0000
total_estimate	0.8309
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	94.6 Å
skewness	-0.188
kurtosis	-0.584
angular_range	— – 0.1250 Å⁻¹
current_alpha	0.0000
highest_alpha	591000000.0000
n_real_points	26
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.861; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.948; Smooth: 0.266

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Fimbrial assembly protein PilQ
formula_weight	77463.7 kDa
src_method	man
entity_count	14

Polymer

type	polypeptide(L)
strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N
atom_count	41454

MNSGLSRLGIALLAAMFAPALLAADLEKLDVAALPGDRVELKLQFDEPVAAPRGYTIEQPARIALDLPGVQNKLGTKNRELSVGNTRSVTVVEAKDRTRLIINLTALSSYTTRVEGNNLFVVVGNSPAGASVASAAPVKASPAPASYAQPIKPKPYVPAGRAIRNIDFQRGEKGEGNVVIDLSDPTLSPDIQEQGGKIRLDFAKTQLPDALRVRLDVKDFATPVQFVNASAQSDRTSITIEPSGLYDYLVYQTDNRLTVSIKPMTTEDAERRKKDNFAYTGEKLSLNFQDIDVRSVLQLIADFTDLNLVASDTVQGNITLRLQNVPWDQALDLVLKTKGLDKRKLGNVLLVAPADEIAARERQELEAQKQIAELAPLRRELIQVNYAKAADIAKLFQSVTSDGGQEGKEGGRGSITVDDRTNSIIAYQPQERLDELRRIVSQLDIPVRQVMIEARIVEANVGYDKSLGVRWGGAYHKGNWSGYGKDGNIGIKDEDGMNCGPIAGSCTFPTTGTSKSPSPFVDLGAKDATSGIGIGFITDNIILDLQLSAMEKTGNGEIVSQPKVVTSDKETAKILKGSEVPYQEASSSGATSTSFKEAALSLEVTPQITPDNRIIVEVKVTKDAPDYQNMLNGVPPINKNEVNAKILVNDGETIVIGGVFSNEQSKSVEKVPFLGELPYLGRLFRRDTVTDRKNELLVFLTPRIMNNQAIAIGR

Source

organism	Pseudomonas aeruginosa PAO1
ncbi_taxonomy_id	208964
host_organism	Pseudomonas aeruginosa PAO1

Entity 2 polymer

description	Multidrug transporter
formula_weight	11599.3 kDa
src_method	man
entity_count	14

Polymer

type	polypeptide(L)
strand_id	O,P,Q,R,S,T,U,V,W,X,Y,Z,a,b

MNLFRTTALVLALTTGLSSMPALADAVQENASGDPMYTVEAPPAYAMIGDLLIARPFLIAATAVGAVAFVVSLPFTAASGSVGKAGQALVVDPGKEAFVRCLGCTTSGYNHDES

Source

organism	Pseudomonas aeruginosa PAO1
ncbi_taxonomy_id	208964
host_organism	Pseudomonas aeruginosa PAO1

Entity 3 non-polymer

description	PHOSPHATIDYLETHANOLAMINE
formula_weight	734.0 kDa
src_method	syn
entity_count	14

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	2.68 Å
resolution_method	—
num_particles	63311

fit	/app/data/saxs_computation/x0/9x0y/9x0y.fit
pddf	/app/data/pr_computation/x0/9x0y/9x0y.pr.out
profile	/app/data/saxs_computation/x0/9x0y/9x0y.dat
